Front Door Window Frame Moulding: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH  (See REMOVAL )
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY  (See REMOVAL )
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH  (See REMOVAL )
4. REMOVE FRONT DOOR TRIM COVER LH  (See REMOVAL )
5. REMOVE DOOR FRAME GARNISH LH  (See REMOVAL )
6. REMOVE FRONT DOOR BELT MOULDING END COVER REAR LH  (See REMOVAL )
7. REMOVE FRONT DOOR NO. 2 WEATHERSTRIP LH
   1. Remove the clip and No. 2 weatherstrip.

      HINT:

      Lift up the No. 3 weatherstrip to remove the No. 2 weatherstrip, as the No. 2 weatherstrip is affixed to the inner side of the No. 3 weatherstrip.

      Fig 1: Identifying Front Door No. 2 Weatherstrip Clip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE FRONT DOOR FRONT WINDOW FRAME MOULDING LH
   1. Put a 4 mm (0.157 in.) drill bit into a drill.
   2. Wind tape around the drill bit approximately 5 mm (0.197 in.) from the tip of the drill, as shown in the illustration.

      HINT:

      Tape the 4 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

   3. Lightly press the drill against each of the 6 front door window frame moulding rivets labeled (A) and (B) shown in the illustration, and drill off each rivet's flange.

      HINT:

      • The rivets labeled (A) are the installation rivets of the front door window frame moulding.
      • The rivets labeled (B) are the installation rivets for both the front door window frame moulding and front door belt moulding.
      • Do not remove the front door window belt moulding's rivet labeled (C).
        NOTE:

        • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
        • Do not pry the rivets with the drill, because this may cause damage to the installation holes of the rivets or the drill bit.
        • Be careful of the drilled rivets as they may become hot.
   4. Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
   5. Detach the clip and remove the window frame moulding.

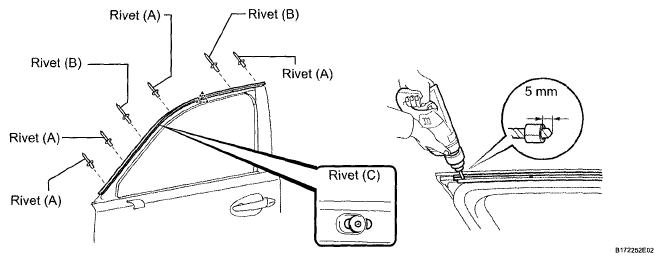

      Fig 2: Locating Rivets

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
