REAR DOOR SPEAKER (for Standard Body): Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
2. DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
   NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH  (See REMOVAL )
4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY  (See REMOVAL )
5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY  (See REMOVAL )
6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY (w/ Rear Door Sunshade)  (See REMOVAL )
7. REMOVE REAR NO. 1 SPEAKER ASSEMBLY
   1. Disconnect the speaker connector.
   2. Remove the 2 screws.

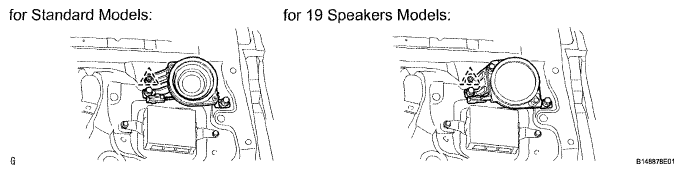

   Fig 1: Identifying Rear No. 1 Speaker Assembly Screws
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Detach the clip and remove the speaker.
      NOTE: Do not touch the cone part of the speaker.
8. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 19 Speakers)
   1. Disconnect the speaker connector.
   2. Remove the 3 screws.
      NOTE: Do not touch the cone part of the speaker.
      Fig 2: Locating Rear No. 2 Speaker Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 19 Speakers)
   1. Disconnect the connector.
   2. Detach the clamp, and remove the 2 screws and speaker.
      NOTE: Do not touch the cone part of the speaker.
      Fig 3: Identifying Rear No. 3 Speaker Assembly Clamp And Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
