AIR CONDITIONING UNIT (for Rear Side): Installation

  1. INSTALL REAR COOLING UNIT ASSEMBLY
    1. Install the cooling unit with the 4 bolts.
    2. Connect the clamp and 2 connectors.

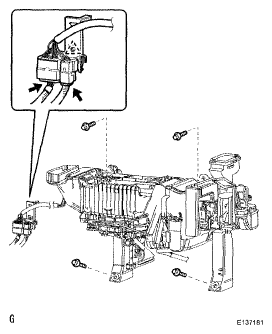

    Fig 1: Identifying Rear Cooling Unit Assembly Clamp Bolts
    G04950614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 COOLER AIR DUCT
    1. Attach the 3 claws to install the duct.
    Fig 2: Identifying Cooler Air Duct Claws
    G04950613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 COOLER AIR DUCT
      Fig 3: Identifying Cooler Air Duct Claws
      G04950612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the duct.
  4. INSTALL NO. 4 AIR DUCT REAR
    1. Attach the 4 claws to install the duct.
    Fig 4: Identifying No. 4 Air Duct Rear Claws
    G04950610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 5 AIR DUCT REAR
    1. Attach the 4 claws to install the duct.
    Fig 5: Identifying No. 5 Air Duct Rear Claws
    G04950611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ROOF SIDE NO. 2 AIR DUCT LH
    1. Attach the 2 claws to install the duct.
    2. Install the clip.
    Fig 6: Identifying Roof Side No. 2 Air Duct Clip LH
    G04950608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ROOF SIDE NO. 2 AIR DUCT RH
    1. Attach the 2 claws to install the duct.
    2. Install the clip.
    Fig 7: Identifying Roof Side No. 2 Air Duct Clip RH
    G04950609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH  (See INSTALLATION )
  9. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH  (See INSTALLATION )
  10. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  11. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY FRONT  (See INSTALLATION )
  12. INSTALL LUGGAGE COMPARTMENT NO. 1 LIGHT ASSEMBLY  (See INSTALLATION )
  13. INSTALL DECK TRIM SIDE BOARD LH  (See INSTALLATION )
  14. INSTALL DECK TRIM SIDE BOARD RH  (See INSTALLATION )
  15. INSTALL ROPE HOOK  (See INSTALLATION )
  16. INSTALL ROPE HOOK ASSEMBLY  (See INSTALLATION )
  17. INSTALL LUGGAGE COMPARTMENT FLOOR MAT SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler)
    1. Attach the 2 clips to install the cover.
  19. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. w/ Rear Sunshade:

      Install the package tray trim panel (see INSTALLATION ).

    2. w/o Rear Sunshade:

      Install the package tray trim panel (see INSTALLATION ).

  20. INSTALL ROOF SIDE GARNISH INNER LH
    1. for Short Body:

      Install the roof side garnish inner (see INSTALLATION ).

    2. for Long Body:

      Install the roof side garnish inner (see INSTALLATION ).

  21. INSTALL ROOF SIDE GARNISH INNER RH
    1. for Short Body:

      Install the roof side garnish inner (see INSTALLATION ).

    2. for Long Body:

      Install the roof side garnish inner (see INSTALLATION ).

  22. INSTALL REAR SEAT SIDE GARNISH LH
    1. for Short Body:

      Install the rear seat side garnish (see INSTALLATION ).

    2. for Long Body:

      Install the rear seat side garnish (see INSTALLATION ).

  23. INSTALL REAR SEAT SIDE GARNISH RH
    1. for Short Body:

      Install the rear seat side garnish (see INSTALLATION ).

    2. for Long Body:

      Install the rear seat side garnish (see INSTALLATION ).

  24. INSTALL REAR DOOR SCUFF PLATE LH
    1. for Short Body:

      Install the rear door scuff plate (see INSTALLATION ).

    2. for Long Body:

      Install the rear door scuff plate (see INSTALLATION ).

  25. INSTALL REAR DOOR SCUFF PLATE RH
    1. for Short Body:

      Install the rear door scuff plate (see INSTALLATION ).

    2. for Long Body:

      Install the rear door scuff plate (see INSTALLATION ).

  26. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
    1. Install the rear seat assembly (see INSTALLATION ).
  27. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
    1. Install the rear seat assembly (see INSTALLATION ).
  28. INSTALL REAR SEAT ASSEMBLY (for Fixed Type)
    1. Install the rear seat assembly (see INSTALLATION ).
  29. INSTALL AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
    Fig 8: Locating Rear Seat Assembly Bolts
    G04950607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the tube.

      Compressor oil: ND-OIL 8 or equivalent

    2. Install the 2 O-rings on the tube.
    3. Install the 2 tubes with the 2 bolts

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

    4. Attach the 3 claws to install the cover.
      Fig 9: Identifying Air Conditioning Tube And Accessory Assembly Cover And Claws
      G04950606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  31. REMOVE COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  32. ADD COMPRESSOR OIL (See  REPLACEMENT   )
  33. CHARGE REFRIGERANT
  34. WARM UP ENGINE
  35. CHECK FOR LEAKAGE OF REFRIGERANT (See  REPLACEMENT   )
  36. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
  37. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
