Spiral Cable: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE NO. 3 STEERING WHEEL COVER LOWER (See  REMOVAL   )
  4. REMOVE NO. 2 STEERING WHEEL COVER LOWER (See  REMOVAL   )
  5. REMOVE STEERING PAD (See  REMOVAL   )
  6. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  7. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  8. REMOVE SPIRAL CABLE WITH STEERING SENSOR
    1. Disconnect the connectors from the spiral cable with steering sensor.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Detach the 3 claws and remove the spiral cable with steering sensor.

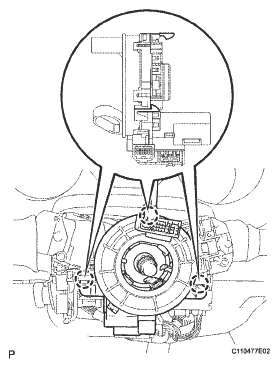

      Fig 1: Identifying Spiral Cable Claws
      G05314351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SPIRAL CABLE
    1. Detach the 6 claws and remove the spiral cable.
