Parking Brake Cable: Installation

INSTALL PARKING BRAKE NO. 3 CABLE ASSEMBLY
1. Install the parking brake cable support No. 1 bracket to the parking brake No. 3 cable assembly.
2. Install the parking brake No. 3 cable assembly with the bolt (A) and 4 nuts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
3. Connect the parking brake No. 2 and No. 3 cable assemblies to the parking brake equalizer with 2 bolts (B).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

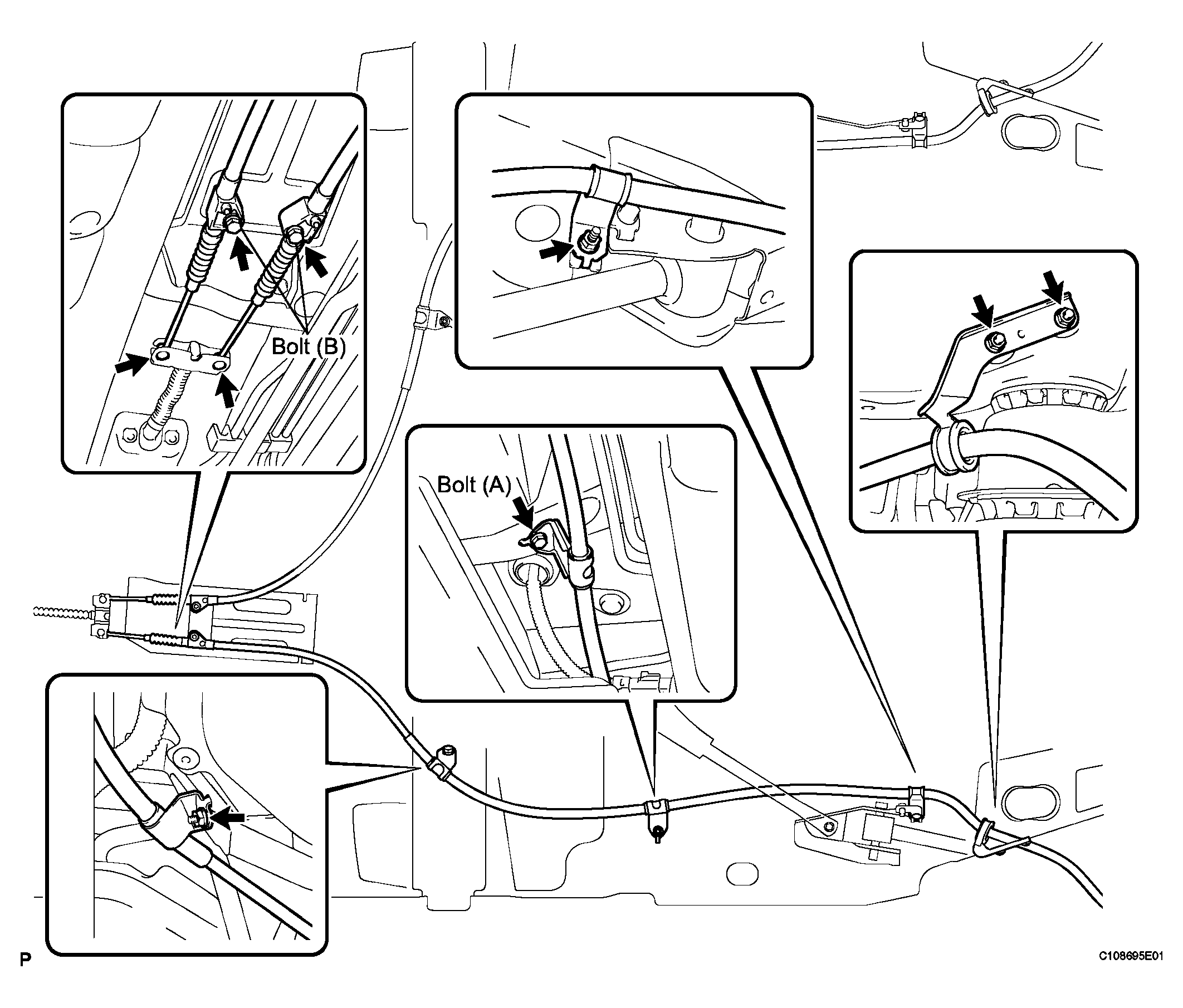

  Fig 1: Identifying Parking Brake No. 3 Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL TANK NO. 1 PROTECTOR (See INSTALLATION )
CONNECT PARKING BRAKE NO. 3 CABLE ASSEMBLY
1. Connect the parking brake No. 3 cable assembly to the backing plate with the 2 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

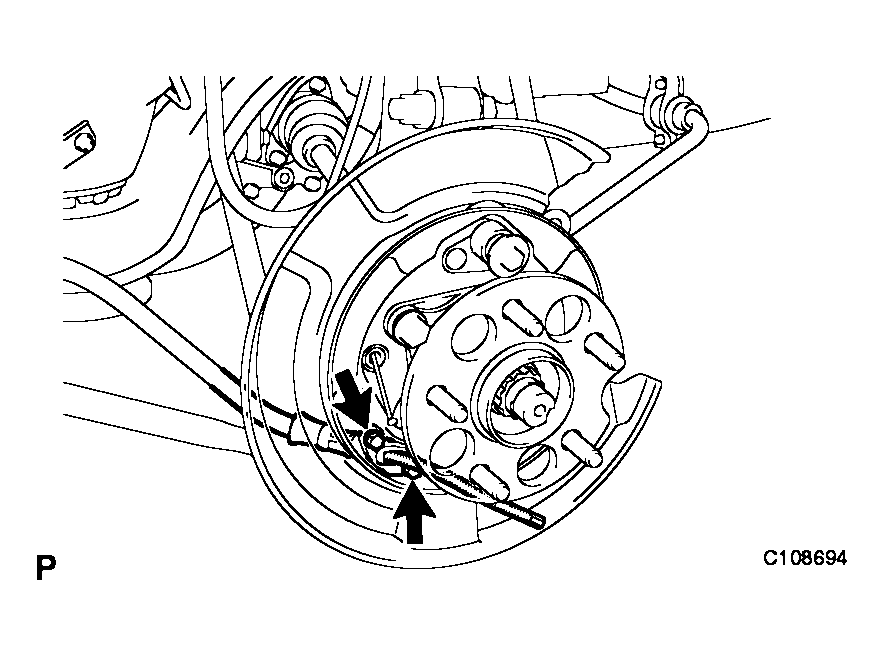

  Fig 2: Connecting Parking Brake No. 3 Cable Assembly To Backing Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
APPLY HIGH TEMPERATURE GREASE (See REASSEMBLY )
INSTALL PARKING BRAKE NO. 2 SHOE ASSEMBLY (See step 11 in REASSEMBLY )
INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See step 12 in REASSEMBLY )
INSTALL PARKING BRAKE NO. 1 SHOE ASSEMBLY (See step 13 in REASSEMBLY )
INSTALL PARKING BRAKE SHOE STRUT (See step 14 in REASSEMBLY )
CHECK PARKING BRAKE INSTALLATION (See step 15 in REASSEMBLY )
INSTALL REAR DISC (See step 18 in REASSEMBLY )
ADJUST PARKING BRAKE SHOE CLEARANCE (See ADJUSTMENT )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See step 20 in REASSEMBLY )
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
ADJUST PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
