Rear Wiper Motor: Removal

  1. REMOVE REAR WIPER ARM COVER
    1. Remove rear wiper arm cover.
  2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. Remove the nut, rear wiper arm and blade assembly.
  3. REMOVE REAR WIPER SHAFT COVER
    1. Remove the rear wiper shaft cover.
      Fig 1: Identifying Rear Wiper Shaft Cover
      G04115224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR NO.1 WIPER LINK PIVOT NUT
    1. Using the socket wrench 27 mm (1.06 in.), remove the rear No.1 wiper link pivot nut.
      Fig 2: Identifying Rear No. 1 Wiper Link Pivot Nut
      G04115225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR NO.1 WIPER LINK PIVOT WASHER
    1. Remove the rear No.1 wiper link pivot washer.
    Fig 3: Identifying Rear No. 1 Wiper Link Pivot Washer
    G04115226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  7. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 bolts and the rear wiper motor assembly.

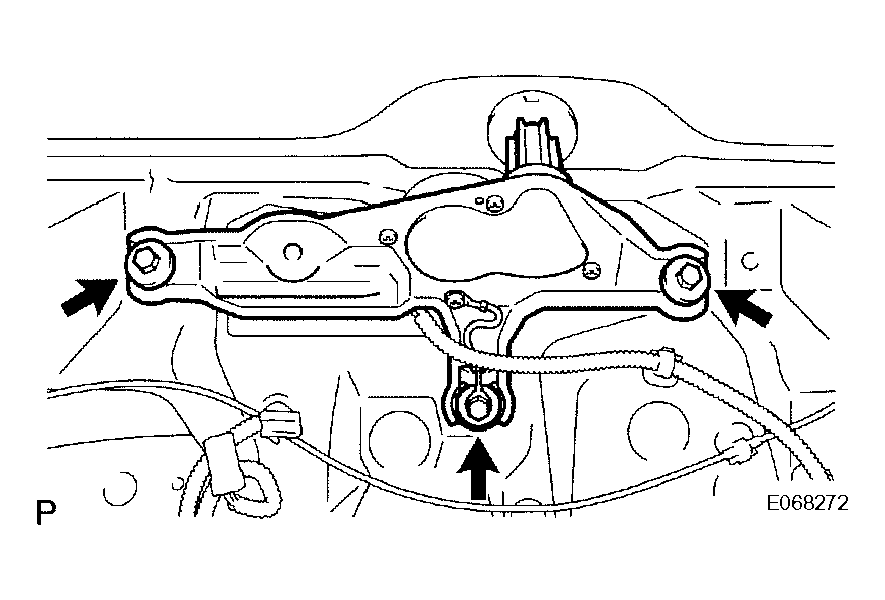

      Fig 4: Identifying Rear Wiper Motor Assembly
      G04115227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
