Instrument Panel Safety Pad: Reassembly

  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
  2. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
  3. INSTALL INSTRUMENT PANEL NO. 2 WIRE
    1. Engage the 18 clamps.
    2. Install the 2 screws and the instrument panel No. 2 wire.

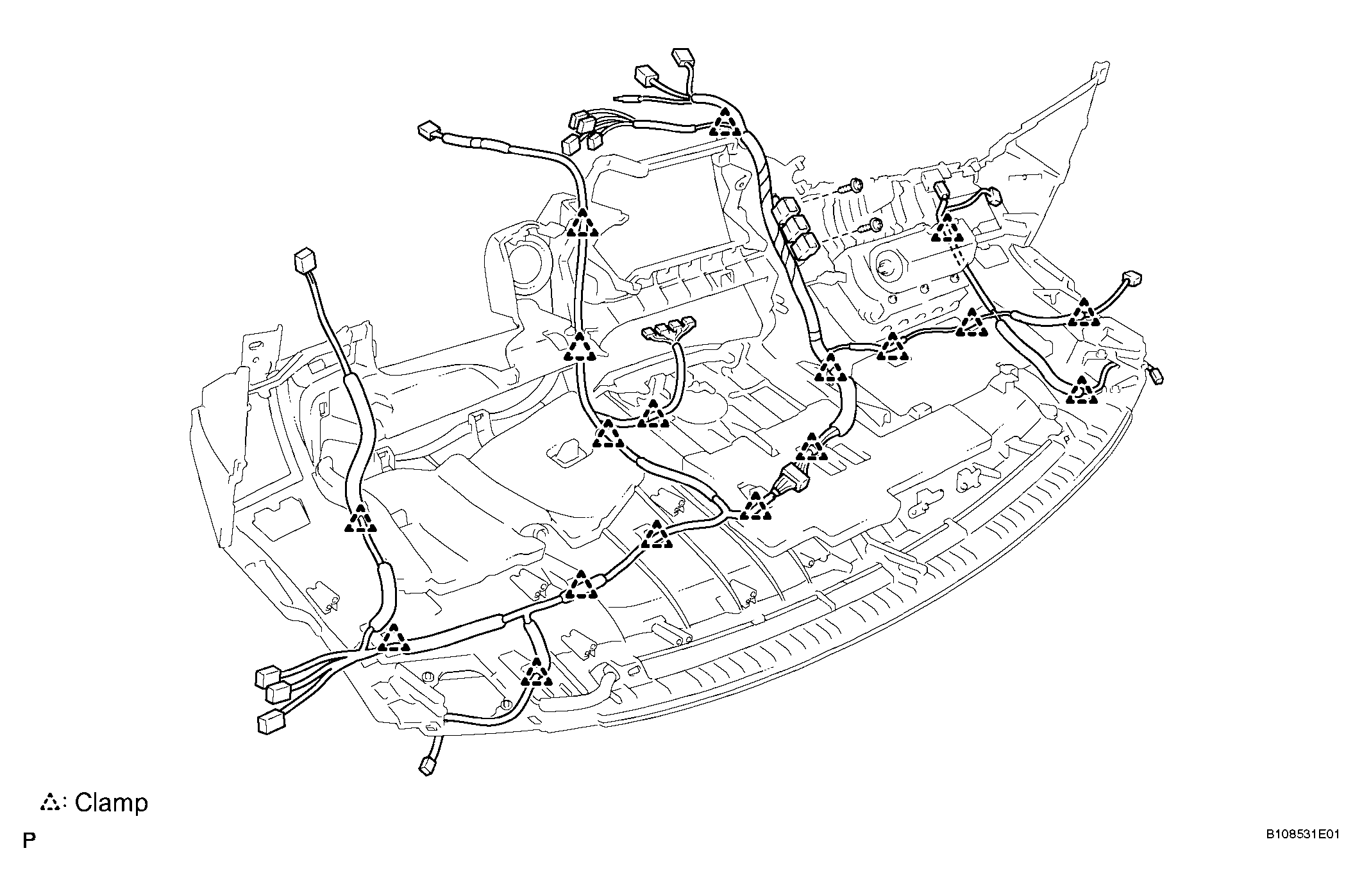

      Fig 1: Identifying Instrument Panel No. 2 Wire
      G04116187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 RADIO ANTENNA CORD (w/ Navigation System) (See step 60 in  INSTALLATION  )
  5. INSTALL NO. 2 RADIO ANTENNA CORD (w/o Navigation System) (See step in 61  INSTALLATION  )
  6. INSTALL GLOVE BOX LIGHT ASSEMBLY
    1. Engage the 2 claws and install the glove box light assembly.
    2. Connect the connector.

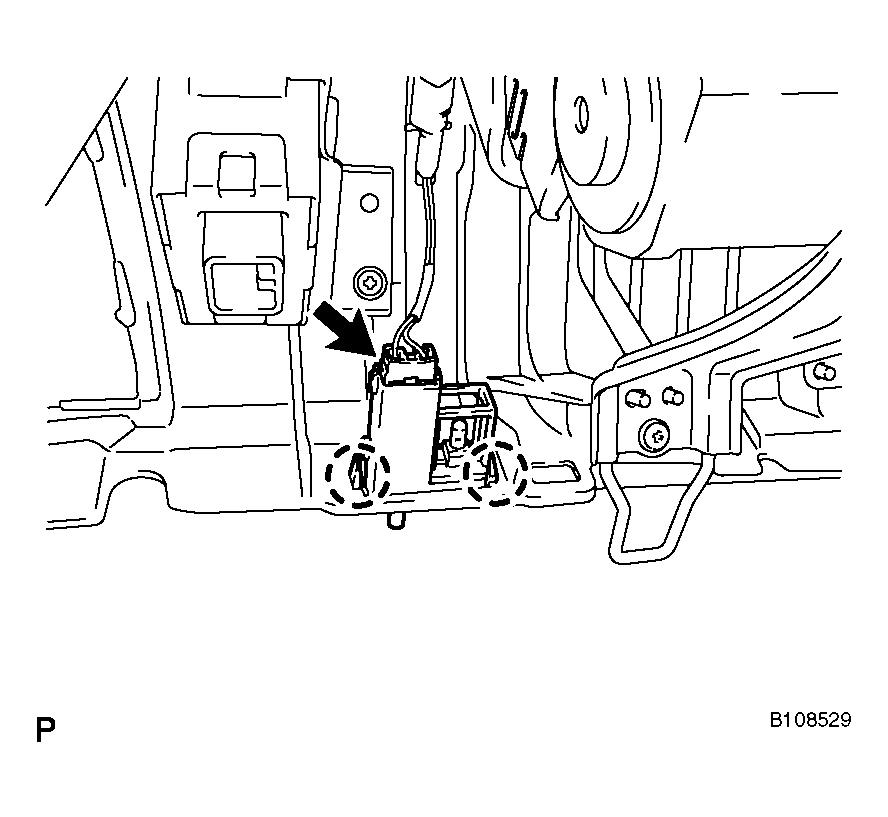

      Fig 2: Identifying Glove Box Light Assembly
      G04116188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
    1. Install the screw < C > and the instrument panel bracket sub-assembly center.

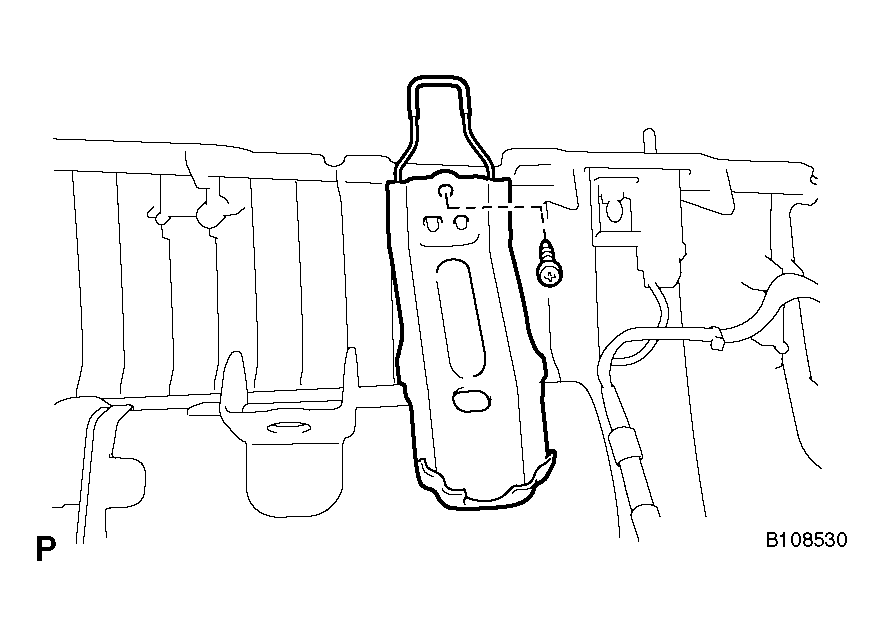

      Fig 3: Identifying Instrument Panel Bracket Sub-Assembly Center
      G04116189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL DEFROSTER NOZZLE NO. 1 GARNISH
    1. Engage the 2 clips and 4 claws then install the defroster nozzle No. 1 garnish.

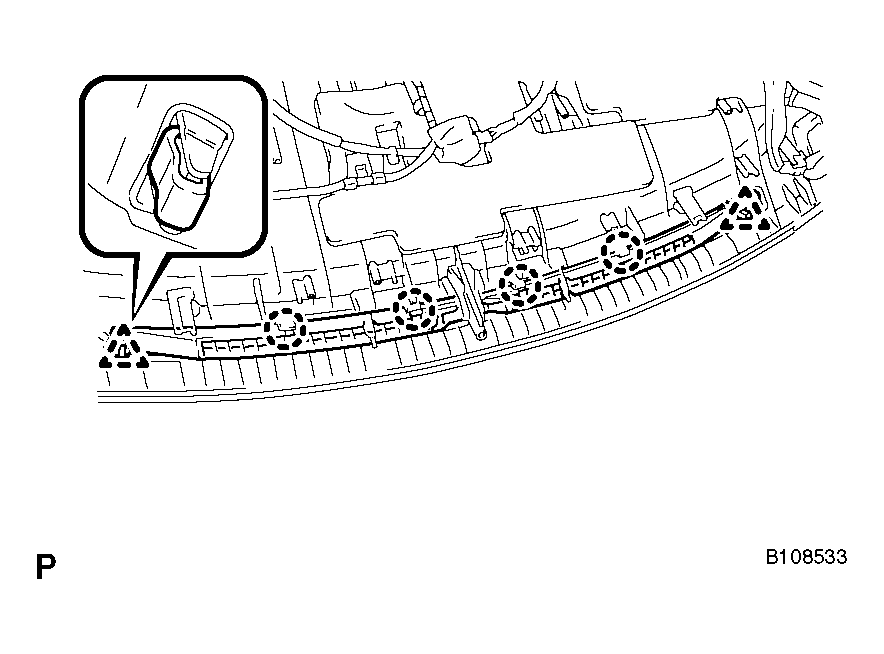

      Fig 4: Identifying Defroster Nozzle No. 1 Garnish
      G04116190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NETWORK GATEWAY ECU
    1. Install the screw < C > and the network gateway ECU.

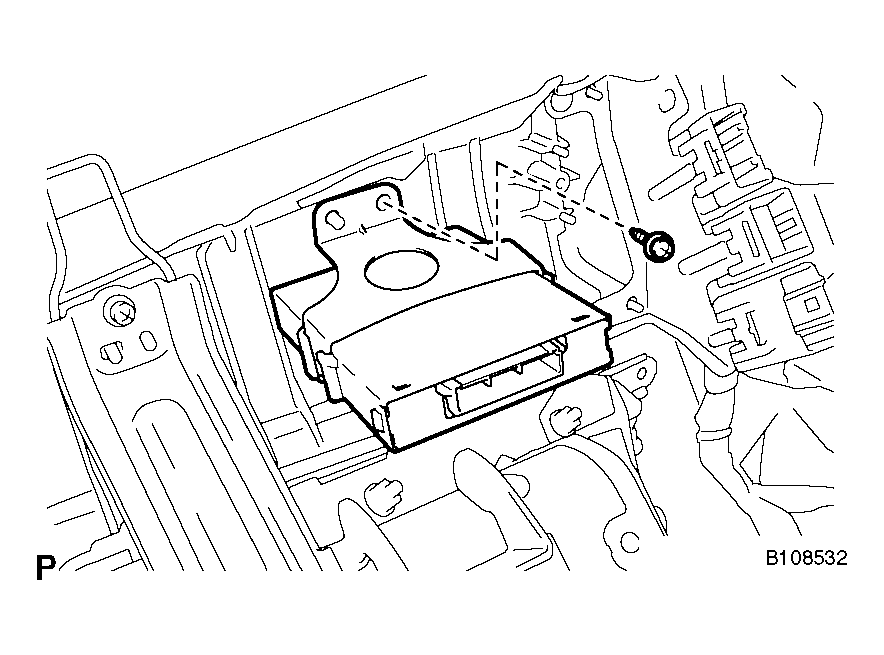

      Fig 5: Identifying Network Gateway ECU
      G04116191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY (w/ Rain Sensor)
    1. Install the screw < C > and the windshield wiper relay assembly.

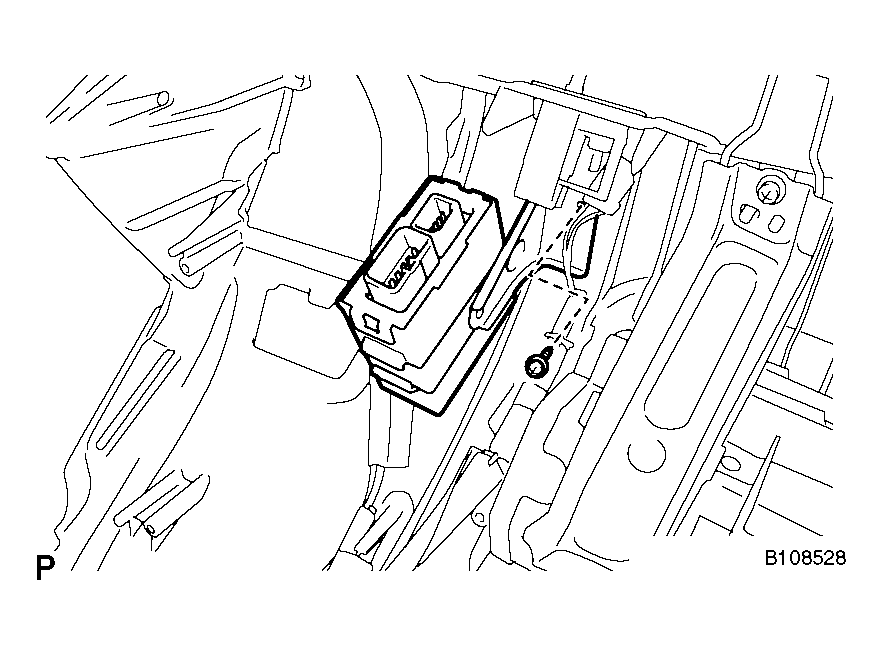

      Fig 6: Identifying Windshield Wiper Relay Assembly (W/ Rain Sensor)
      G04116192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL SIDE DEFROSTER NO. 1 NOZZLE
    1. Engage the 2 claws and install the side defroster No. 1 nozzle.
  12. INSTALL SIDE DEFROSTER NO. 2 NOZZLE

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle and the side defroster No. 1 nozzle

    Fig 7: Identifying Side Defroster Nozzle
    G04116193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL SIDE DEFROSTER NO. 1 NOZZLE DUCT
    1. Install the screw < C > and the side defroster No. 1 nozzle duct.
  14. INSTALL SIDE DEFROSTER NO. 2 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle duct and the side defroster No. 1 nozzle duct.

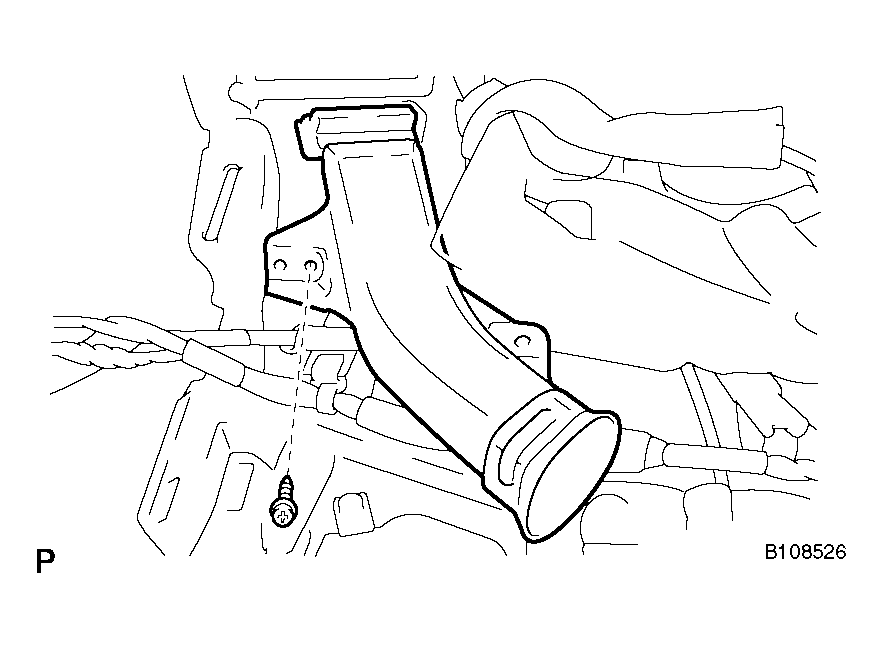

    Fig 8: Identifying Side Defroster Nozzle Duct
    G04116194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL HEATER TO REGISTER CENTER SUB DUCT
    1. Install the 2 screws < C > and the heater to register center sub duct.

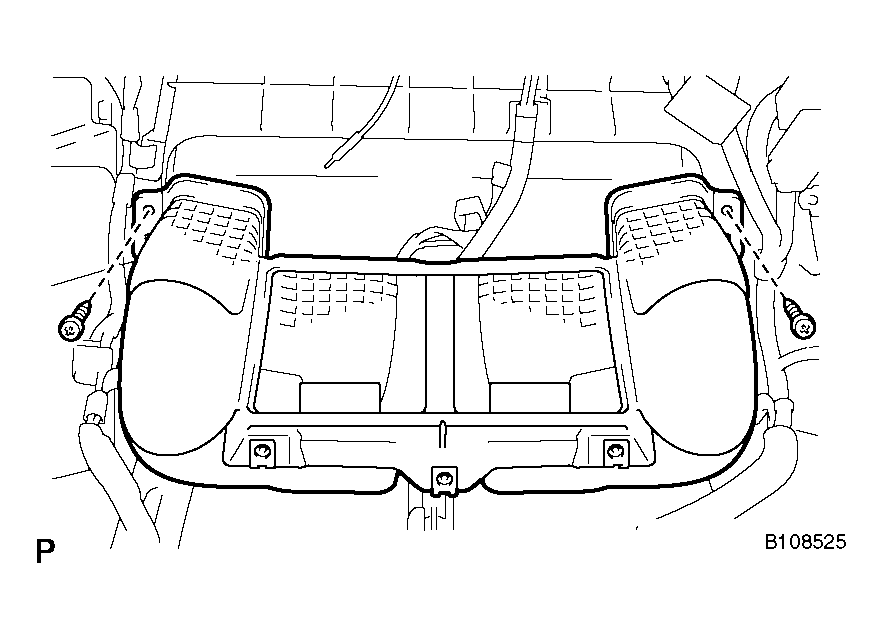

      Fig 9: Identifying Heater To Register Center Sub Duct
      G04116195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL HEATER TO REGISTER NO. 1 DUCT
    1. Install the 4 screws < C > and the heater to register No. 1 duct.
  17. INSTALL HEATER TO REGISTER NO. 4 DUCT

    HINT:

    Use the same procedures for the heater to register No. 4 duct and the heater to register No. 1 duct.

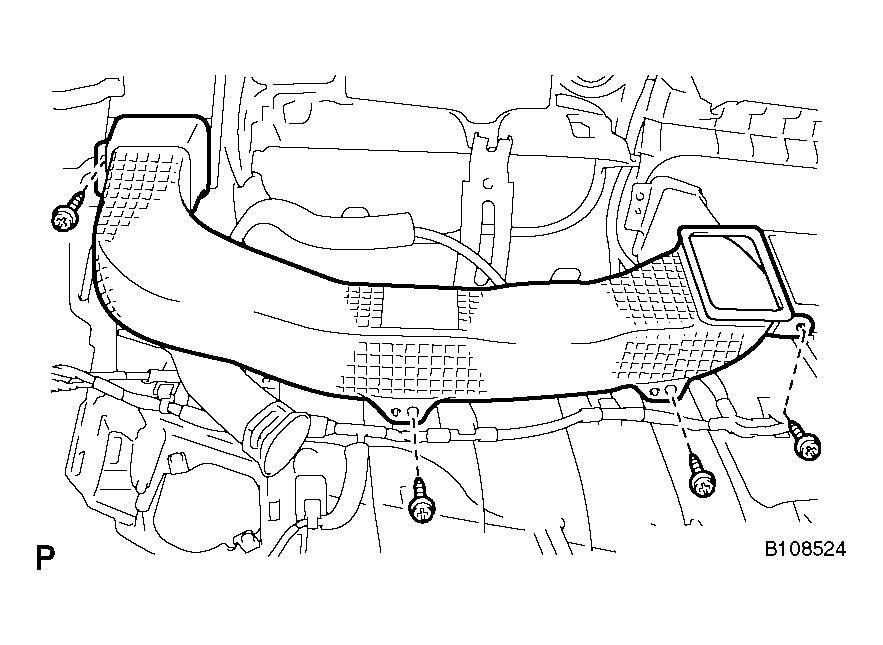

    Fig 10: Identifying heater To Register Duct
    G04116196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the 3 screws < C > and the defroster nozzle assembly.

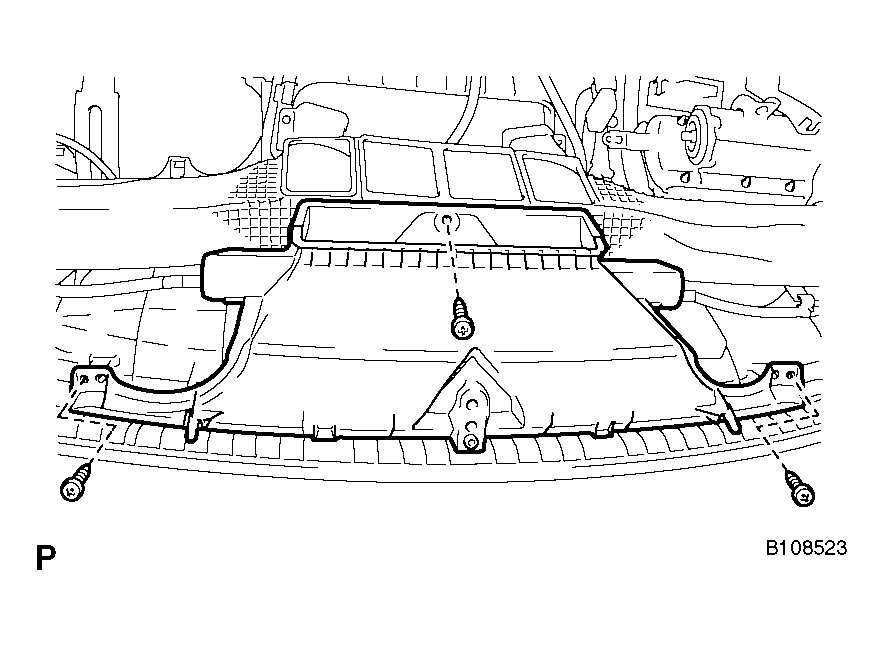

      Fig 11: Identifying Defroster Nozzle Assembly
      G04116197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL INSTRUMENT PANEL NO. 1 PIN
    1. Install the screw < C > and the instrument panel No. 1 pin.
      Fig 12: Identifying Instrument Panel No. 1 Pin
      G04116198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SIDE DEFROSTER NO. 3 NOZZLE DUCT
    1. Install the screw < C > and the side defroster No. 3 nozzle duct.
  21. INSTALL SIDE DEFROSTER NO. 4 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 4 nozzle duct and the side defroster No. 3 nozzle duct.

    Fig 13: Identifying Side Defroster Nozzle Duct
    G04116199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL LIGHT CONTROL RHEOSTAT
    1. Engage the 2 claws and install the light control rheostat.
    Fig 14: Identifying Light Control Rheostat
    G04116200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL FRONT NO. 2 SPEAKER (See  INSTALLATION  )
  24. INSTALL FRONT NO. 2 SPEAKER (See  INSTALLATION  )
  25. INSTALL FRONT NO. 2 SPEAKER (w/ Mark Levinson Speaker System) (See  INSTALLATION  )
  26. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 clips and install the instrument panel No. 1 speaker panel sub-assembly.
  27. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedures for the instrument panel No. 2 speaker panel sub-assembly and the instrument panel No. 1 speaker panel sub-assembly.

    Fig 15: Identifying Instrument Panel Speaker Panel Sub-Assembly
    G04116201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SPEAKER HOLE NO. 1 COVER (w/ Mark Levinson Speaker System)
    1. Engage the 4 clips and install the speaker hole No. 1 cover.

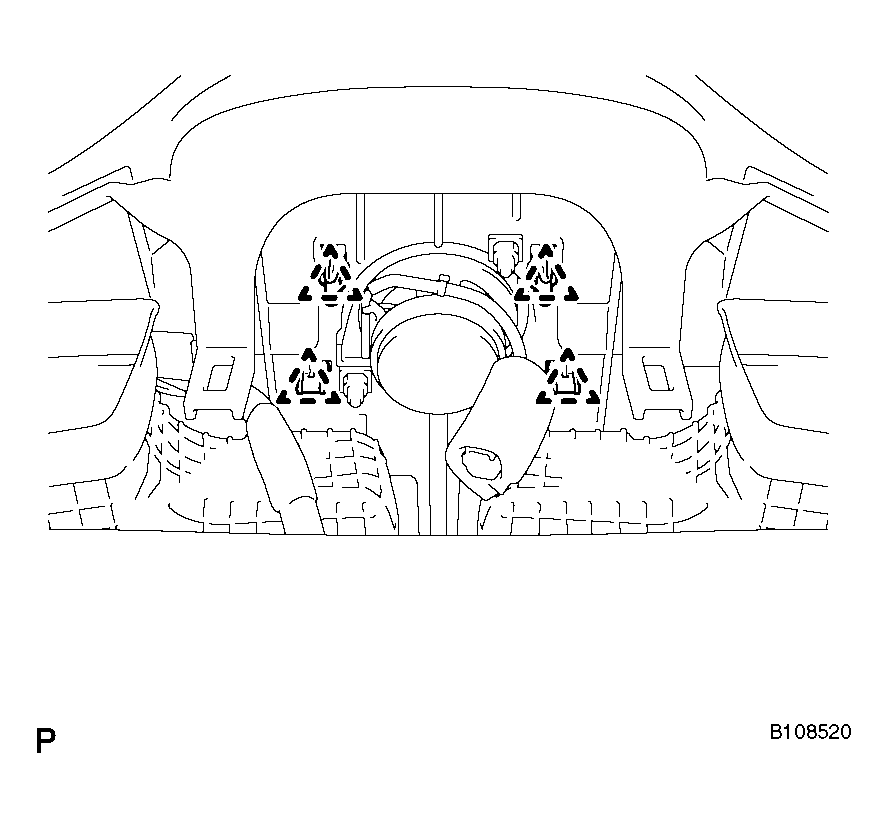

      Fig 16: Identifying Speaker Hole No. 1 Cover (W/ Mark Levinson Speaker Syatem)
      G04116202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
