Back-Up Light Assembly: Removal

  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  2. REMOVE BACK-UP LIGHT ASSEMBLY
    1. Disconnect each connector.
    2. Remove the 3 nuts and disengage the clip, and remove the back-up light assembly.

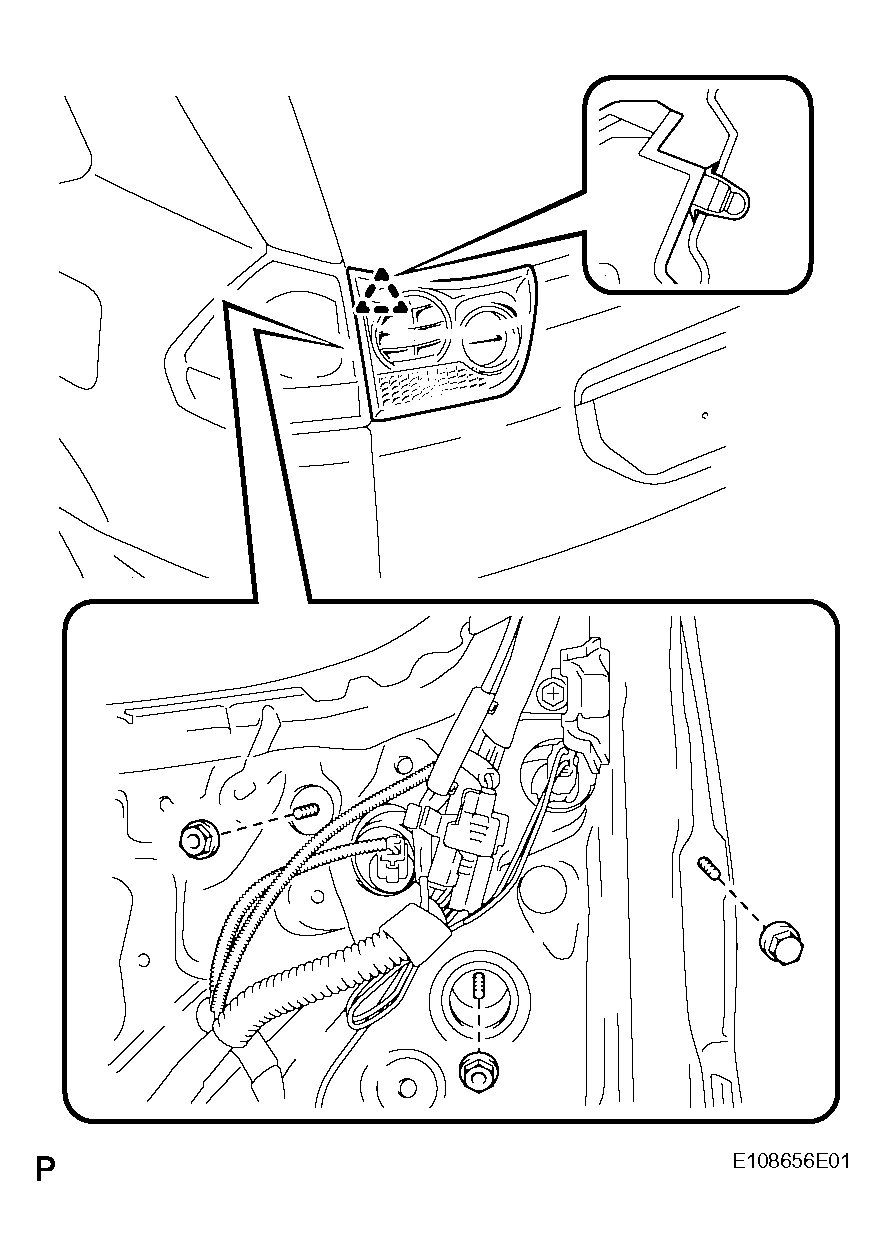

      Fig 1: Identifying Back-Up Light Assembly
      G04115120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
