Center Cluster Integration Switch: Removal

  1. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  3. REMOVE RADIO AND RECEIVER ASSEMBLY WITH BRACKET (See  REMOVAL  )
  4. REMOVE CENTER CLUSTER INTEGRATION SWITCH
    1. Remove the 2 bolts.
    2. Release the 6 clips.
    3. Disconnect the connector and remove center cluster integration switch.

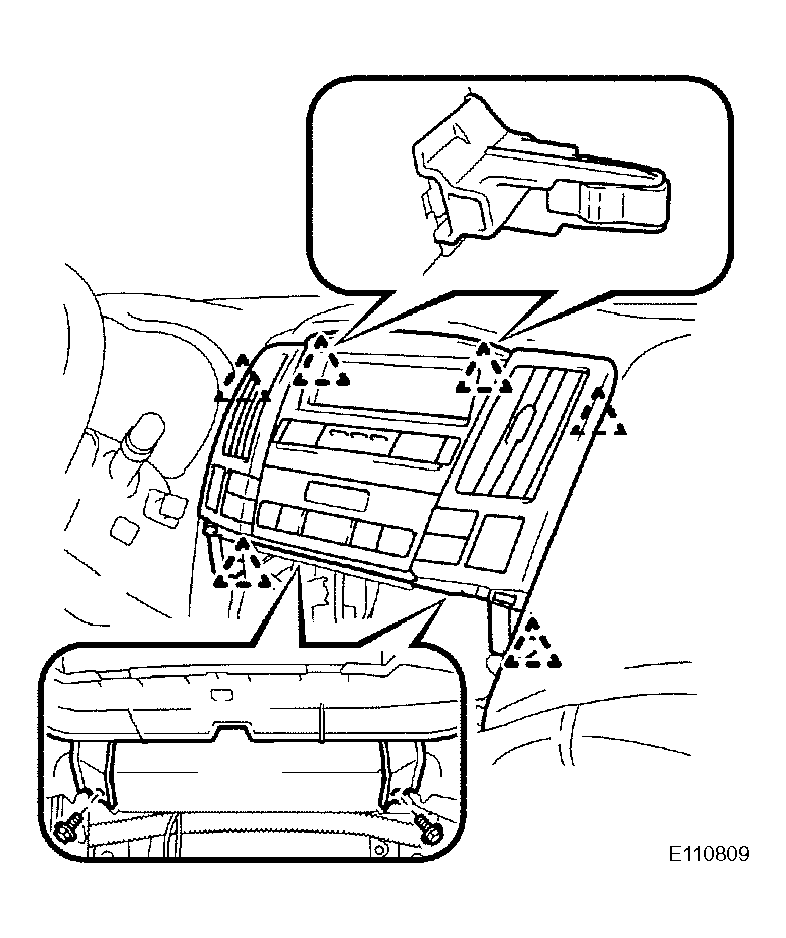

    Fig 1: Removing Center Cluster Integration Switch
    G04091298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
