Radio Receiver: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
REMOVE CONSOLE PANEL UPPER FRONT (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REMOVAL )
REMOVE RADIO RECEIVER

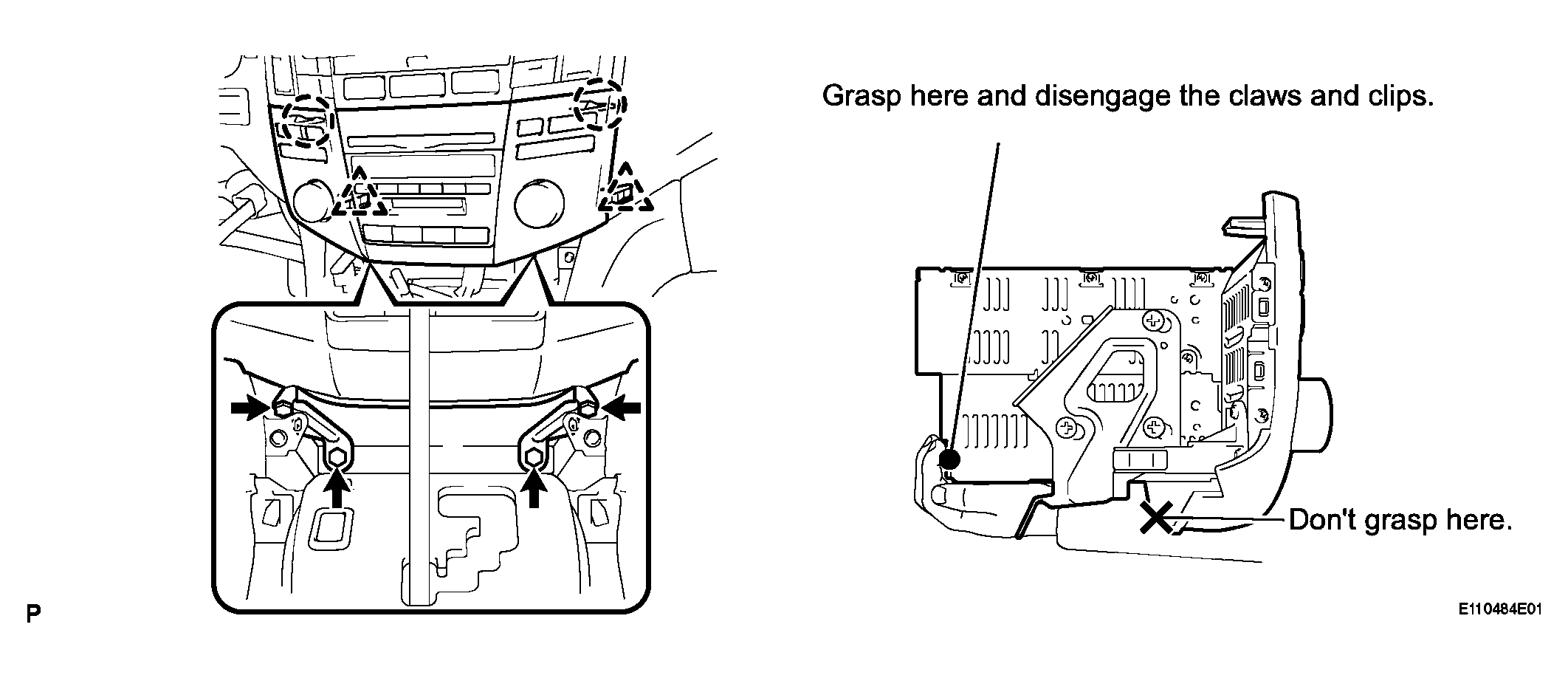

1. Remove the 4 bolts.

  Fig 1: Removing Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and the 2 clips.
3. Disconnect the connectors.
4. Remove the radio receiver with bracket.

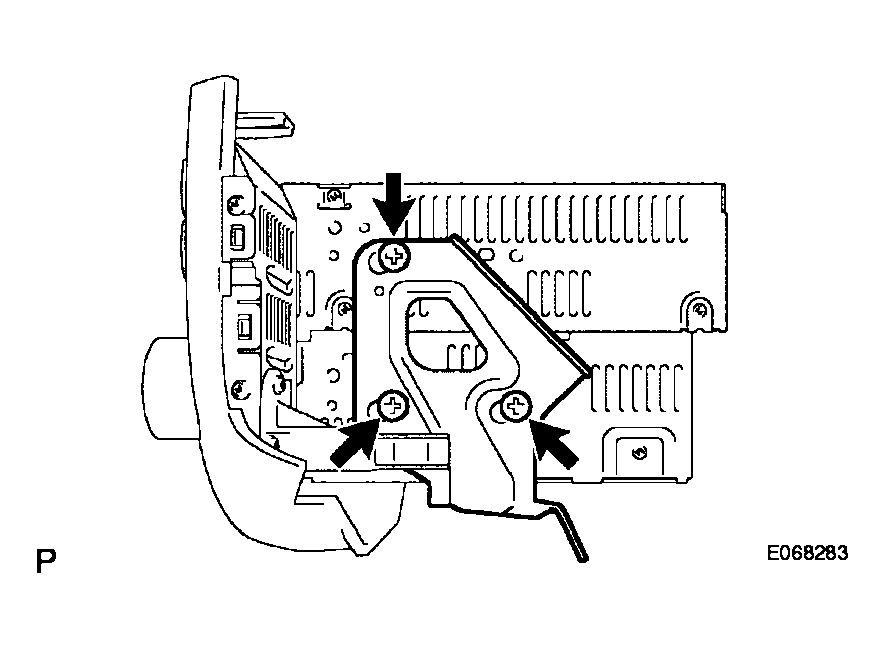

5. Remove the 3 screws and the No.1 radio bracket.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

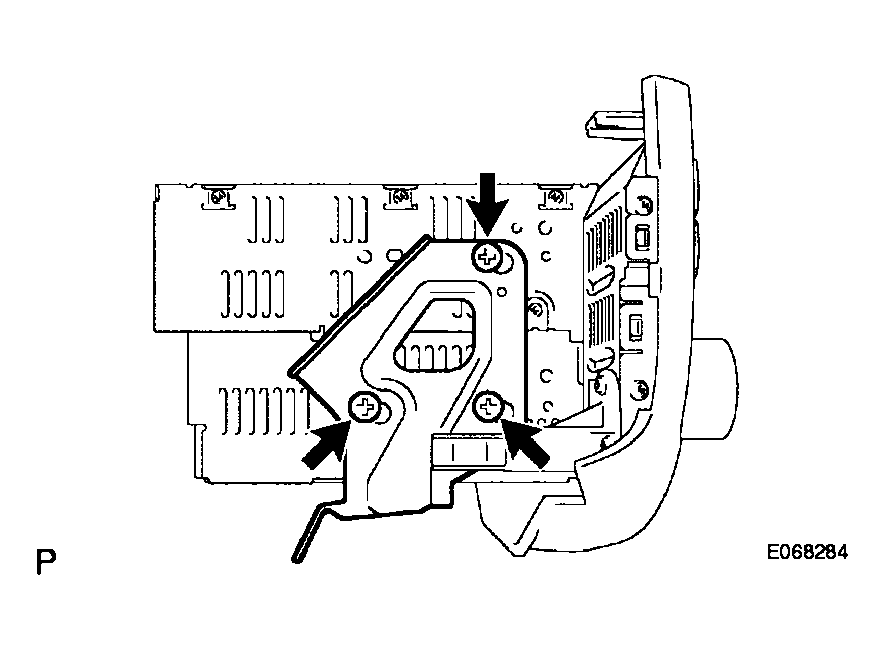

6. Remove the 3 screws and the No.2 radio bracket.
Fig 3: Removing Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
