Center Cluster Integration Switch: Installation

  1. INSTALL CENTER CLUSTER INTEGRATION SWITCH
    1. Install the connector.
    2. Install the center cluster integration switch with the 2 bolts.
  2. INSTALL RADIO AND RECEIVER ASSEMBLY WITH BRACKET (See  INSTALLATION  )

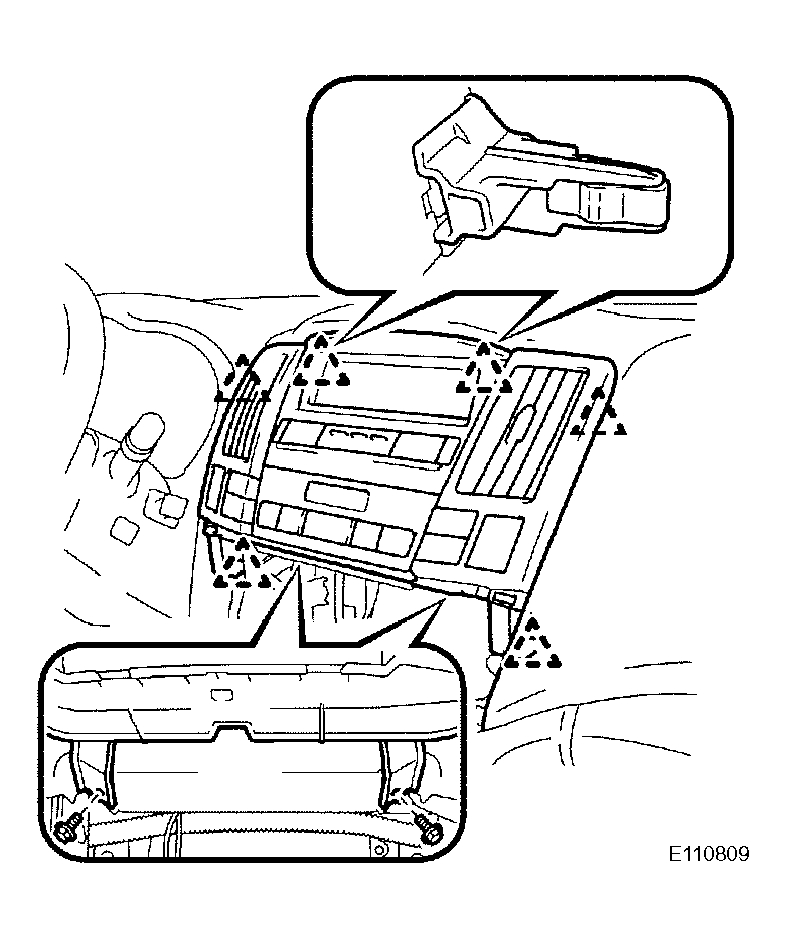

    Fig 1: Installing Center Cluster Integration Switch
    G04091309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See  INSTALLATION  )
  4. INSTALL CONSOLE PANEL UPPER FRONT (See  INSTALLATION  )
