Engine Front Oil Seal: Removal

  1. REMOVE FRONT WHEEL RH
  2. REMOVE FR WIPER ARM RH
    1. Remove the FR wiper arm RH (See FRONT WIPER MOTOR ).
  3. REMOVE FR WIPER ARM LH
    1. Remove the FR wiper arm LH (See FRONT WIPER MOTOR ).
  4. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY
    1. Remove the cowl top ventilator louver sub-assembly (See FRONT WIPER MOTOR ).
  5. REMOVE WINDSHIELD WIPER LINK ASSEMBLY
    1. Remove the windshield wiper link assembly (See FRONT WIPER MOTOR ).
  6. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER
    1. Remove the cowl top panel sub-assembly (See REMOVAL ).
  7. REMOVE ENGINE UNDER COVER ASSEMBLY
    1. w/ engine under cover assembly
  8. REMOVE ENGINE UNDER COVER NO. 1
  9. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the front fender apron seal RH (See REMOVAL ).
  10. REMOVE V-(COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
    1. Remove the V-(cooler compressor to crankshaft pulley) belt No. 1 (See REMOVAL  ).
  11. REMOVE VANE PUMP V-BELT
    1. Remove the vane pump V-belt (See REMOVAL  ).
  12. REMOVE ENGINE MOVING CONTROL ROD
    1. Remove the engine moving control rod (See REMOVAL  ).
  13. REMOVE ENGINE MOUNTING STAY NO. 2 RH
    1. Remove the engine mounting stay No. 2 RH (See REMOVAL  ).
  14. REMOVE GENERATOR BRACKET NO. 2
    1. Remove the generator bracket No. 2 (See REMOVAL  )
  15. REMOVE CRANKSHAFT PULLEY

    SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

    1. Remove the crankshaft pulley (See REMOVAL  ).
  16. REMOVE TIMING BELT NO. 1 COVER
  17. REMOVE TIMING BELT NO. 2 COVER
    1. Remove the timing belt No. 2 cover (See REMOVAL  ).
  18. REMOVE ENGINE MOUNTING BRACKET RH
    1. Remove the engine mounting bracket RH (See REMOVAL  ).
  19. REMOVE TIMING BELT GUIDE NO. 2
  20. REMOVE TIMING BELT
    1. Remove the timing belt (See REMOVAL  ).
  21. REMOVE CRANKSHAFT TIMING PULLEY
    1. Remove the bolt and the the timing belt plate.
    2. Install the pulley bolt to the crankshaft.
    3. Using SST, remove the crankshaft timing pulley.

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

    NOTE:
    • Do not scratch the sensor part of the crankshaft timing pulley.
    • Before using SST, apply lubricating oil on the threads and tip of the center bolt 150.

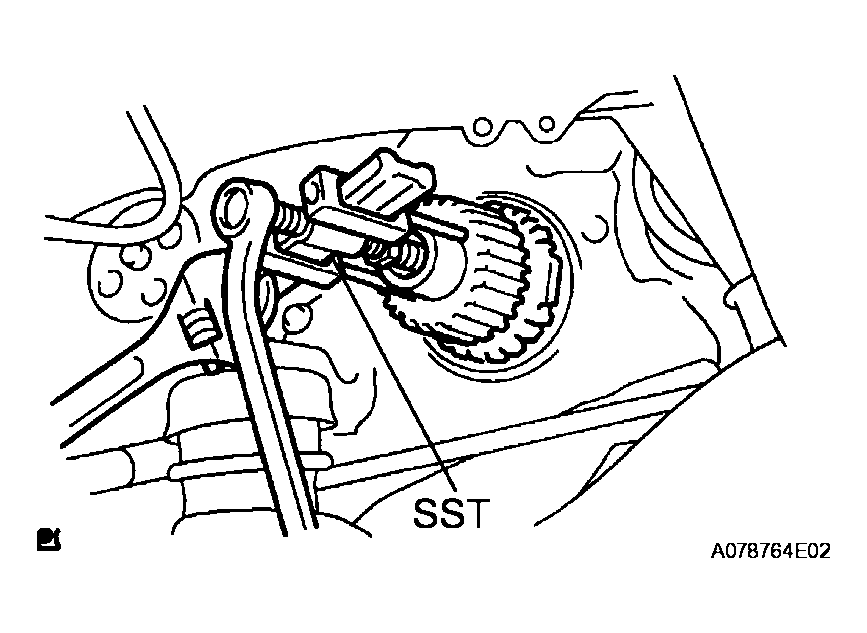

    Fig 1: Removing Crankshaft Timing Pulley
    G04087740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE OIL PUMP SEAL
    1. Using a knife, cut off the oil seal lip.
    2. Using a screwdriver with the tip wrapped in tape, pry out the oil seal.
    NOTE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

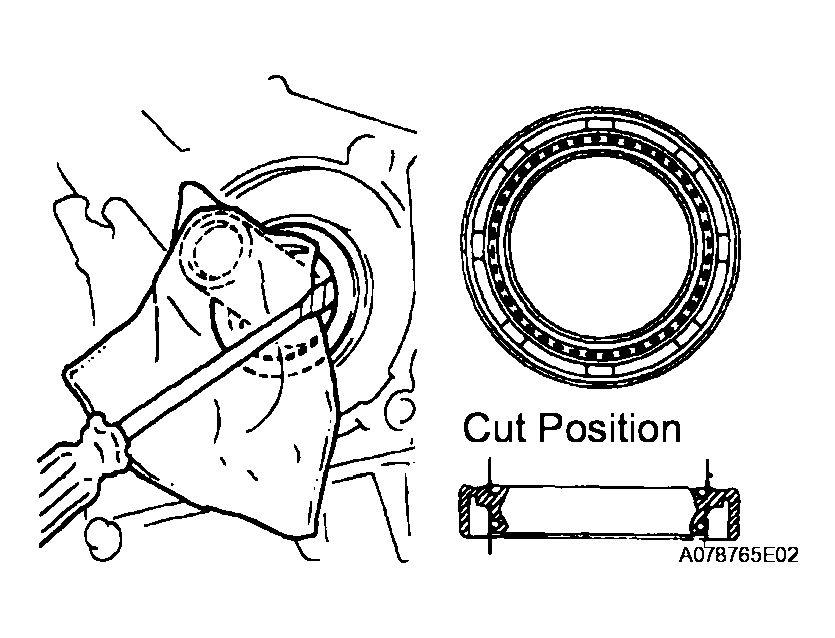

    Fig 2: Removing Oil Pump Seal
    G04087741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
