Drive Belt: Removal

  1. REMOVE FRONT WHEEL RH
  2. REMOVE ENGINE UNDER COVER ASSEMBLY
    1. w/ engine under cover assembly
  3. REMOVE ENGINE UNDER COVER NO. 1
  4. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the front fender apron seal RH (See REMOVAL ).
  5. REMOVE V-(COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
    1. Loosen bolts A and B.
    2. Loosen the adjusting bolt C, and remove the V-ribbed belt.

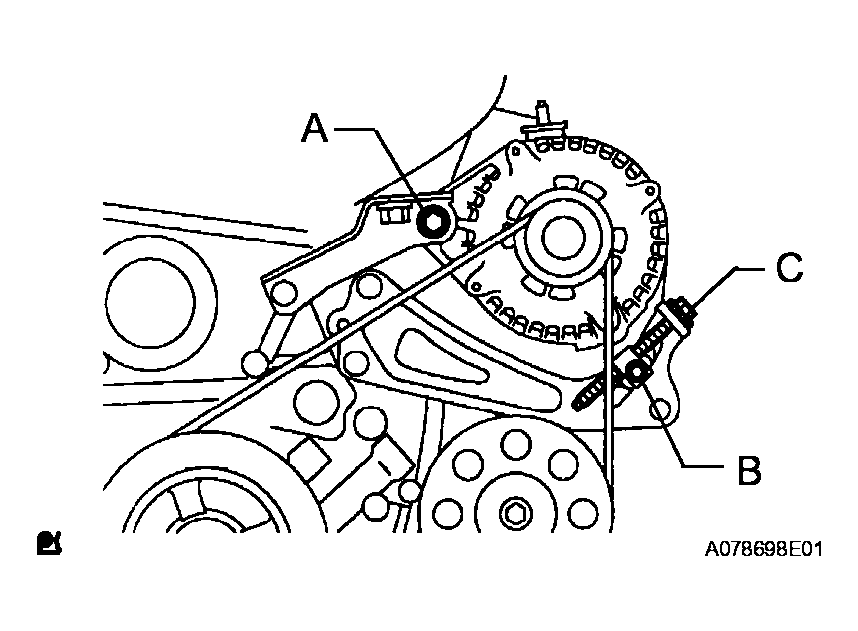

    Fig 1: Removing V-ribbed Belt
    G04087538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE VANE PUMP V-BELT
    1. Loosen bolts A and B, and remove the V-ribbed belt.

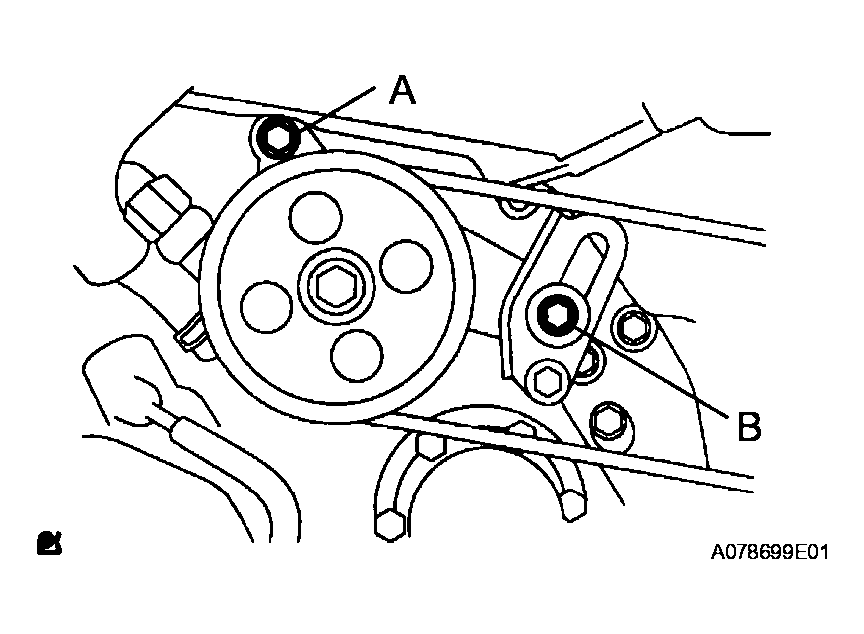

    Fig 2: Removing Van Pump V-Belt
    G04087539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
