Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

INSTALL DISC BRAKE CYLINDER ASSEMBLY
1. Install the rear disc brake cylinder assembly.

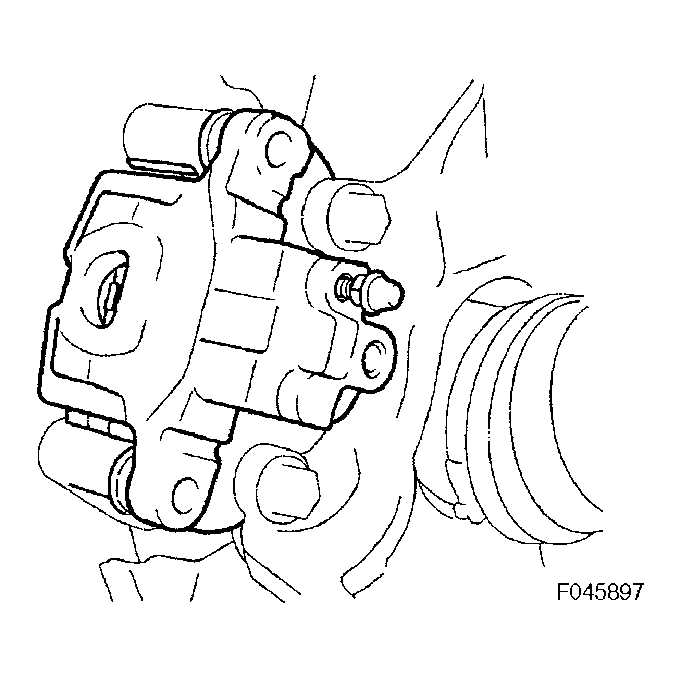

Fig 1: Installing Rear Disc Brake Cylinder Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN
1. Apply the lithium soap base glycol grease to the sliding part and the seal surface of the slide pin.
2. Install the rear disc brake cylinder slide pin.
3. Apply the lithium soap base glycol grease to the sliding part and the seal surface of the slide pin No. 2.
4. Install the rear disc brake cylinder slide pin No. 2 to the bottom side of the cylinder mounting LH.

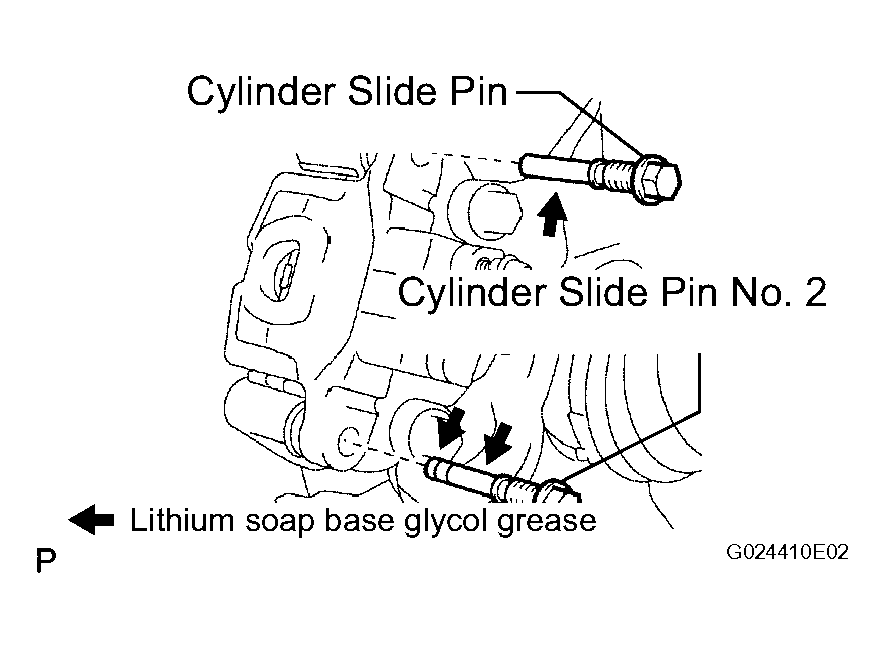

  Fig 2: Installing Rear Disc Brake Cylinder Slide Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Fully tighten the rear disc brake cylinder slide pin and the rear disc brake cylinder slide pin No. 2.
  Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)
CONNECT REAR LH FLEXIBLE HOSE
1. Connect the flexible hose with the union bolt and a new gasket.

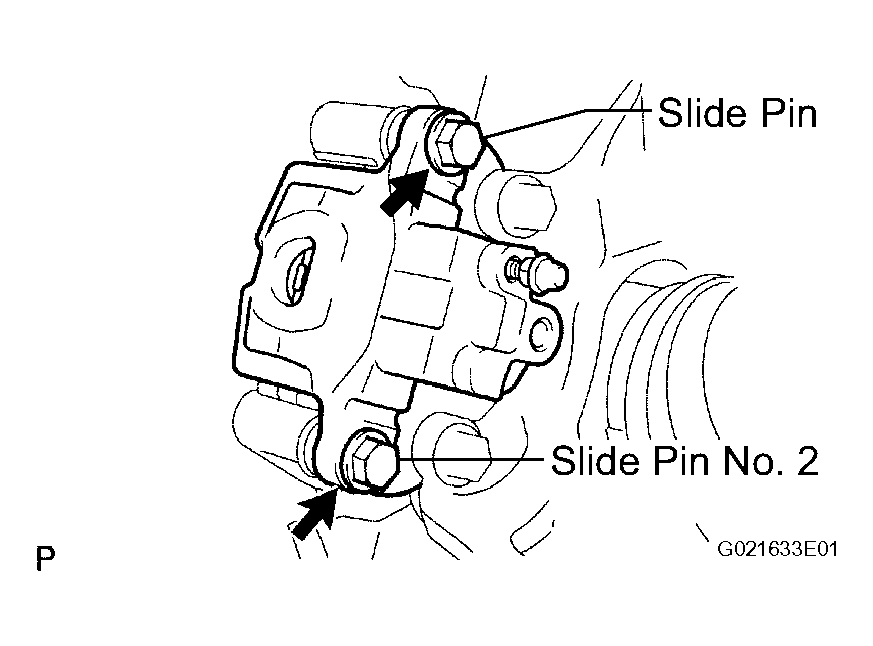

  Fig 3: Tightening Rear Disc Brake Cylinder Slide Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 29 N*m (300 kgf*cm, 21 ft.*lbf)
FILL RESERVOIR WITH BRAKE FLUID
HINT:

See REMOVAL .
BLEED MASTER CYLINDER
HINT:

See REMOVAL .

SST 09023-00101
BLEED BRAKE LINE
HINT:

See REMOVAL .
CHECK FLUID LEVEL IN RESERVOIR
HINT:

See REMOVAL .
CHECK BRAKE FLUID LEAKAGE
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
