Brake Master Cylinder: Removal

DRAIN BRAKE FLUID
NOTE: Wash the brake fluid off immediately if it adheres to any painted surfaces.
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER ASSEMBLY
REMOVE AIR CLEANER HOSE NO. 1
REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY
1. Slide the clip and disconnect the reservoir tube.

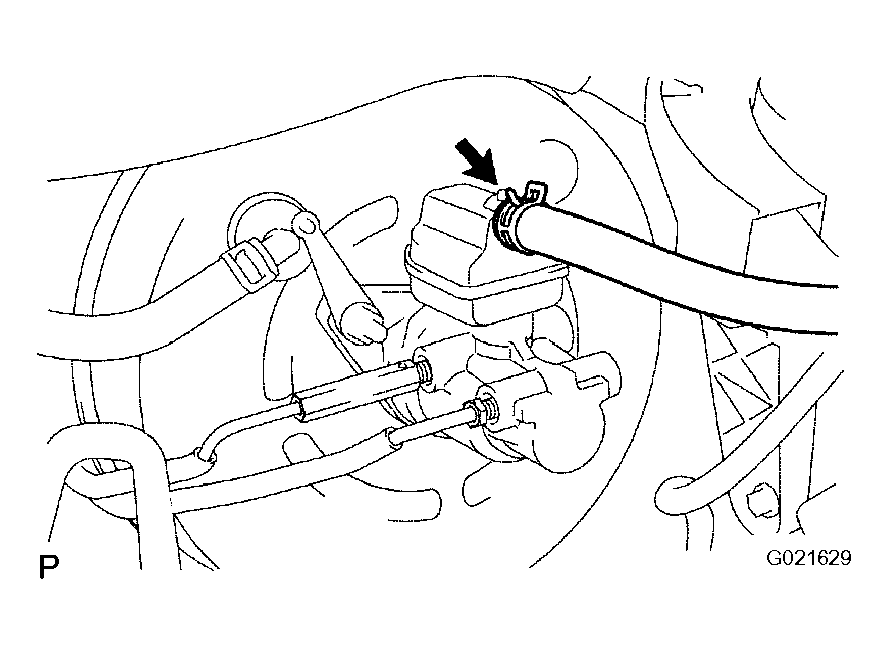

  Fig 1: Disconnecting Reservoir Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST(s), disconnect the 2 brake tubes from the brake master w/ plate cylinder sub-assembly.
  SST 09023-00101

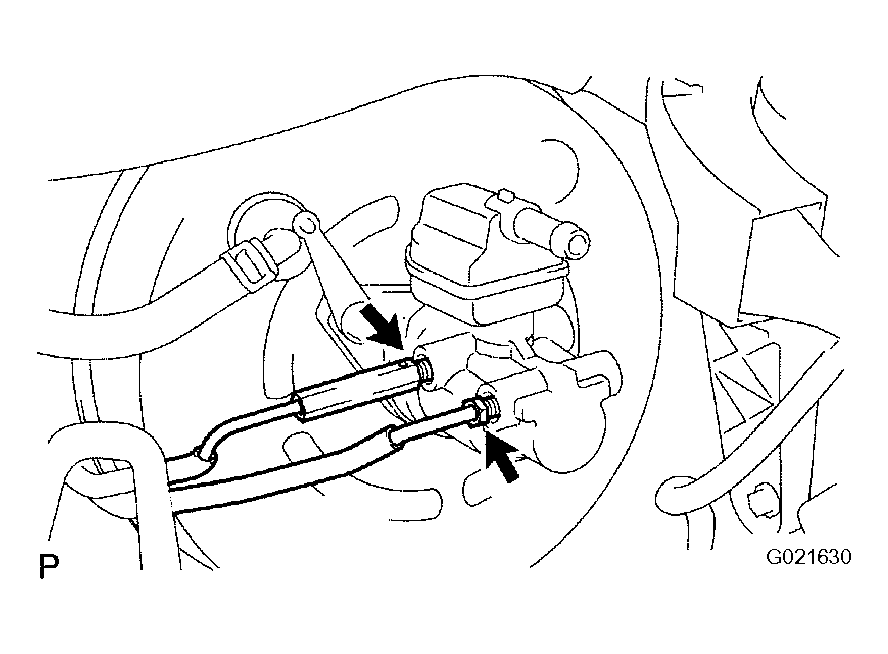

  Fig 2: Disconnecting Brake Tubes From Brake Master W/ Plate Cylinder Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts, then check valve bracket and the brake master w/ plate cylinder assembly.

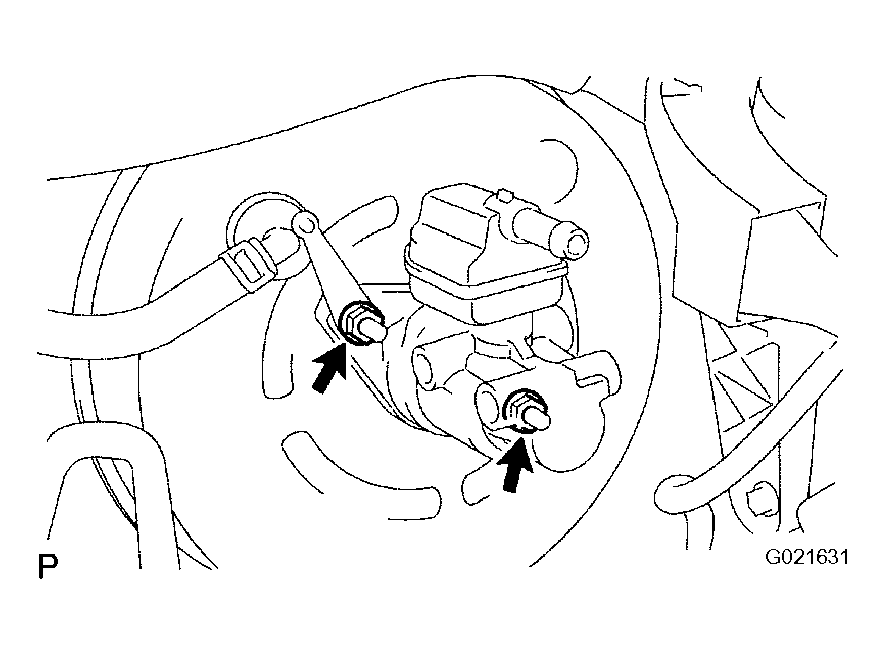

Fig 3: Removing Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
