Brake Booster: Installation

  1. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install the grommet and the check valve assembly to the brake booster assembly.
  2. INSTALL BRAKE BOOSTER GASKET
    1. Install a new brake booster gasket to the brake booster assembly.
  3. INSTALL BRAKE BOOSTER ASSEMBLY
    1. Install the brake booster assembly with the 4 nuts.
      Fig 1: Installing Brake Booster Assembly
      G04090707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

      NOTE: Be careful not to damage the brake tubes and the wire harness.
    2. Connect the vacuum hose to the brake booster assembly and slide the clip.
    Fig 2: Connecting Vacuum Hose To Brake Booster Assembly
    G04090708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BRAKE TUBE
    1. Install the 2 clamps of the brake tube to the body.
    NOTE: Be careful not to damage the brake tubes.
    Fig 3: Installing Brake Tube
    G04090709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL WIRE HARNESS
    1. Install the clip of the wire harness to the body.
    2. Install the grommet of the wire harness to the body.
    3. Install the bolt.

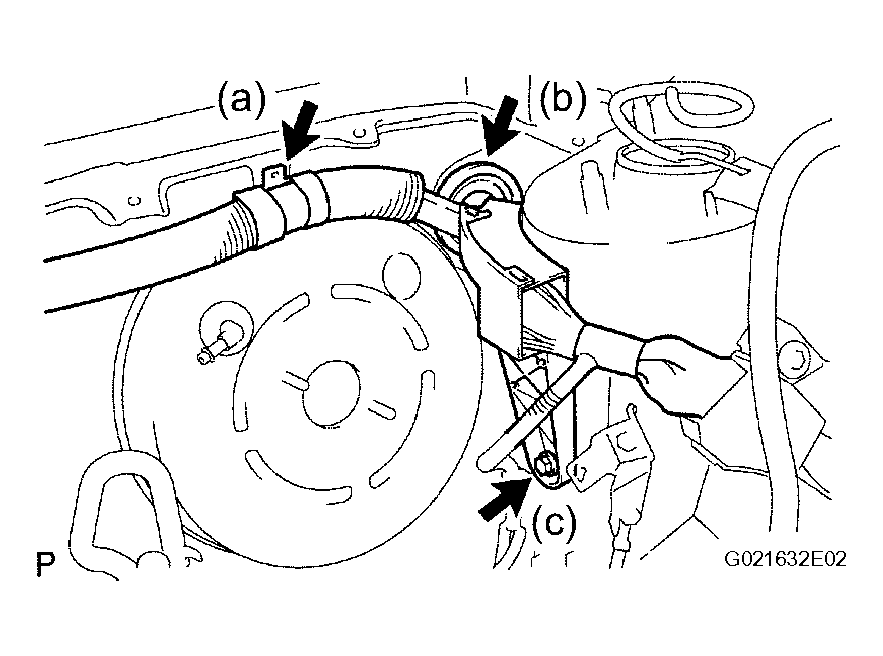

    Fig 4: Installing Wire Harness
    G04090710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS
    1. Install the push rod clevis and the push rod lock nut.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

      HINT:

      After adjusting the brake pedal height, torque the lock nut.

    2. Apply lithium soap base glycol grease to the clevis pin.
    3. Install the push rod pin and the clip.
  7. INSTALL BRAKE PEDAL RETURN SPRING
    1. Install the brake pedal return spring.
  8. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER
  9. INSTALL FRONT SHOCK ABSORBER CAP RH
  10. INSTALL FRONT SHOCK ABSORBER CAP LH (See  INSTALLATION  )
  11. INSTALL WINDSHIELD WIPER MOTOR & LINK ASSEMBLY
    12. Fig 5: Installing Brake Master Cylinder Push Rod Clevis
    G04090711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
  13. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
  14. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
  15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
  16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
  17. INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD

    SST 09737-00020

  18. INSTALL BRAKE MASTER CYLINDER SUBASSEMBLY

    SST 09023-00101

  19. INSTALL AIR CLEANER HOSE NO.1
  20. INSTALL AIR CLEANER ASSEMBLY
  21. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  22. FILL RESERVOIR WITH BRAKE FLUID
  23. BLEED MASTER CYLINDER

    HINT:

    See REMOVAL  .

    SST 09023-00101

  24. BLEED BRAKE LINE

    HINT:

    See REMOVAL  .

  25. CHECK FLUID LEVEL IN RESERVOIR

    HINT:

    See REMOVAL  .

  26. CHECK BRAKE FLUID LEAKAGE
  27. CHECK AND ADJUST BRAKE PEDAL HEIGHT

    HINT:

    See REMOVAL  .
