Instrument Panel Safety Pad: Reassembly

  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
  2. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
  3. INSTALL INSTRUMENT PANEL NO. 2 WIRE
    1. Engage the 18 clamps.
    2. Install the 2 screws and the instrument panel No. 2 wire.

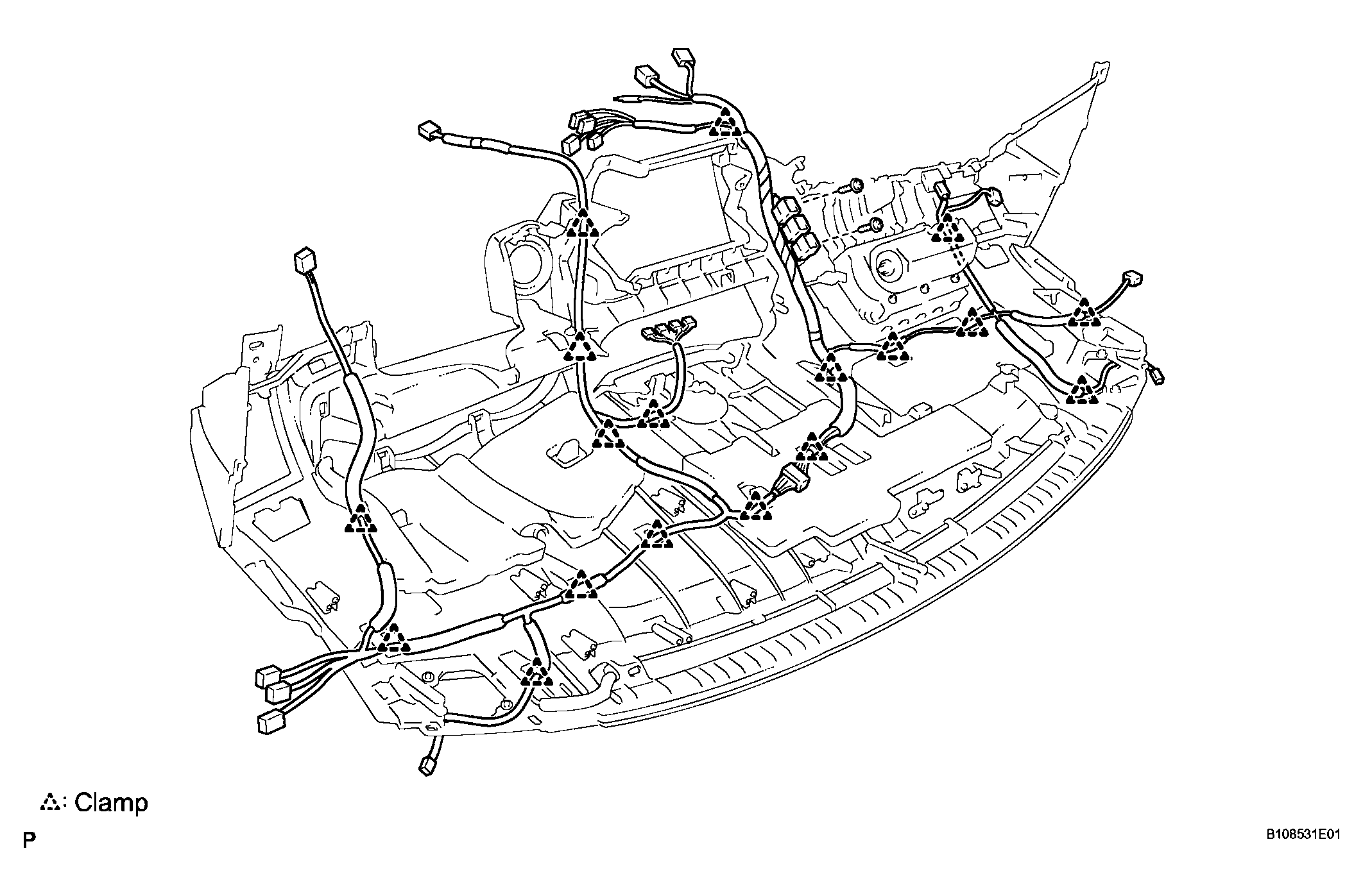

    Fig 1: Installing Instrument Panel No.2 Wire
    G04093338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 RADIO ANTENNA CORD (w/ Navigation System) (See  INSTALLATION  )
  5. INSTALL NO. 2 RADIO ANTENNA CORD (w/o Navigation System) (See  INSTALLATION  )

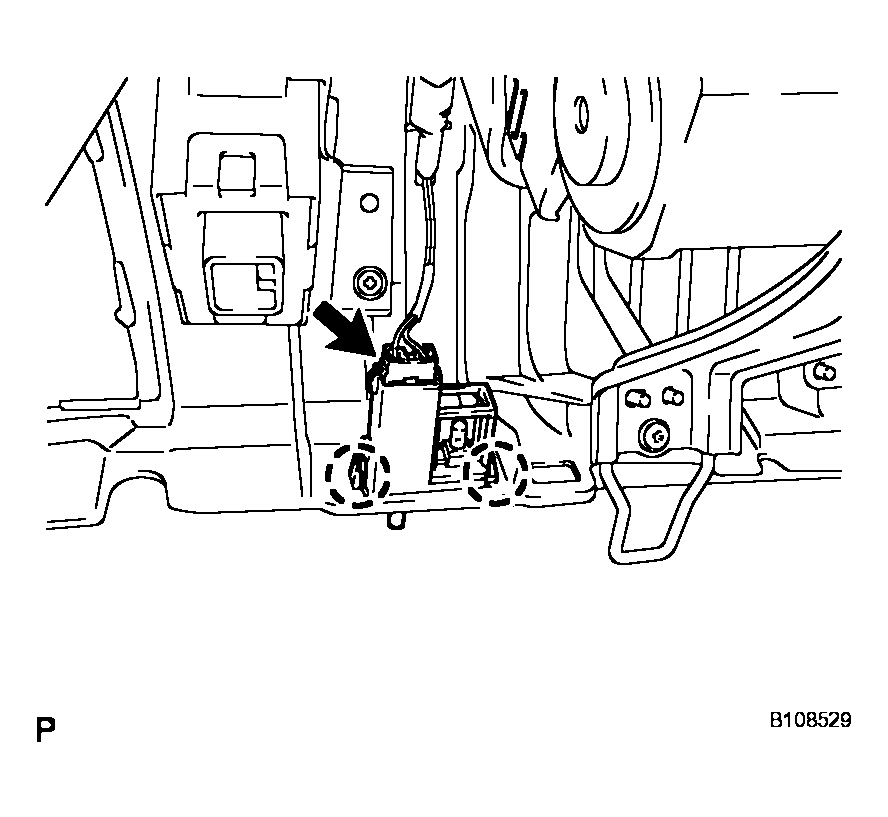

  6. INSTALL GLOVE BOX LIGHT ASSEMBLY
    1. Engage the 2 claws and install the glove box light assembly.
    2. Connect the connector.
    Fig 2: Installing Glove Box Light Assembly
    G04093339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

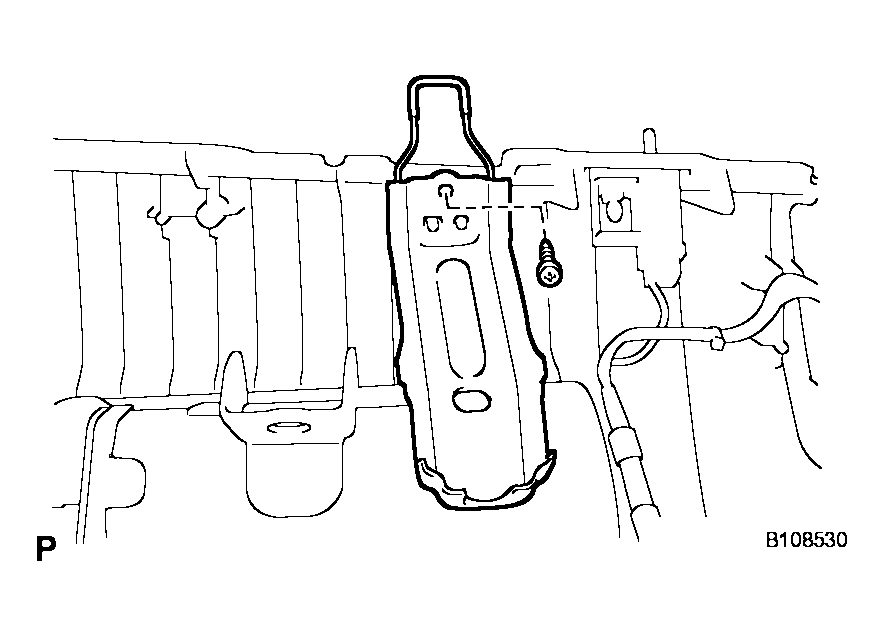

  7. INSTALL INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
    1. Install the screw < C > and the instrument panel bracket sub-assembly center.
    Fig 3: Installing Instrument Panel Bracket Sub-Assembly Center
    G04093340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL DEFROSTER NOZZLE NO. 1 GARNISH
    1. Engage the 2 clips and 4 claws then install the defroster nozzle No.1 garnish.
  9. INSTALL NETWORK GATEWAY ECU
    1. Install the screw < C > and the network gateway ECU.

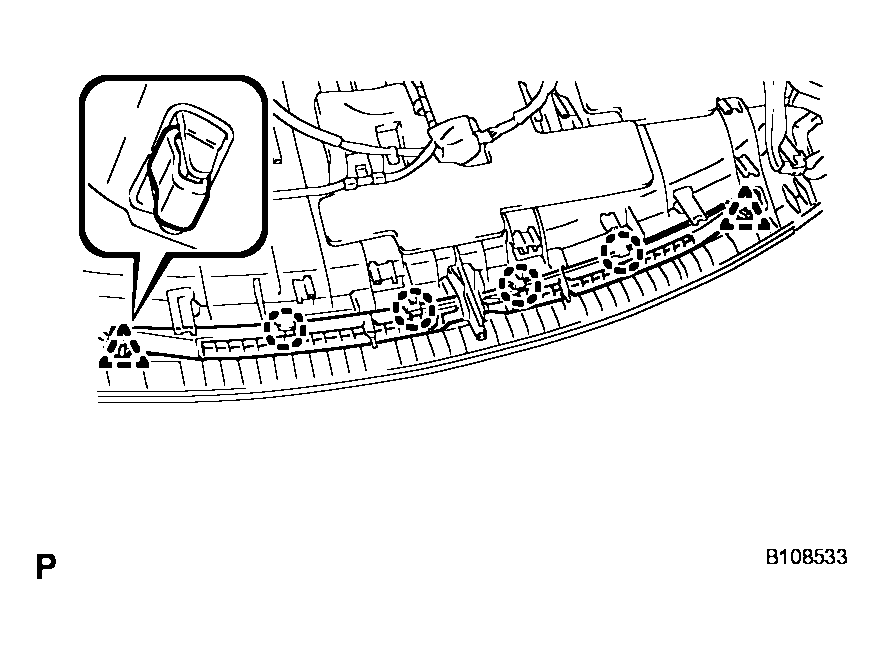

    Fig 4: Installing Defroster Nozzle No.1 Garnish
    G04093341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SIDE DEFROSTER NO. 1 NOZZLE
    1. Engage the 2 claws and install the side defroster No. 1 nozzle.
  11. INSTALL SIDE DEFROSTER NO. 2 NOZZLE
    Fig 5: Installing Side Defroster No.1 Nozzle
    G04093342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle and the side defroster No. 1 nozzle

  12. INSTALL SIDE DEFROSTER NO. 1 NOZZLE DUCT
    1. Install the screw < C > and the side defroster No. 1 nozzle duct.
  13. INSTALL SIDE DEFROSTER NO. 2 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 2 nozzle duct and the side defroster No. 1 nozzle duct.

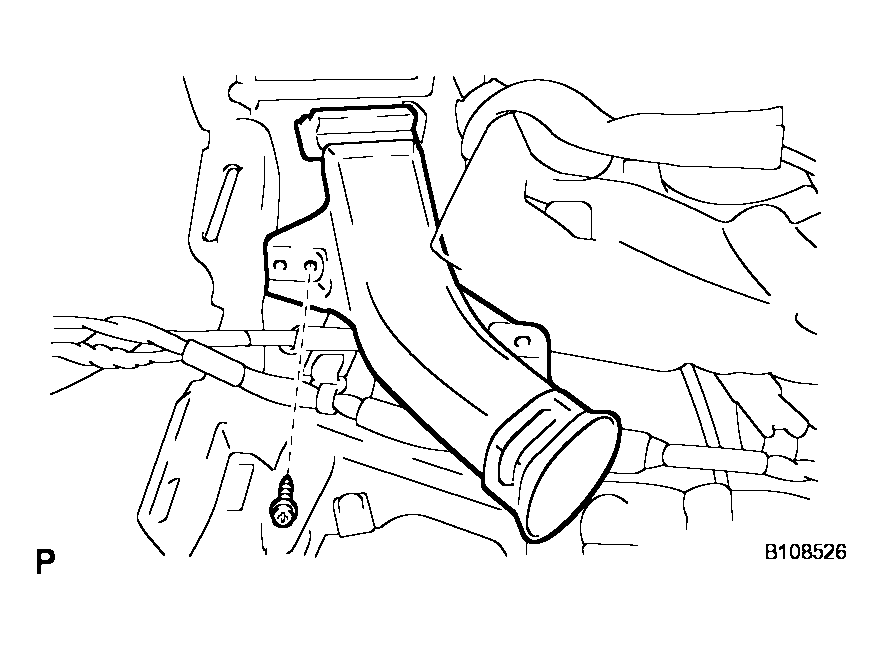

    Fig 6: Installing Side Defroster No.1 Nozzle Duct
    G04093343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL HEATER TO REGISTER CENTER SUB DUCT
    1. Install the 2 screws < C > and the heater to register center sub duct.

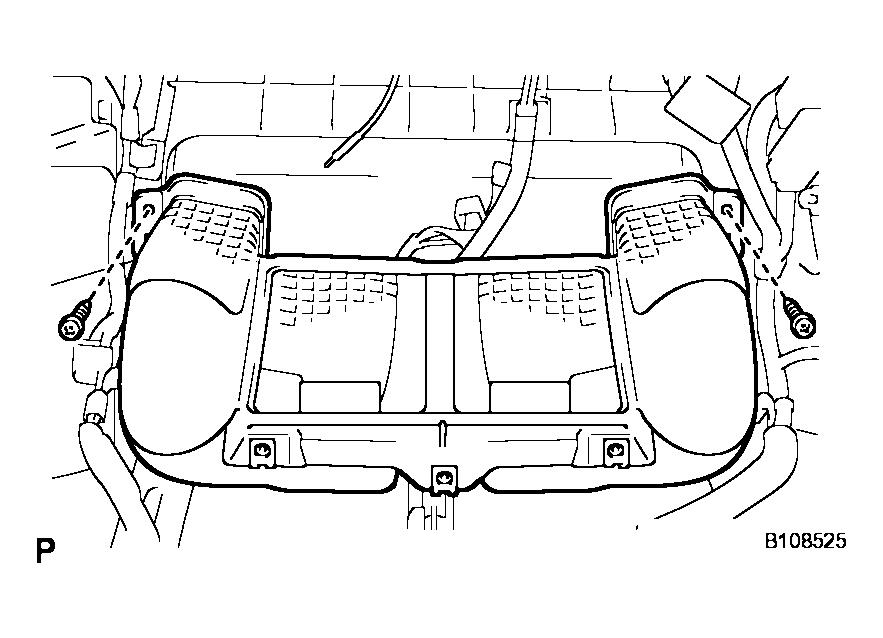

    Fig 7: Installing Heater To Register Center Sub Duct
    G04093344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL HEATER TO REGISTER NO. 1 DUCT
    1. Install the 4 screws < C > and the heater to register No.1 duct.
  16. INSTALL HEATER TO REGISTER NO.4 DUCT

    HINT:

    Use the same procedures for the heater to register No.4 duct and the heater to register No.1 duct.

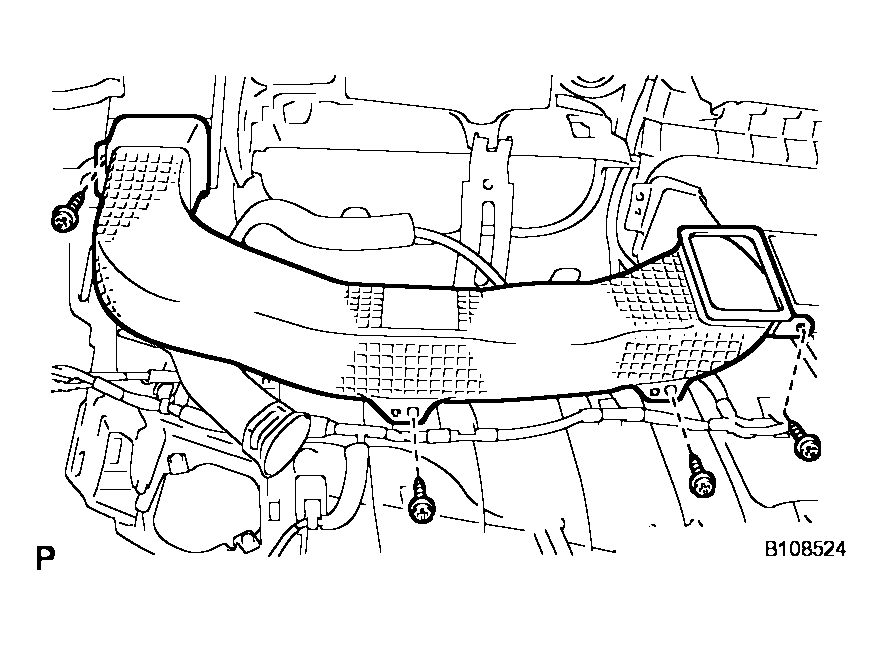

    Fig 8: Installing Heater To Register No.1 Duct
    G04093345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Install the 3 screws < C > and the defroster nozzle assembly.

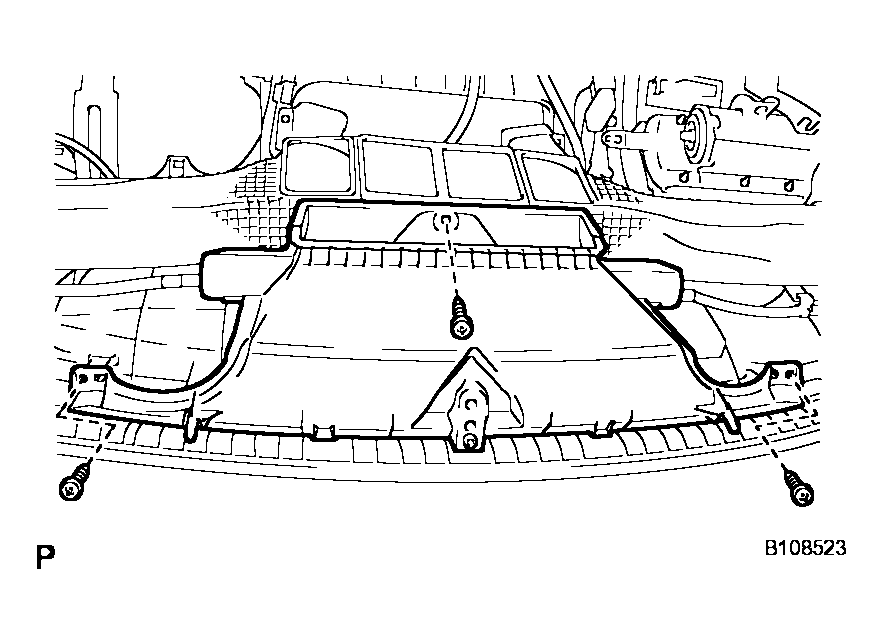

    Fig 9: Installing Defroster Nozzle Assembly
    G04093346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL INSTRUMENT PANEL NO. 1 PIN
    1. Install the screw < C > and the instrument panel No.1 pin.
    Fig 10: Installing Instrument Panel No.1 Pin
    G04093347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL SIDE DEFROSTER NO. 3 NOZZLE DUCT
    1. Install the screw < C > and the side defroster No.3 nozzle duct.
  20. INSTALL SIDE DEFROSTER NO. 4 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No.4 nozzle duct and the side defroster No.3 nozzle duct.

  21. INSTALL FRONT NO. 2 SPEAKER (for Driver Side) (See  INSTALLATION  )

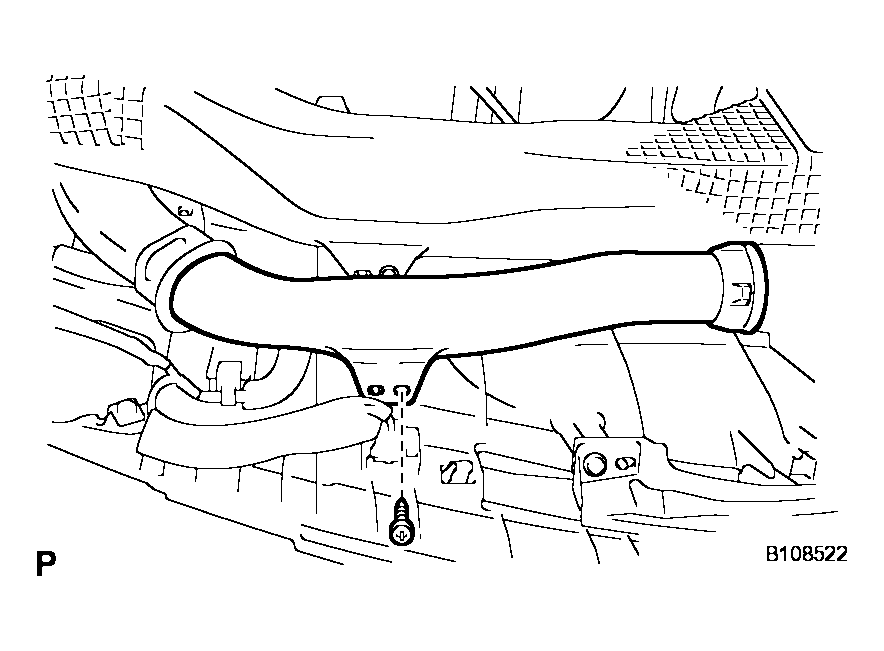

    Fig 11: Installing Side Defroster No. 3 Nozzle Duct
    G04093348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT NO. 2 SPEAKER (for Front Passenger Side)

    HINT:

    Use the same procedures for the driver side and passenger side.

  23. INSTALL FRONT NO. 2 SPEAKER (w/ Mark Levinson Speaker System) (See  INSTALLATION  )
  24. INSTALL INSTRUMENT PANEL NO.1 SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 clips and install the instrument panel No.1 speaker panel sub-assembly.
  25. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedures for the instrument panel No.2 speaker panel sub-assembly and the instrument panel No.1 speaker panel sub-assembly.

    Fig 12: Installing Instrument Panel No.2 Speaker Panel Sub-Assembly
    G04093349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SPEAKER HOLE NO.1 COVER (w/ Mark Levinson Speaker System)
    1. Engage the 4 clips and install the speaker hole No.1 cover.

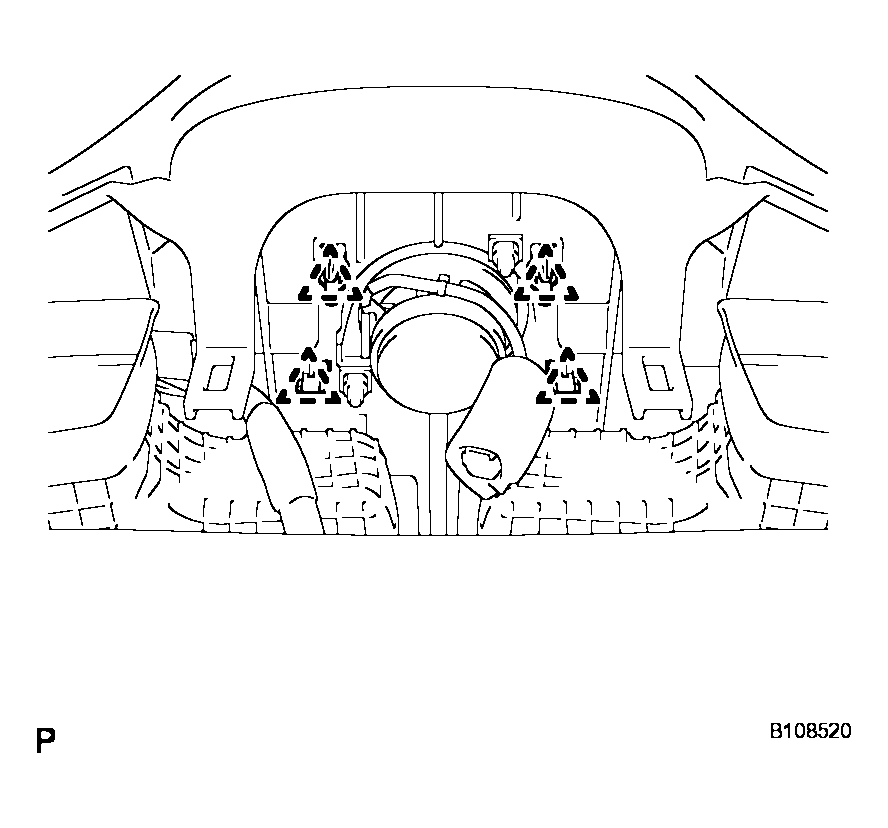

    Fig 13: Installing Speaker Hole No.1 Cover (W/ Mark Levinson Speaker System)
    G04093350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
