Antenna Cord Sub-ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See REPLACEMENT )
HINT:

Refer to the instructions for removal of the instrument panel sub-assy.
REMOVE ANTENNA CORD SUB-ASSY
1. Remove the 4 clamps and antenna cord sub-assy.

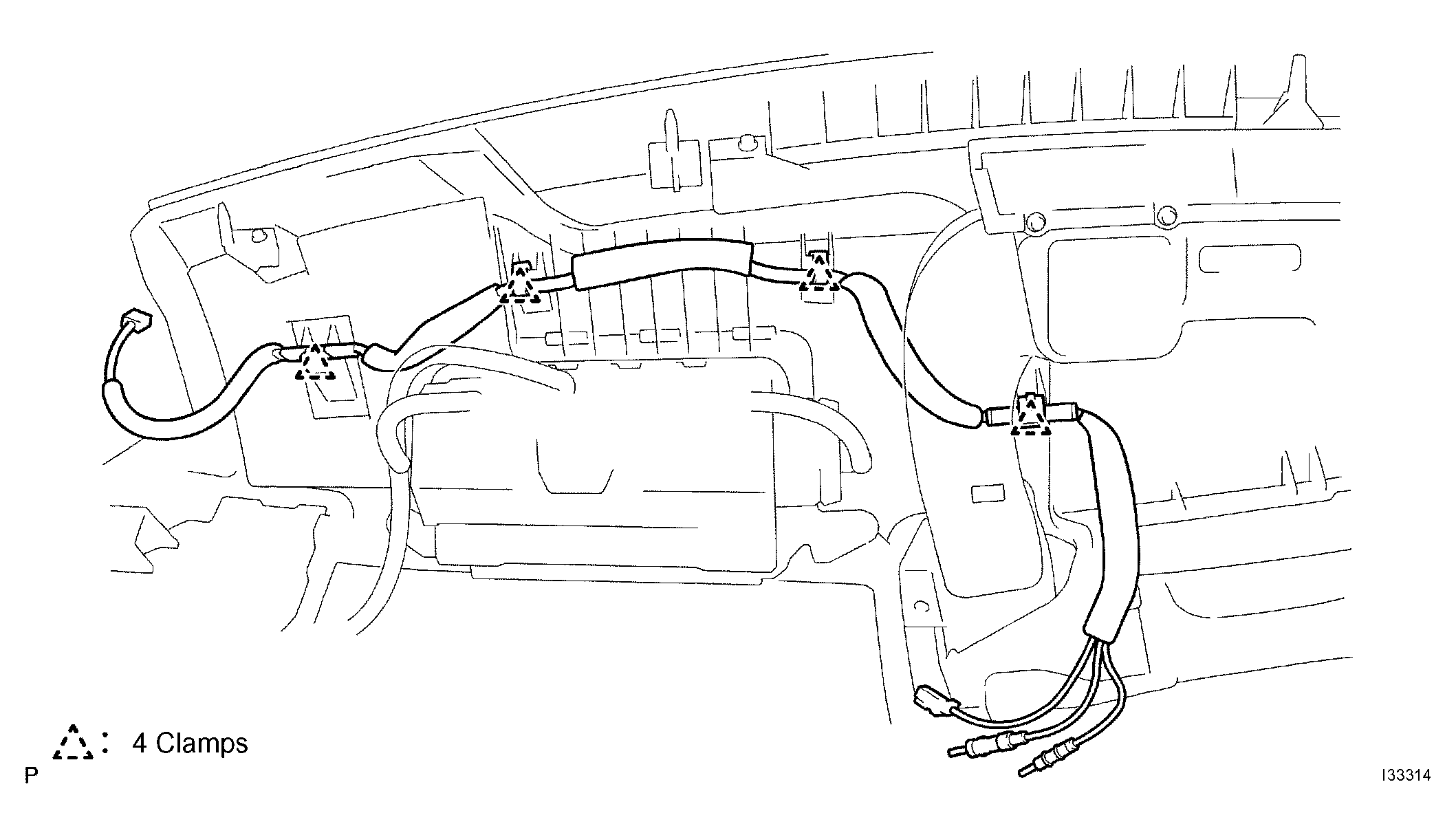

  Fig 1: Removing Clamps & Antenna Cord Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See OVERHAUL )
