Curtain Shield Airbag ASSY LH: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

SEE PRECAUTION )
DISCONNECT BATTERY NEGATIVE TERMINAL (SEE SUPPLEMENTAL RESTRAINT SYSTEM )
REMOVE ROOF HEADLINING ASSY (SEE REPLACEMENT )
REMOVE CURTAIN SHIELD AIRBAG ASSY LH
1. Using a screwdriver, disconnect the connector of the curtain shield airbag assy LH.
2. Remove the 11 bolts and curtain shield airbag assy LH.
  HINT:

  Remove the bolts from front side of the vehicle in order.

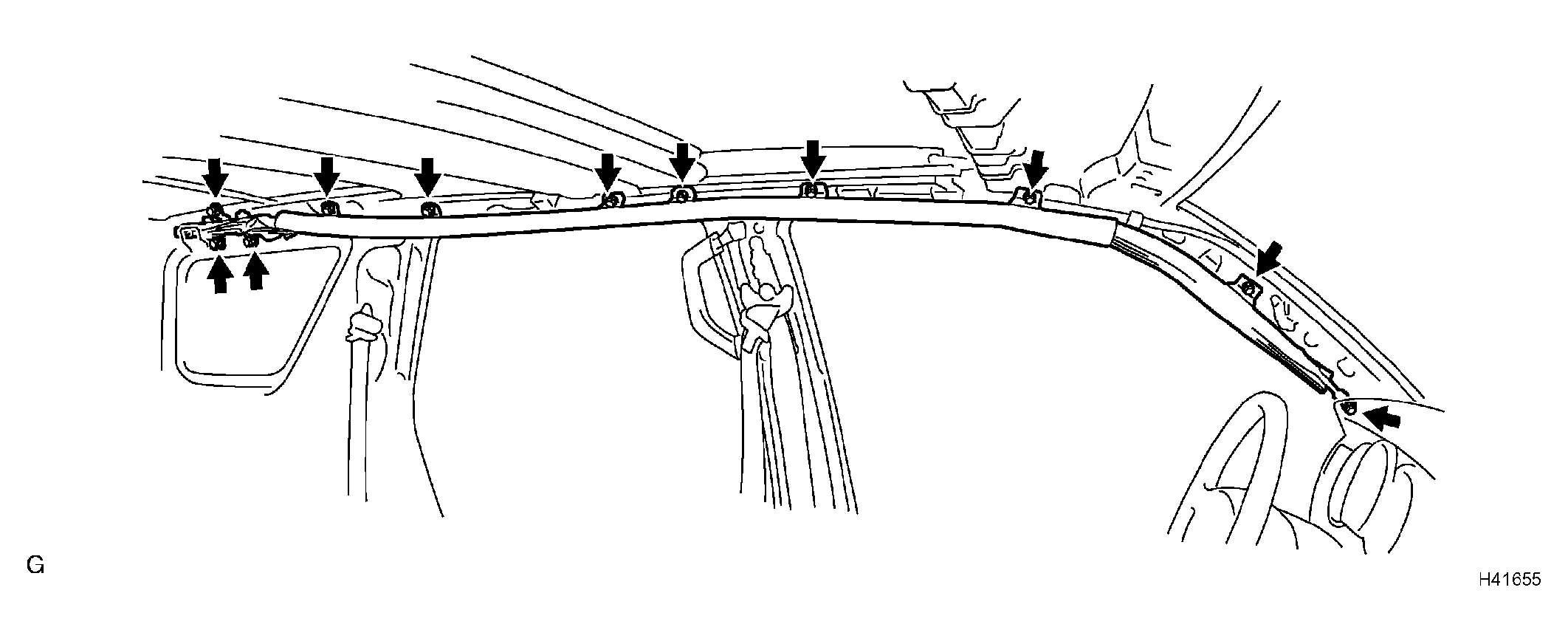

  Fig 1: Removing Bolts From Front Side Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CURTAIN SHIELD AIRBAG ASSY LH (SEE ON-VEHICLE INSPECTION )
INSTALL CURTAIN SHIELD AIRBAG ASSY LH
1. Install the curtain shield airbag assy LH with the 11 bolts.
  Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

  HINT:

  Install the bolts from rear side of the vehicle in order.
2. Connect the curtain shield airbag assy LH connector.
INSTALL ROOF HEADLINING ASSY (SEE REPLACEMENT )
INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM )
