Roof Headlining ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

REMOVE TONNEAU COVER RETRACTOR SUB-ASSY
REMOVE REAR NO. 2 SEAT LH (W/3RD SEAT) (See OVERHAUL )
REMOVE REAR NO. 2 SEAT RH (W/3RD SEAT) (See OVERHAUL )
REMOVE NO. 3 SEAT LEG COVER NO. 2 (W/3RD SEAT)

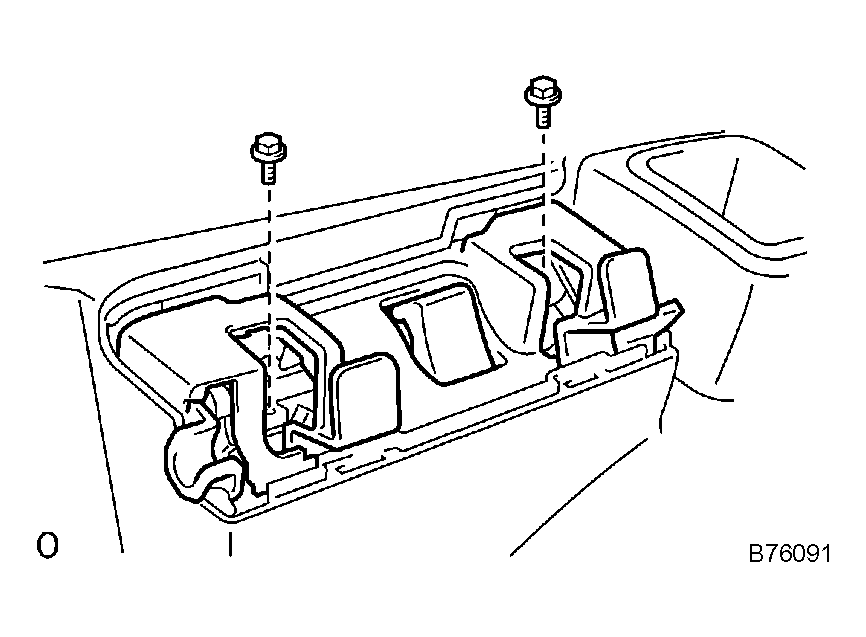

REMOVE REAR NO. 2 SEAT LOCK ASSY LH (W/3RD SEAT)
1. Remove the 2 bolts and seat lock.

  Fig 1: Removing Rear No. 2 Seat Lock Assy LH (W/3rd Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 2 SEAT LOCK ASSY RH (W/3RD SEAT)
1. Remove the 2 bolts and seat lock.
REMOVE SEAT ANCHOR RAIL NO. 4 (W/3RD SEAT)
1. Using a screwdriver, remove the 2 covers, 2 bolts and anchor rail.
  HINT:

  Tape the screwdriver tip before use.
REMOVE BACK DOOR WEATHERSTRIP
REMOVE DECK BOARD SUB-ASSY
1. Remove the 2 bolts and the deck board sub-assy.
REMOVE DECK BOARD ASSY
1. Remove the 2 bolts and the deck board assy.

  Fig 2: Removing Deck Board Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FLOOR MAT SUPPORT PLATE REAR
1. Remove the 5 bolts and mat support plate.

  Fig 3: Removing Rear Floor Mat Support Plate Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DECK FLOOR BOX LH
1. Using a screwdriver, disengage the claws and remove the cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt, deck floor box and luggage hold belt striker.

  Fig 4: Removing Deck Floor Box LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DECK FLOOR BOX RH
HINT:

Use the same procedures described for the LH side.
REMOVE DECK TRIM COVER REAR
1. Using a screwdriver, pry out the trim cover.
  HINT:

  Tape the screwdriver tip before use.
REMOVE DECK TRIM SIDE BOARD UPR LH
1. Remove the screw and side board.
REMOVE DECK TRIM SIDE BOARD UPR RH
1. Remove the screw and side board.
REMOVE SIDE TRIM BOX ASSY LH
1. Remove the screw and side trim box.
REMOVE SIDE TRIM BOX ASSY RH
1. Remove the screw and side trim box.
REMOVE QUARTER SCUFF PLATE INSIDE LH (W/3RD SEAT)
1. Using a screwdriver, disengage the 4 claws and covers.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 2 bolts and scuff plate.

  Fig 5: Removing Quarter Scuff Plate Inside LH (W/3rd Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER SCUFF PLATE INSIDE RH (W/3RD SEAT)
HINT:

Use the same procedure described for the LH side.
REMOVE REAR DOOR SCUFF PLATE LH
1. Using a screwdriver, disengage the claw labeled A, claw labeled B, 2 claws labeled C and claw labeled D. Remove the scuff plate.
  HINT:

  Tape the screwdriver tip before use.

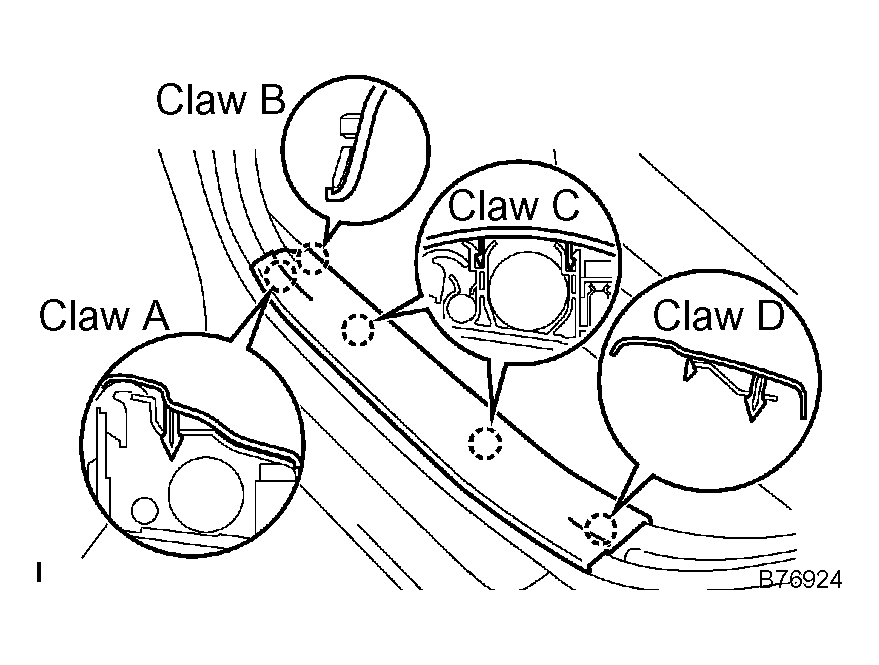

  Fig 6: Removing Rear Door Scuff Plate LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.

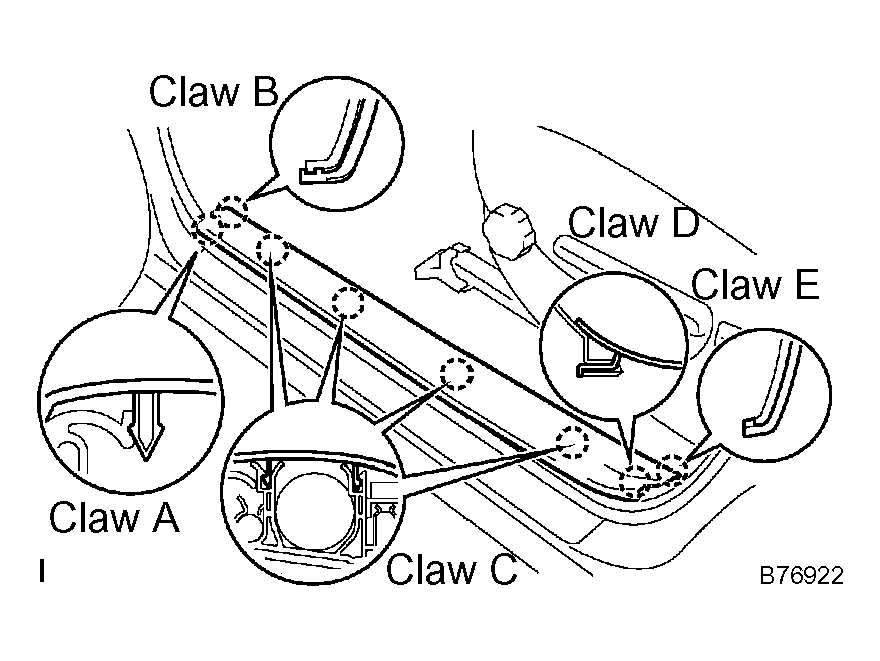

REMOVE FRONT DOOR SCUFF PLATE LH
1. Using a screwdriver, disengage the claw labeled A, claw labeled B, 4 claws labeled C, claw labeled D and claw labeled E. Remove the scuff plate.
  HINT:

  Tape the screwdriver tip before use.

  Fig 7: Removing Front Door Scuff Plate LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.
REMOVE COWL SIDE TRIM BOARD LH
1. Remove the cap nut.
2. Using a screwdriver, disengage the 2 claws and remove the trim board.
  HINT:

  Tape the screwdriver tip before use.

  Fig 8: Removing Cowl Side Trim Board LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure described for the LH side.
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
REMOVE DECK TRIM COVER REAR
REMOVE REAR FLOOR CARPET ASSY
REMOVE DECK TRIM SIDE PANEL ASSY LH
1. Remove the screw and deck trim cover.
2. Remove the 3 screws and clips.
3. Using a screwdriver, disengage the 6 clips and remove the side panel.
  HINT:

  Tape the screwdriver tip before use.

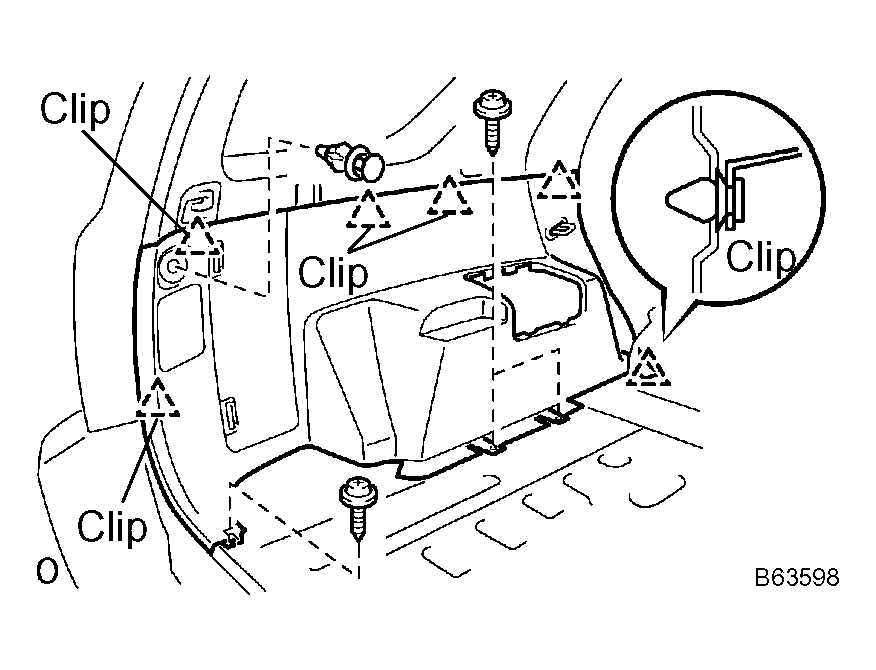

  Fig 9: Removing Deck Trim Side Panel Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DECK TRIM SIDE PANEL ASSY RH
HINT:

Use the same procedure described for the LH side.
REMOVE DECK TRIM SIDE PANEL ASSY LH (W/3RD SEAT)
1. Remove the bolt and 3 screws.
2. Using a screwdriver, remove the 5 clips and side panel.
  HINT:

  Tape the screwdriver tip before use.

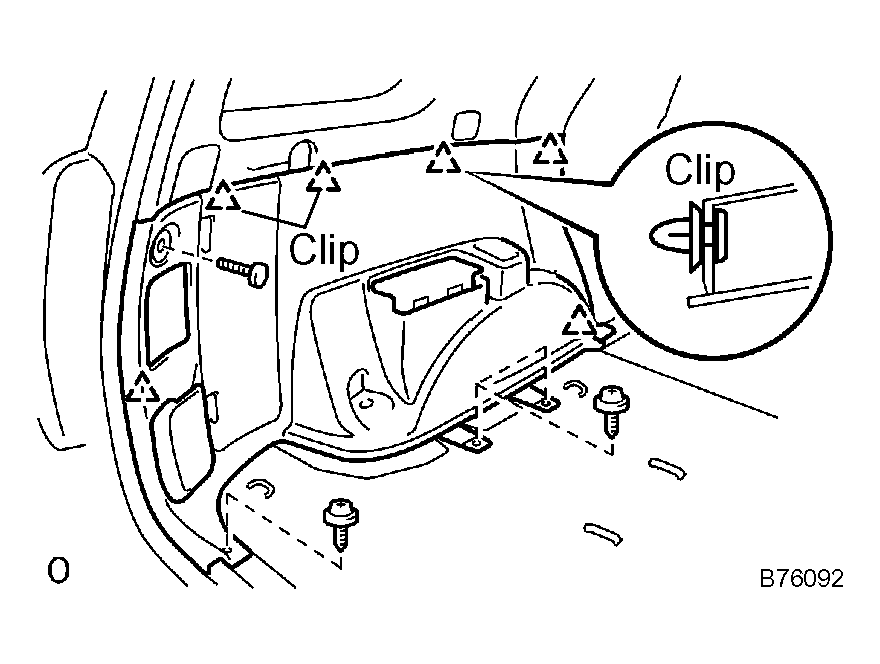

  Fig 10: Removing Deck Trim Side Panel LH (W/3rd Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DECK TRIM SIDE PANEL ASSY RH (W/3RD SEAT)
HINT:

Use the same procedure described for the LH side.
REMOVE ROOF SIDE GARNISH ASSY INNER LH
1. Remove the screw and tonneau cover hook.
2. Remove the 3 bolts and clip.
3. Using a screwdriver, disengage the 9 clips and remove the side garnish.
  HINT:

  Tape the screwdriver tip before use.

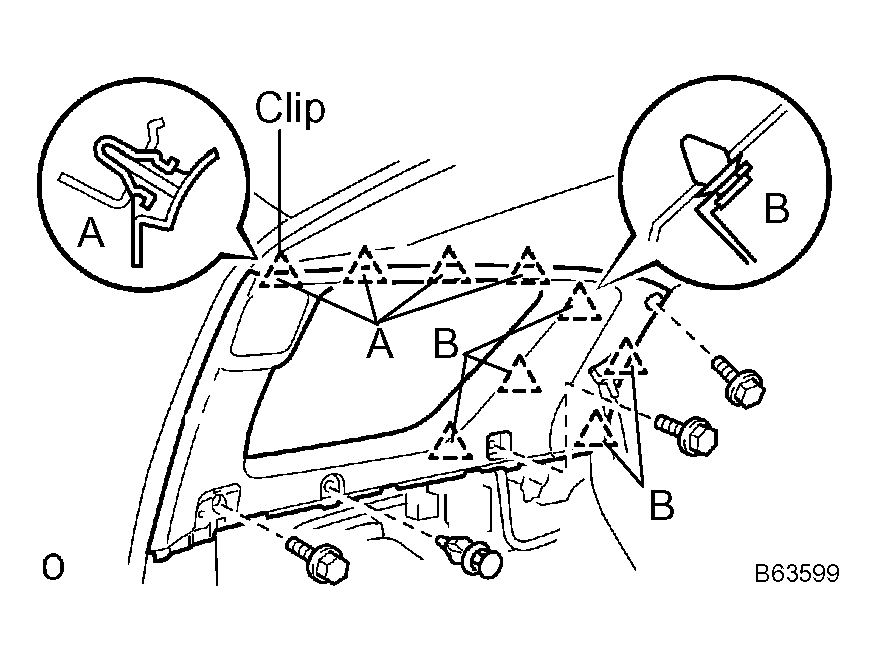

  Fig 11: Removing Side Garnish Assy Inner LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE GARNISH ASSY INNER RH
HINT:

Use the same procedure described for the LH side.

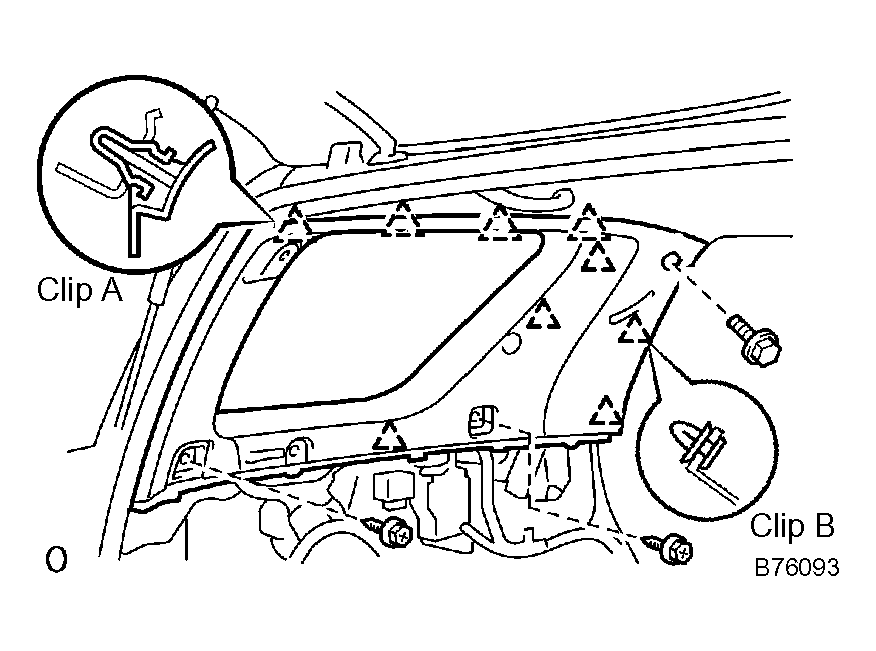

REMOVE ROOF SIDE GARNISH ASSY INNER LH (W/3RD SEAT)
1. Remove the rear No. 2 shoulder anchor bolt.
2. Remove the 3 screws, disengage the 4 clips labeled A and 5 clips labeled B.
3. Using a screwdriver, disengage the 4 claws and remove the side garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 12: Removing Side Garnish Assy Inner LH (W/3rd Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE GARNISH ASSY INNER RH (W/3RD SEAT)
HINT:

Use the same procedure described for the LH side.

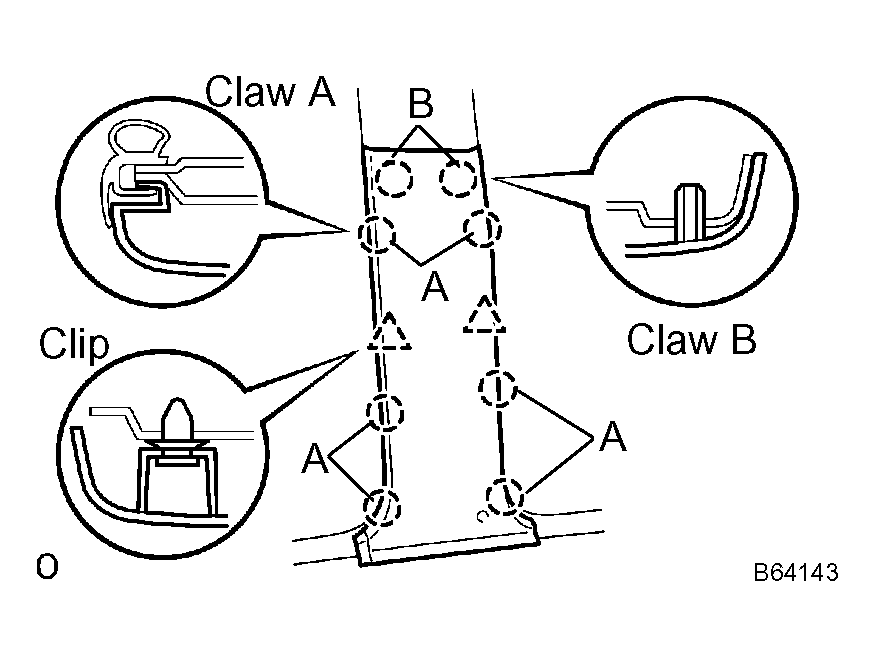

REMOVE CENTER PILLAR GARNISH LOWER LH
1. Using a screwdriver, disengage the 6 claws labeled A and 2 claws labeled B. Remove the 2 clips and pillar garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 13: Removing Center Pillar Garnish Lower LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR GARNISH LOWER RH
HINT:

Use the same procedure described for the LH side.
REMOVE CENTER PILLAR GARNISH UPPER LH
1. Remove the bolt and disconnect the front seat outer belt (floor anchor side).
2. Remove the 2 bolts.
3. Using a screwdriver, disengage the 6 claws and clip, and remove the pillar garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 14: Removing Center Pillar Garnish Upper LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR GARNISH UPPER RH
HINT:

Use the same procedure described for the LH side.
REMOVE FRONT PILLAR GARNISH LH
1. Using a screwdriver, remove the 2 assist grip plugs.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 2 bolts.
3. Using a screwdriver, disengage the claw. Remove the clip labeled A, clip labeled B and pillar garnish.
  HINT:

  Tape the screwdriver tip before use.

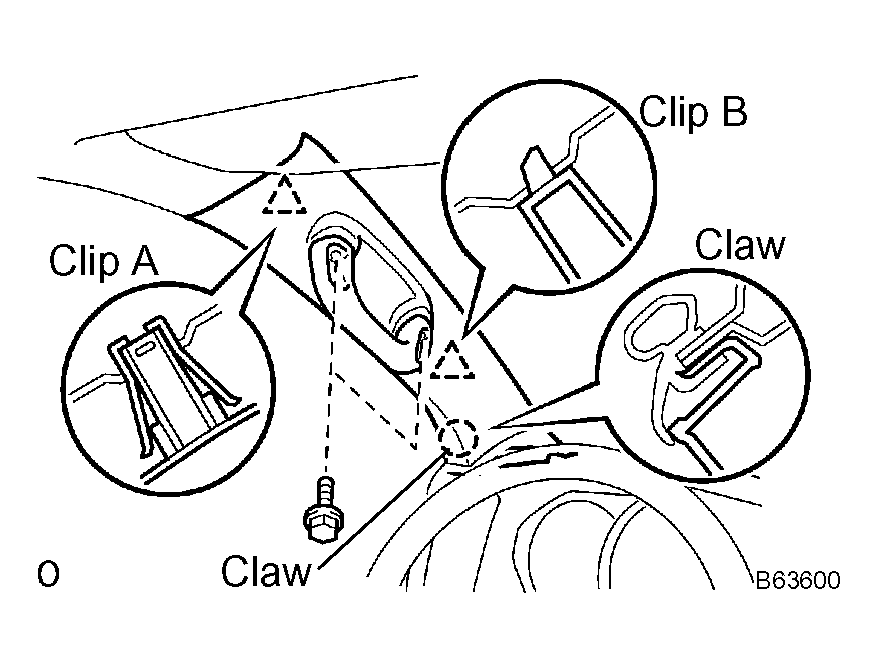

  Fig 15: Removing Clips And Pillar Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pull the garnish upward, and remove the pillar garnish from the instrument panel.
5. w/Curtain shield airbag:
  Protect the curtain shield airbag LH.

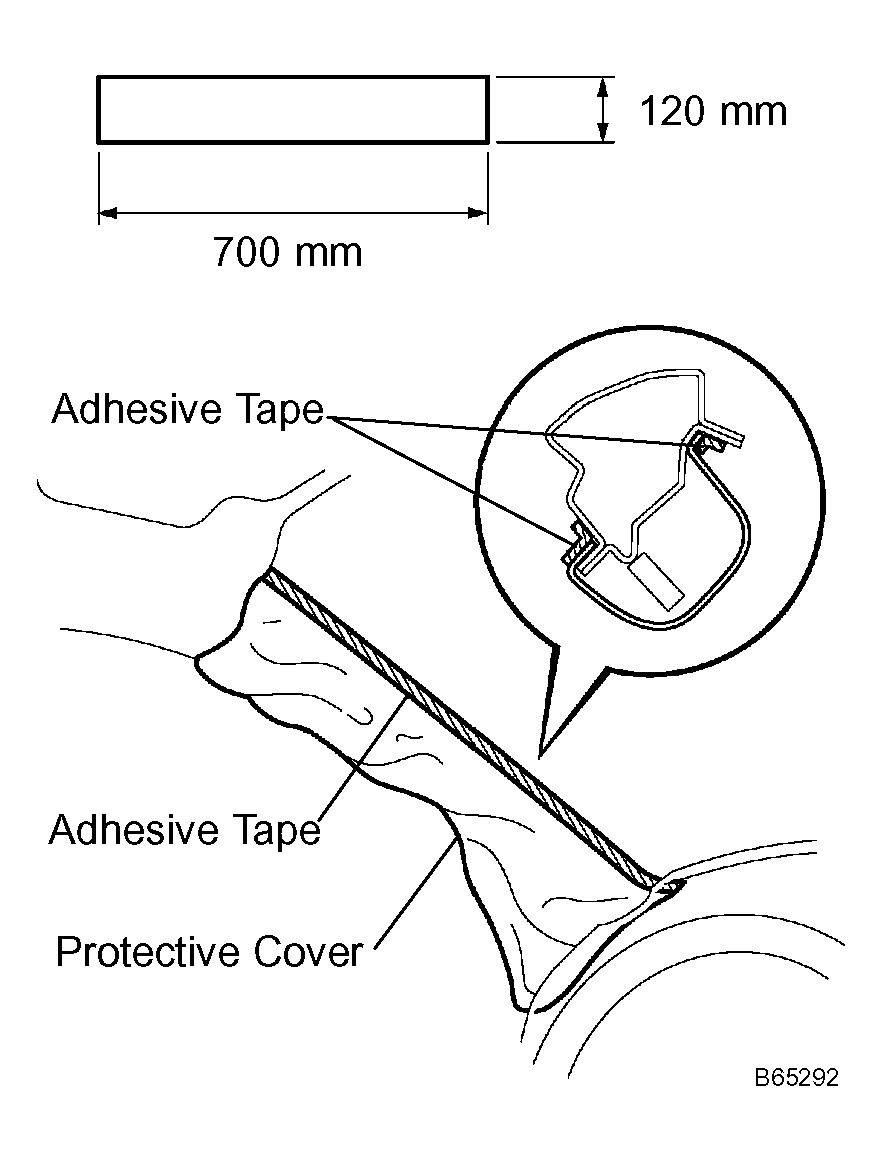

  1. Thoroughly cover the airbag with cloth or nylon of 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape as shown in Fig 16.
    NOTE: Cover the curtain shield airbag with the protection cover as soon as the front pillar garnish is removed.

    Fig 16: Fixing Ends Of Cover With Adhesive Tape
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH RH
HINT:

Use the same procedure described for the LH side.
REMOVE INNER REAR VIEW MIRROR ASSY

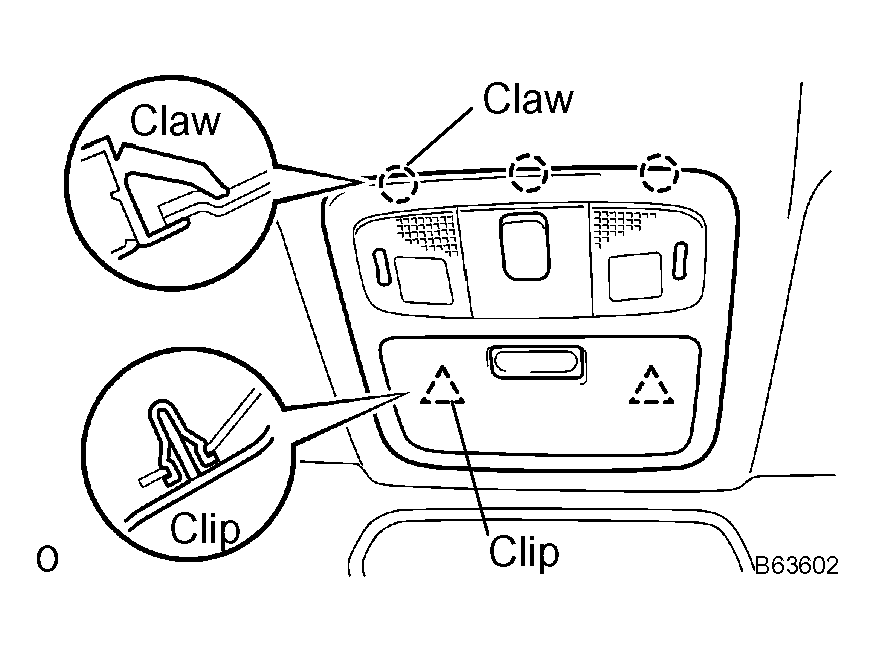

REMOVE ROOF CONSOLE BOX ASSY
1. Using a molding remover, disengage the 3 claws and 2 clips.
  HINT:

  Tape the screwdriver tip before use.
2. Disconnect the map lamp switch connector and sliding roof switch connector, and remove the console box.

  Fig 17: Removing Roof Console Box Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOM LAMP ASSY NO. 1

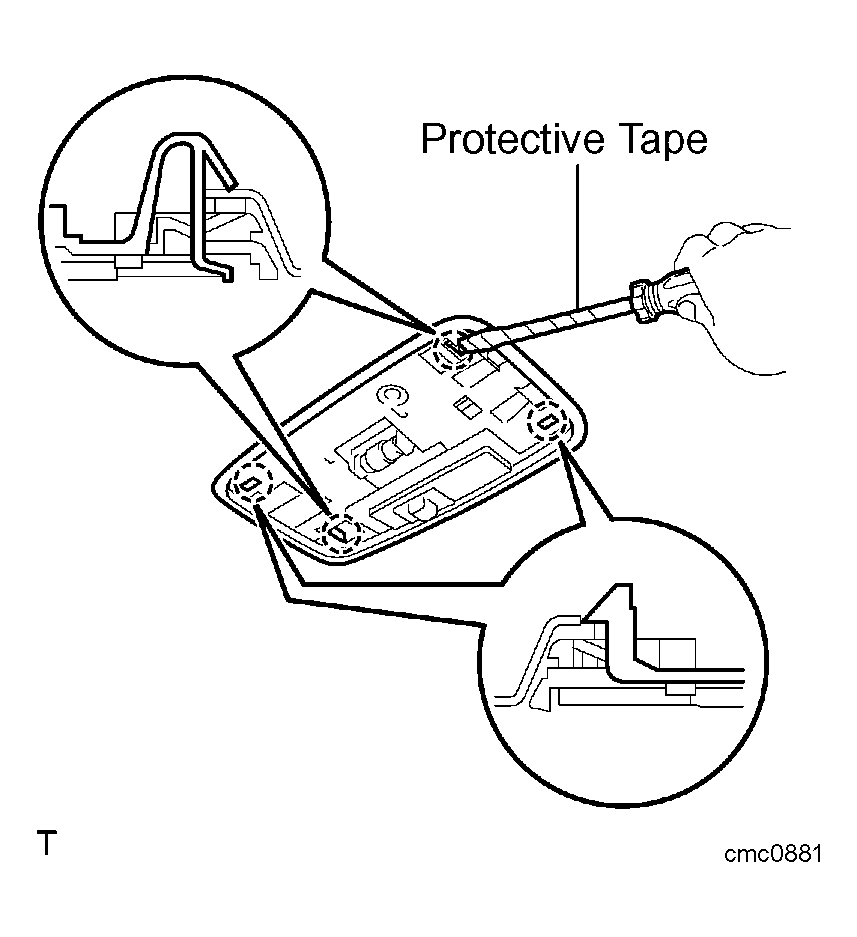

1. Using a screwdriver, disengage the 4 claws and remove the room lamp lens.
  HINT:

  Tape the screwdriver tip before use.

  Fig 18: Removing Room Lamp Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

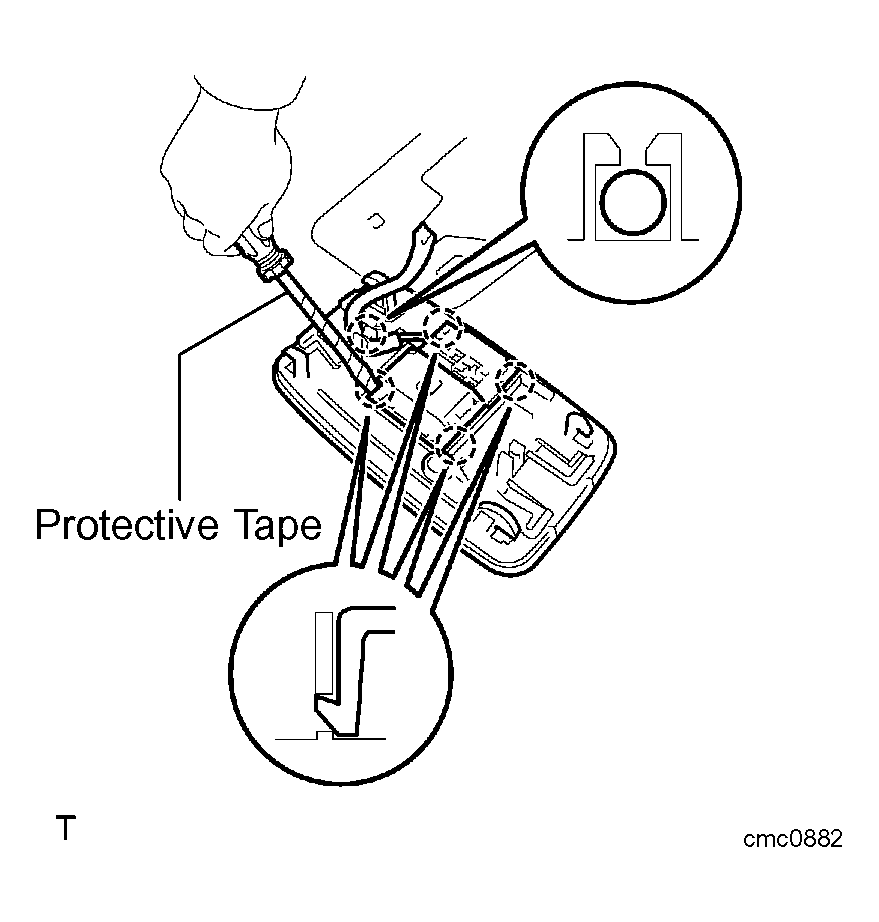

2. Using a screwdriver, disengage the 4 claws and remove the 2 covers.
  HINT:

  Tape the screwdriver tip before use.

  Fig 19: Removing Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, disengage the 4 claws.
  HINT:

  Tape the screwdriver tip before use.

  Fig 20: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the No. 1 roof wire from the claw of the room lamp.
5. Using a screwdriver, disengage the 4 claws and remove the room lamp switch base and the room lamp.

  Fig 21: Removing Room Lamp Switch Base And Room Lamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/RSE:
REMOVE DOME LAMP ASSY AND TELEVISION DISPLAY ASSY (SEE TELEVISION DISPLAY ASSY )
REMOVE LH VISOR ASSY
1. Remove the 2 screws and visor assy.
2. Remove the 2 screws and visor sub-assy.

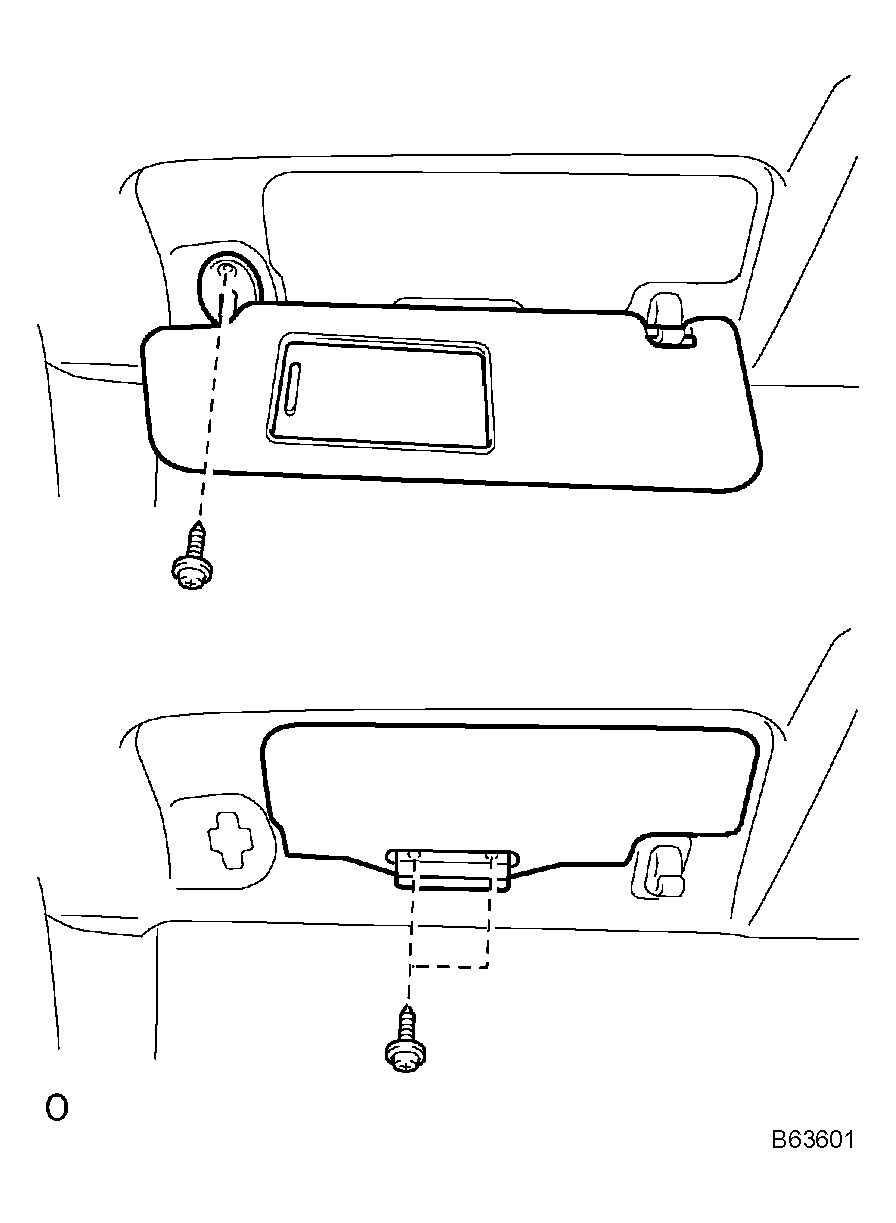

  Fig 22: Removing Visor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RH VISOR ASSY
HINT:

Use the same procedure described for the LH side.
REMOVE VISOR HOLDER
1. Remove the screw and visor holder.
REMOVE ROOF HEADLINING ASSY
1. Disengage the 4 clips and remove the headlining.

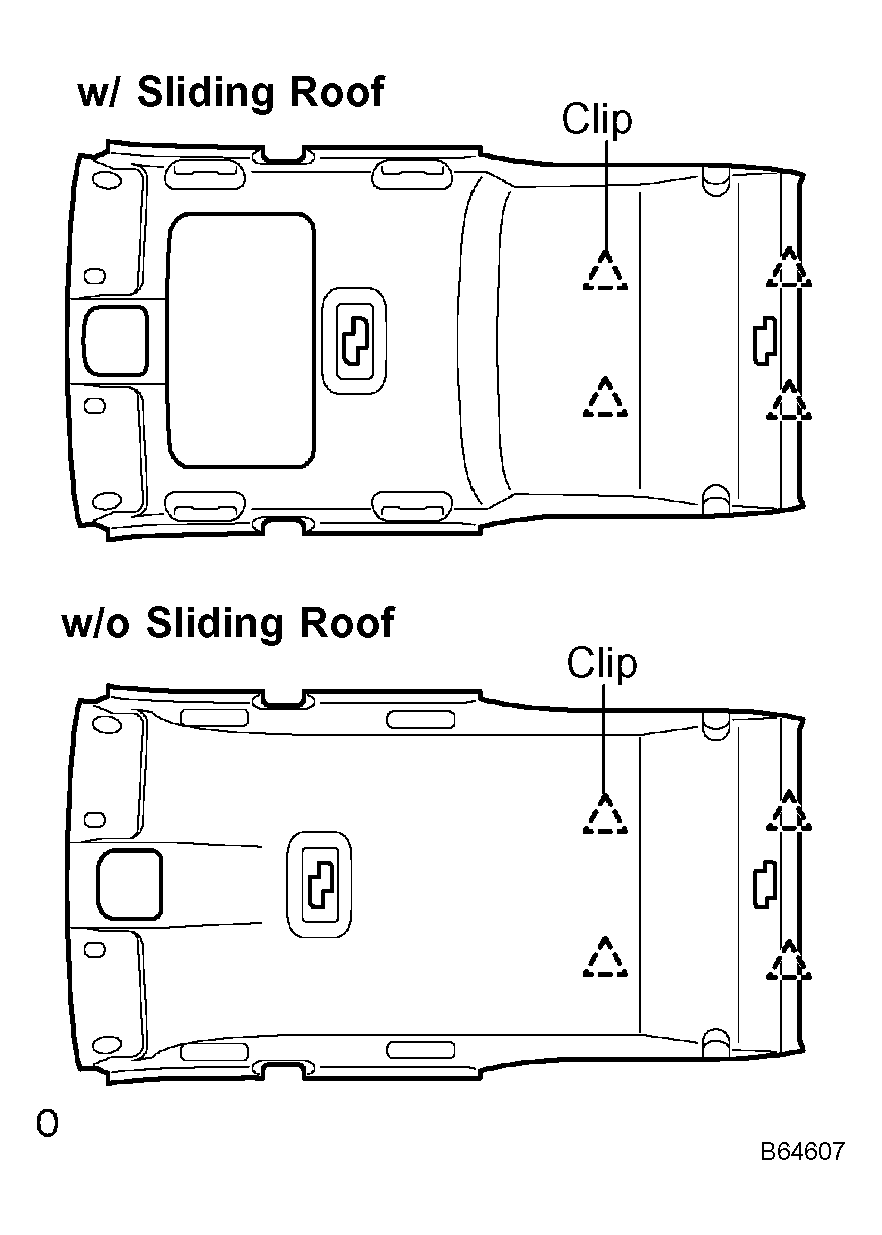

  Fig 23: Removing Roof Headlining Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSY

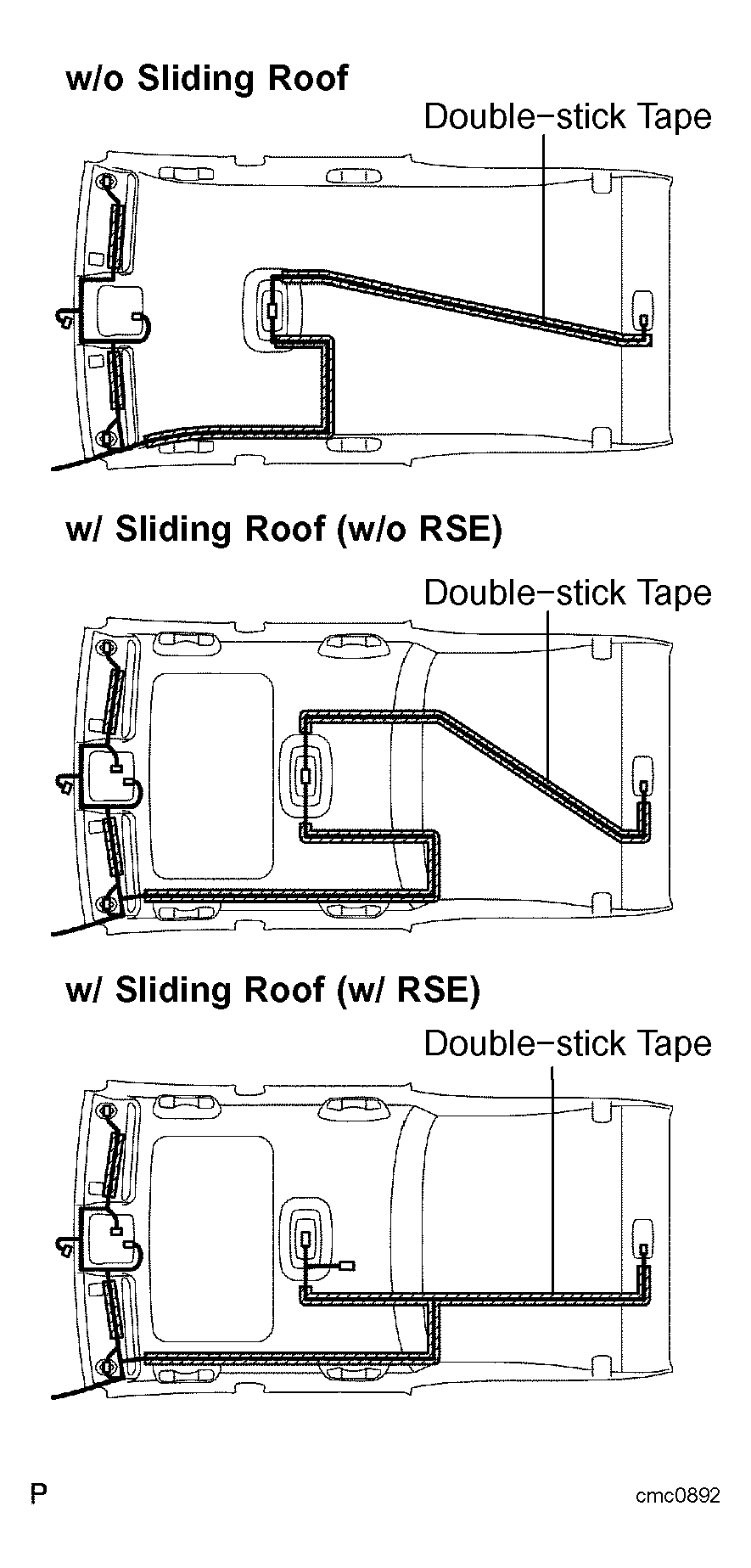

1. Align the marking, and then install the wire harness with tape.
  HINT:

  Be careful for dirt or foreign objects not to stick to the adhered part when peeling off the double-stick tape.
2. Attach the roof wire harness along the adhered part.
  NOTE: Roof wire harness should be attached securely.
3. Install the roof headlining with the 4 clips.

  Fig 24: Installing Roof Headlining Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
