Airbag Sensor Rear LH: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEE  PRECAUTION
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM   )
  3. REMOVE TONNEAU COVER RETRACTOR SUB-ASSY (SEE  REPLACEMENT  )
  4. REMOVE DECK BOARD ASSY (SEE  REPLACEMENT  )
  5. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR (SEE  REPLACEMENT  )
  6. REMOVE DECK FLOOR BOX LH (SEE  REPLACEMENT  )
  7. REMOVE REAR DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
  8. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (SEE  REPLACEMENT  )
  9. REMOVE LAP BELT OUTER ANCHOR COVER REAR NO.1 SEAT (SEE  REPLACEMENT  )
  10. REMOVE DECK TRIM SIDE BOARD UPR LH (SEE  REPLACEMENT  )
  11. REMOVE DECK SIDE TRIM COVER LH (SEE  REPLACEMENT  )
  12. REMOVE AIRBAG SENSOR REAR LH
    1. Disconnect the connector of the airbag sensor rear LH.
    2. Remove the 2 nuts and the airbag sensor rear LH.

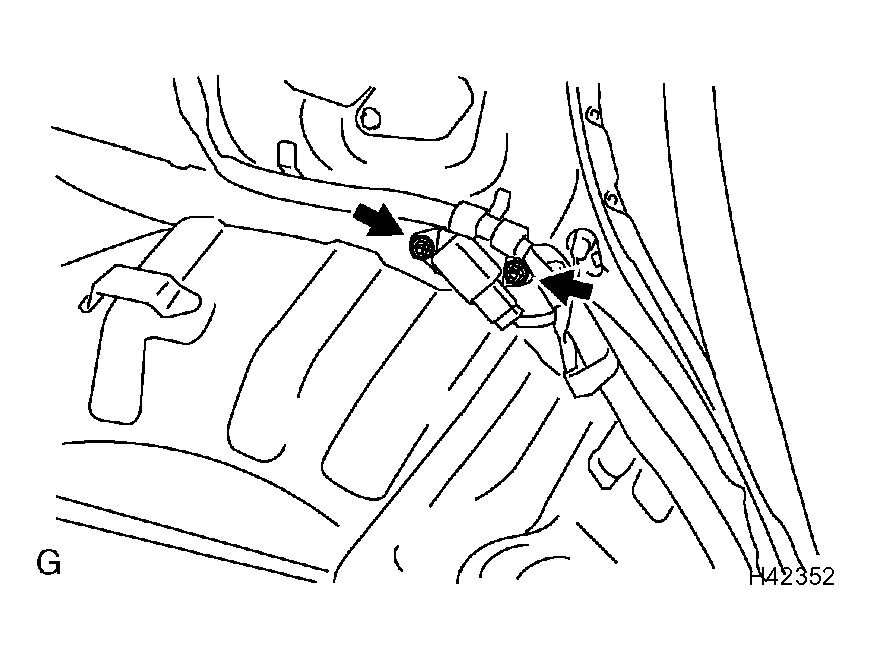

      Fig 1: Removing Nuts Of Airbag Sensor Rear LH
      G04331914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL AIRBAG SENSOR REAR LH
    1. Install the airbag sensor rear LH with the 2 nuts.

      Torque: 17.5 N.m (178 kgf.cm, 13 ft.lbf)

    2. Connect the connector of the airbag sensor rear LH.
    NOTE:
    • Installation of the connector is done with the sensor assembly installed. Make sure the sensor assembly is installed with the specified torque.
    • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
    • When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
    • After installation, shake the sensor assembly to check that there is no looseness.
  14. INSPECT AIRBAG SENSOR REAR LH (SEE  ON-VEHICLE INSPECTION   )
  15. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
