Airbag Sensor ASSY Center: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEE  PRECAUTION
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM   )
  3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
  4. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
  5. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
  6. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
  7. REMOVE CONSOLE BOX ASSY REAR (SEE  REPLACEMENT  )
  8. REMOVE CONSOLE BOX MOUNTING BRACKET FRONT (SEE  REPLACEMENT  )
  9. REMOVE CONSOLE BOX DUCT NO.1 (SEE  REPLACEMENT  )
  10. REMOVE AIRBAG SENSOR ASSY CENTER
    1. Disconnect the 3 connectors from the airbag sensor assy center.
    2. Remove the 3 bolts and airbag sensor assy center.

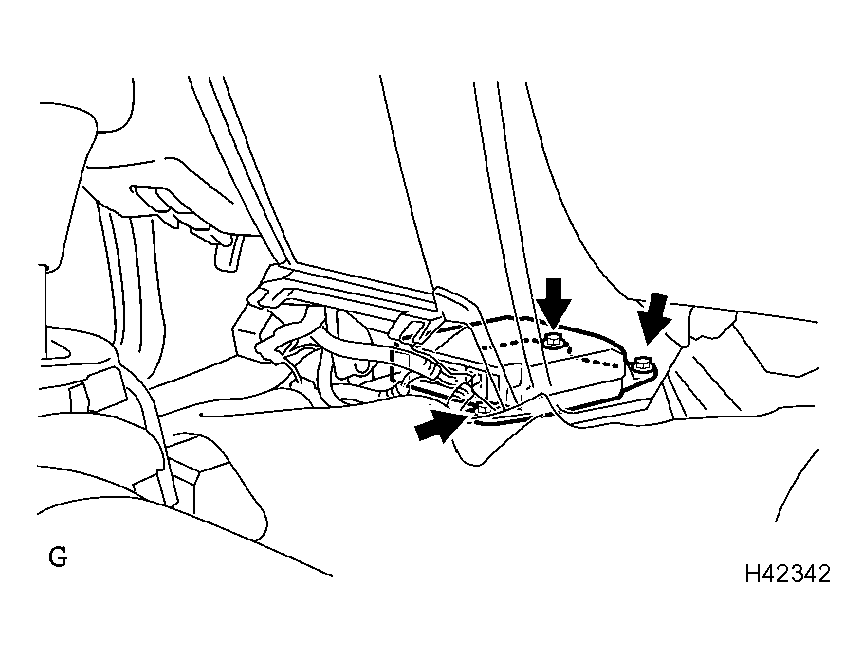

      Fig 1: Removing Bolts Of Airbag Sensor Assy Center
      G04331908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSPECT AIRBAG SENSOR ASSY CENTER (SEE  ON-VEHICLE INSPECTION   )
  12. INSTALL AIRBAG SENSOR ASSY CENTER
    1. Check that the ignition switch turn OFF.
    2. Check that the battery negative terminal is disconnected.
      NOTE: Do not start the operation for 90 seconds after removing the terminal.
    3. Temporarily install the airbag sensor assy center with the 3 bolts.
    4. Tighten the 3 bolts to the specified torque.

      Torque: 17.5 N.m (178 kgf.cm, 13 ft.lbf)

    5. Connect the connector to the airbag sensor assy center.
    6. Check that no play is identified.
    7. Check that the water-proof sheet is properly set.
  13. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
