Instrument Panel Safety Pad: Installation

1. Install the ECU with the 2 screws.

HINT:

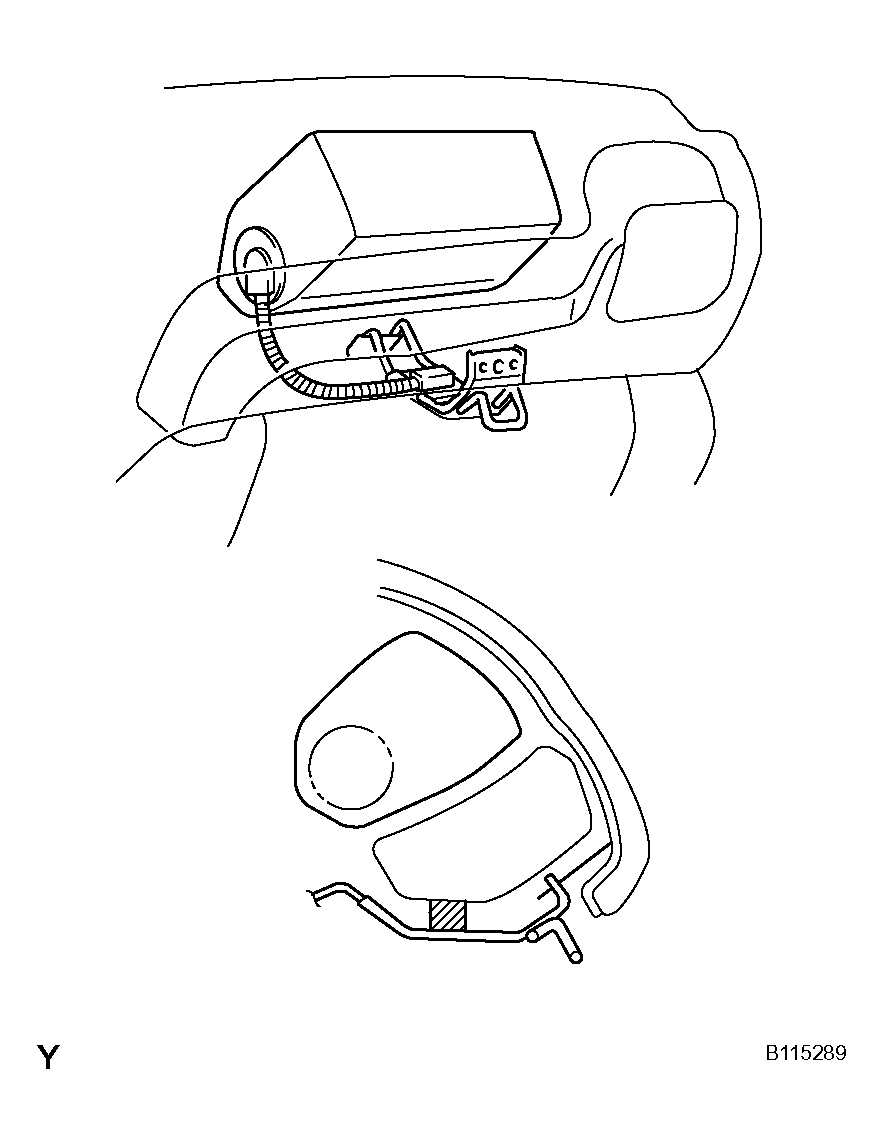

• Install the airbag connector between the No. 5 heater to register duct and the center bracket temporarily, and then install the instrument panel.
• Remove the airbag connector before installing the No. 2 lower panel.

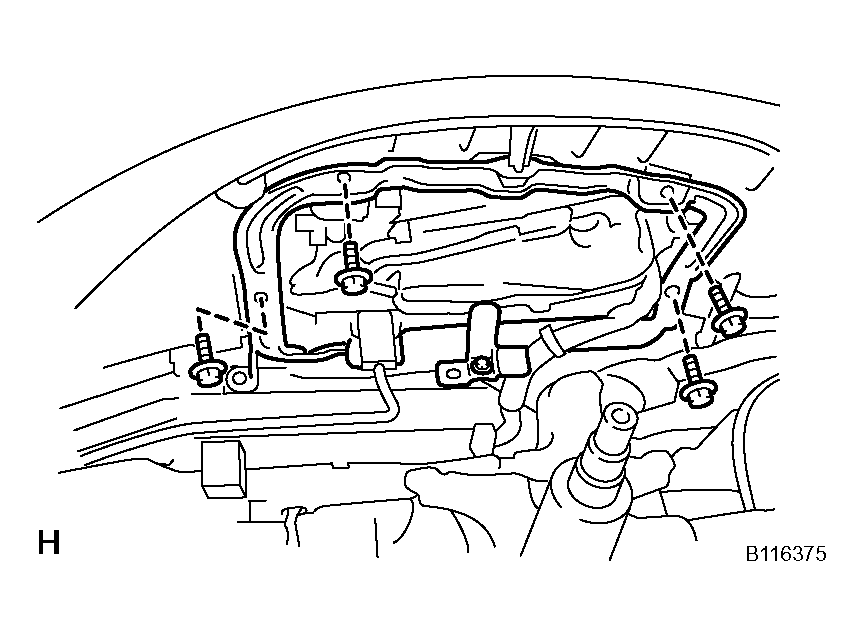

1. Install the 6 bolts, 2 nuts and instrument panel, then connect the connectors.
2. Install the 2 bolts to the front passenger airbag assembly.
   Fig 1: Identifying Junction Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

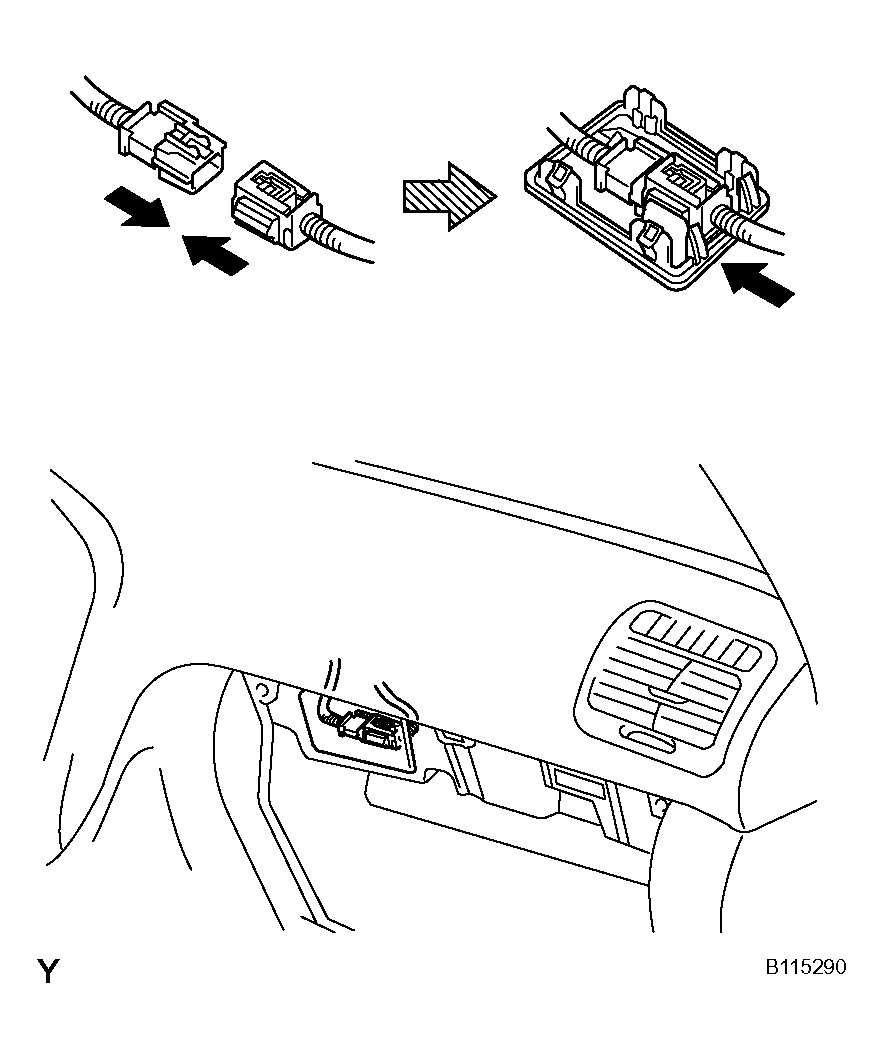

3. Connect the junction connectors.

   HINT:

   The connectors can be connected by tightening the bolts.

1. Install the display with the 4 screws.
   Fig 2: Identifying Night View Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

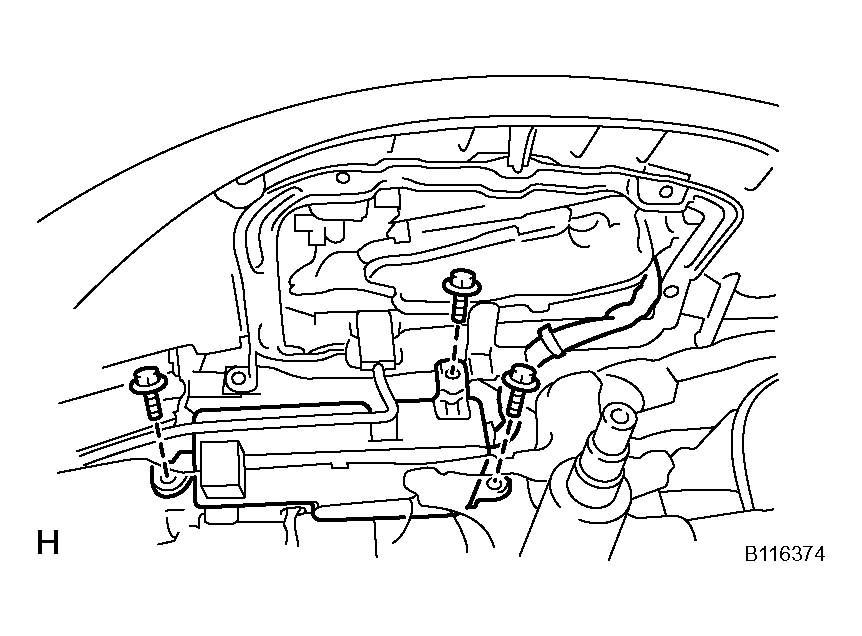

1. Connect the connectors to the ECU.
2. Install the ECU with the 3 bolts.
   Fig 3: Identifying Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

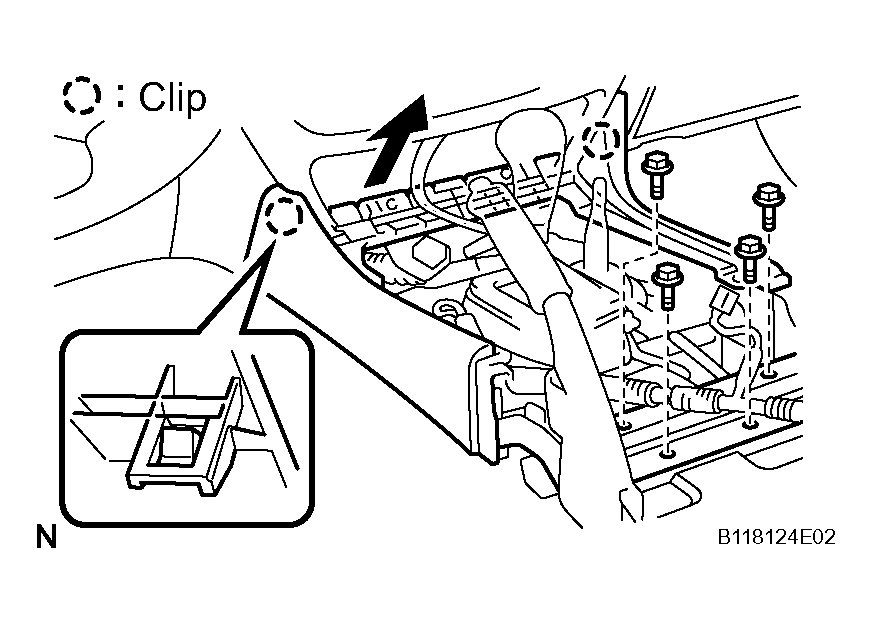

1. Install the console box and No. 4 console box mounting bracket with the 4 bolts.

1. Install the ash receptacle retainer with the 2 screws.
2. Install the ash receptacle box.
   Fig 4: Installing Console Box And No. 4 Console Box Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connectors.

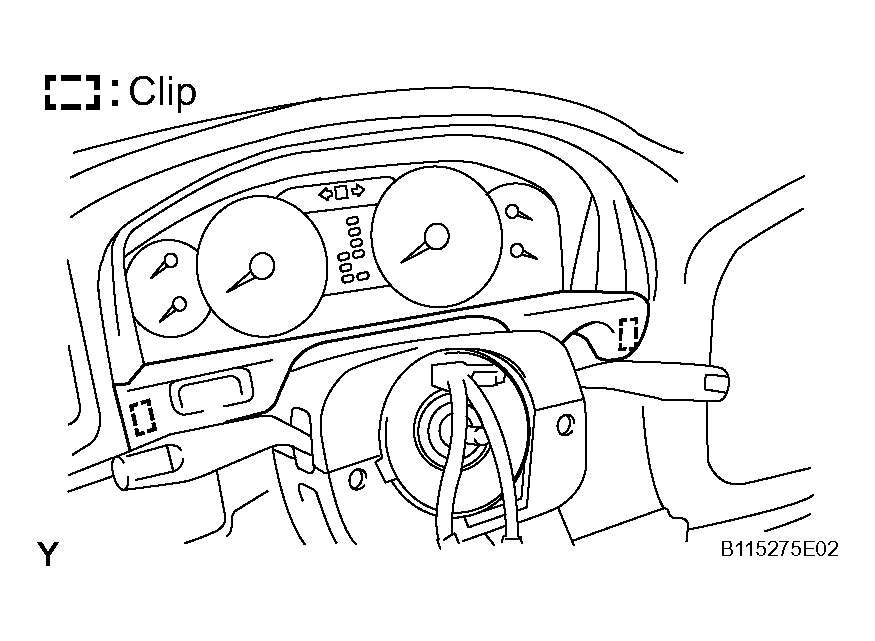

2. Attach the 5 clips to install the finish panel.
   Fig 5: Identifying Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

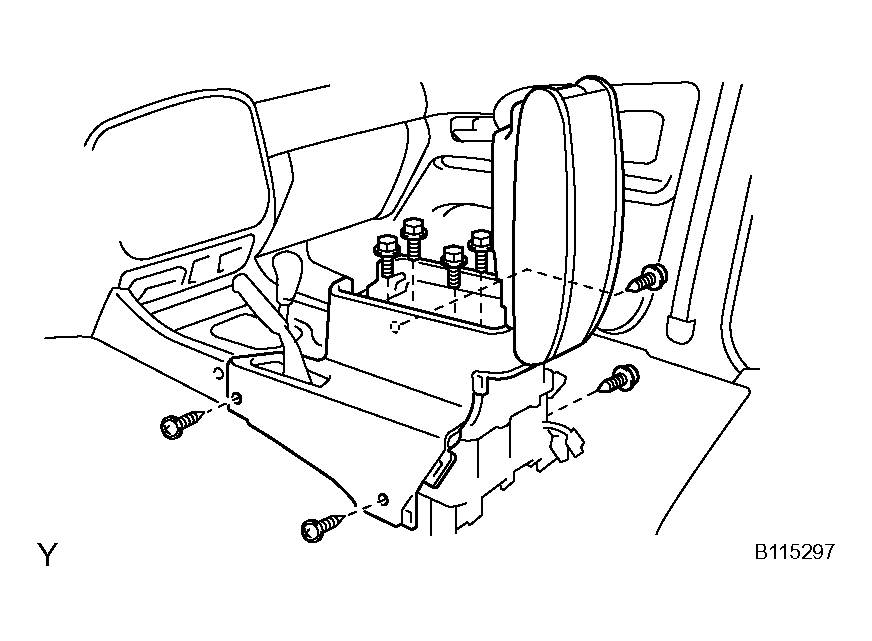

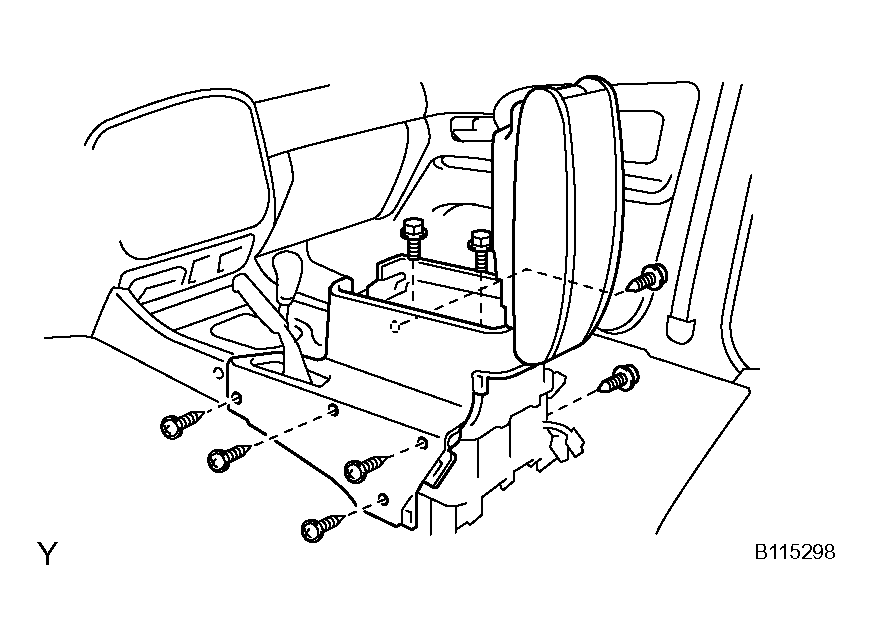

1. Install the console box with the 4 bolts and the 4 screws.
   Fig 6: Identifying Console Box With Bolts And Screws (W/O Disc Player Changer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the console box with the 2 bolts and the 6 screws.
   Fig 7: Identifying Console Box With Bolts And Screws (W/Disc Player Changer)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

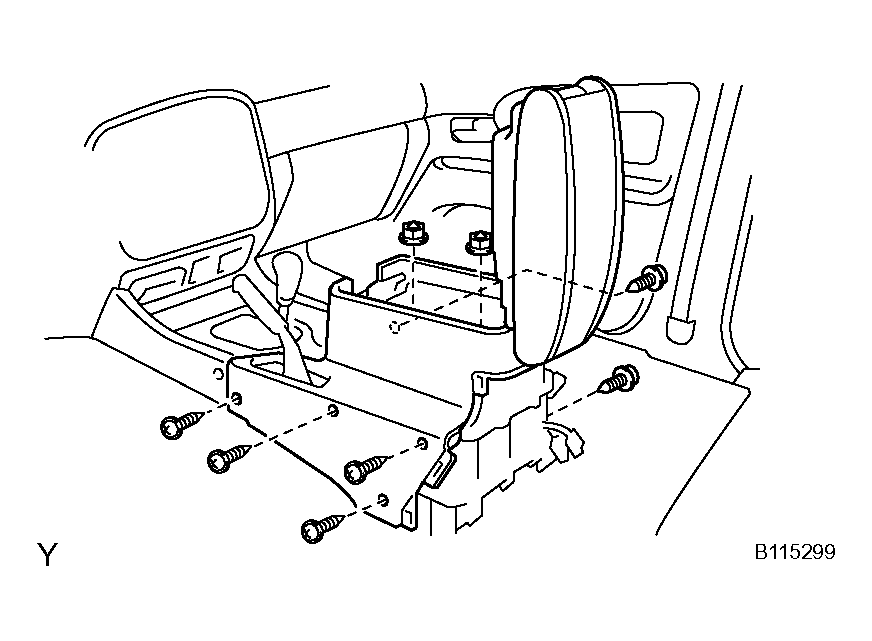

1. Install the console box with the 2 nuts and the 6 screws.

1. Install the rear radio control panel with the 3 screws, and connect the connector.
   Fig 8: Identifying Ear Radio Control Panel With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the 2 clips to install the end panel.
2. Install the 2 screws.
3. Install the console cup holder box.
   Fig 9: Identifying Rear Console End Panel Subassembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the upper console panel, and then install the transfer shift lever knob.

1. Install the finish panel with the 3 screws.

1. Install the glove compartment door, and connect the glove compartment door damper clip.
2. Install the 2 screws.
   Fig 11: Identifying Glove Compartment Door

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the set-in connectors are connected in the installation holes on the instrument panel securely.

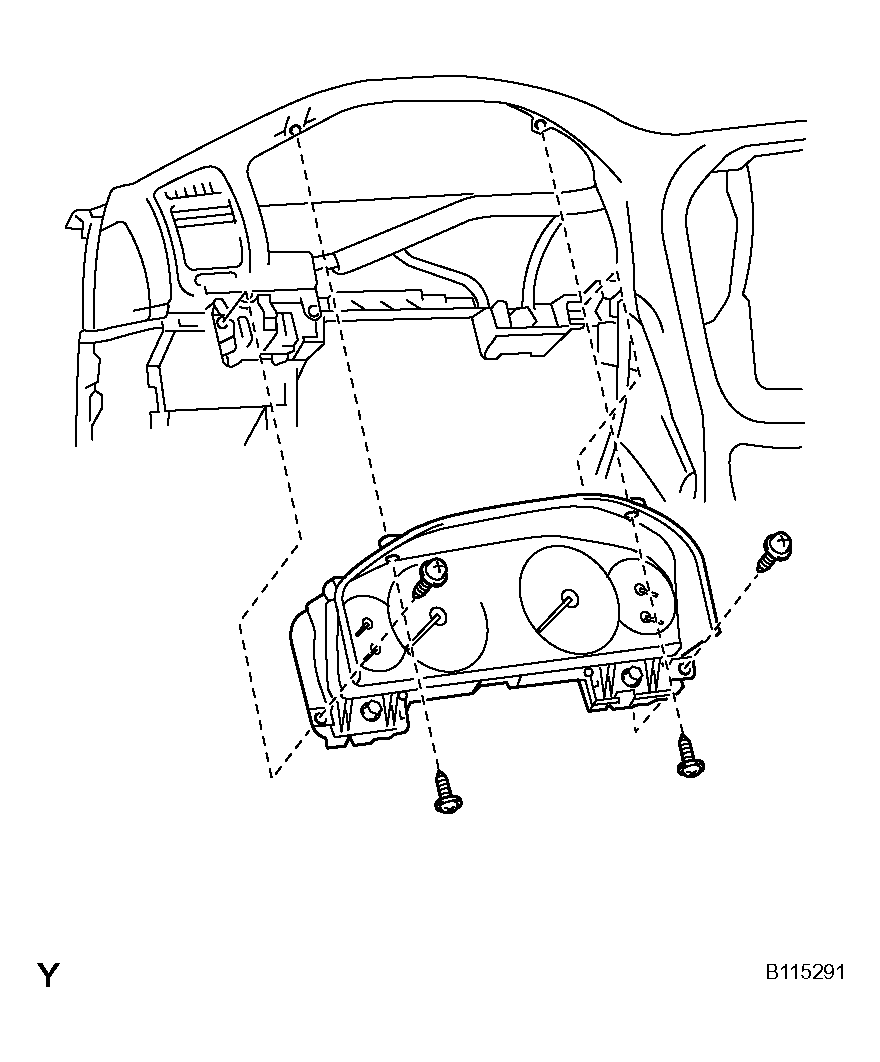

2. Place the combination meter on the instrument panel.
3. Install the combination meter by tightening the screws.
   Fig 12: Identifying Combination Meter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the connection bolts.

   HINT:

   • When the connection is completed, the bolts should turn vainly, causing a turning noise.
   • Check that the connection check pins protrude from the lower side of the connection bolts.
   NOTE: Follow the procedures in the correct order. Otherwise, the set-in connectors on the wire harness side and on the meter side might not be connected properly.

Fig 13: Tightening Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 heater to register duct with the screw.
2. Install the No. 1 transceiver finish plate assembly with the screw, and connect the connector.
   Fig 14: Installing No. 2 Heater To Register Duct With Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

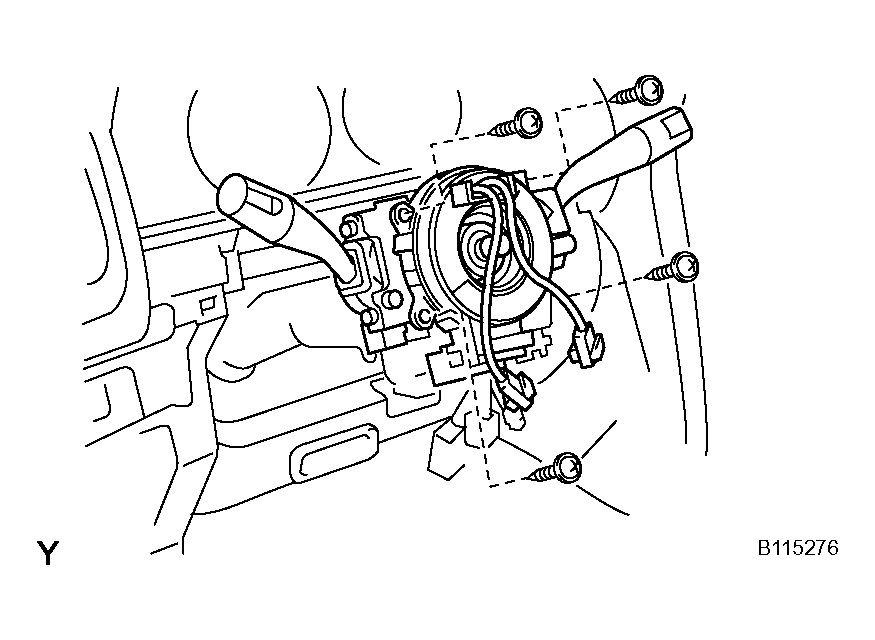

1. Install the combination switch with the 4 screws.
2. Install the clamp, and then connect the connectors.

1. Install the column covers with the 3 screws.

Fig 15: Identifying Combination Switch With Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the LH lower panel with the 3 bolts.

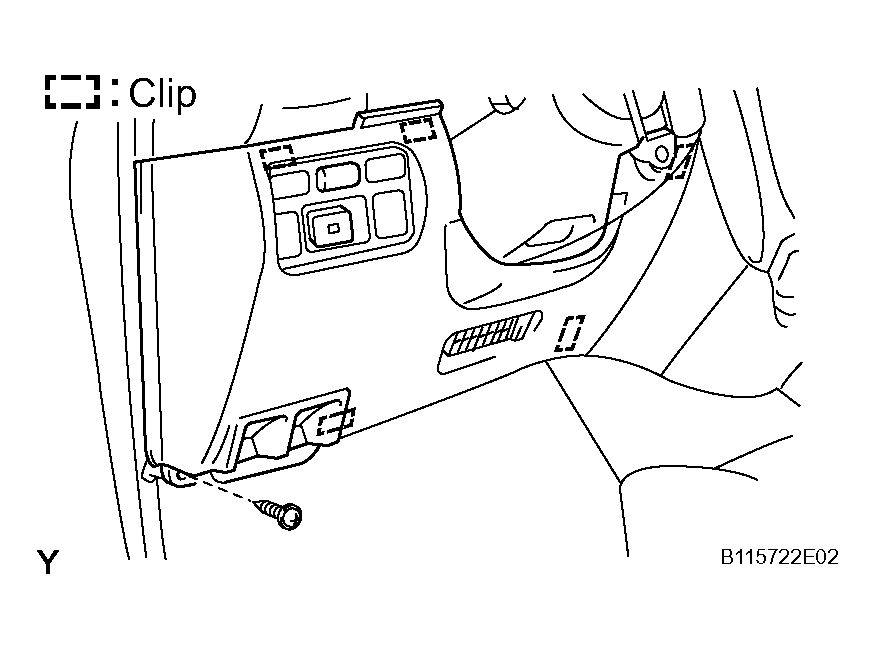

1. Connect the connectors.
2. Attach the 5 clips to install the No. 1 lower panel with the screw.

Fig 16: Identifying No. 1 Lower Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

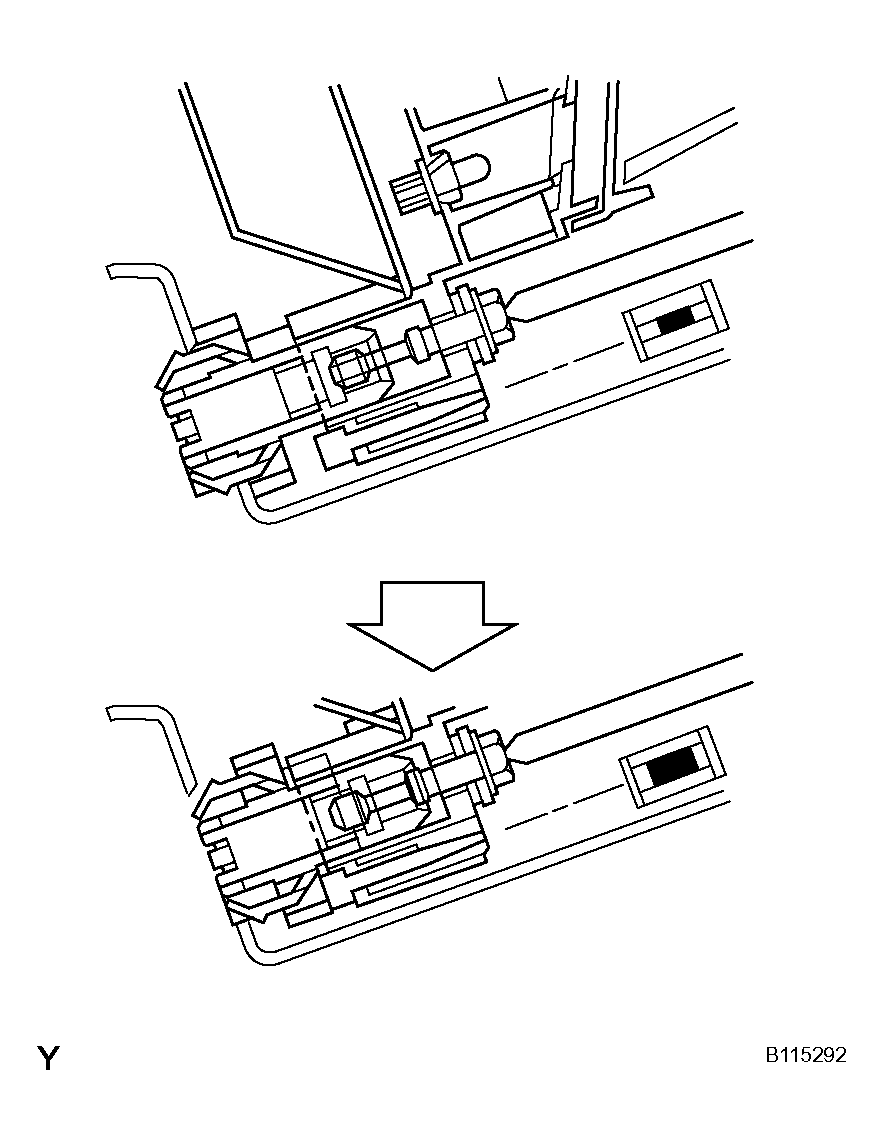

1. Install the control cable lever with the 2 screws.

1. Install the control cable with the 2 screws.

1. Connect the connector.
2. Attach the 2 clips to install the finish panel.

1. Install the garnish.
2. Install the assist grip with the 2 screws, and then install the 2 assist grip plugs.
   Fig 18: Identifying Front Pillar Garnish RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the RH side.

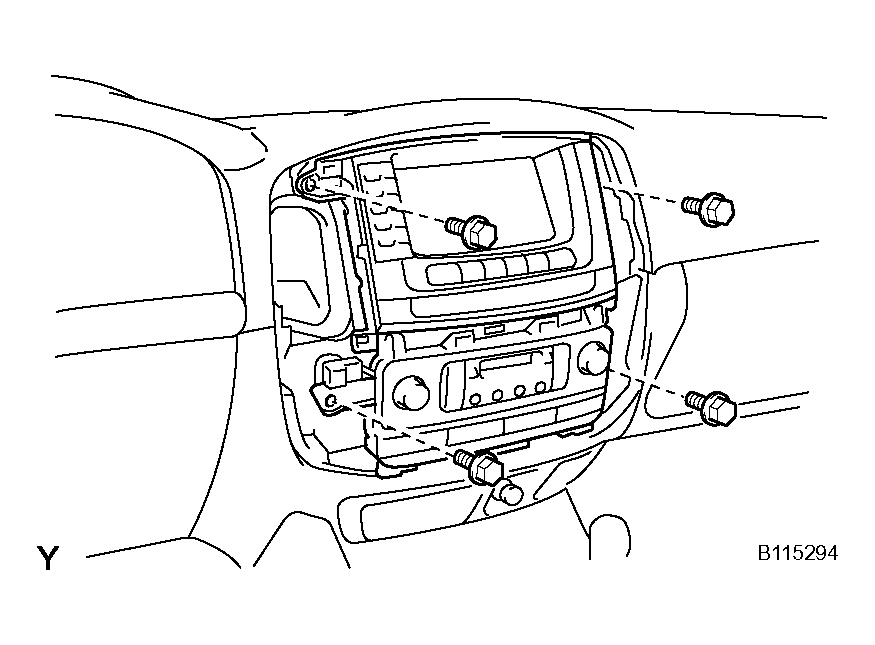

1. Install the radio with air conditioning control with the 4 bolts.

1. Attach the 3 clips to install the register.
   Fig 19: Installing Radio With Air Conditioning Control With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the 3 clips to install the register.

1. Connect the connectors.
2. Attach the 6 clips to install the finish panel.

1. Perform initialization (See INITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
