Spiral Cable: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting cable to prevent the airbag deployment.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  ON-VEHICLE INSPECTION   )
  4. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL   )
  5. REMOVE STEERING PAD (See  REMOVAL   )
  6. REMOVE STEERING WHEEL ASSEMBLY

    For Manual Tilt (See REMOVAL )

    For Power Tilt and Power Telescopic (See REMOVAL )

  7. REMOVE STEERING COLUMN COVER

    For Manual Tilt (See REMOVAL )

    For Power Tilt and Power Telescopic (See REMOVAL )

  8. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR
    1. Disconnect the connectors from the spiral cable with steering sensor.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Disengage the 3 claws and remove the spiral cable with steering sensor.

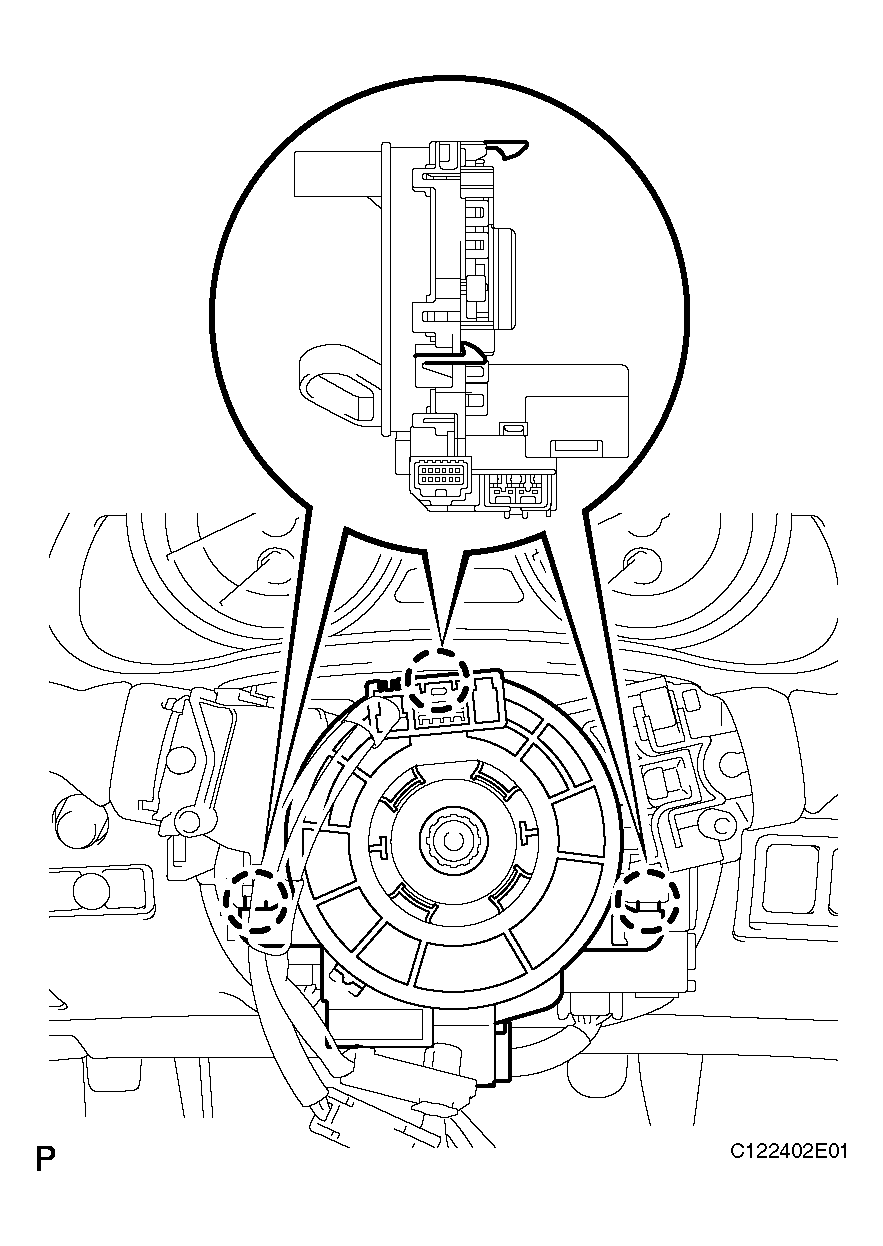

    Fig 1: Identifying Claws
    G04048811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE SPIRAL CABLE
    1. Disengage the 6 claws and separate the spiral cable.

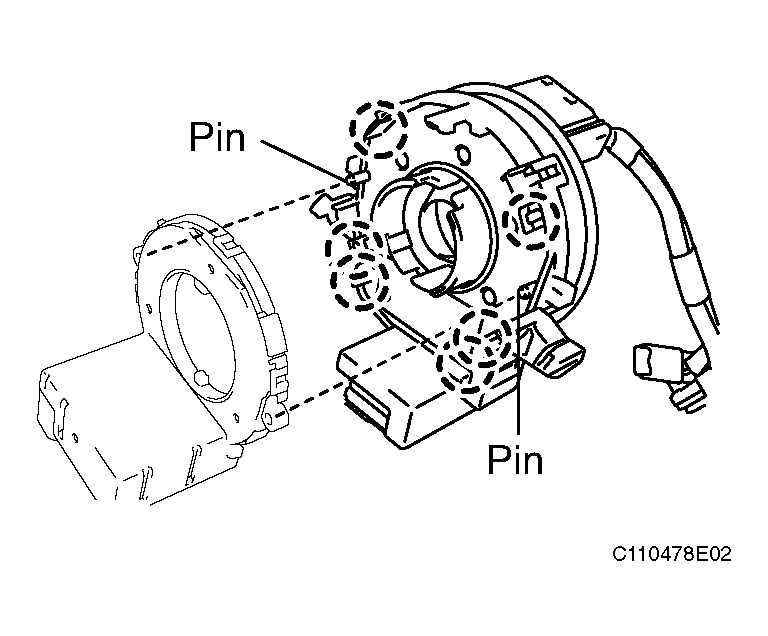

      Fig 2: Identifying Spiral Cable
      G04048812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
