STEERING COLUMN ASSEMBLY (for Manual Tilt): Removal

  1. PRECAUTION

    HINT:

    See PRECAUTION

  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    HINT:

    See PRECAUTION

  4. REMOVE INSTRUMENT SIDE PANEL LH (See Step 28 in  REMOVAL  )
  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 29 in  REMOVAL  )
  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 30 in  REMOVAL  )
  7. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See Step 9 in  REMOVAL  )
  8. REMOVE NO. 2 LOWER STEERING WHEEL COVER (See Step 4 in  REMOVAL  )
  9. REMOVE NO. 3 LOWER STEERING WHEEL COVER (See Step 3 in  REMOVAL  )
  10. REMOVE STEERING WHEEL PAD (See Step 5 in  REMOVAL  )
  11. REMOVE STEERING WHEEL ASSEMBLY
    1. Remove the steering wheel assembly set nut.
    2. Put matchmarks on the steering wheel assembly and main shaft assembly.
    3. Using SST, remove the steering wheel assembly.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

    Fig 1: Removing Steering Wheel Assembly Using SST
    G04048032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE STEERING COLUMN COVER
    1. Remove the 2 screws.
    2. Disengage the 2 claws to remove the lower steering column cover.
      Fig 2: Removing Screws
      G04048033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 clips to separate the steering column cover upper.
    4. Disengage the claw to remove the upper steering column cover.
  13. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Disconnect the connectors from the turn signal switch assembly with spiral cable sub-assembly.
      Fig 3: Identifying Upper Steering Column Cover & Claw
      G04048034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using pliers, grip the claws of the clip and remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.
    Fig 4: Removing Turn Signal Switch Assembly With Spiral Cable Sub-Assembly From Steering Column Assembly
    G04048035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 AIR DUCT
    1. Disengage the 2 claws and remove the No. 1 air duct.
    Fig 5: Removing No. 1 Air Duct & Disengaging Claws
    G04048036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE STEERING SLIDING YOKE SUB-ASSEMBLY (for 2WD)
    1. Loosen bolt (A) and remove bolt (B), then slide the steering sliding yoke sub-assembly.
      NOTE:
      • Do not remove the bolt (A).
      • Do not separate the steering sliding yoke sub-assembly from the power steering gear assembly.

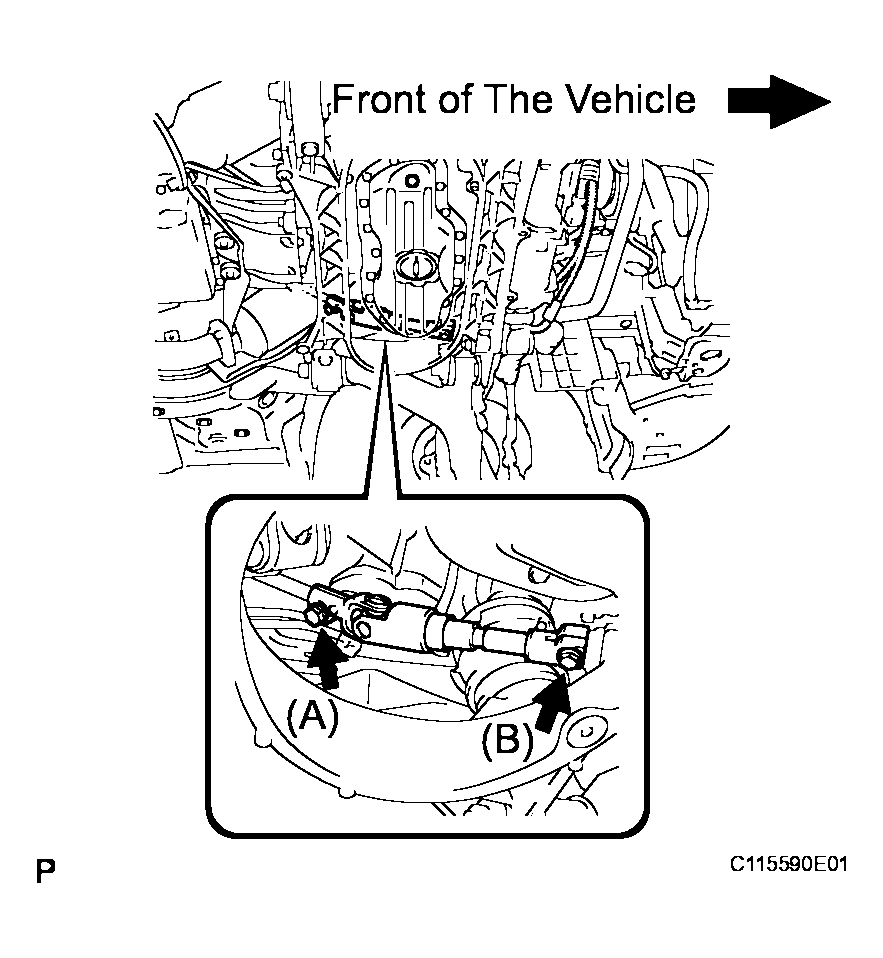

      Fig 6: Removing Bolt & Sliding Steering Sliding Yoke Sub-Assembly
      G04048037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the steering sliding yoke subassembly and the power steering gear assembly.
    3. Separate the steering sliding yoke sub-assembly from the power steering gear assembly.
      Fig 7: Locating Matchmarks On Steering Sliding Yoke & Steering Gear
      G04048128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Put matchmarks on the steering sliding yoke sub-assembly and the No. 2 steering intermediate shaft assembly.
    5. Remove the bolt and the steering sliding yoke sub-assembly from the No. 2 steering intermediate shaft assembly.
    Fig 8: Identifying Matchmarks On Sliding Yoke & No. 2 Steering Intermediate Shaft Assembly
    G04048127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD)
    1. Remove the bolt, and then slide the No. 2 steering intermediate shaft assembly.
      NOTE: Do not separate the No. 2 steering intermediate shaft assembly from the power steering gear assembly.
      Fig 9: Identifying Intermediate Shaft Assembly Attachment Bolt
      G04025489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Put matchmarks on the No. 2 steering intermediate shaft assembly and the power steering gear assembly.
    3. Separate the No. 2 intermediate shaft assembly from the power steering gear assembly.
    Fig 10: Locating Matchmarks On Steering Sliding Yoke & Steering Gear
    G04052628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE STEERING COLUMN ASSEMBLY
    1. Remove the brake pedal return spring.
      Fig 11: Identifying Brake Pedal Return Spring
      G04048042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clamp from the steering column hole shield.
    3. Disconnect the connectors and wire harness clamps from the steering column assembly.
      Fig 12: Removing Clamp From Steering Column Hole Shield
      G04048043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 nuts and steering column assembly.
    Fig 13: Removing Nuts & Steering Column Assembly
    G04048044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and the steering main shaft.
    2. Remove the bolt and the No. 2 steering intermediate shaft assembly.
    Fig 14: Putting Matchmarks On No. 2 Steering Intermediate Shaft Assembly & Steering Main Shaft
    G04048045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
