Transfer Case Rear Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.

DRAIN AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E) )
REMOVE REAR NO. 1 FLOOR PANEL BRACE (See REMOVAL )
REMOVE FRONT CENTER FLOOR BRACE (See Step 2 in REMOVAL )
REMOVE HEATED OXYGEN SENSOR (See Step 3 or 4 in REMOVAL )
REMOVE FRONT EXHAUST PIPE ASSEMBLY (See Step 5 in REMOVAL )
REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (See Step 2 in REMOVAL )
REMOVE OUTSIDE AIR GUIDE PLATE RH (See Step 3 in REMOVAL )
REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (See Step 4 in REMOVAL )
REMOVE TRANSFER CASE REAR OIL SEAL
1. Using SST, remove the oil seal.
SST 09308-00010

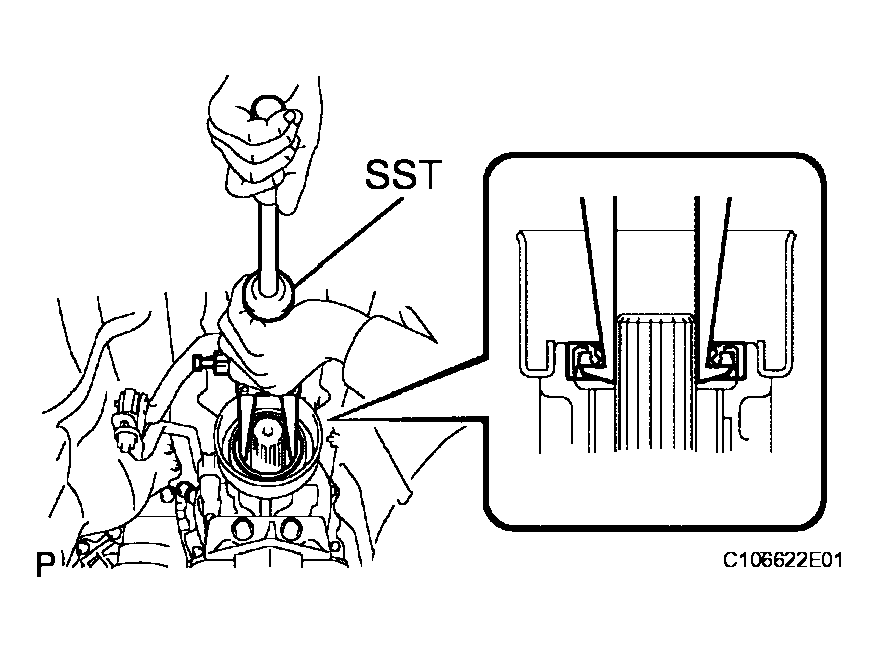

Fig 1: Removing Transfer Case Rear Oil Seal Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSFER CASE REAR OIL SEAL
1. Using SST and a hammer, install a new oil seal.
  SST 09325-40010

  Oil seal installation depth:

  2.3 to 2.7 mm (0.091 to 0.106 in.)
2. Apply MP grease to the oil seal lip.

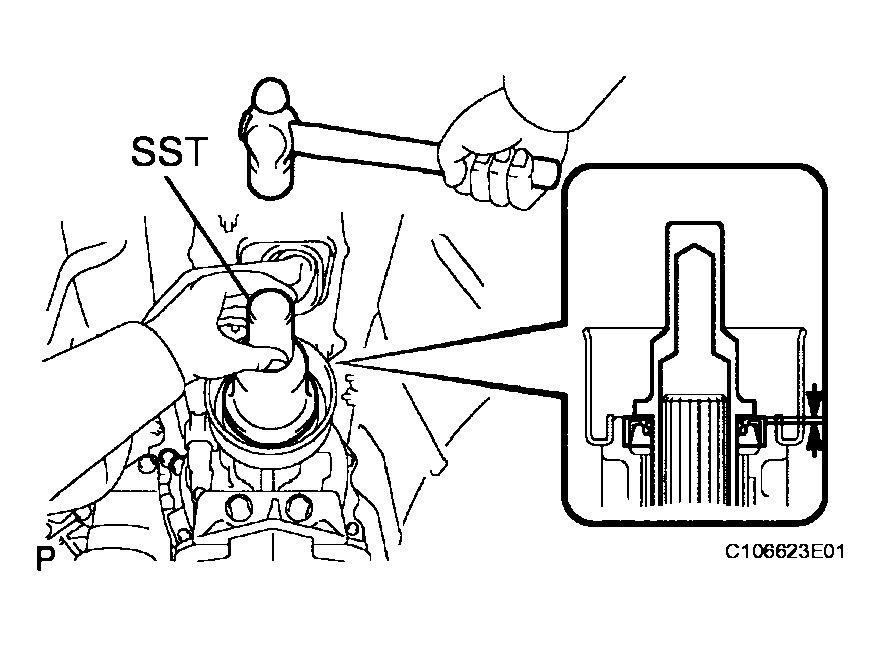

Fig 2: Installing Transfer Case Rear Oil Seal Using SST & Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (See INSTALLATION )
INSPECT AND ADJUST BOTH NO. 2 AND NO. 3 JOINT ANGLES (See Step 2 in INSTALLATION )
INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (See Step 3 in INSTALLATION )
INSTALL OUTSIDE AIR GUIDE PLATE RH (See Step 4 in INSTALLATION )
INSTALL FRONT EXHAUST PIPE ASSEMBLY (See Step 4 in INSTALLATION )
INSTALL HEATED OXYGEN SENSOR (See Step 5 or 6 in INSTALLATION )
INSTALL FRONT CENTER FLOOR BRACE (See Step 7 in INSTALLATION )
INSTALL REAR NO. 1 FLOOR PANEL BRACE (See Step 8 in INSTALLATION )
ADD AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION (A760H) or AUTOMATIC TRANSMISSION (A960E) )
CHECK FOR EXHAUST GAS LEAKS
