REAR PROPELLER SHAFT ASSEMBLY (for 4GR-FSE): Removal

REMOVE FRONT EXHAUST PIPE ASSEMBLY
(See REMOVAL )

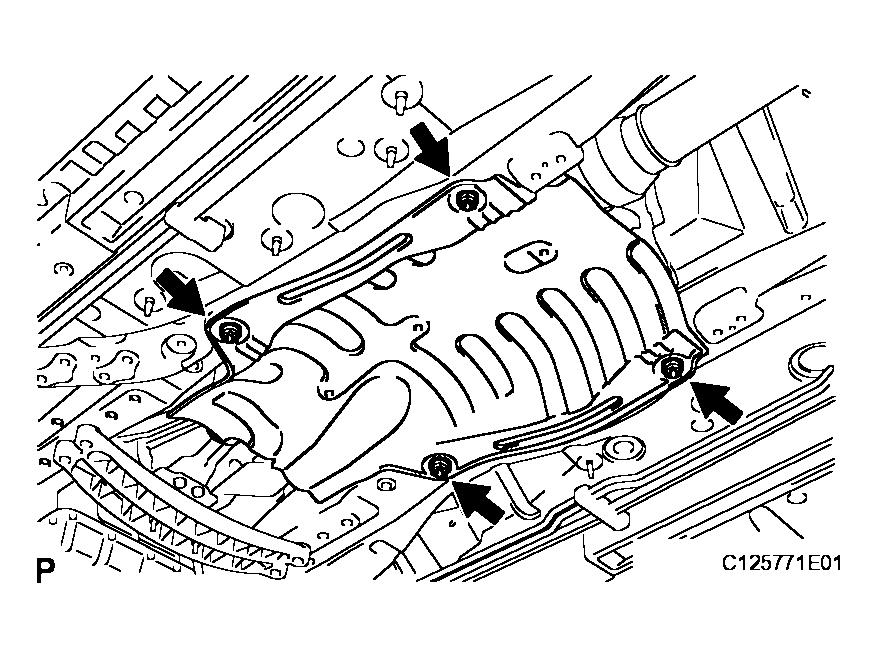

REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
1. Remove the 4 nuts and front No. 1 floor heat insulator.
Fig 1: Removing Floor Heat Insulator Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

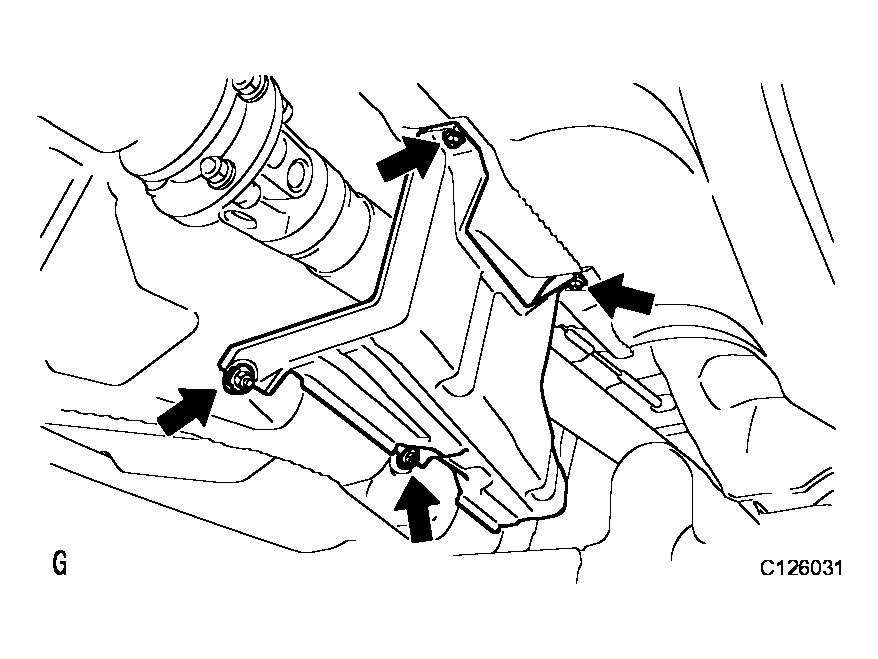

REMOVE OUTSIDE AIR GUIDE PLATE RH
1. Remove the 4 nuts and outside air guide plate RH.
Fig 2: Removing Outside Air Guide Plate RH Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

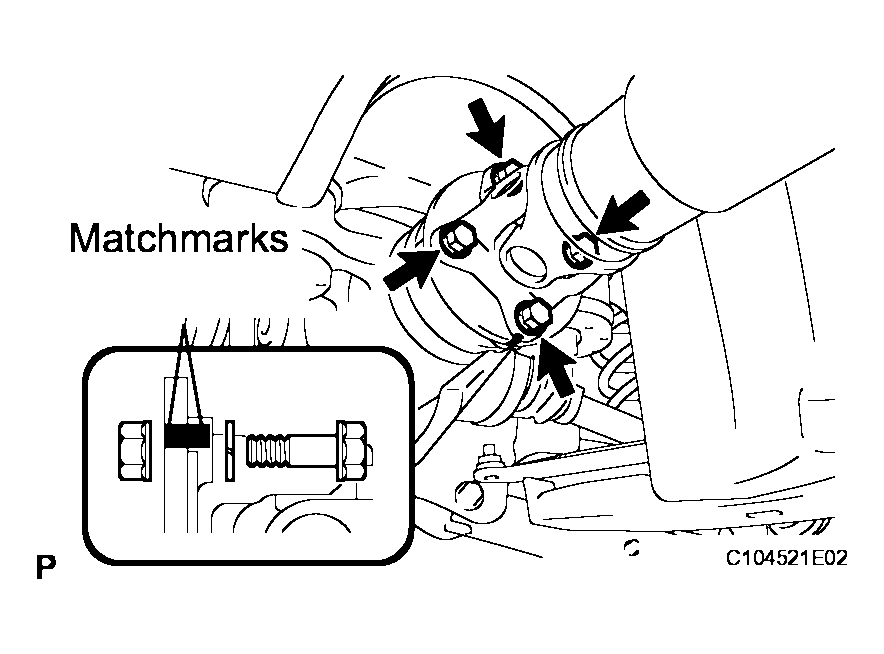

1. Put matchmarks on both flanges.
2. Remove the 4 nuts, bolts and washers.
  HINT:

  If the flange connection is hard to separate, temporarily tighten one nut only and evenly tap the flange with a brass bar and hammer to separate the propeller shaft assembly from the differential companion flange.

  Fig 3: Identifying Matchmarks On Both Flanges
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

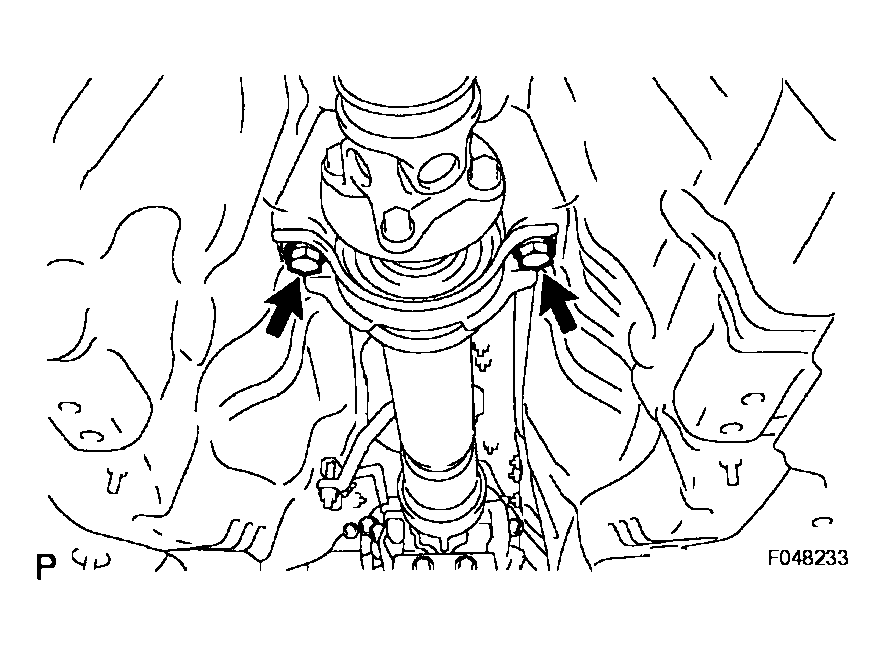

3. Remove the 2 bolts and 2 center support bearing washers. (for automatic transmission)
4. Remove the 2 bolts, 2 center support bearing washers and 2 center support bearing dampers. (for manual transmission)
5. Separate the center support bearing.

  Fig 4: Removing Center Support Bearing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

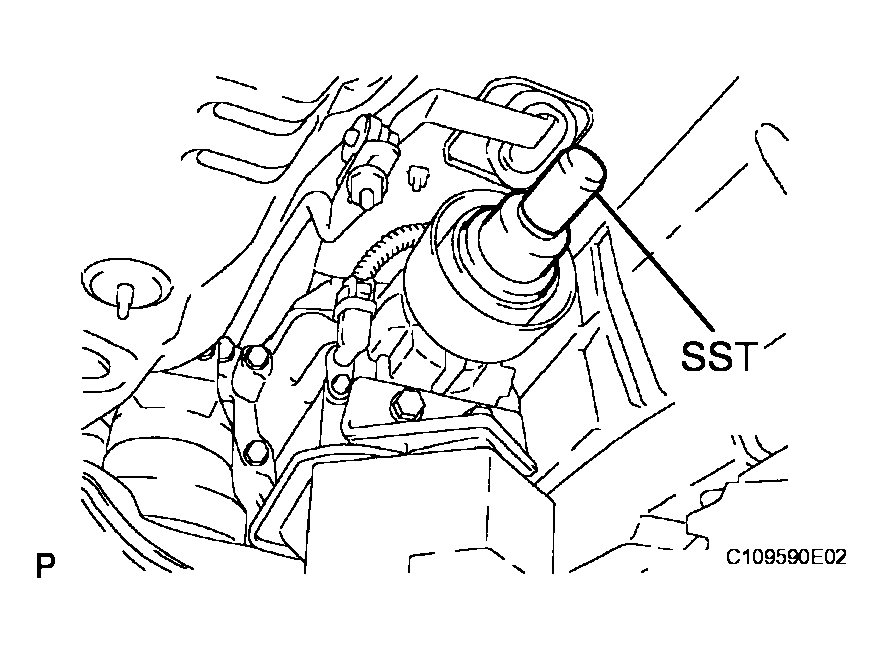

6. Insert SST in the transmission to prevent oil leakage.
SST 09325-40010

NOTE: Be careful not to damage the oil seal.

Fig 5: Inserting SST In Transmission For Prevent Oil Leakage
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
