Extension Housing Rear Oil Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN AUTOMATIC TRANSMISSION FLUID (See  REMOVAL   )
  2. REMOVE OXYGEN SENSOR (See  REMOVAL  )
  3. REMOVE NO. 1 REAR FLOOR PANEL BRACE (See  REMOVAL  )
  4. REMOVE FRONT CENTER FLOOR BRACE (See  REMOVAL  )
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  6. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR (See  REMOVAL  )
  7. REMOVE OUTSIDE AIR GUIDE PLATE RH (See  REMOVAL  )
  8. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (See  REMOVAL  )
  9. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
    1. Using SST, remove the oil seal.

      SST 09308-00010

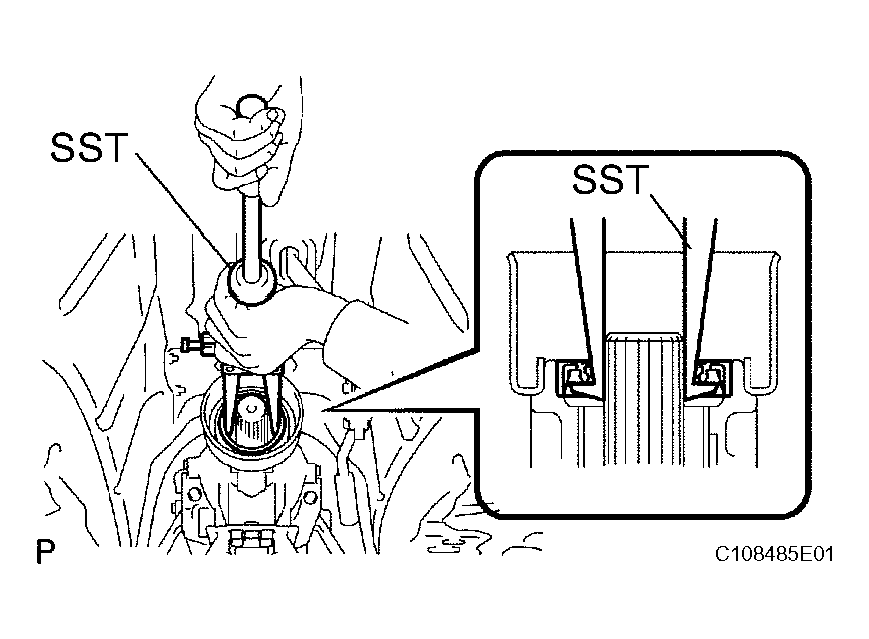

    Fig 1: Identifying Oil Seal
    G04045829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
