FRONT SEAT ASSEMBLY (for Power Seat): Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

HINT:

Use the same procedures for the LH side and RH side.

  1. REMOVE FRONT SEAT INNER BELT ASSEMBLY (See  REMOVAL  )
  2. REMOVE RECLINING POWER SEAT SWITCH KNOB
    1. Using a screwdriver, detach the knob.

      HINT:

      Tape the screwdriver tip before use.

    Fig 1: Identifying Knob
    G04051134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Using a screwdriver, detach the knob.

      HINT:

      Tape the screwdriver tip before use.

    Fig 2: Identifying Knob
    G04051135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT SEAT CUSHION SHIELD WITH INNER NO. 1 CUSHION SHIELD
    1. Release the 2 rubber bands of the front seatback board from the front seat frame.

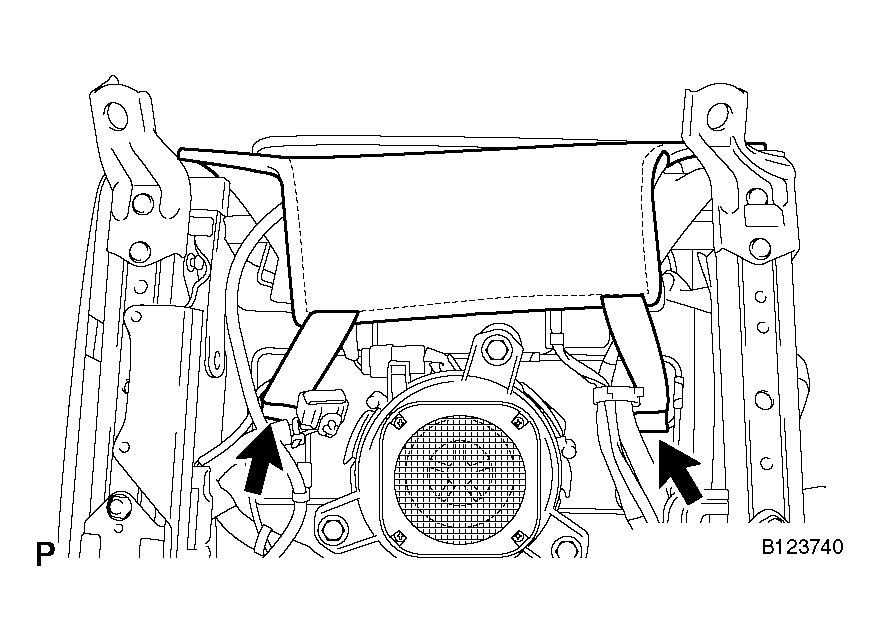

      Fig 3: Releasing Rubber Bands Of Front Seatback Board From Front Seat Frame
      G04051136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws.
    3. Disengage the claw and separate the front seat cushion shield assembly.
    4. Disconnect the connector from the front power seat lumbar switch.
    Fig 4: Identifying Screws
    G04051137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD
    1. Remove the 2 screws.
    2. Detach the claw and disconnect the cushion shield inner from the cushion shield.
    Fig 5: Identifying Screws
    G04051138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT POWER SEAT LUMBAR SWITCH
    1. Remove the 2 screws and switch.
    Fig 6: Identifying Screws And Switch
    G04051139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LOWER OUTER SEAT TRACK SPACER
    1. Remove the 2 screws and spacer.
    Fig 7: Identifying Screws And Spacer
    G04051140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT INNER SEAT CUSHION SHIELD
    1. Remove the screw.
    2. Using a screwdriver, detach the claw.

      HINT:

      Tape the screwdriver tip before use.

    3. Using a clip remover, detach the clip and remove the cushion shield.
      Fig 8: Identifying Clip And Cushion Shield
      G04051141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE LOWER INNER SEAT TRACK SPACER
    1. Remove the 2 screws and spacer from the cushion shield inner.
    Fig 9: Removing Screws And Spacer From Cushion Shield Inner
    G04051142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)
    1. Remove the 3 screws.
    2. Disconnect the 2 connectors and remove the front power seat switch.
  11. REMOVE FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)
    1. Remove the 3 screws.
    2. Disconnect the connector and remove the front power seat switch.
    Fig 10: Identifying Screws
    G04051143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY LH
    1. Disconnect the connectors and detach the clamps.

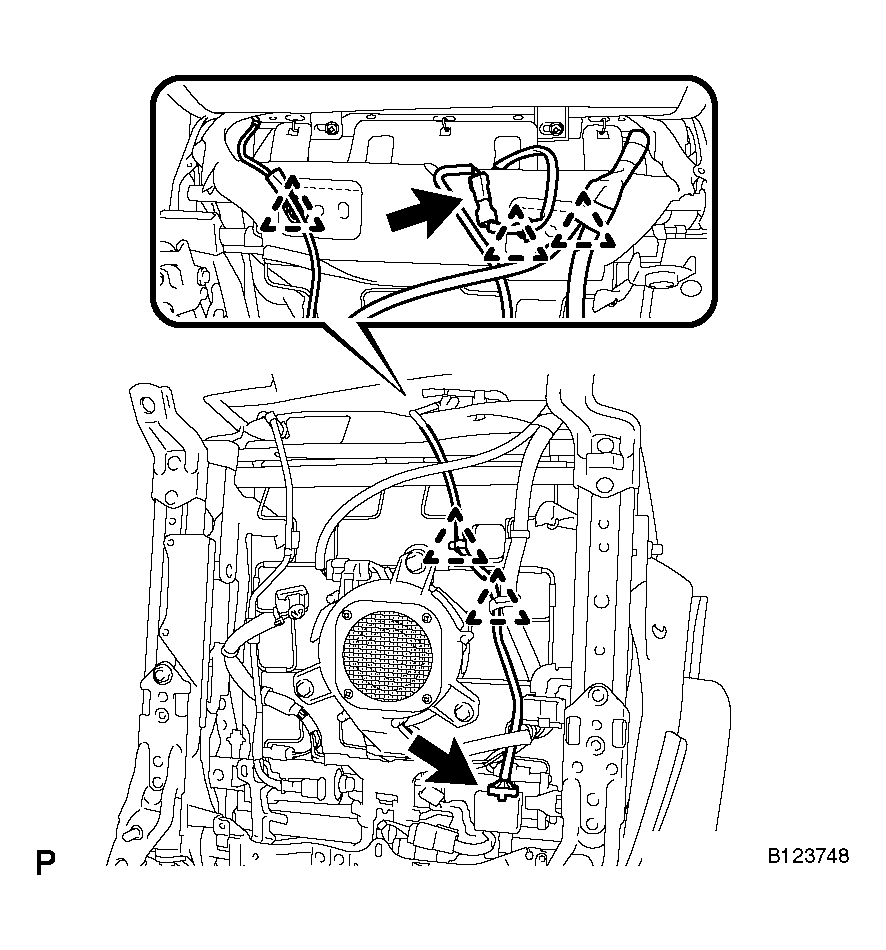

      Fig 11: Identifying Connectors And Clamps
      G04051144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the hooks and remove the front seat cushion cover with pad.

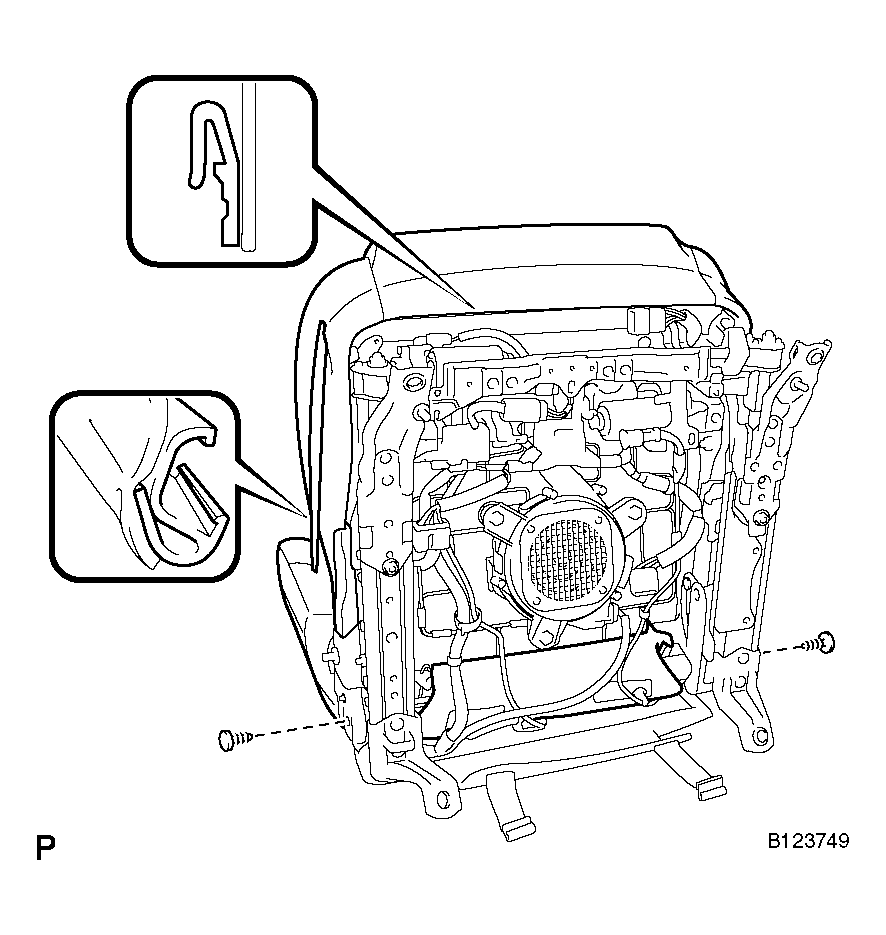

    Fig 12: Identifying Hooks And Front Seat Cushion Cover With Pad
    G04051145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT SEPARATE TYPE SEAT CUSHION COVER
    1. Remove the hog rings and seat cushion cover from the seat cushion pad.

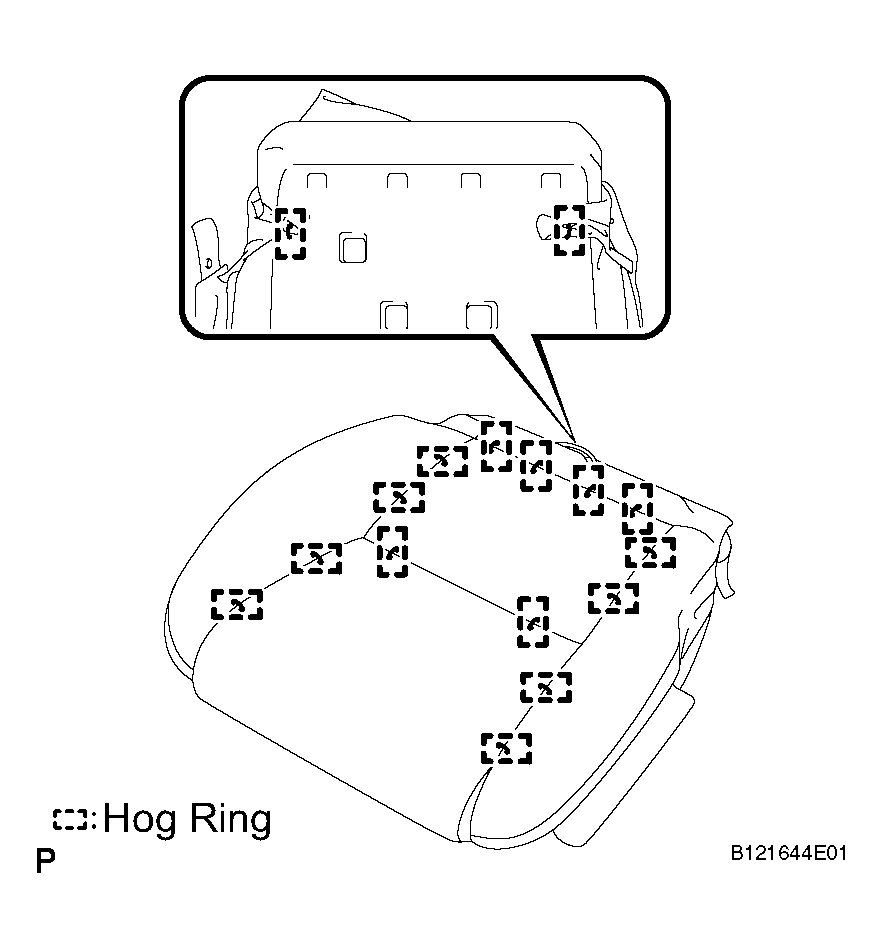

    Fig 13: Removing Hog Rings And Seat Cushion Cover From Seat Cushion Pad
    G04051146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seat cushion heater assembly from the seat cushion cover.
    Fig 14: Identifying Tack Pin Locations
    G04058179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Seatback Board)
    1. Open the lower part of the seatback board. Then remove the 2 screws.
    2. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws. Then, remove the seatback board.
    Fig 15: Identifying Seatback Board
    G04051148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Detach the 2 claws and remove the headrest support.
  17. REMOVE FRONT SEAT HEADREST SUPPORT

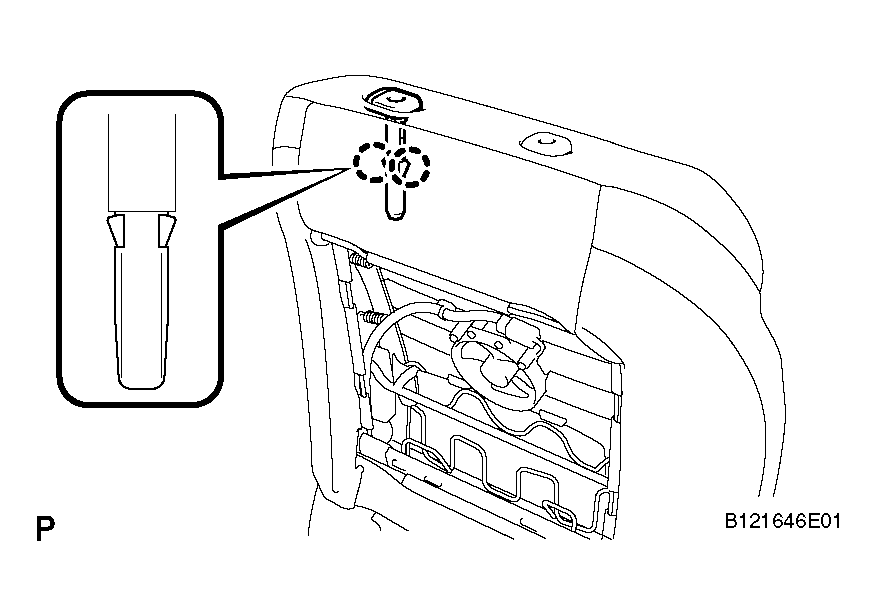

    Fig 16: Identifying Claws And Headrest Support
    G04051149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/o Seatback Board)
    1. Open the 2 zippers and seatback cover.
      Fig 17: Opening Zippers And Seatback Cover
      G04051150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and hooks.

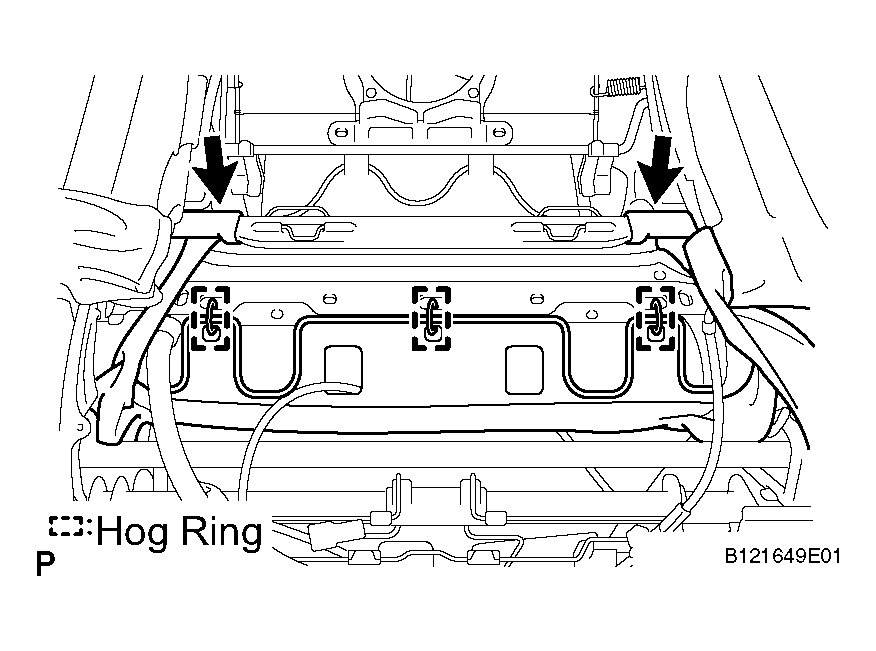

      Fig 18: Identifying Hog Rings And Hooks
      G04051151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and 2 seatback cover brackets.
    Fig 19: Locating Nut And Seatback Cover Brackets
    G04051156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/ Seatback Board)
    1. Remove the hog ring and hooks.
      Fig 20: Identifying Hog Ring And Hooks
      G04051153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and hooks.

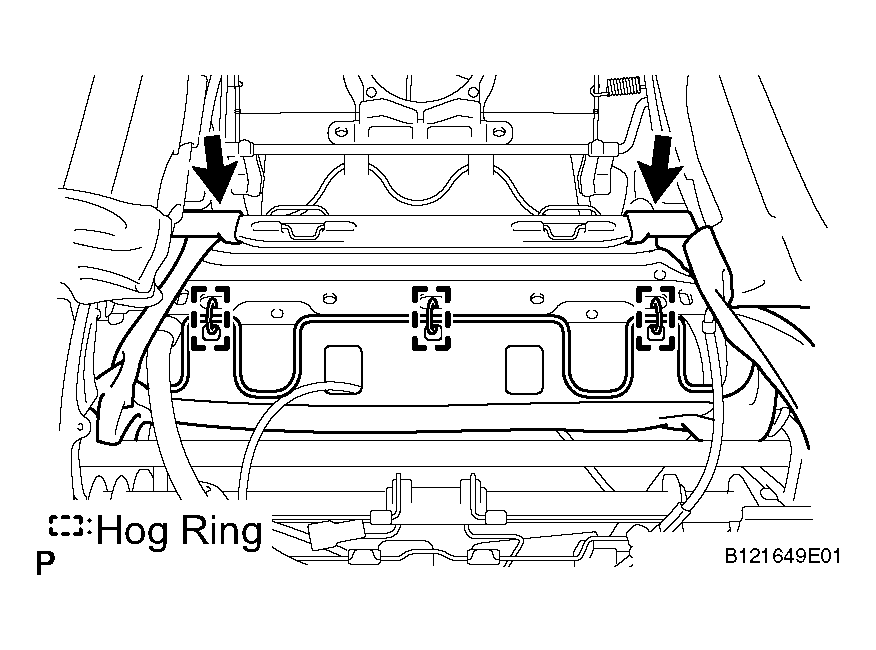

      Fig 21: Identifying Hog Rings And Hooks
      G04051154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the hog rings.
      Fig 22: Identifying Hog Rings
      G04051155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and 2 seatback cover brackets.
    Fig 23: Locating Nut And Seatback Cover Brackets
    G04051156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT SEPARATE TYPE SEATBACK COVER
    1. Remove the hog rings and seatback cover from the seatback pad.
    Fig 24: Removing Hog Rings And Seatback Cover From Seatback Pad
    G04051157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT SEAT BACK HEATER ASSEMBLY LH (w/ Seat Heater System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seatback heater assembly from the seat cushion cover.
  22. REMOVE LOWER RECLINING ADJUSTER INSIDE COVER RH
    1. Disconnect the harness.
      Fig 25: Identifying Harness
      G04051158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and lower reclining adjuster inside cover RH.
  23. REMOVE LOWER RECLINING ADJUSTER INSIDE COVER LH
    1. Disconnect the harness.

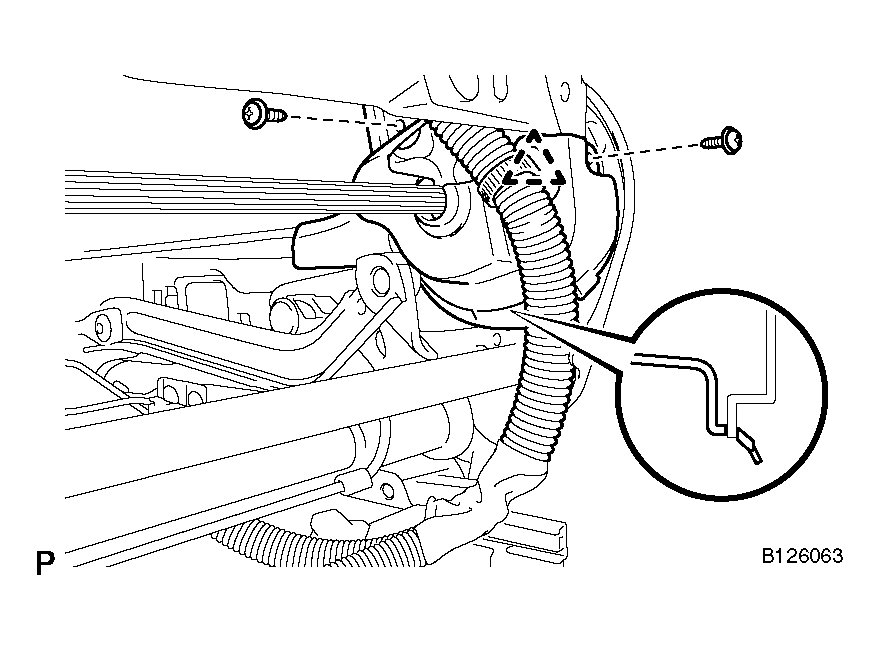

      Fig 26: Identifying Screws And Lower Reclining Adjuster Inside Cover RH
      G04051159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws lower reclining adjuster inside cover LH.

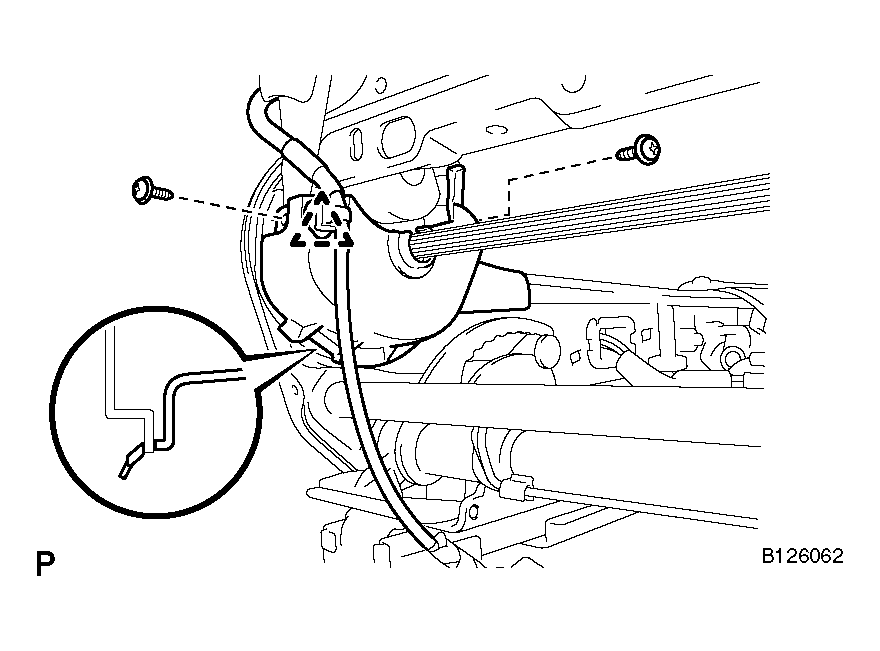

    Fig 27: Identifying Screws Lower Reclining Adjuster Inside Cover LH
    G04051160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE UPPER RECLINING ADJUSTER INSIDE COVER RH
    1. Remove the screw.
    2. Detach the claw and remove the reclining adjuster inside upper cover RH.
    Fig 28: Identifying Screw
    G04051161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE UPPER RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw.
    2. Detach the claw and remove the reclining adjuster inside upper cover LH.
    Fig 29: Identifying Screw
    G04051162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH
    1. Remove the screw and detach the hook of the front seat lower cushion shield LH.
    Fig 30: Identifying Screw And Hook Of Front Seat Lower Cushion Shield Lh
    G04051163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FRONT LOWER SEAT CUSHION SHIELD
    1. Remove the screw and detach the hook of the front seat lower cushion shield.
    Fig 31: Identifying Screw And Hook Of Front Seat Lower Cushion Shield
    G04051164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
    1. Disconnect the connector and clamps.
    2. Remove the 2 screws and lumbar support adjuster.
    Fig 32: View Of Lumbar Support Adjuster With 2 Screws
    G04051251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Disconnect the connector and detach the 3 clamps.
    2. Using a T30 "torx" socket, remove the 6 "torx" bolts and remove the seatback climate control cover and blower.
    Fig 33: Locating Blower Cover And Blower Retaining "Torx" Bolts
    G04051171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
    1. Separate the 2 clamps (A) in the direction indicated by the arrow (1).
    2. Separate the 2 clamps (B) in the direction indicated by the arrow (2).
    3. Disengage the 2 claws, and remove the seat cushion climate control duct LH.

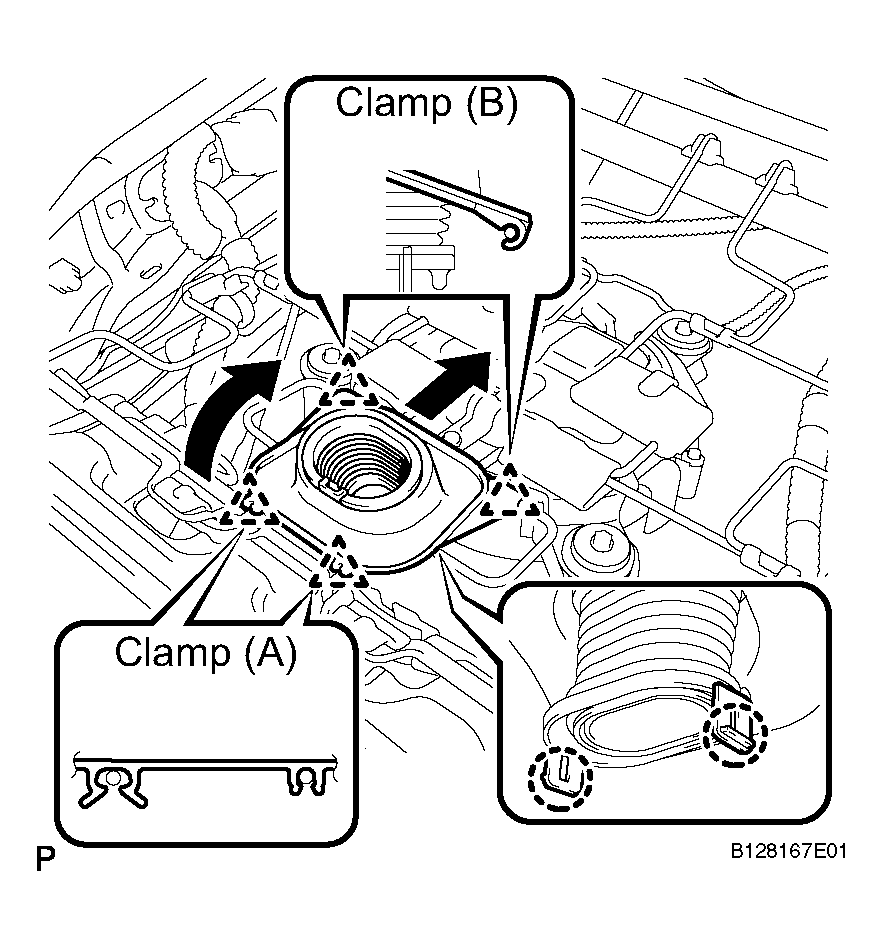

    Fig 34: Identifying Claws And Seat Cushion Climate Control Duct LH
    G04051167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE SEAT CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Disconnect the connector.
    2. Remove the screw, detach the claw and remove the blower with bracket.
    3. Remove the 3 bolts, 3 bushes and blower from the bracket.

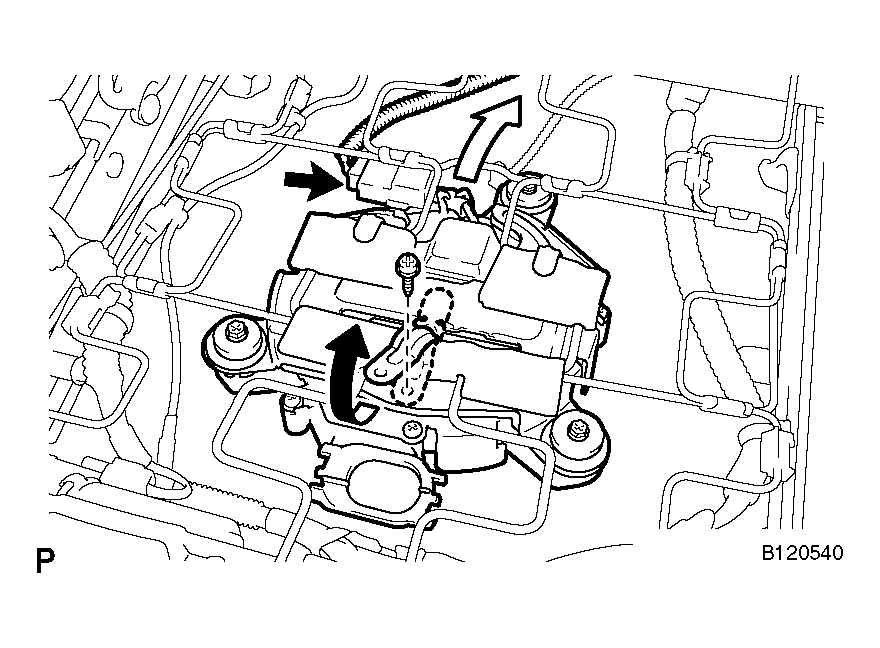

    Fig 35: Removing Bolts Bushes And Blower From Bracket
    G04051168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE SEAT POSITION SENSOR (for Driver Side)
    1. Disconnect the connector.
    2. Detach the claw and remove the seat slide position sensor protector.
    3. Using a T30 "torx" socket, remove the "torx" bolt and seat position sensor.
  33. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System) (See  REMOVAL   )
  34. REMOVE FRONT SEAT WIRE
    Fig 36: Identifying "Torx" Bolt And Seat Position Sensor
    G04051169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
