Seat Heater Control: Removal

  1. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Disconnect the 2 connectors.
    2. Disconnect the clamp, claw and remove the seat heater control sub-assembly.

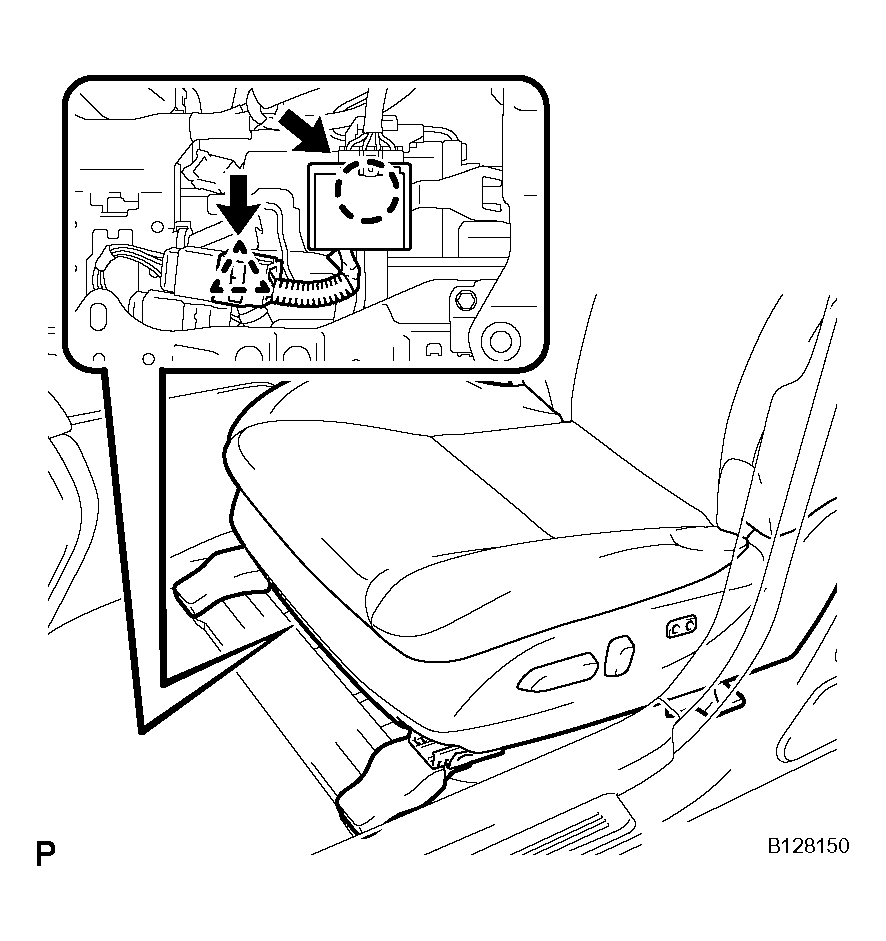

    Fig 1: Identifying Clamp, Claw And Seat Heater Control Sub-Assembly
    G04051272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
