Luggage Compartment Door Lock: Installation

  1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Install the luggage compartment door lock assembly with the 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Engage the clamp.
    3. Connect the connector.

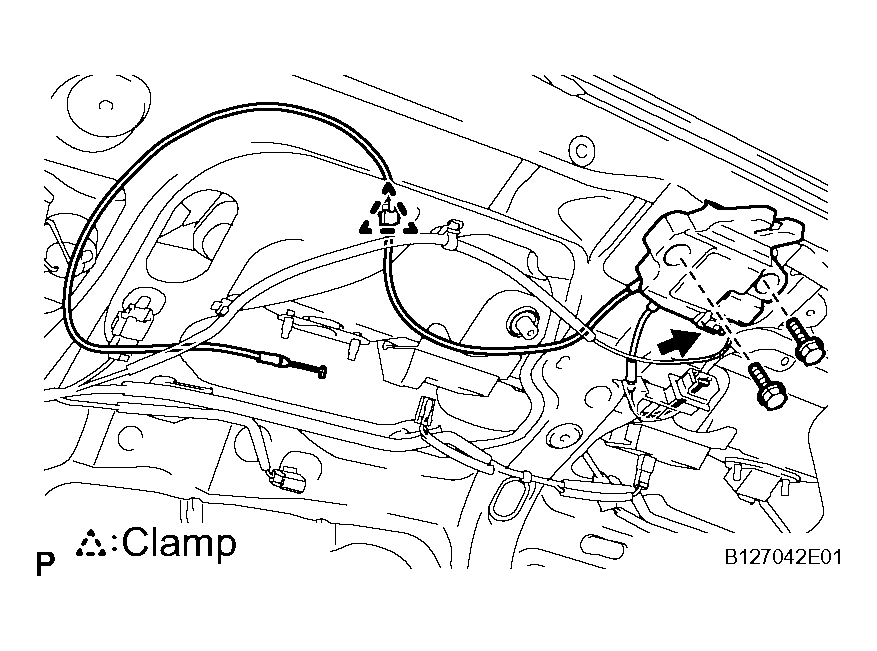

    Fig 1: Connecting Connector
    G04051492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY (See Step 9 in  REASSEMBLY   )
  3. INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
  4. INSTALL LUGGAGE COMPARTMENT DOOR COVER
  5. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See Step 13 in  REASSEMBLY   )
  6. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See Step 14 in  REASSEMBLY   )
  7. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
