DTC B2006: Short to GND in Seat Belt Motor LH Circuit: Wiring Diagram

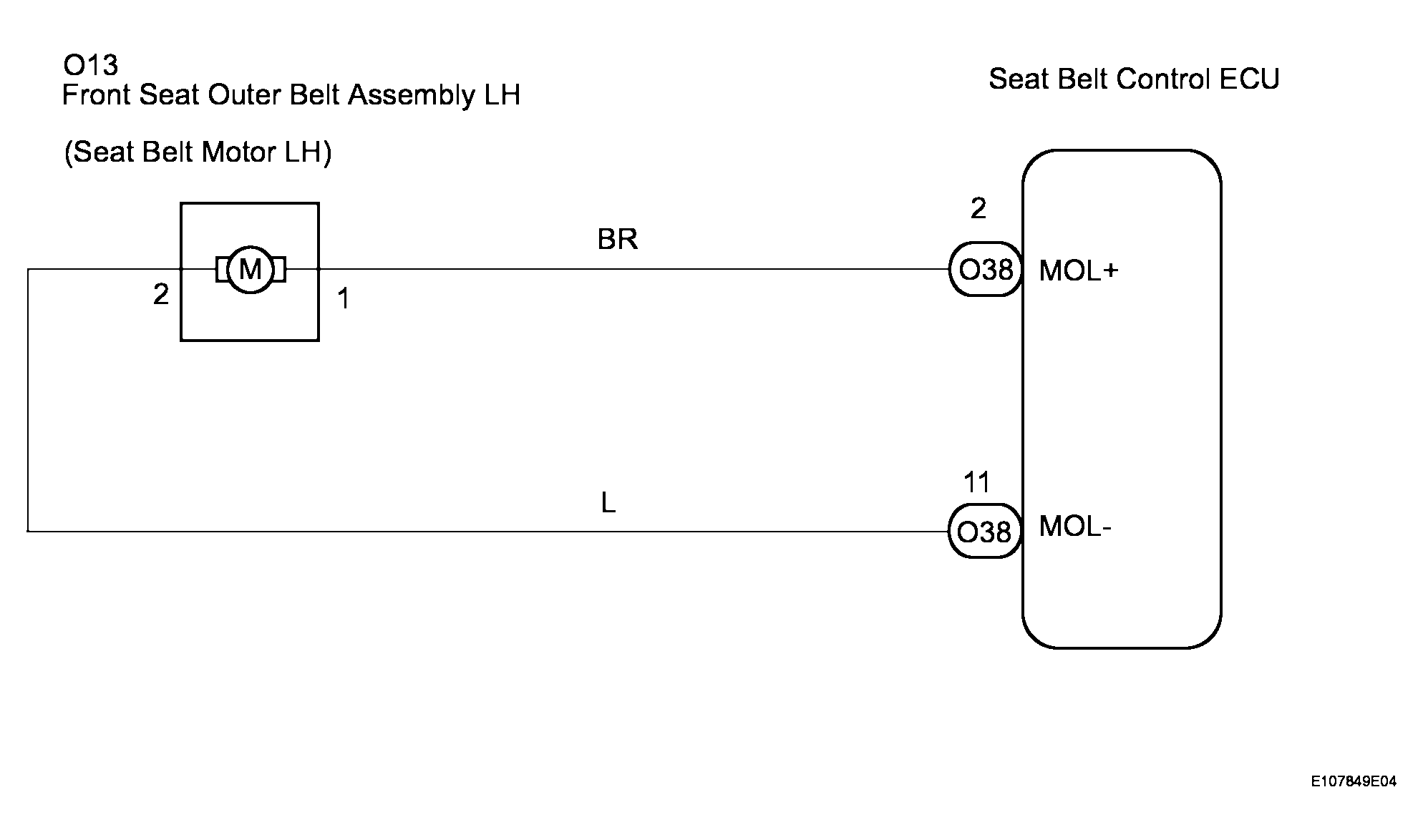

Fig 1: Identifying Short To GND In Seat Belt Motor LH Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed. (See INITIALIZATION  )
