Park / Neutral Position Switch: Removal

WARNING: This page is about a different variant/trim than selected.

SEPARATE CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT EXHAUST PIPE ASSEMBLY
(See REMOVAL )
REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
(See REMOVAL )
SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (See REMOVAL )
SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY (See INSTALLATION )
SEPARATE ENGINE REAR MOUNTING MEMBER (See INSTALLATION )
REMOVE NEUTRAL START SWITCH ASSEMBLY
1. Tilt down the transmission.

  Fig 1: Tilting Down Transmission
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the neutral start switch connector.

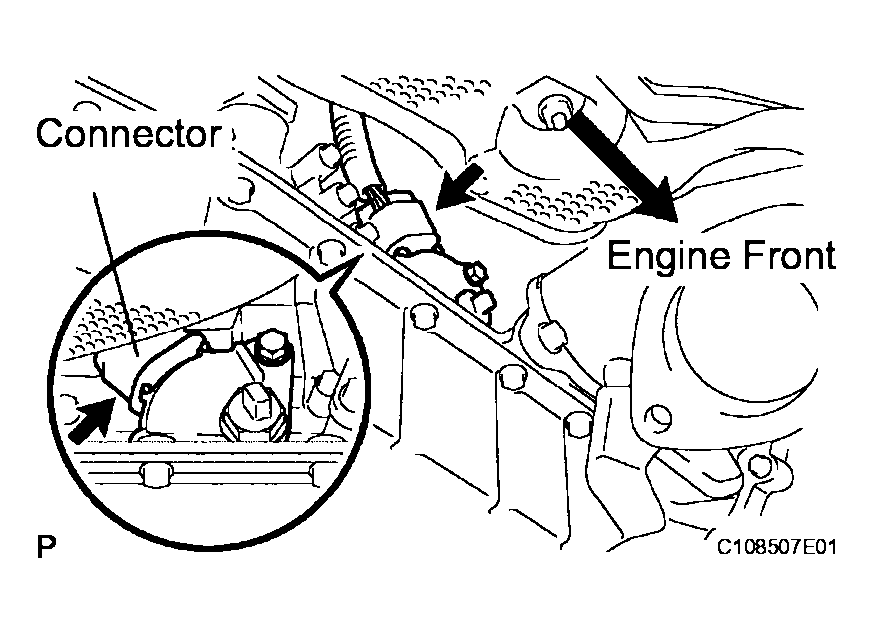

  Fig 2: Identifying Neutral Start Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, unstake the lock washer.
4. Remove the lock nut and lock washer.

  Fig 3: Identifying Lock Nut And Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and neutral start switch assembly.

  Fig 4: Identifying Bolt And Neutral Start Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
