FRONT PROPELLER SHAFT ASSEMBLY (for 4WD): Removal

REMOVE EXHAUST PIPE ASSEMBLY FRONT (See REMOVAL )
REMOVE PROPELLER SHAFT ASSEMBLY FRONT
1. Put matchmarks on the transfer companion flange and the front propeller shaft.

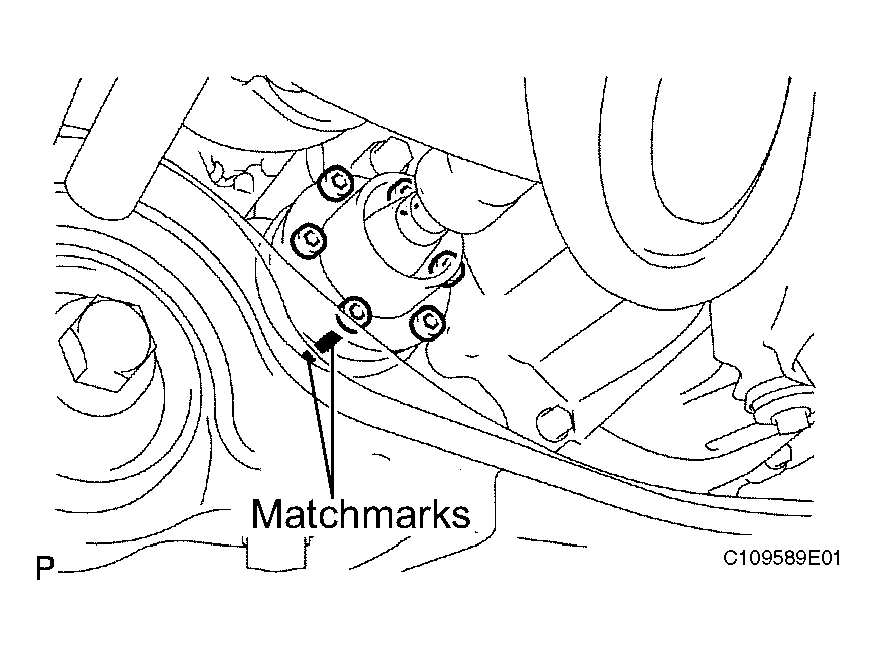

  Fig 1: Putting Matchmarks On Transfer Companion Flange And Front Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver or an equivalent, hold the transfer companion flange.
3. Using a socket hexagon wrench 6 mm, loosen the 6 bolts.
  NOTE: Be careful not to damage the front propeller shaft.

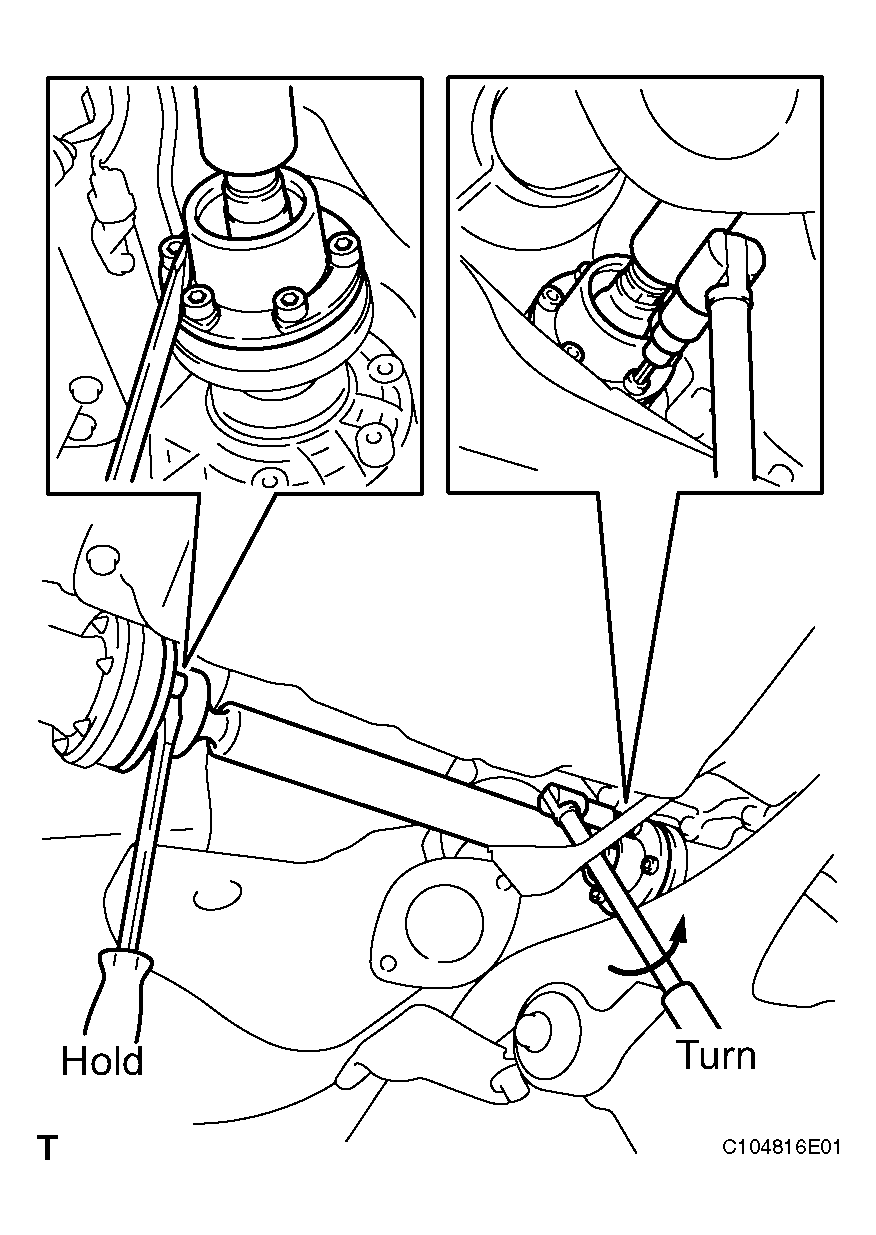

  Fig 2: Removing Companion Flange Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Put matchmarks on the front differential companion flange and the front propeller shaft.

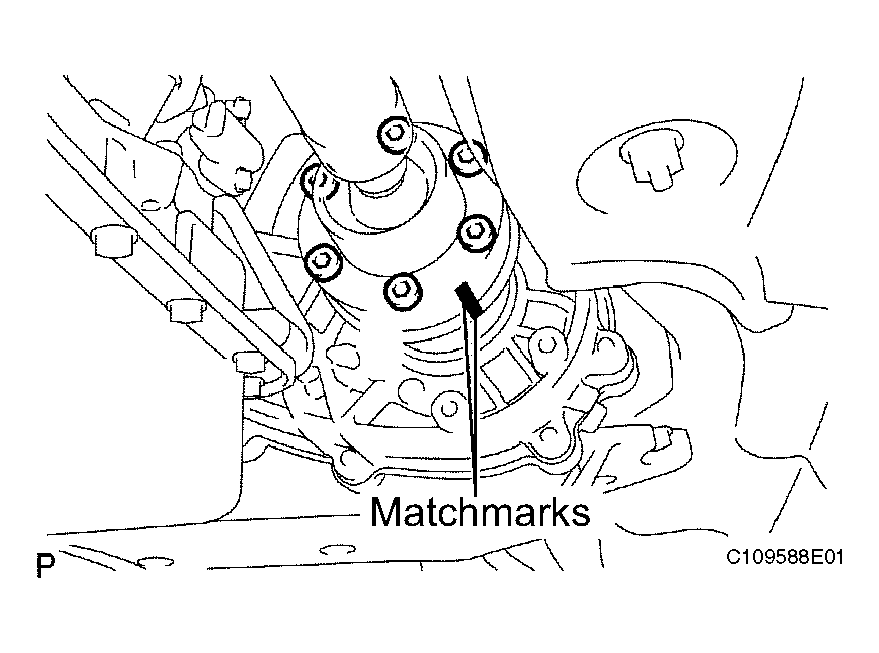

  Fig 3: Putting Matchmarks On Front Differential Companion Flange And Front Propeller Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

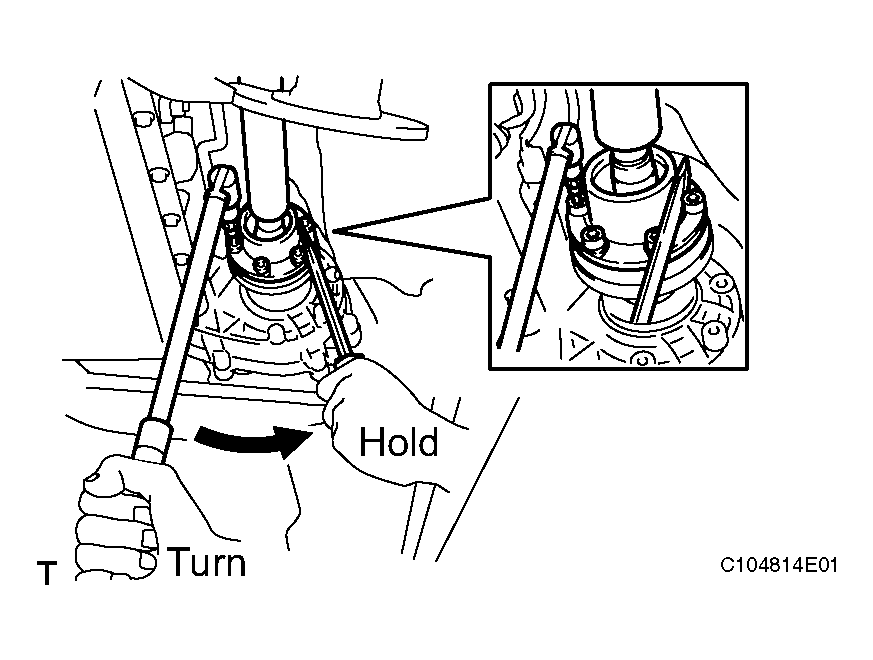

5. Using a screwdriver or an equivalent, hold the transfer companion flange.
6. Using a socket hexagon wrench 6 mm, loosen the 6 bolts.
  NOTE: Be careful not to damage the front propeller shaft.
7. Remove the 12 bolts, 4 universal joint washers and front propeller shaft assembly.
INSPECT PROPELLER SHAFT ASSEMBLY FRONT
1. Check that the propeller shaft is not cracked or damaged.

  Fig 4: Identifying Propeller Shaft Assembly Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that there is no excessive play in the joint.
  HINT:

  If necessary, replace the front propeller shaft assembly.

  Fig 5: Checking Excessive Play In Joint
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
