Instrument Panel Safety Pad: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
    1. Attach the 5 clips to install the safety pad.
    2. Connect the connectors and clamps.
    3. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    4. Install the 4 bolts, nut and 2 clips.
    5. Install the center junction block RH and LH with the 4 nuts.

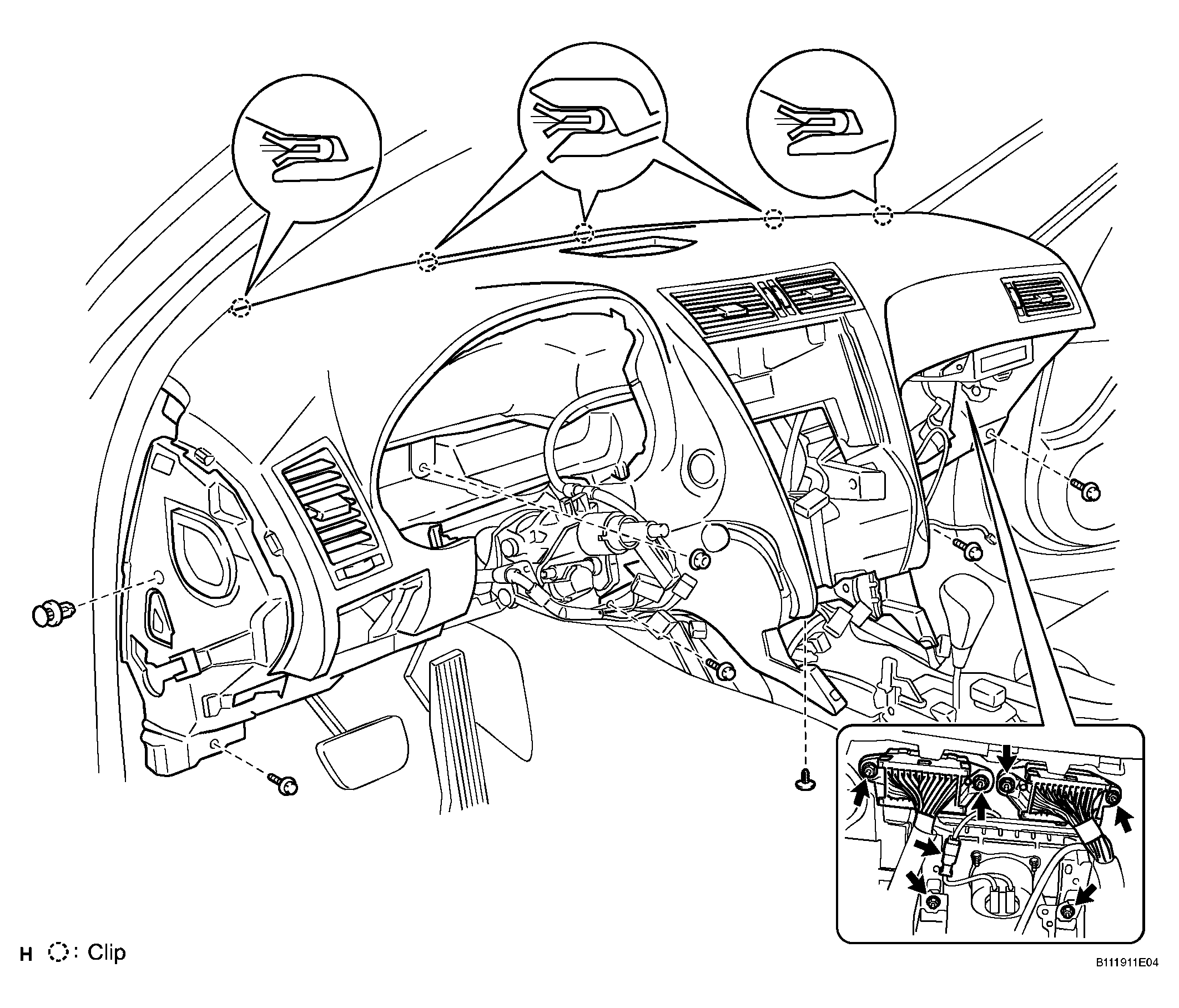

      Fig 1: Identifying Instrument Panel Safety Pad
      G04032579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. w/ Navigation system:

      Install the navigation ECU.

      1. Connect the connector.
      2. Install the ECU with the 3 bolts.
        Fig 2: View Of ECU And Bolts
        G04032580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  4. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  5. INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY
    1. Attach the 2 clips and claw to install the glove compartment door.
    2. Connect the connector and clamp.
    3. Install the 4 screws.

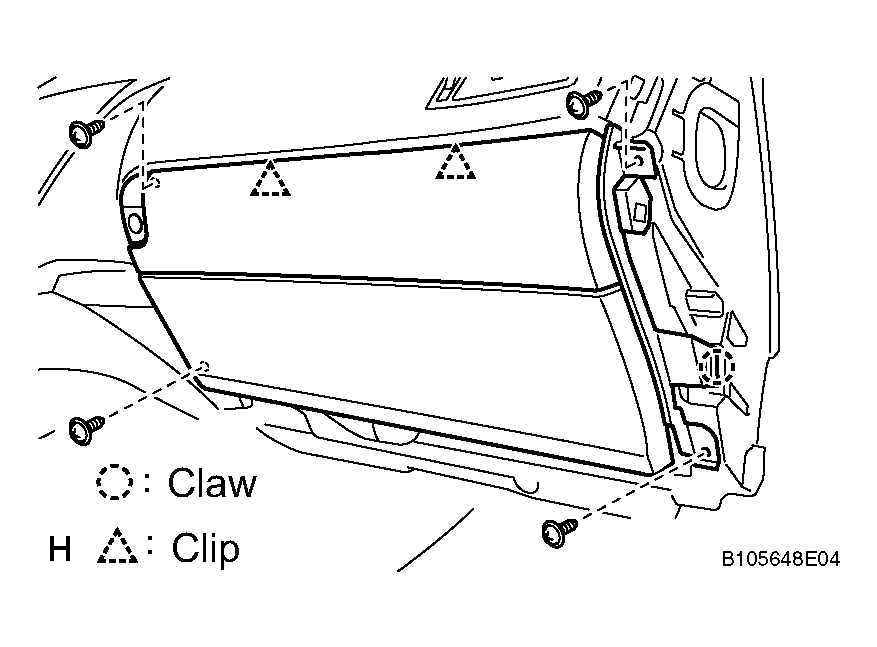

      Fig 3: Identifying Glove Compartment Door
      G04032581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  7. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Connect the connector and clamp.
    2. Attach the 4 clips to install the under cover.

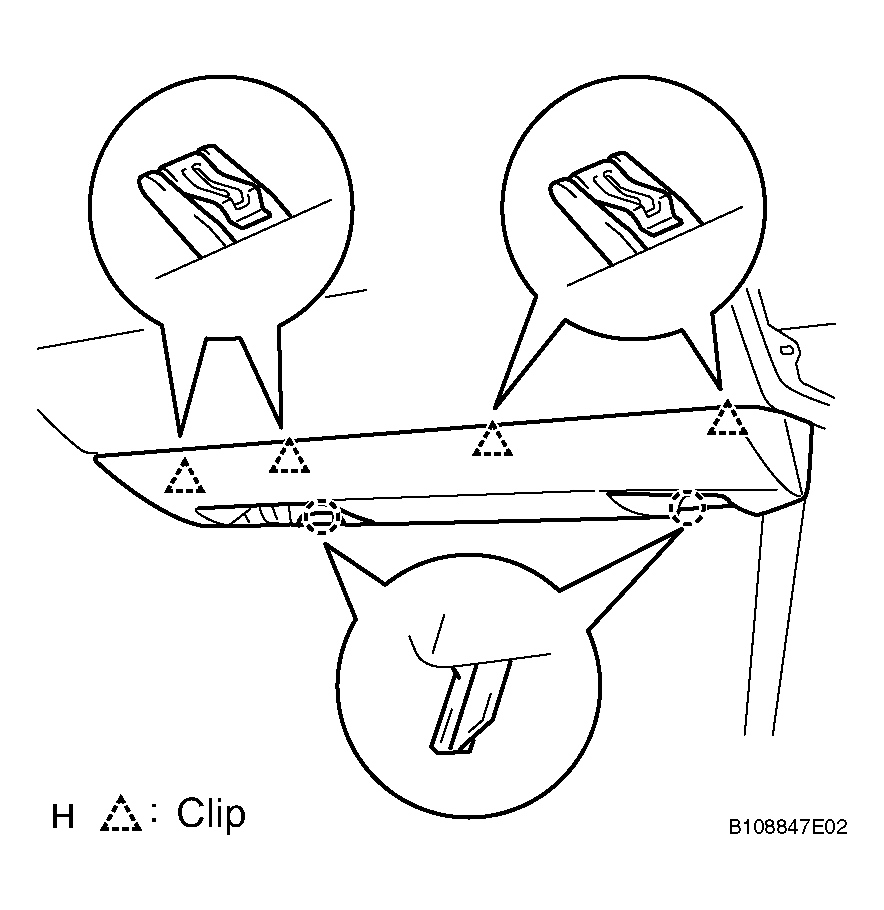

      Fig 4: Identifying Instrument Panel No. 2 Under Cover
      G04032582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 claws to install the control panel.
    3. Install the 2 screws.

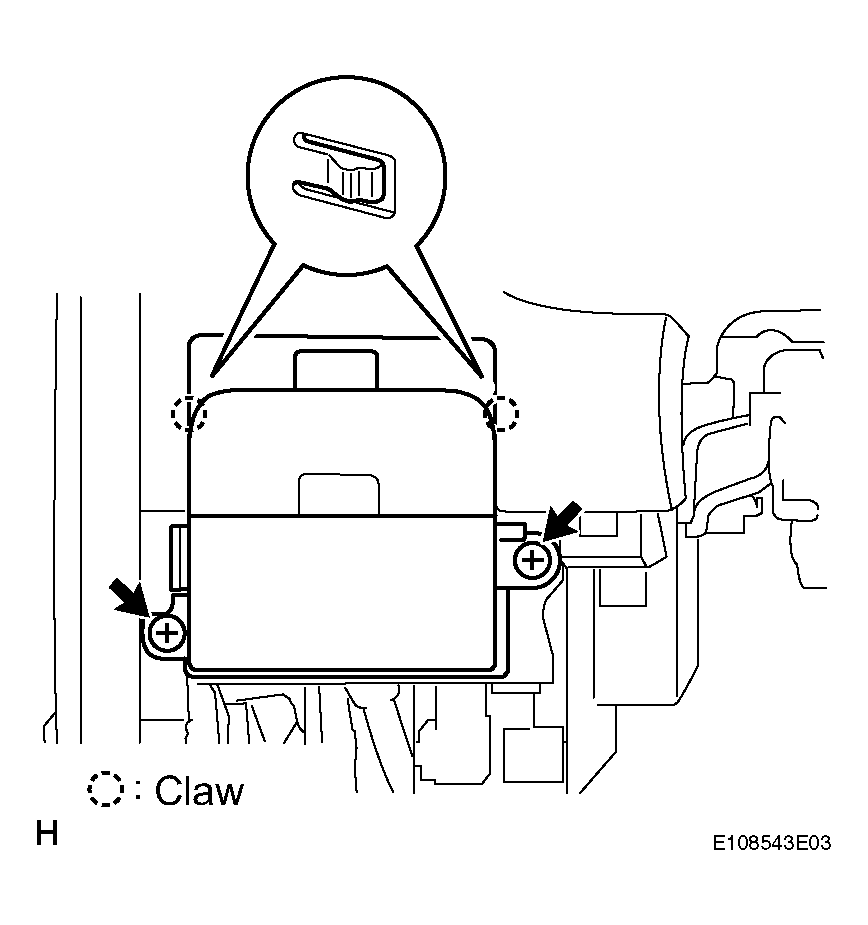

      Fig 5: Identifying Integration Control And Panel
      G04032583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  10. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
    1. Install the hood lock control cable to the safety pad.
    2. Attach the 8 clips and claw to install the safety pad.

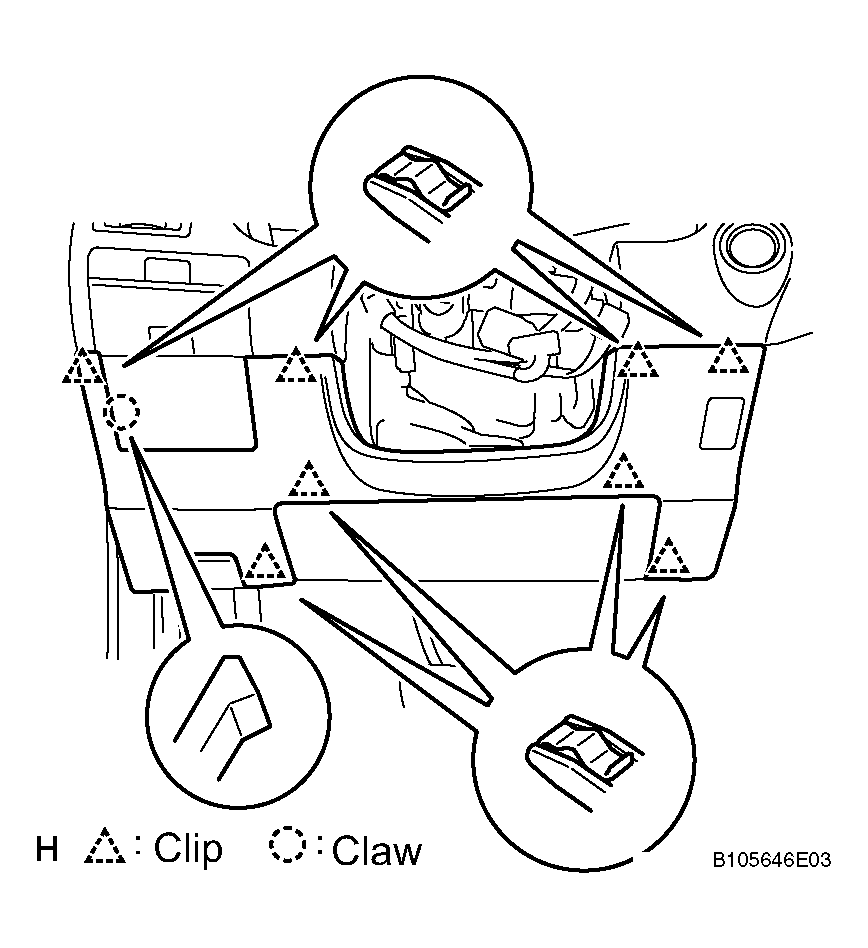

      Fig 6: Identifying Instrument Panel No. 1 Safety Pad
      G04032584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 3 claws to install the under cover.
    3. Install the 2 screws.

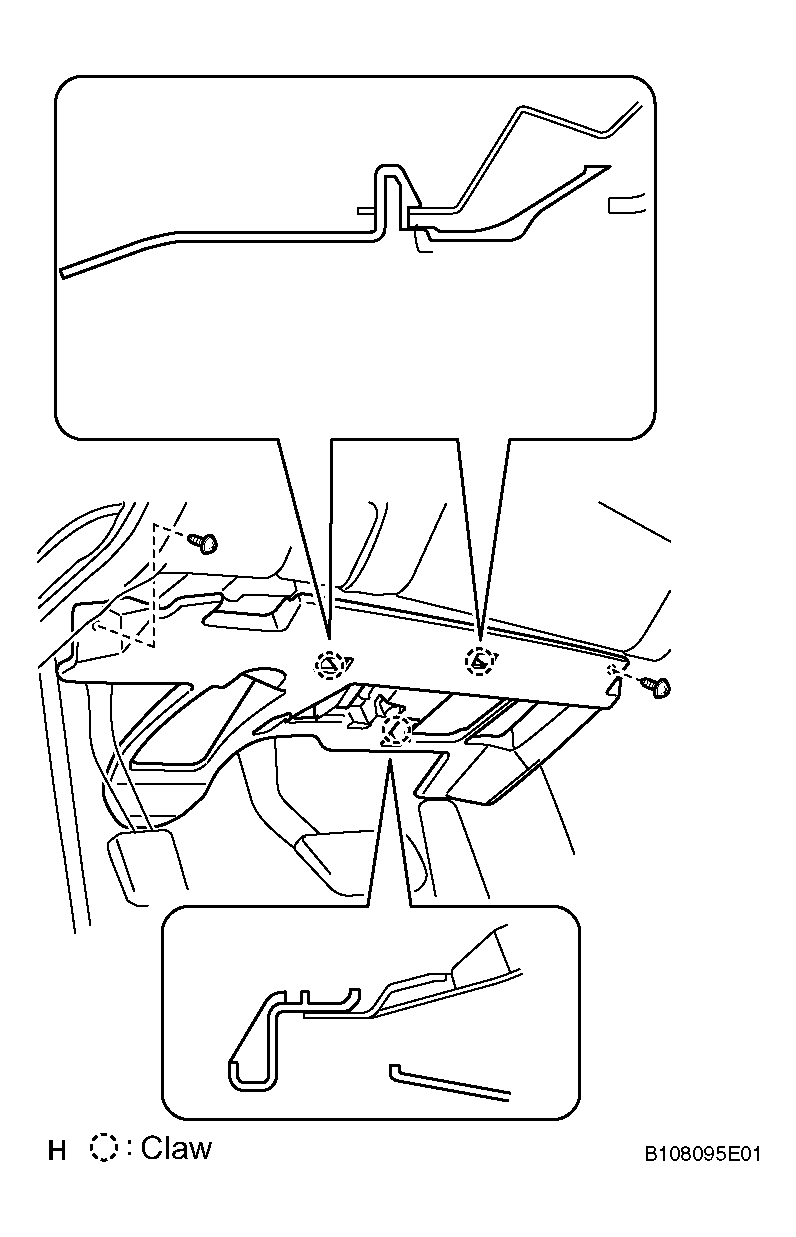

      Fig 7: Identifying Instrument Panel No. 1 Under Cover
      G04032585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the 2 claws and 4 clips to install the side panel.
      Fig 8: Identifying Instrument Side Panel LH

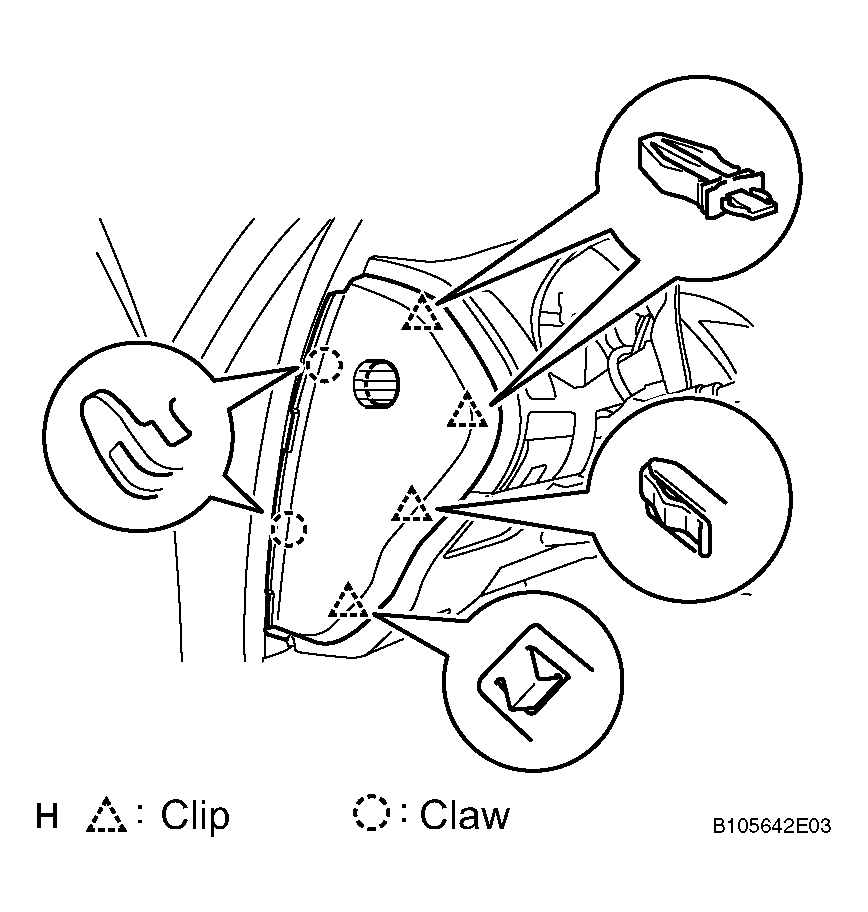

      G04032586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 2 claws and 4 clips to install the side panel.

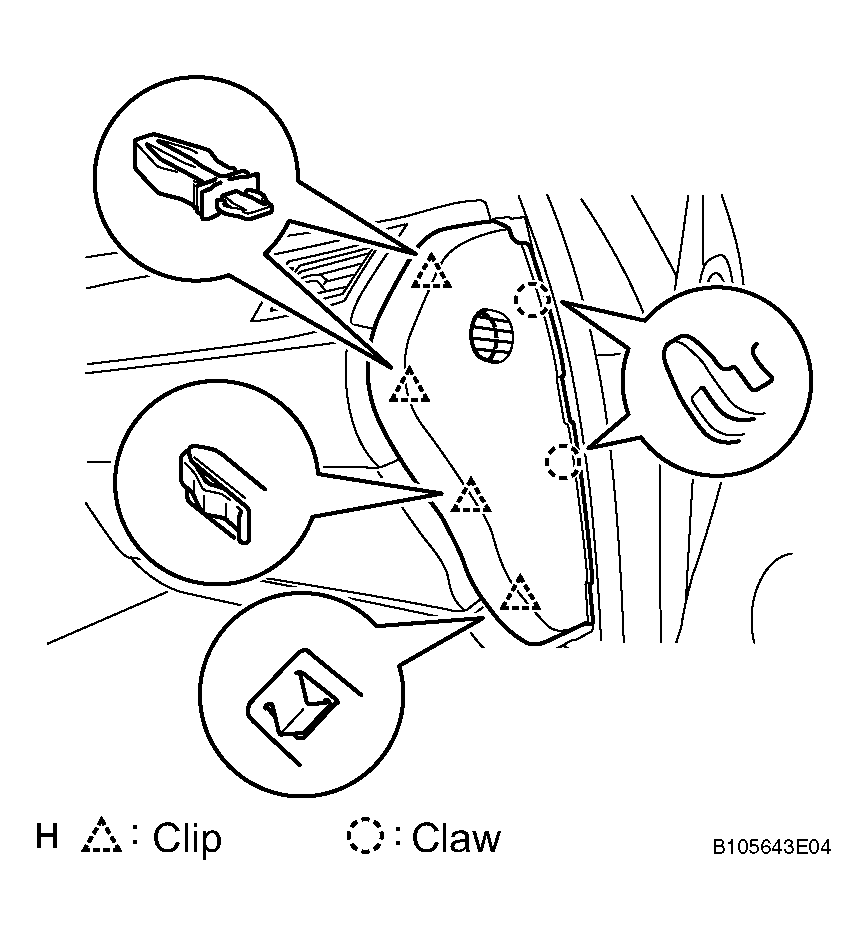

      Fig 9: Identifying Instrument Side Panel RH
      G04032587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter with the 4 screws.
      Fig 10: Locating Combination Meter Mounting Screws
      G04023254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 5 clips to install the cluster finish panel.

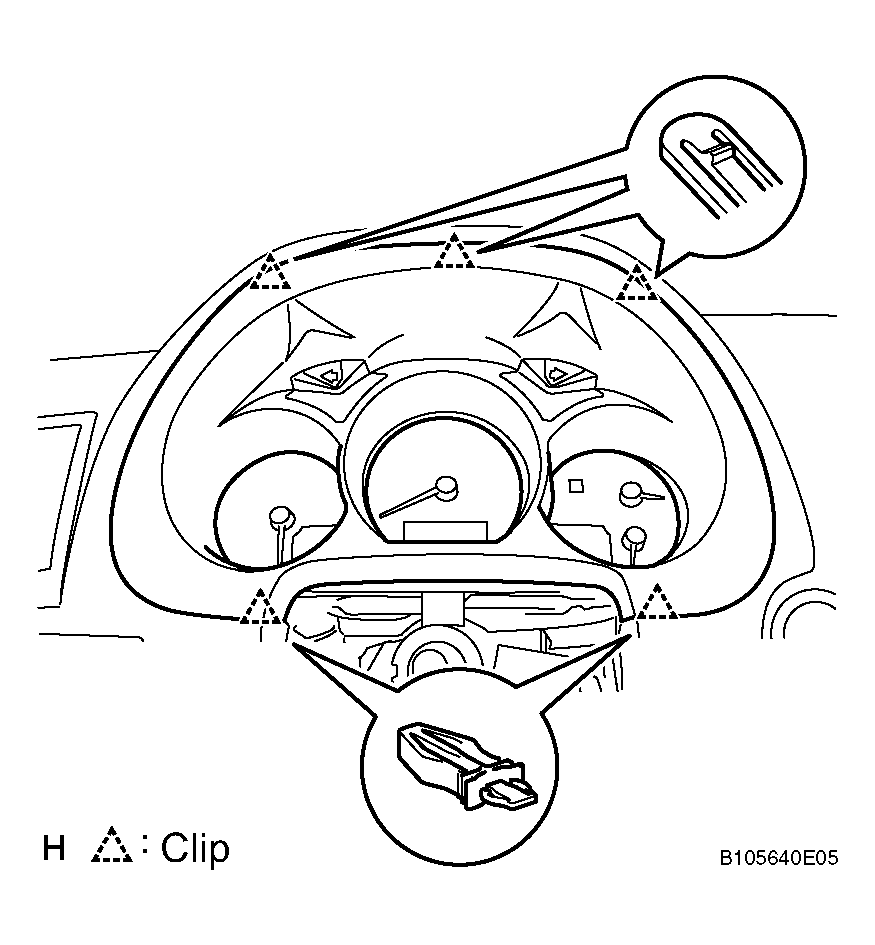

      Fig 11: Identifying Instrument Cluster Finish Panel
      G04032589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL CONSOLE BOX
    1. Connect the connector.
    2. Install the console box with the 4 bolts and 2 screws.
      Fig 12: Locating Console Box Bolts And Screws
      G04032590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

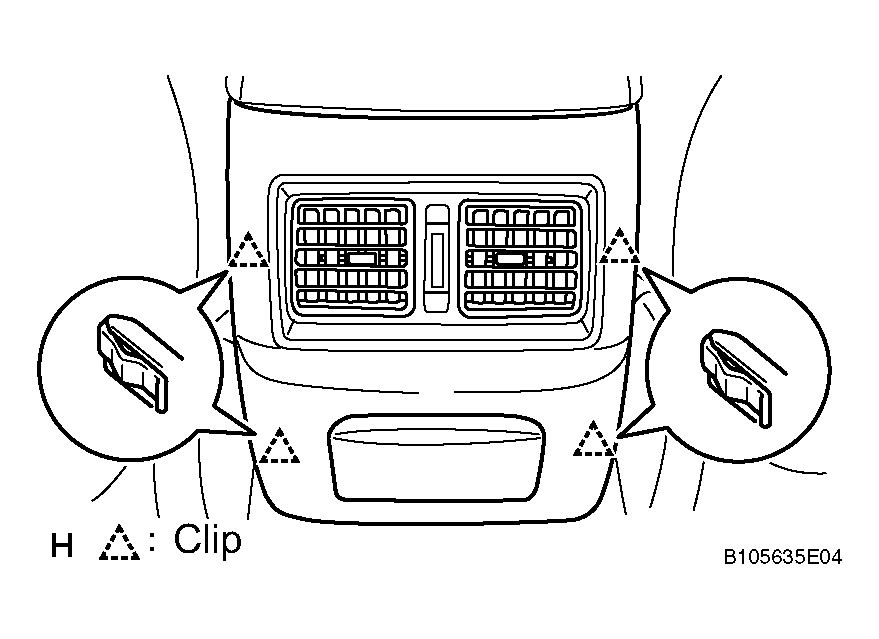

  17. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Attach the 4 clips to install the register.
      Fig 13: Identifying Console Box Register
      G04032591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL CONSOLE BOX PLATE
    1. Connect the connector.
    2. Attach the 4 clips to install the console box.

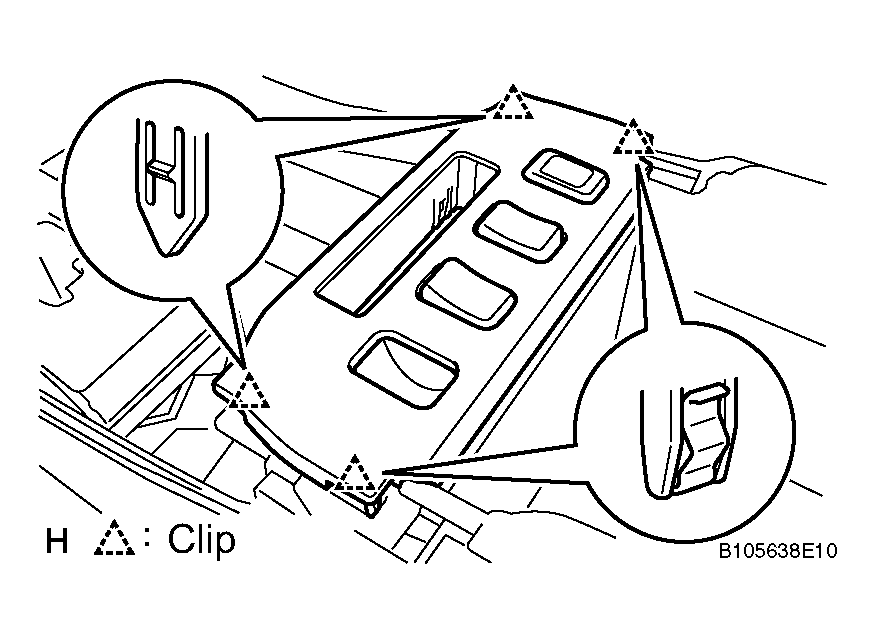

      Fig 14: Identifying Console Box Plate
      G04032592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Attach the 4 clips and 3 claws to install the finish panel end.
    2. Install the screw.

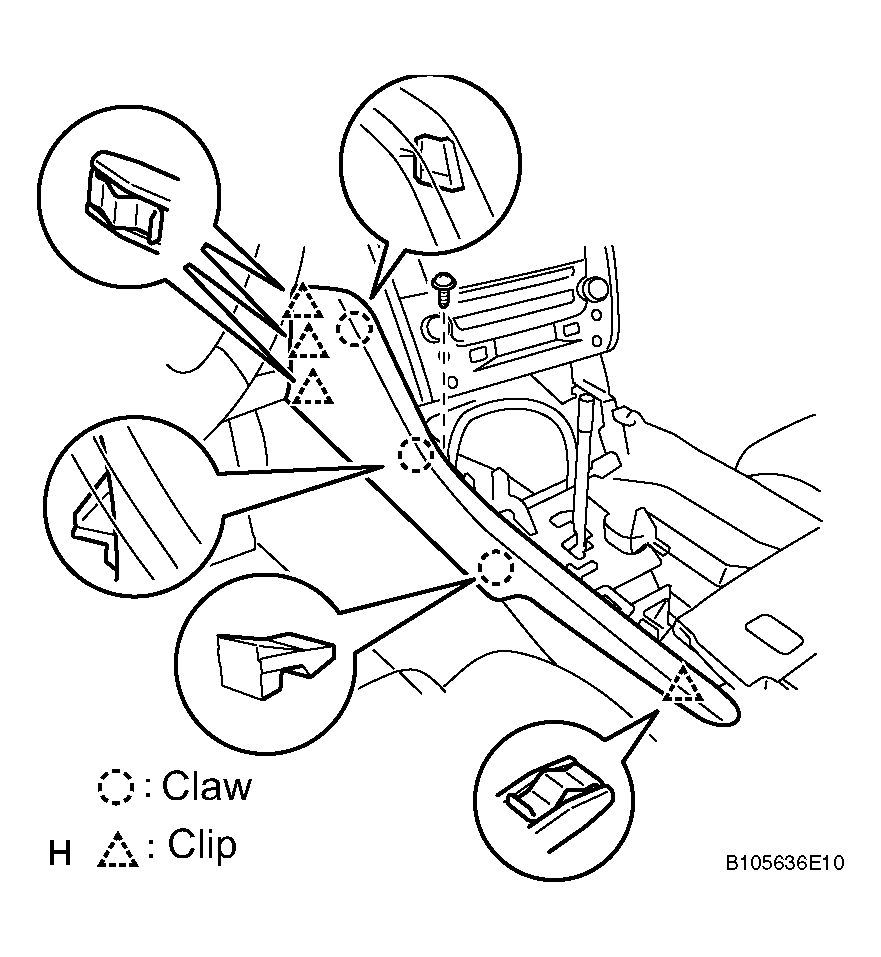

      Fig 15: Identifying Instrument Panel Finish Panel End LH
      G04032593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Attach the 3 clips and 3 claws to install the finish panel end.
    2. Install the screw.
      Fig 16: Identifying Instrument Panel Finish Panel End RH

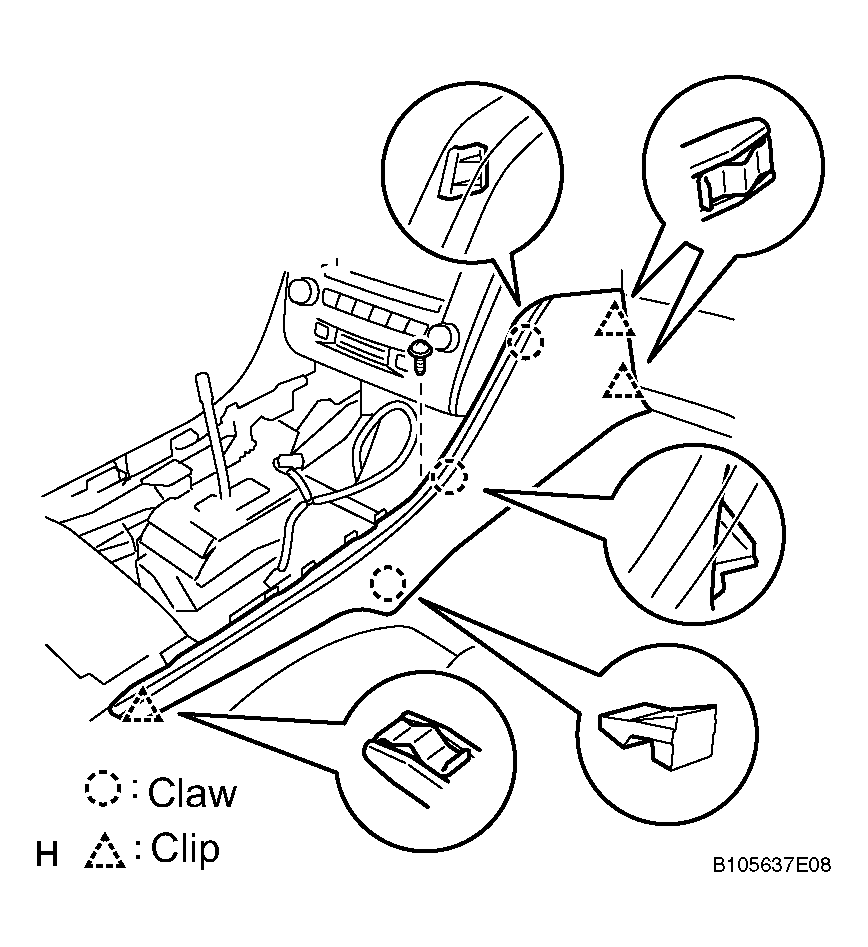

      G04032594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL CONSOLE UPPER PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 9 clips to install the ash receptacle.

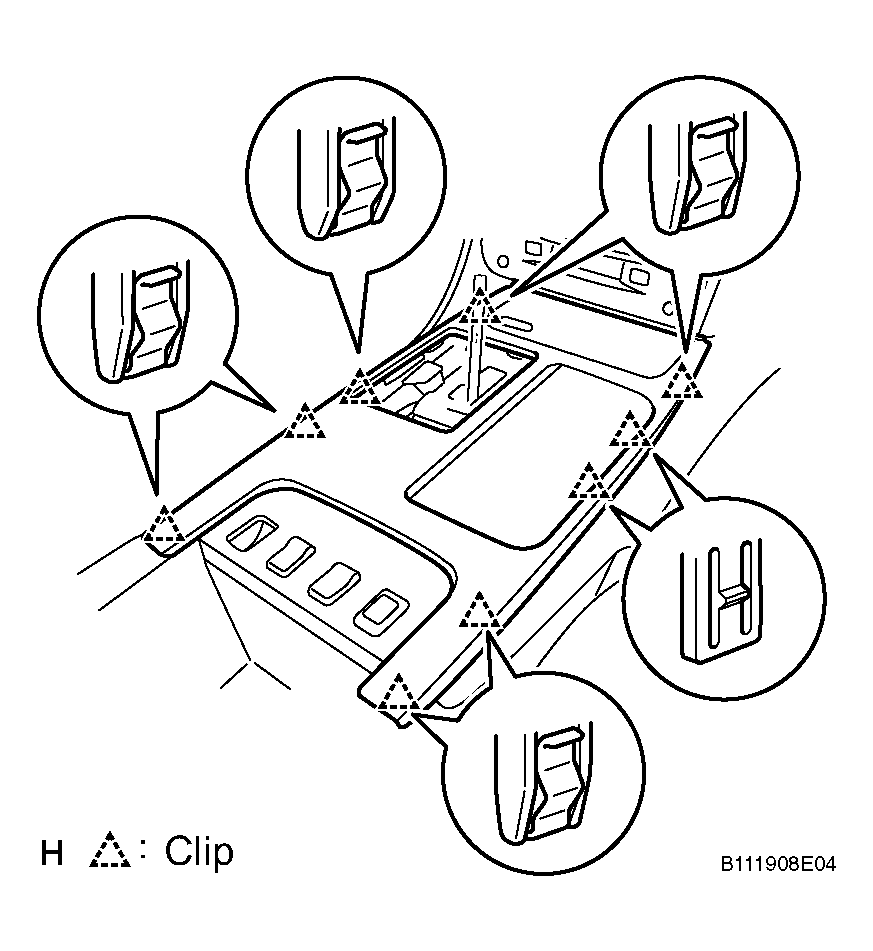

      Fig 17: Identifying Ash Receptacle
      G04032595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the shift lever knob and twist it in the direction indicated by the arrow.
      Fig 18: Identifying Shift Lever Knob
      G04032596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
    1. Attach the claws to install the garnish.
  23. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY (See  INSTALLATION  )
  24. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  25. INSTALL SPIRAL CABLE WITH STEERING SENSOR (See  INSTALLATION  )
  26. INSTALL STEERING COLUMN COVER UPPER
    1. Install the steering column cover upper.

      For 3GR-FSE (See INSTALLATION )

      For 3UZ-FE (See INSTALLATION )

  27. INSTALL STEERING COLUMN COVER LOWER
    1. Install the steering column cover lower.

      For 3GR-FSE (See INSTALLATION )

      For 3UZ-FE (See INSTALLATION )

  28. INSTALL STEERING WHEEL ASSEMBLY
    1. Install the steering wheel assembly.

      For 3GR-FSE (See INSTALLATION )

      For 3UZ-FE (See INSTALLATION )

  29. INSTALL STEERING PAD (See  INSTALLATION  )
  30. INSTALL STEERING WHEEL NO. 3 COVER LOWER
  31. INSTALL STEERING WHEEL NO. 2 COVER LOWER
  32. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  33. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  34. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  35. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  37. PERFORM INITIALIZATION
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
    1. Perform initialization (See INITIALIZATION ).
  38. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See DIAGNOSIS SYSTEM ).
