Front Passenger Side Knee Airbag Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
    1. Connect the connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Install the front passenger side knee airbag assembly with the 3 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  2. INSTALL INSTRUMENT PANEL UNDER NO.2 COVER SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL INSTRUMENT SIDE PANEL (See  INSTALLATION  )
  4. INSTALL INSTRUMENT PANEL FINISH PANEL END (See  INSTALLATION  )
  5. INSTALL FRONT ASH RECEPTACLE ASSEMBLY (See  INSTALLATION  )

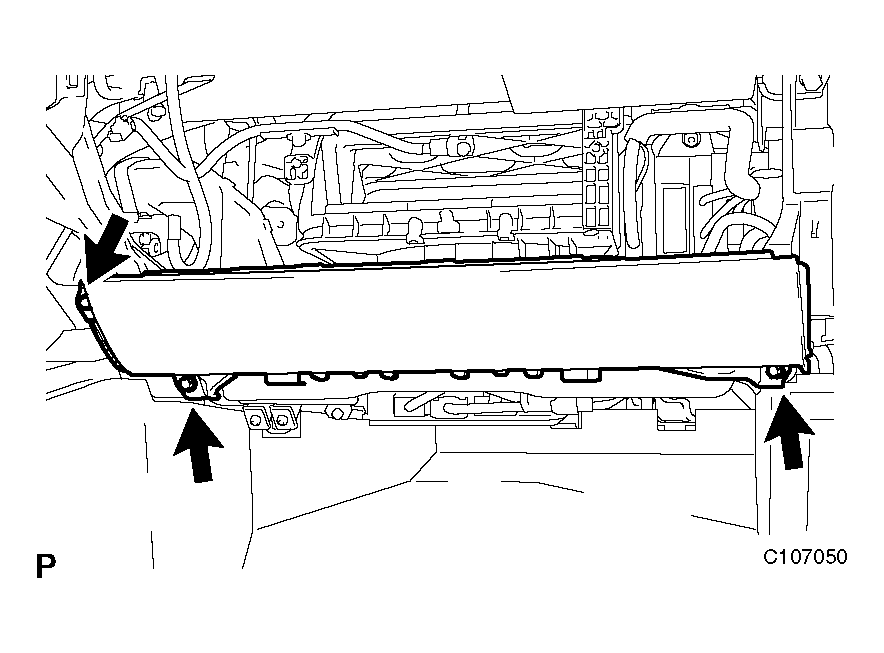

    Fig 1: Identifying Front Passenger Side Knee Airbag Assembly
    G04030909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CONSOLE UPPER PANEL GARNISH FRONT (See  INSTALLATION  )
  7. INSTALL FRONT DOOR OPENING TRIM COVER (See  INSTALLATION  )
  8. INSTALL FRONT DOOR SCUFF PLATE (See  INSTALLATION  )
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  10. PERFORM INITIALIZATION
  11. INSPECT SRS WARNING LIGHT
