Hood Lock Control Cable Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE ROOM SIDE COVER LH (See  EVAP SYSTEM  )
  3. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  4. REMOVE ENGINE UNDER COVER (See  REMOVAL  )
  5. REMOVE FRONT FENDER LINER LH (See  REMOVAL  )
  6. REMOVE FRONT FENDER LINER RH (See  REMOVAL  )
  7. REMOVE FRONT BUMPER COVER (See  REMOVAL  )
  8. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Cruise Control System) (See  MILLIMETER WAVE RADAR SENSOR POWER SOURCE CIRCUIT  )
  9. REMOVE HOOD LOCK CONTROL CABLE COVER
    1. Remove the 3 screws.
    2. Detach the claw and remove the cable cover.

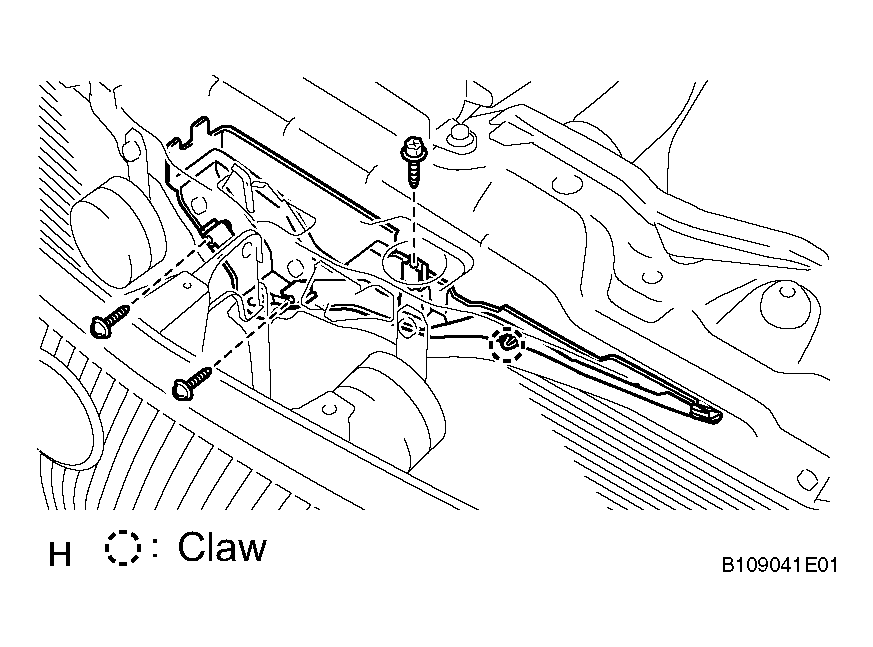

      Fig 1: Identifying 3 Screws
      G04023550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT FENDER PROTECTOR UPPER LH
    1. Using a screwdriver, detach the 3 clips and remove the protector.

      HINT:

      Tape the screwdriver tip before use.

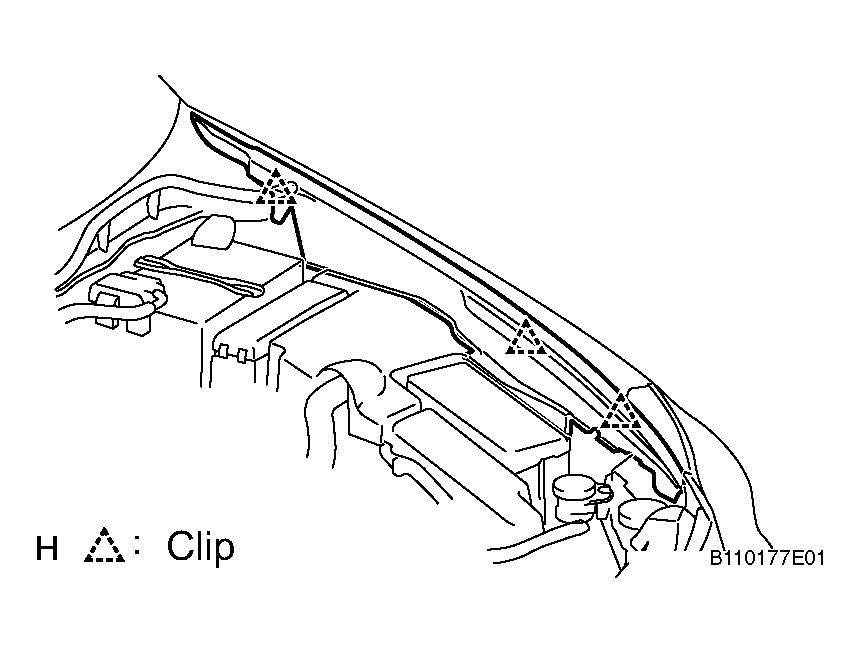

      Fig 2: Identifying Detaching 3 Clips And Identifying Protector
      G04023551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HOOD LOCK ASSEMBLY
    1. Disconnect the hood lock control cable.
    2. Remove the cap.
    3. Remove the 2 bolts and nut.
    4. Remove the hood lock.

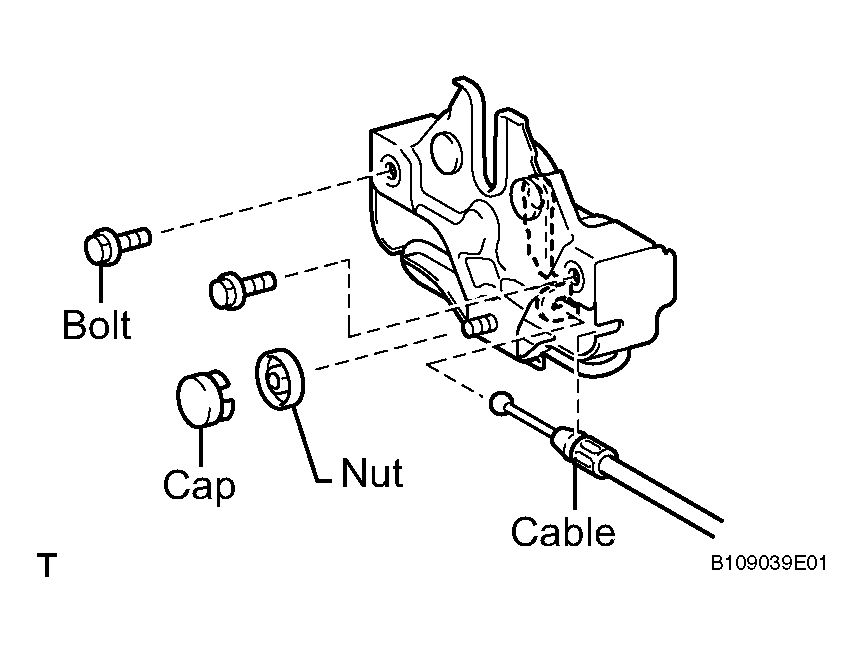

      Fig 3: Identifying Hood Lock
      G04023552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE HOOD LOCK CONTROL LEVER SUBASSEMBLY
    STANDARD CLEARANCE CHART

    Area Part Name
    A Junction block
    B Hood lock control cable
    C Parking brake pedal
    D Parking brake cable
    1. Detach the 2 claws.
    2. Disconnect the hood lock control cable and remove the hood lock lever.

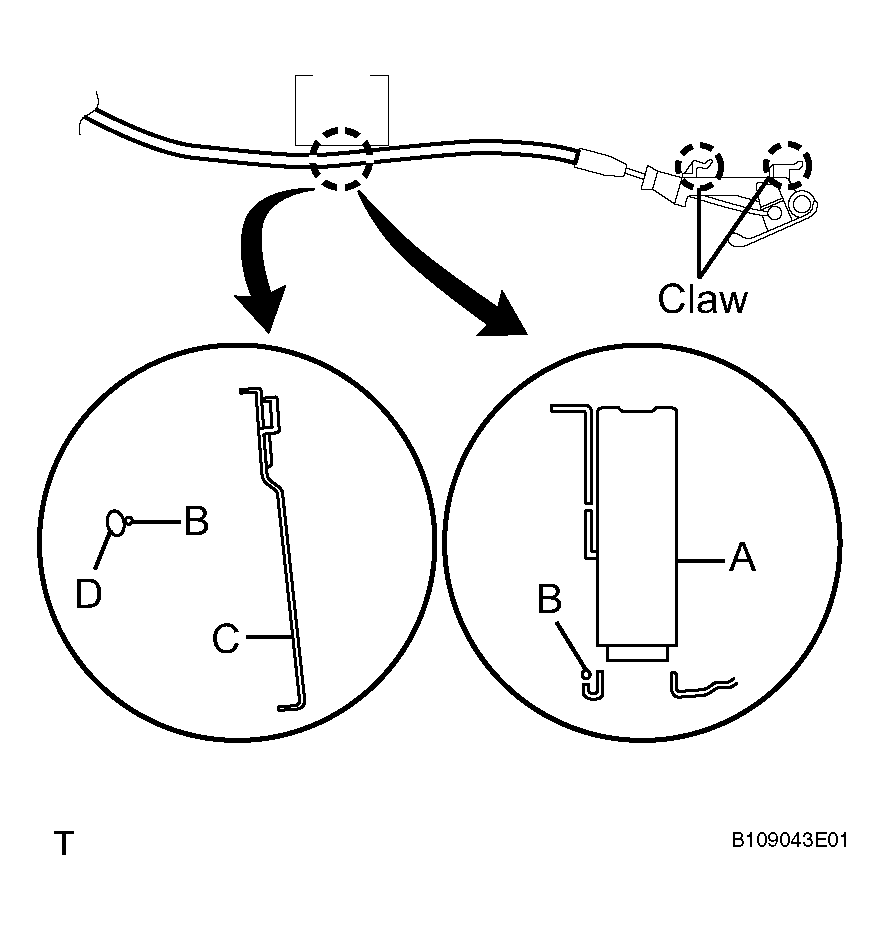

      Fig 4: Identifying Hood Lock Control Cable
      G04023553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

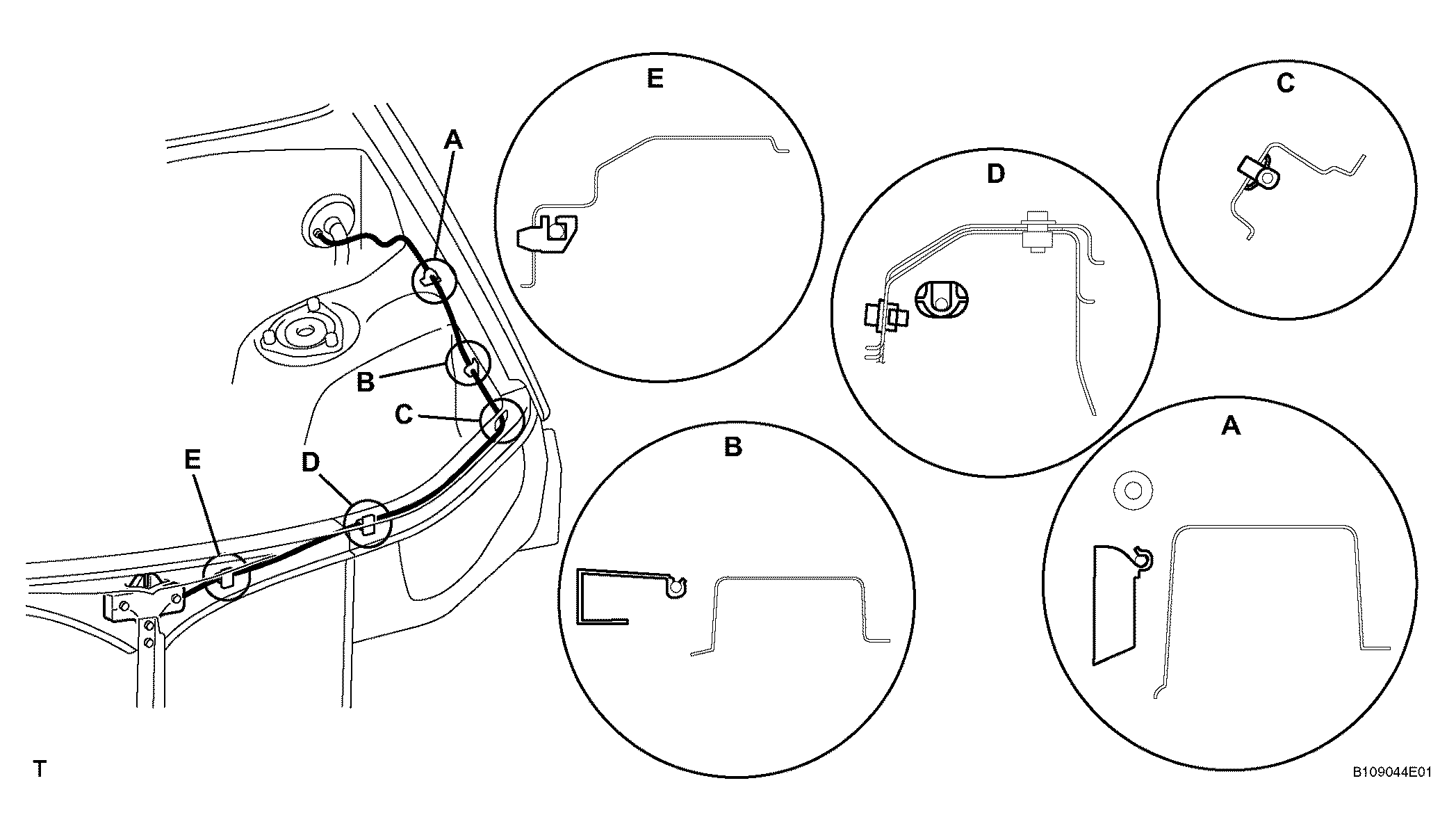

    Fig 5: Identifying Hood Lock Control Cable Assembly
    G04023554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, disconnect the clamps shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the cable from the engine room and remove it.

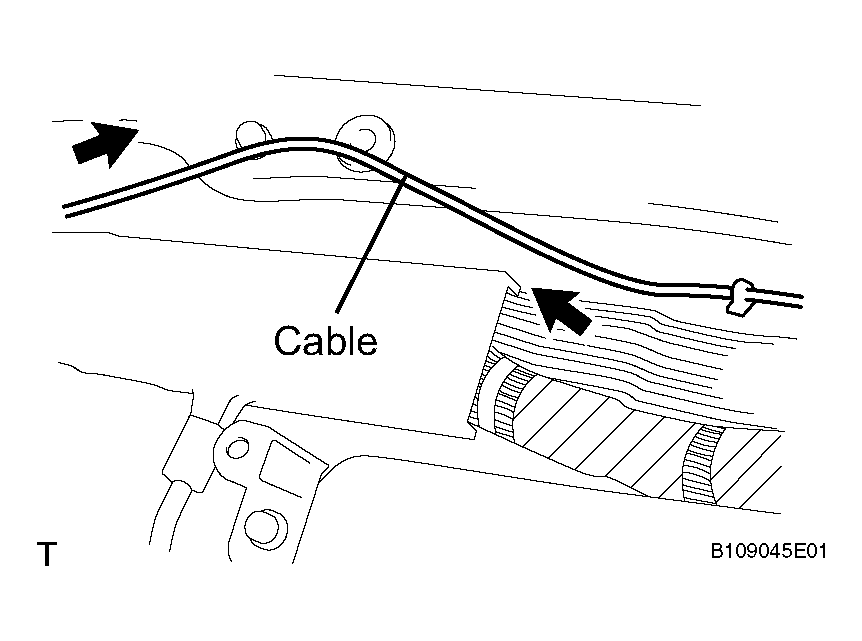

      Fig 6: Pulling Cable From Engine Room
      G04023555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
