Instrument Panel Safety Pad: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY
1. Attach the 5 clips to install the safety pad.
2. Connect the connectors and clamps.
3. Install the 2 bolts to the passenger airbag.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
4. Install the 4 bolts, nut and 2 clips.
5. Install the center junction block RH and LH with the 4 nuts.

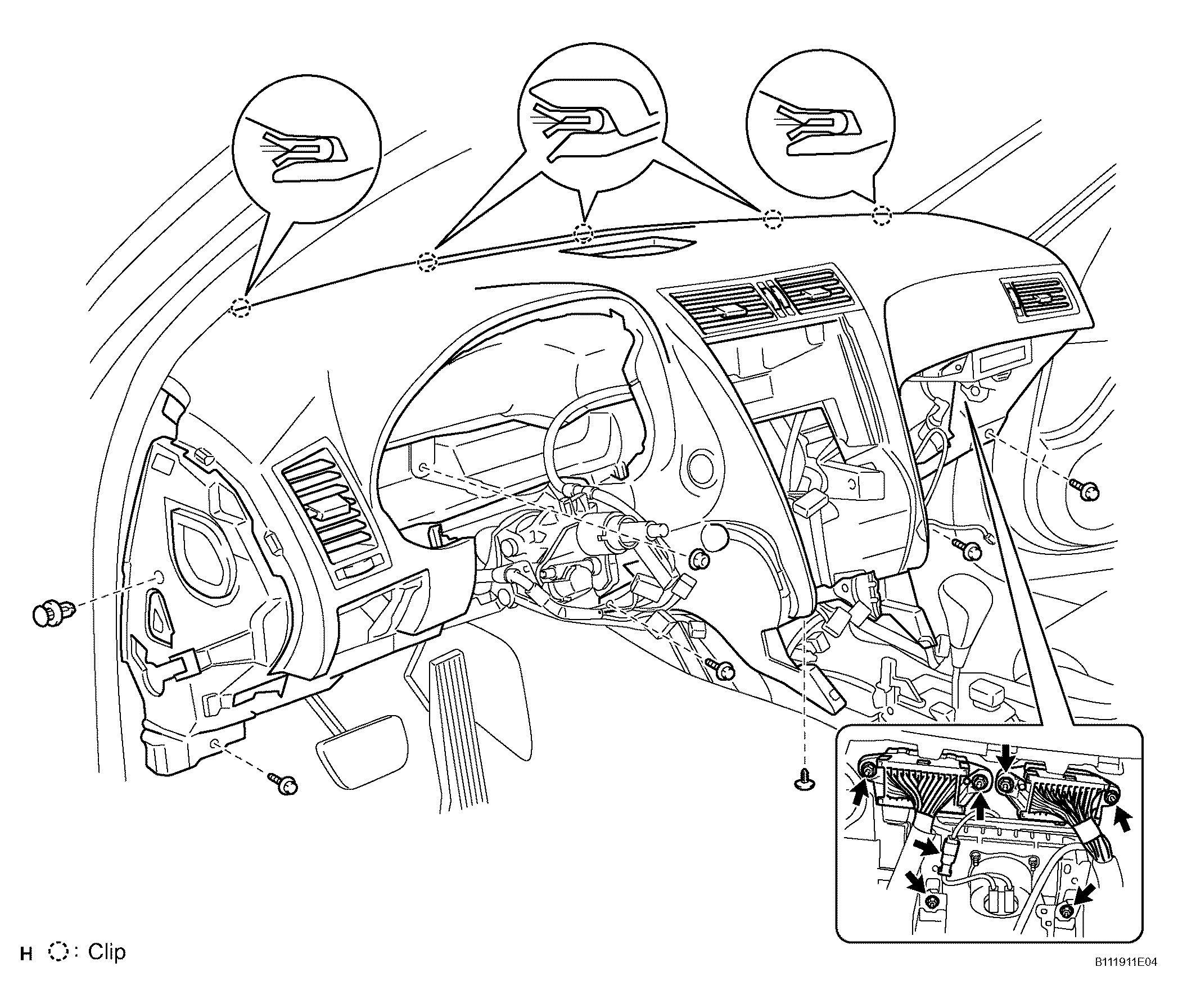

  Fig 1: Identifying Instrument Panel Safety Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. w/ Navigation system:
  Install the navigation ECU.
  1. Connect the connector.
  2. Install the ECU with the 3 bolts.
INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See INSTALLATION )
INSTALL FRONT PILLAR GARNISH LH (See INSTALLATION )
INSTALL FRONT PILLAR GARNISH RH (See INSTALLATION )

Fig 2: View Of ECU And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR SUBASSEMBLY
1. Attach the 2 clips and claw to install the glove compartment door.
2. Connect the connector and clamp.
3. Install the 4 screws.
INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )

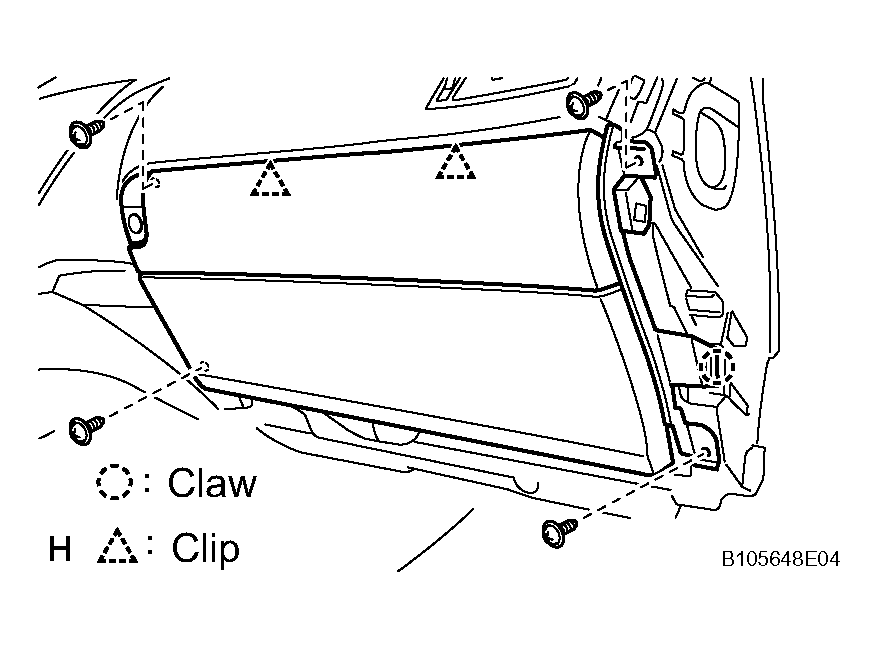

Fig 3: Identifying Glove Compartment Door
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
1. Connect the connector and clamp.
2. Attach the 4 clips to install the under cover.

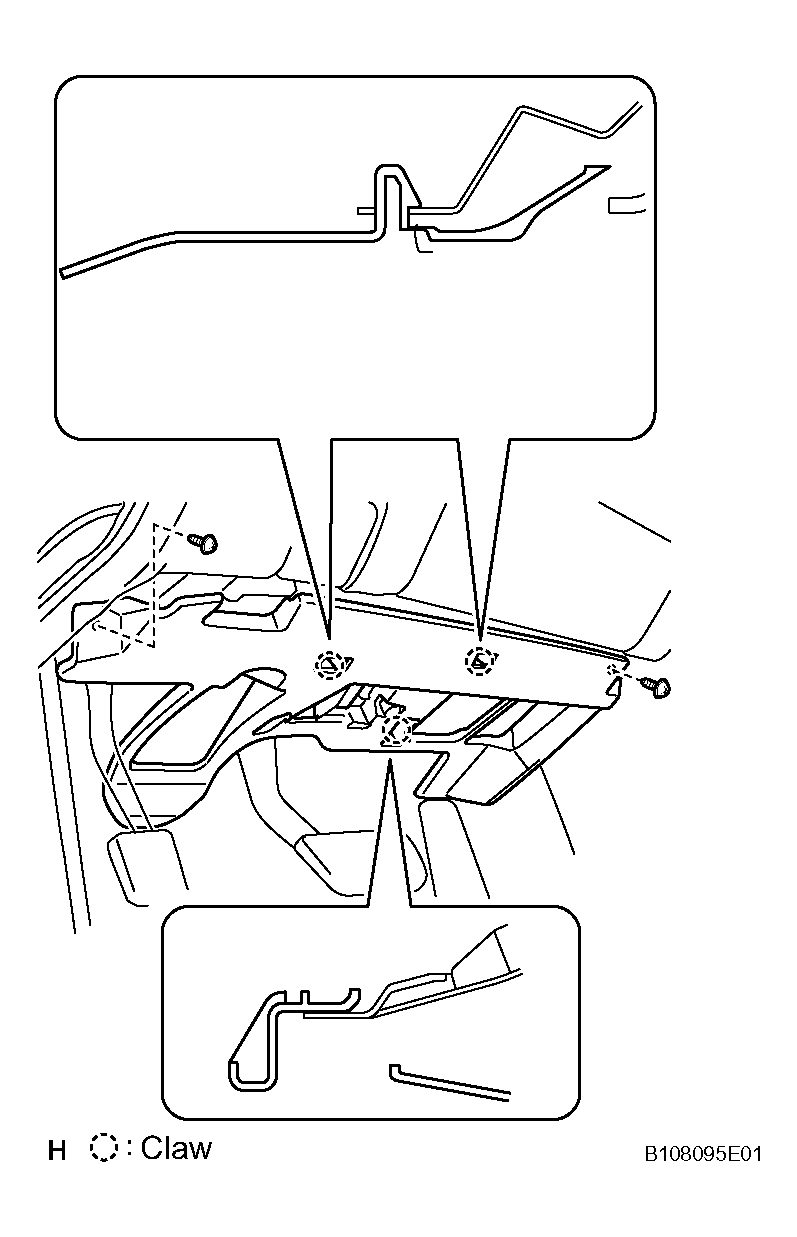

  Fig 4: Identifying Instrument Panel No. 2 Under Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
1. Connect the connector.
2. Attach the 2 claws to install the control panel.
3. Install the 2 screws.
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )

Fig 5: Identifying Driver Side Knee Airbag
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
1. Install the hood lock control cable to the safety pad.
2. Attach the 8 clips and claw to install the safety pad.

  Fig 6: Identifying Instrument Panel No. 1 Safety Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
1. Connect the connectors.
2. Attach the 3 claws to install the under cover.
3. Install the 2 screws.

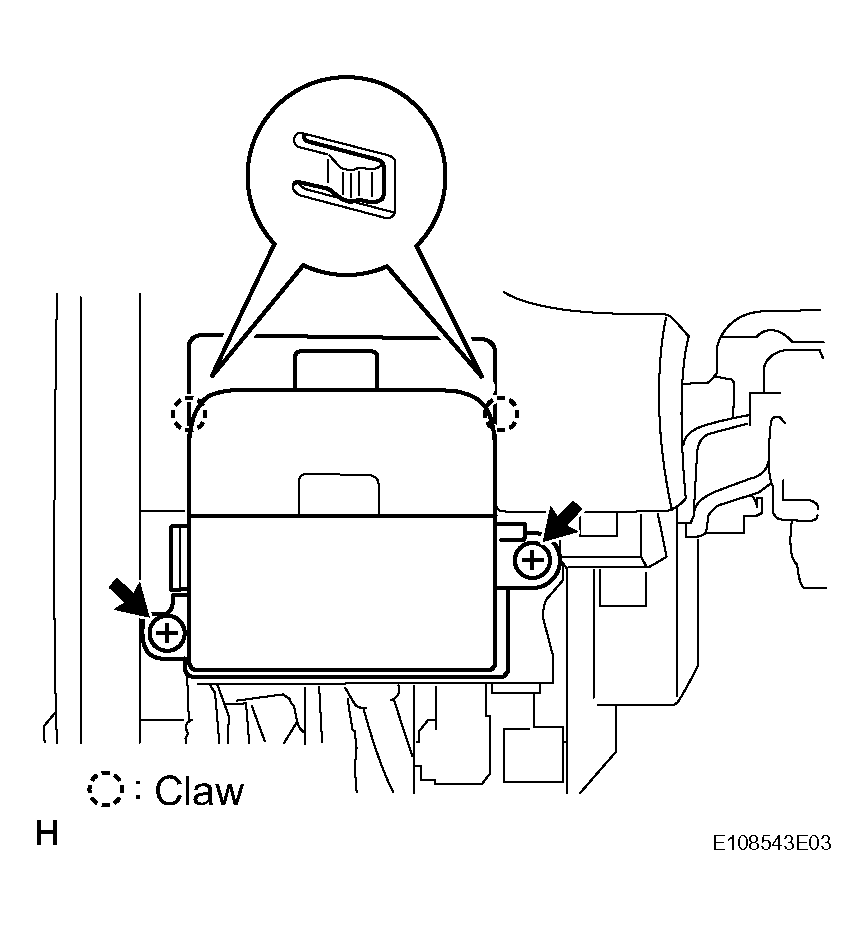

  Fig 7: Identifying Instrument Panel No. 1 Under Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT SIDE PANEL LH
1. Attach the 2 claws and 4 clips to install the side panel.

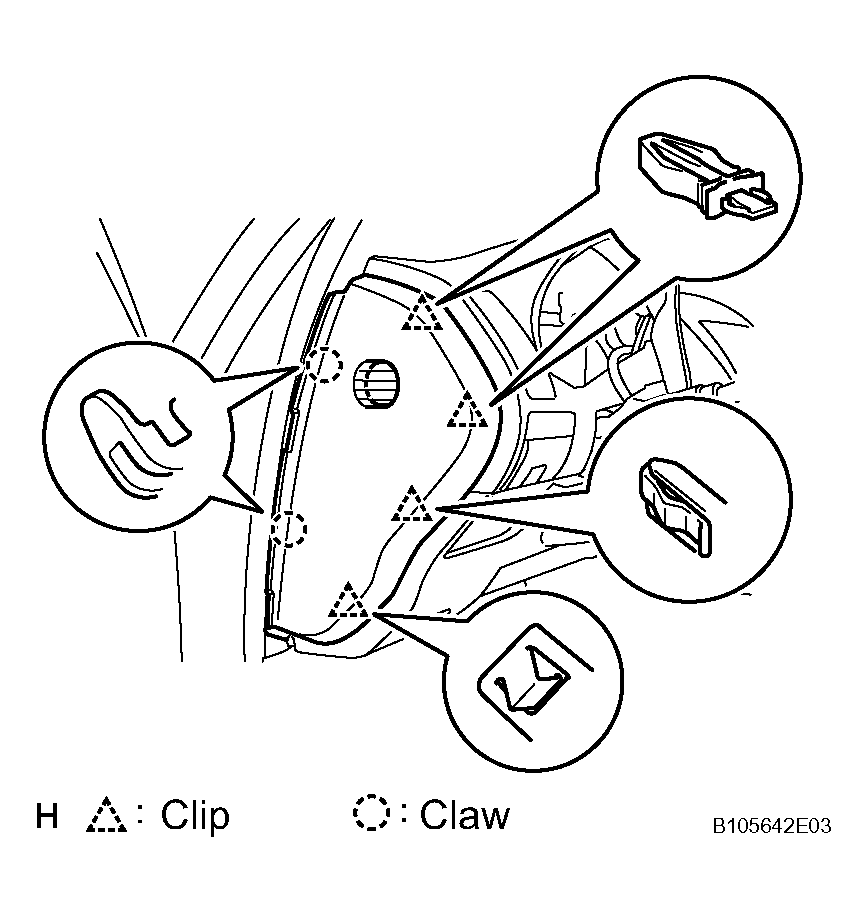

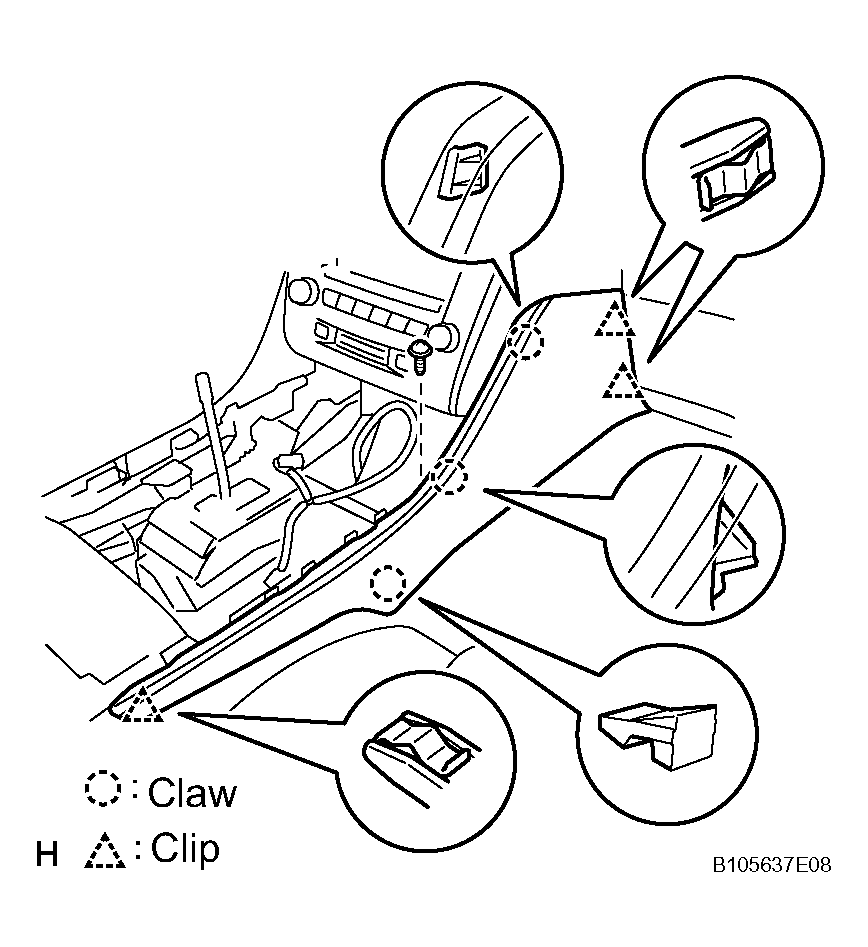

  Fig 8: Identifying Instrument Side Panel LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT SIDE PANEL RH
1. Attach the 2 claws and 4 clips to install the side panel.

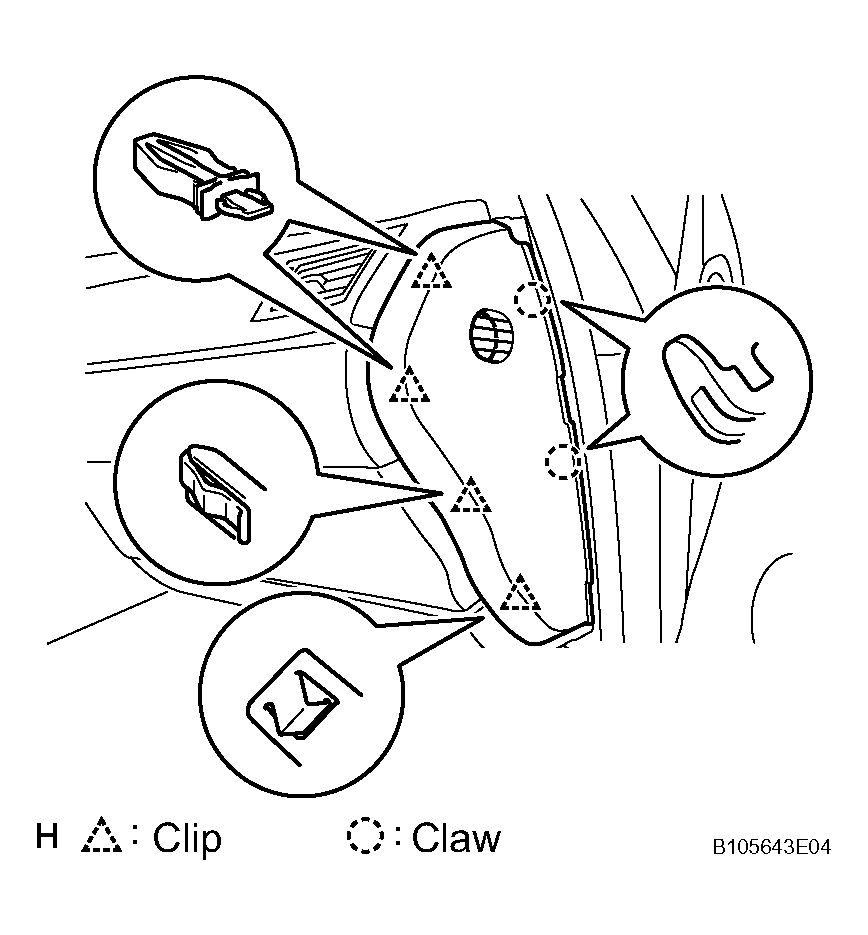

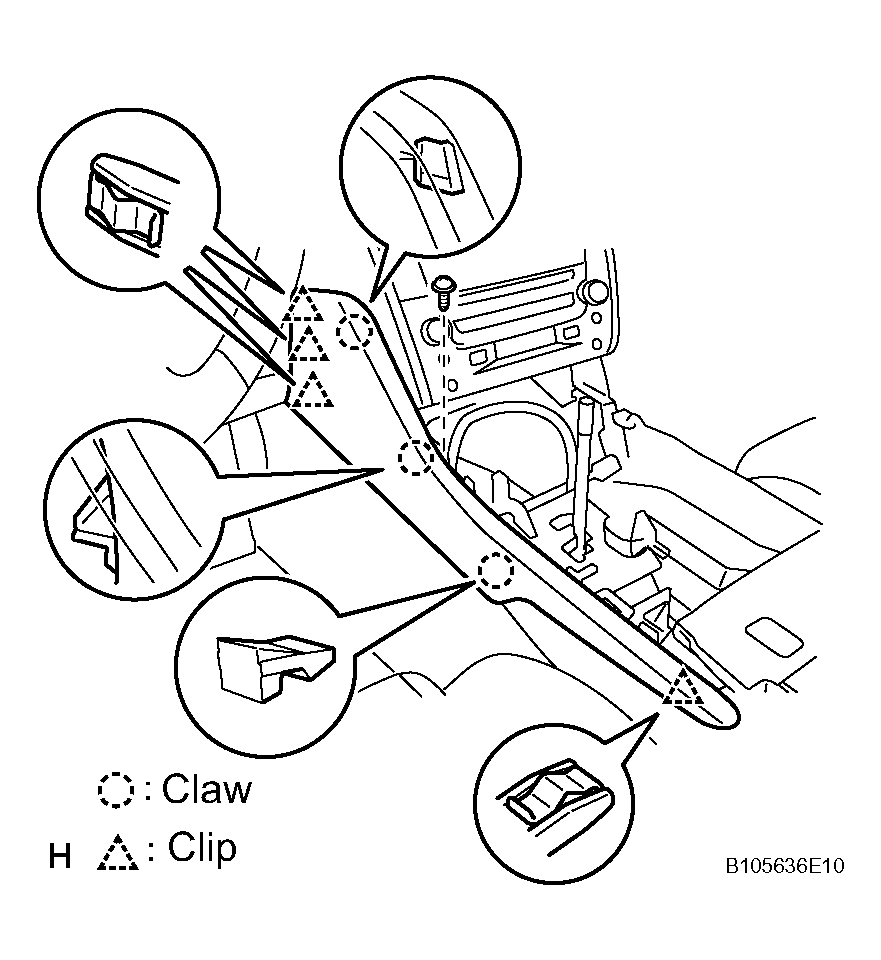

  Fig 9: Identifying Instrument Side Panel RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Install the combination meter with the 4 screws.

  Fig 10: Locating Combination Meter Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Connect the connector.
2. Attach the 5 clips to install the cluster finish panel.

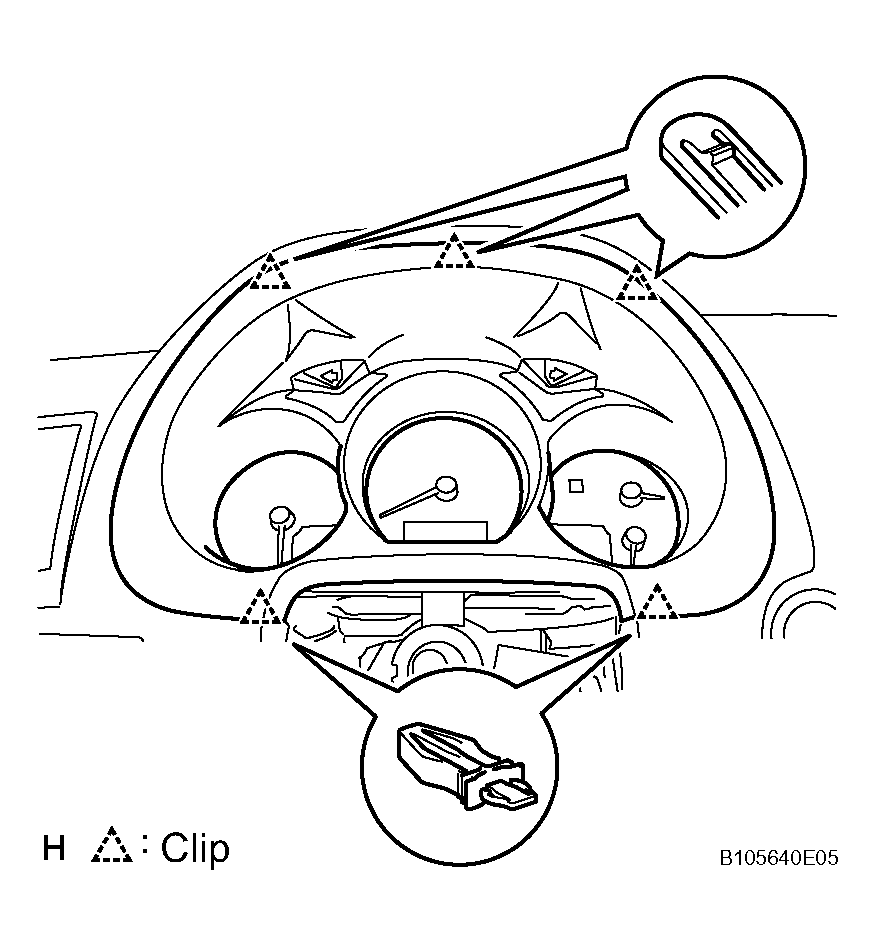

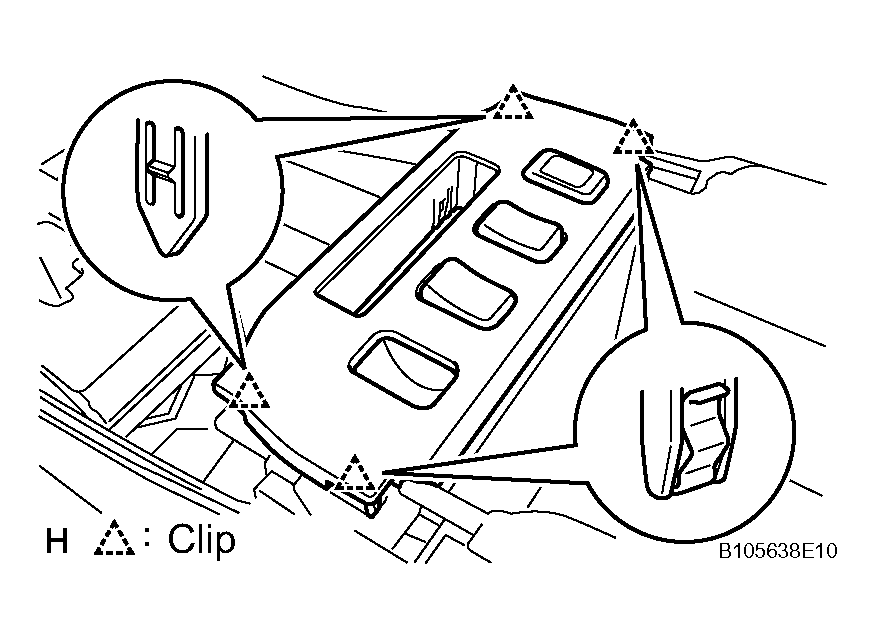

  Fig 11: Identifying Instrument Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX
1. Connect the connector.
2. Install the console box with the 4 bolts and 2 screws.

  Fig 12: Locating Console Box Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX REGISTER ASSEMBLY
1. Attach the 4 clips to install the register.

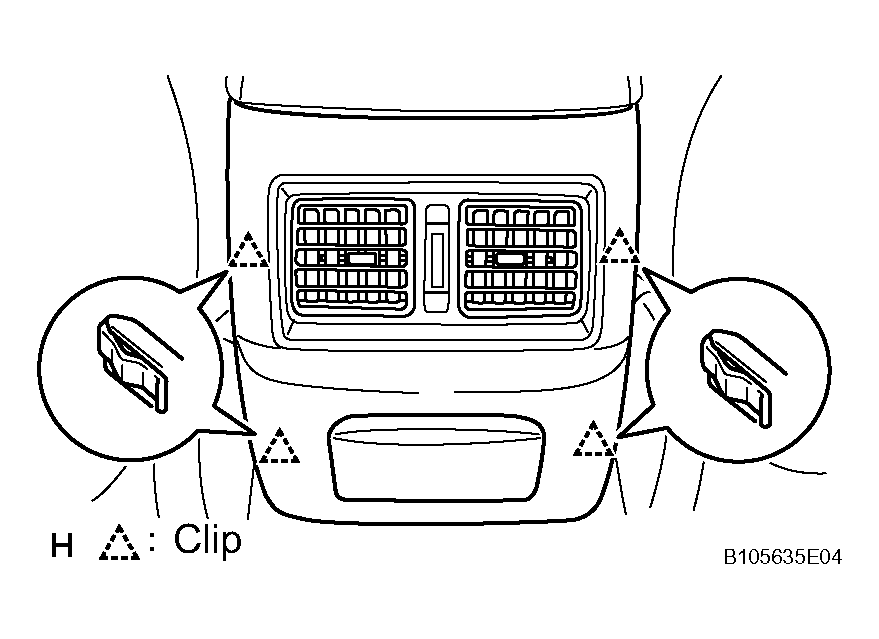

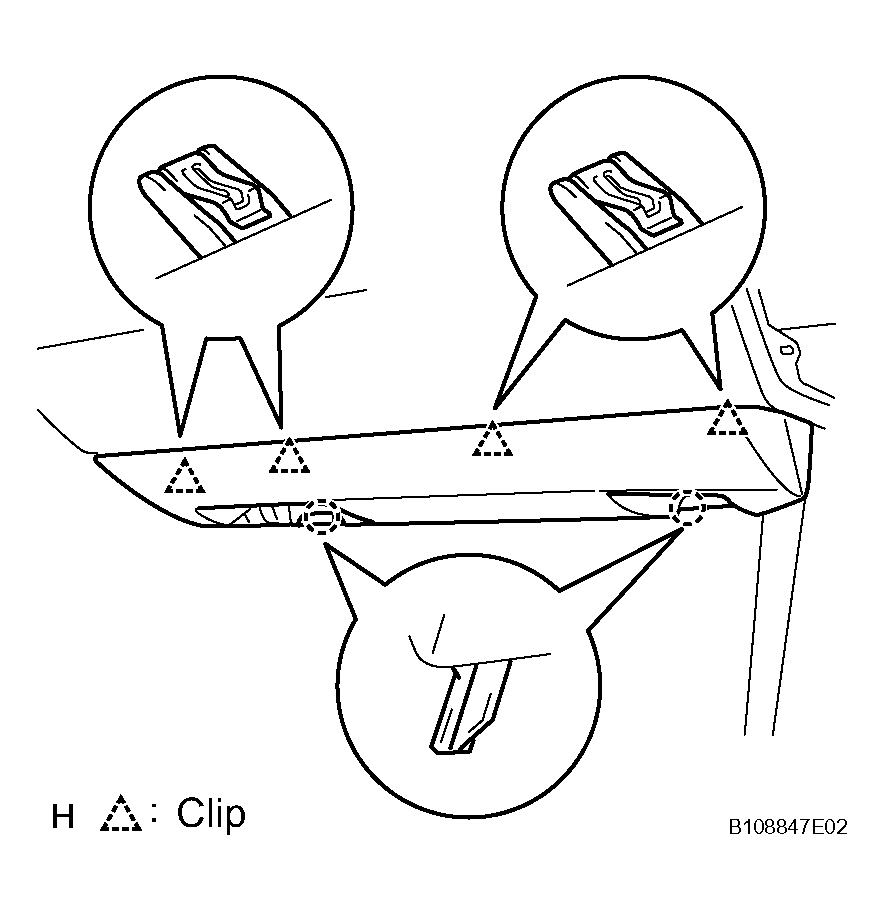

  Fig 13: Identifying Console Box Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX PLATE
1. Connect the connector.
2. Attach the 4 clips to install the console box.

  Fig 14: Identifying Console Box Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
1. Attach the 4 clips and 3 claws to install the finish panel end.
2. Install the screw.

  Fig 15: Identifying Instrument Panel Finish Panel End LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
1. Attach the 3 clips and 3 claws to install the finish panel end.
2. Install the screw.

  Fig 16: Identifying Instrument Panel Finish Panel End RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE UPPER PANEL ASSEMBLY
1. Connect the connector.
2. Attach the 9 clips to install the ash receptacle.

  Fig 17: Identifying Console Upper Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever knob and twist it in the direction indicated by the arrow.
INSTALL FRONT CONSOLE UPPER PANEL GARNISH
1. Attach the claws to install the garnish.
INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY (See INSTALLATION )
INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See INSTALLATION )

Fig 18: Identifying Shift Lever Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPIRAL CABLE WITH STEERING SENSOR (See INSTALLATION )
INSTALL STEERING COLUMN COVER UPPER
1. Install the steering column cover upper.
  For 3GR-FSE (see INSTALLATION )

  For 3UZ-FE (see INSTALLATION )
INSTALL STEERING COLUMN COVER LOWER
1. Install the steering column cover lower.
  For 3GR-FSE (see INSTALLATION )

  For 3UZ-FE (see INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY
1. Install the steering wheel assembly.
  For 3GR-FSE (see INSTALLATION )

  For 3UZ-FE (see INSTALLATION )
INSTALL STEERING PAD (See INSTALLATION )
INSTALL STEERING WHEEL NO. 3 COVER LOWER
INSTALL STEERING WHEEL NO. 2 COVER LOWER
INSTALL FRONT DOOR OPENING TRIM COVER LH (See INSTALLATION )
INSTALL FRONT DOOR OPENING TRIM COVER RH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE RH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
1. Perform initialization (see INITIALIZATION ).
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DTC CHECK / CLEAR ).
