Spiral Cable: Installation

1. Engage the 6 claws and install the spiral cable to the steering sensor.

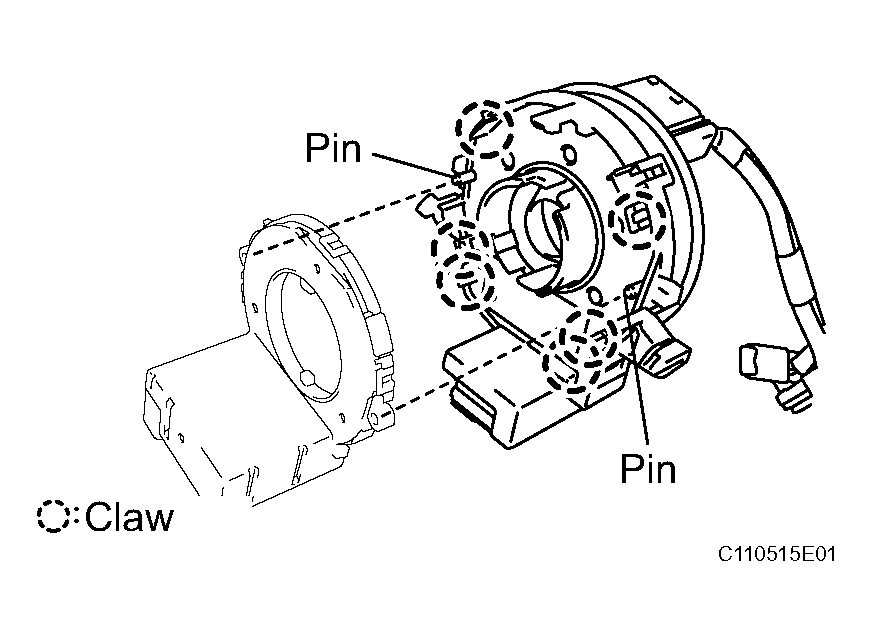

   Fig 1: Identifying Spiral Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front wheels are facing straight ahead.
2. Set the turn signal switch to the neutral position.
   NOTE: If it is not in the neutral position, the pin of the turn signal switch may be snapped.
3. Engage the 3 claws and install the spiral cable with steering sensor.
   NOTE: When replacing the spiral cable with a new one, remove the lock pin before installing the steering wheel assembly.
4. Connect the connectors to the spiral cable with steering sensor.
   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

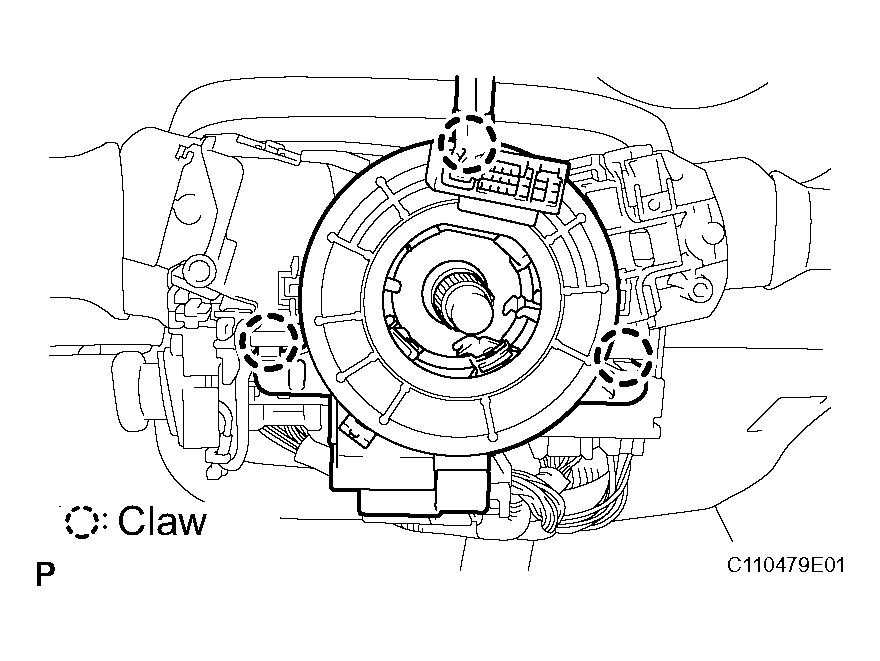

   Fig 2: Identifying Spiral Cable With Steering Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For 3GR-FSE (see INSTALLATION )

For 3UZ-FE (see INSTALLATION )

1. Check that the engine switch is off.
2. Check that the battery negative (-) terminal is disconnected.
   CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
3. Rotate the spiral cable with steering sensor counterclockwise slowly by hand until it feels firm.
   NOTE: Do not turn the spiral cable with steering sensor by the airbag wire harness.
   Fig 3: Rotating Spiral Cable With Steering Sensor Counterclockwise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Rotate the spiral cable with steering sensor clockwise approximately 2.5 turns to align the marks.
   NOTE: Do not turn the spiral cable with spiral sensor by the airbag wire harness.

   HINT:

   The spiral cable with steering sensor will rotate approximately 2.5 turns to both the left and right from the center.

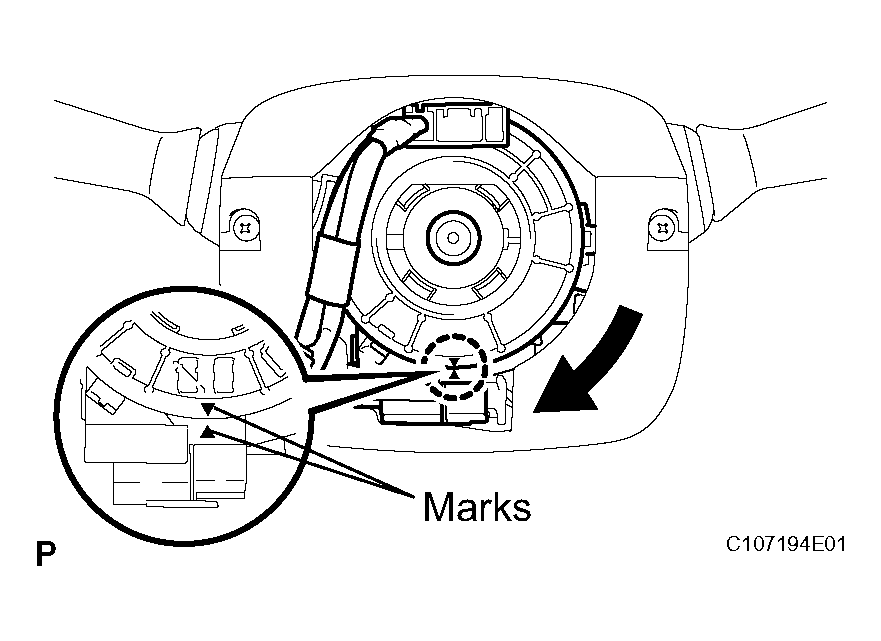

   Fig 4: Aligning Spiral Cable Marks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For 3GR-FSE (see INSTALLATION )

For 3UZ-FE (see INSTALLATION )
