Brake Master W/Plate Cylinder Sub-ASSY: Replacement
HINT:
See COMPONENTS
- DRAIN BRAKE FLUID NOTE: Wash the brake fluid off immediately if it adheres to any painted surfaces.
- REMOVE V-BANK COVER SUB-ASSY (See step 10 in REPLACEMENT )
- REMOVE AIR CLEANER ASSY (See REPLACEMENT )
- REMOVE AIR CLEANER HOSE NO. 1 (See REPLACEMENT )
- REMOVE BRAKE MASTER W/PLATE CYLINDER SUB-ASSY

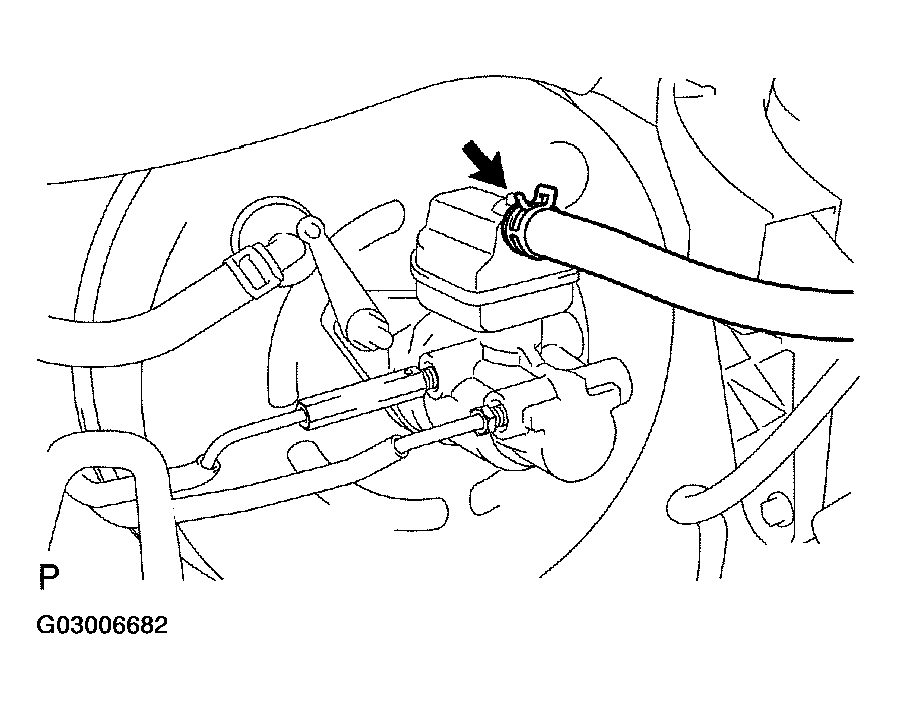

- Slide the clip and disconnect the reservoir tube.

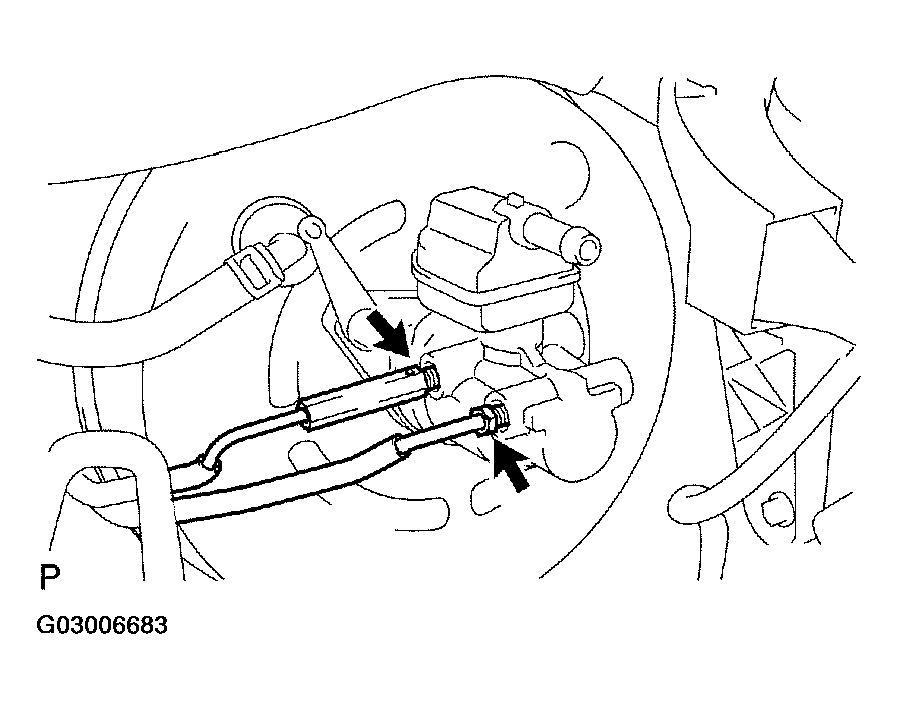

- Using SST(s), disconnect the 2 brake tubes from the brake master w/plate cylinder sub-assy.
SST 09023-00101

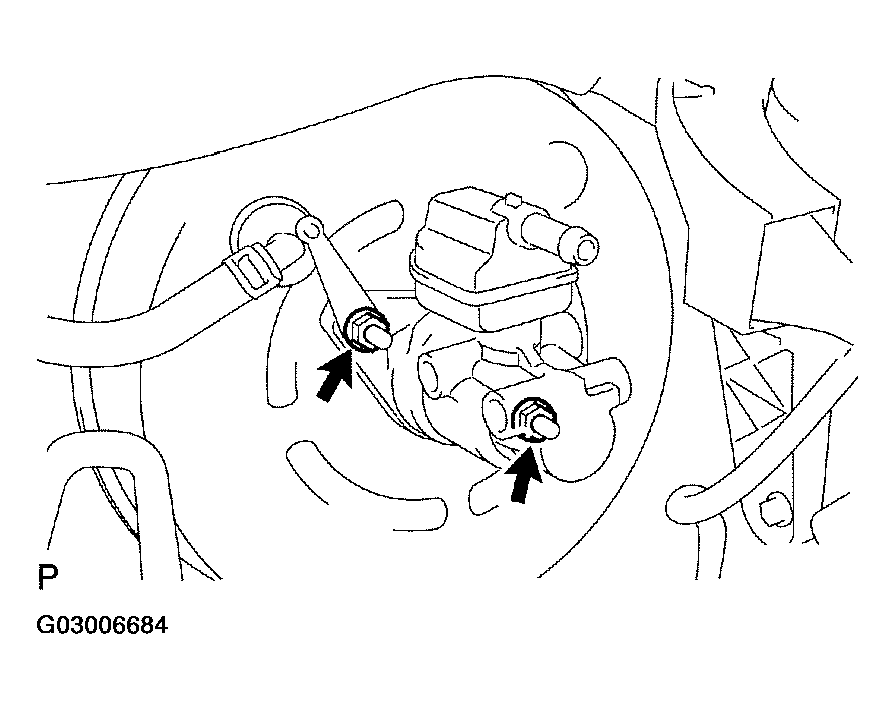

- Remove the 2 nuts, then check valve bracket and the brake master w/plate cylinder assy.
- INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD NOTE: Make an adjustment with the brake booster assy having no vacuum. (Depress the brake pedal several times with the engine stopped.)
HINT:
Adjustment of the brake booster push rod is performed when the brake master cylinder sub-assy is replaced with a new one. The adjustment is not necessary when the brake master cylinder sub-assy is reinstalled and the brake booster assy is replaced with a new one.
- Apply the chalk to the tip of an accessory tool.
HINT:
An accessory tool is enclosed with new brake master cylinder sub-assy.

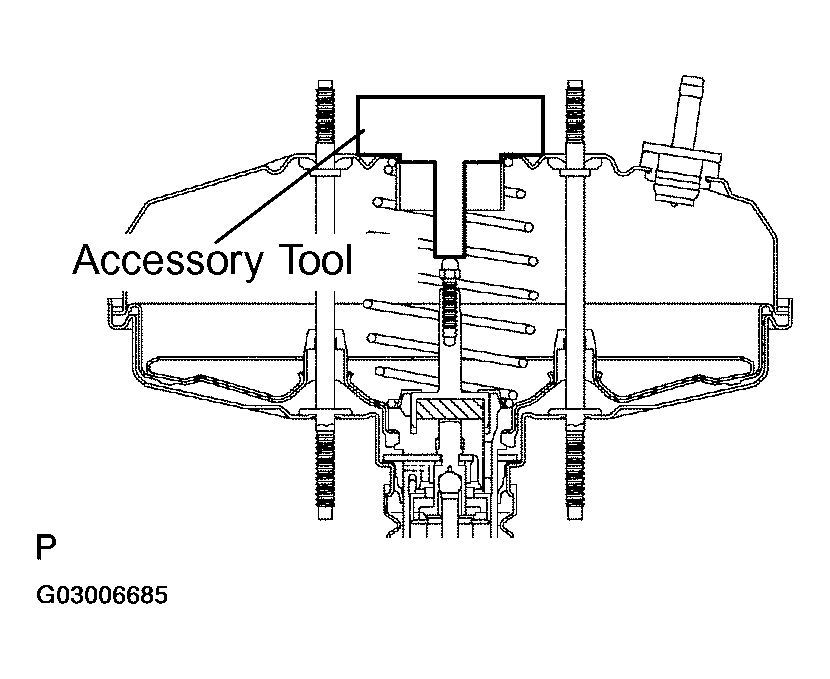

- Place the accessory tool to the brake booster assy.
- Measure the clearance between the brake booster push rod and accessory tool.
Clearance: 0 mm (0 in.)
HINT:
Adjust the clearance in following cases:
- If there is a clearance between the accessory tool and the shell of the brake booster (floating accessory tool), the clearance is too small.
- If the chalk does not stick on the tip of the brake booster push rod, the clearance is large.
- If clearance is outside of the specified range, fix the push rod using SST(s) and adjust the length of the protruding adjusting bolt.
SST 09737-00020
HINT:
When adjusting the push rod, depress the brake pedal sufficiently so that the push rod sticks out.
- Apply the chalk to the tip of an accessory tool.
- INSTALL BRAKE MASTER W/PLATE CYLINDER SUB-ASSY
- Install the brake master w/plate cylinder sub-assy and the check valve bracket with the 2 nuts.
Torque: 13 N.m (127 kgf.cm, 9 ft.lbf)
- Using SST(s), connect the 2 brake tubes to the brake master w/plate cylinder assy.
SST 09023-00101
Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
- Slide the clip and connect the reservoir tube.
- Install the brake master w/plate cylinder sub-assy and the check valve bracket with the 2 nuts.
- INSTALL AIR CLEANER HOSE NO. 1 (See REPLACEMENT )
- INSTALL AIR CLEANER ASSY (See REPLACEMENT )
- INSTALL V-BANK COVER SUB-ASSY (See step 27 in ADJUSTMENT )
- FILL RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID )
- BLEED MASTER CYLINDER (See
BRAKE FLUID )
SST 09023-00101
- BLEED BRAKE LINE (See BRAKE FLUID )
- CHECK FLUID LEVEL IN RESERVOIR (See BRAKE FLUID )
- CHECK BRAKE FLUID LEAKAGE
