Brake Booster ASSY: Components

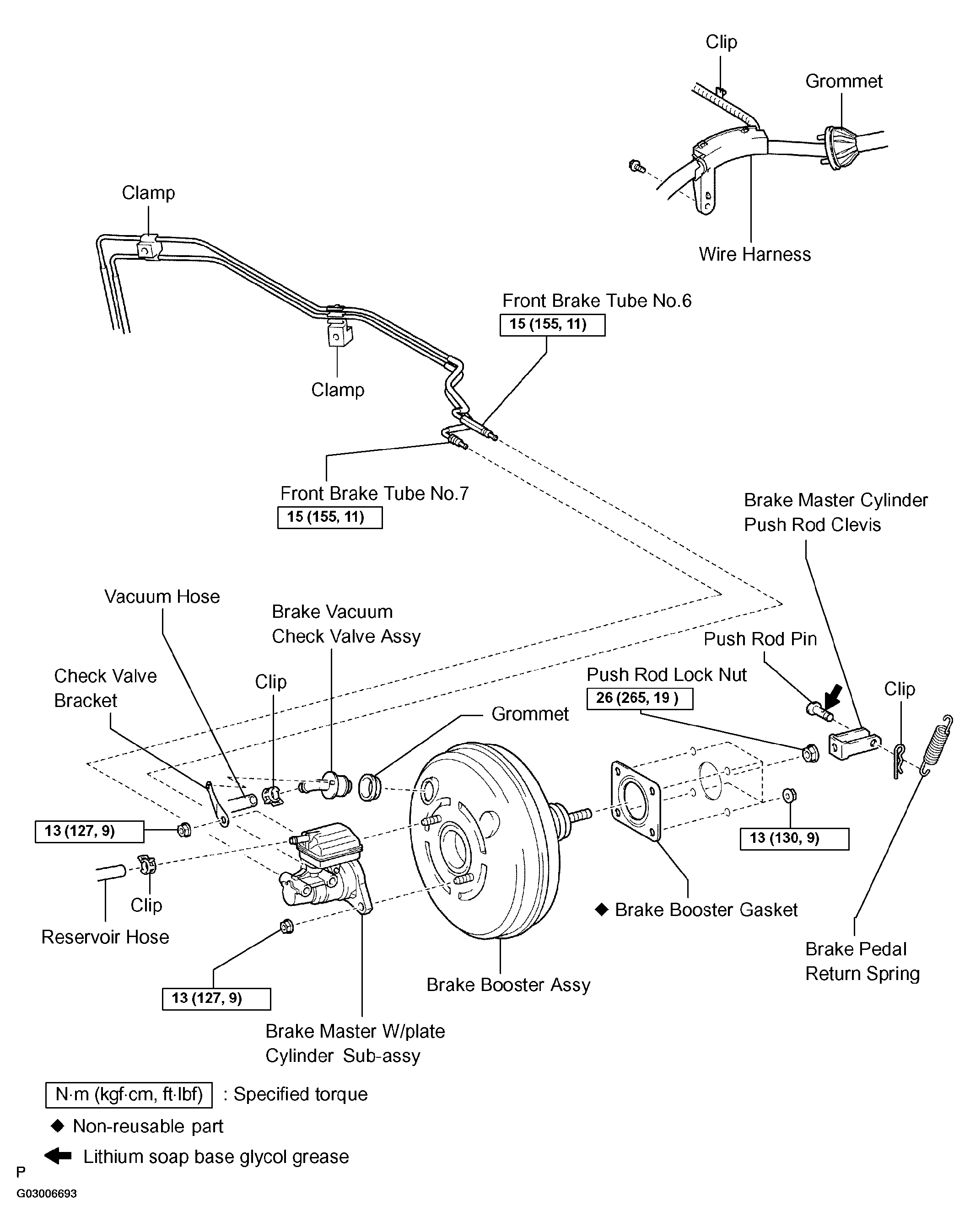

Fig 1: Identifying Brake Booster Assembly Components
G03006693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
