Front Seat Belt With PRETENSIONER: Replacement

HINT:

• The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.
• On the LH side, use the same procedures as on the RH side.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT SEAT ASSY (SEE  OVERHAUL  )
3. REMOVE FRONT SEAT INNER BELT ASSY RH
   1. Remove the nut and inner belt.
4. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
5. REMOVE COWL SIDE TRIM BOARD RH (SEE  REPLACEMENT  )
6. REMOVE QUARTER SCUFF PLATE INNER RH (SEE  REPLACEMENT  )
7. REMOVE REAR DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
10. REMOVE CENTER PILLAR GARNISH LOWER RH (SEE  REPLACEMENT  )
11. REMOVE CENTER PILLAR GARNISH RH (SEE  REPLACEMENT  )
12. REMOVE FRONT SEAT OUTER BELT ASSY RH
    NOTE:

    • Removal operation concerning the seat belt with the pretensioner must be started when 90 seconds or more have passed after the ignition switch is turned OFF and the battery negative terminal is disconnected.
    • Carefully read the notices for the "pretensioner" in the SRS airbag system in SUPPLEMENTAL RESTRAINT SYSTEM and the front seat outer belt assy .
    1. Remove the nut and the outer belt on the shoulder anchor side.
    2. Disconnect the pretensioner connector, as shown in Fig 1.
    3. Disconnect the tension reducer connector.
    4. Remove the 2 bolts on the retractor side and thoroughly remove the outer belt assy.

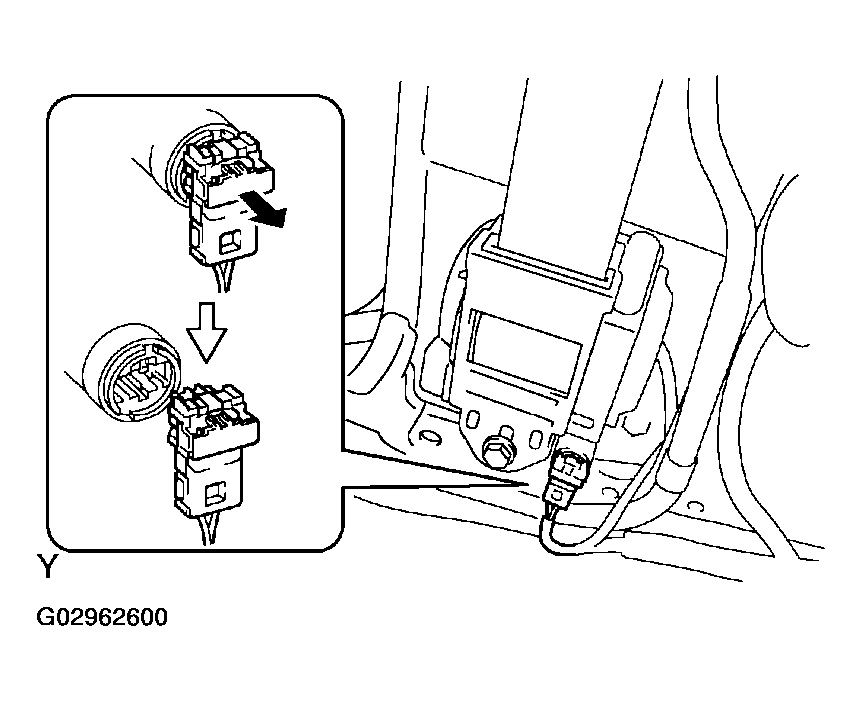

       Fig 1: Disconnecting Pretensioner Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
    1. Remove the bolt and anchor adjuster assy.
14. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
    1. Install the adjuster assy with the bolt.

       Torque: 42 N.m (420 kgf.cm, 31 ft.lbf)

15. INSTALL FRONT SEAT OUTER BELT ASSY RH
    NOTE: Do not disassemble the retractor.
    1. Check the degree of tilt when beginning to lock the ELR.
       1. Check that the belt does not lock within 15° of tilt in all directions but that the belt locks with over 45° of tilt, when gently moving the retractor.

          If operation is not as specified, replace the outer belt assy.

       Fig 2: Checking Degree Of Tilt
       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the outer belt assy with the 2 bolts on the retractor side.

       Torque:

       • 8.0 N.m (80 kgf.cm, 71 in.lbf) for upper bolt
       • 42 N.m (420 kgf.cm, 31 ft.lbf) for lower bolt
    3. Connect the pretensioner connector, as shown in Fig 3.

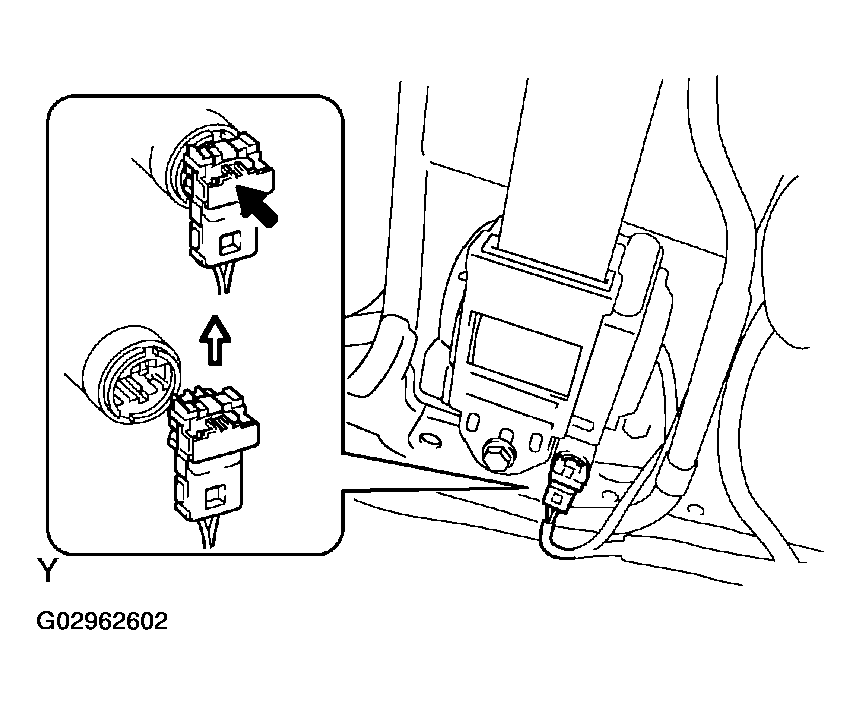

       Fig 3: Connecting Pretensioner Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the tension reducer connector.
    5. Install the outer belt assy with the nut on the shoulder anchor side.

       Torque: 42 N.m (420 kgf.cm, 31 ft.lbf)

    6. Install the outer belt assy with the bolt on the floor anchor side.

       Torque: 42 N.m (420 kgf.cm, 31 ft.lbf)

    7. Install the floor anchor cover
    8. Check the ELR lock.
       NOTE: The check should be performed with the assembly installed.
       1. Check that the belt locks when pulling out the belt quickly when the belt is installed.

          If operation is not as specified. replace the outer belt assy.

16. INSTALL FRONT SEAT INNER BELT ASSY RH
    1. Install the inner belt assy with the nut.

       Torque: 42 N.m (420 kgf.cm, 31 ft.lbf)
