Instr PNL Pass L/Door Air Bag ASSY: Replacement

See PRECAUTION
DISCONNECT BATTERY NEGATIVE TERMINAL (See PRECAUTION )
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
DISCONNECT PASSENGER AIRBAG CONNECTOR
1. Remove the glove compartment door sub-assy.
2. Remove the glove compartment door pad plate from the instrument panel finish panel lower No.2.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

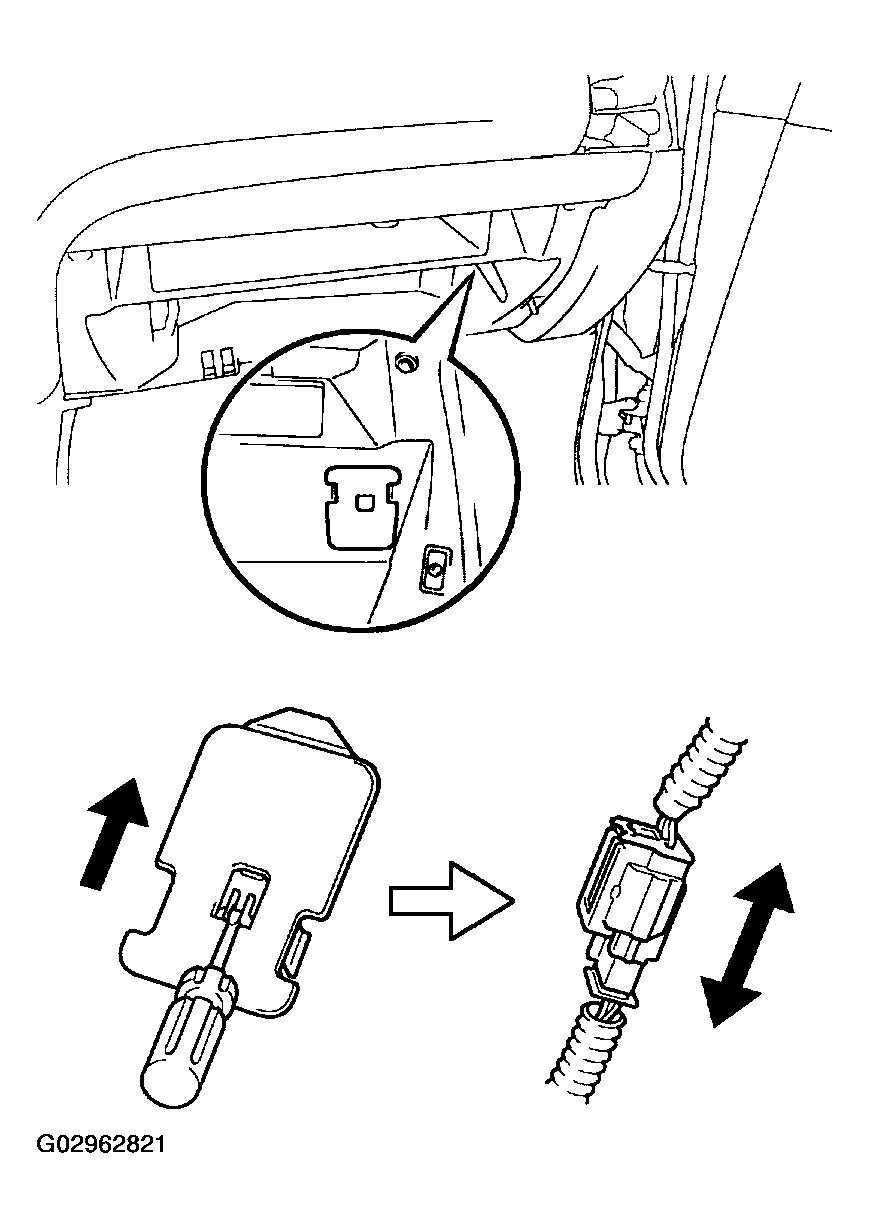

3. Using a screwdriver, slide the airbag connector to pull out from the glove compartment door pad plate.
4. Disconnect the airbag connector.

  Fig 1: Disconnecting Passenger Airbag Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (SEE REPLACEMENT )
REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY

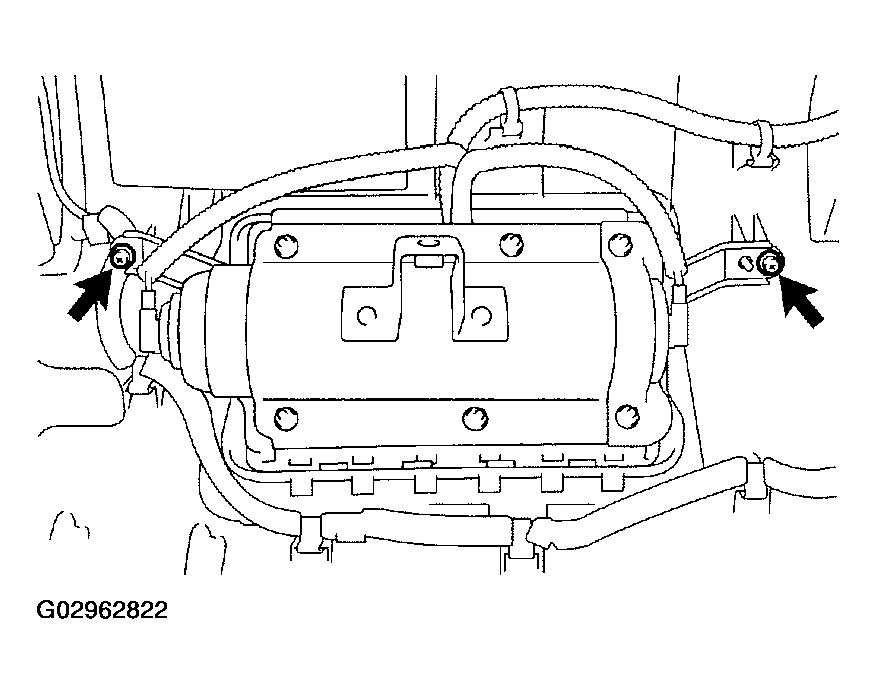

1. Remove the 2 screws.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the rear side wall of the airbag door from the hook by slightly deflecting it and roll the instr pnl pass l/door airbag assy forward.
3. Release the front side wall of the airbag door from the other hook and remove the instr pnl pass I/door airbag assy.

  Fig 3: Releasing Rear Side Wall Of Airbag Door From Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT INSTR PNL PASS L/DOOR AIR BAG ASSY (See ON-VEHICLE INSPECTION )
INSTALL INSTR PNL PASS L/DOOR AIR BAG ASSY
CENTER SPIRAL CABLE (See REPLACEMENT )
INSTALL STEERING WHEEL ASSY (SEE OVERHAUL )
INSPECT STEERING WHEEL CENTER POINT
INSTALL HORN BUTTON ASSY (See REPLACEMENT )
INSPECT HORN BUTTON ASSY (See REPLACEMENT )
INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM )
