Spiral Cable Sub-ASSY: Replacement

HINT:

See COMPONENTS

1. See  PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  PRECAUTION   )
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL COVER LOWER NO.2
5. REMOVE STEERING WHEEL COVER LOWER NO.3
6. REMOVE HORN BUTTON ASSY (See  REPLACEMENT   )
7. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

8. REMOVE STEERING COLUMN COVER
   1. Remove the 3 screws and steering column cover LWR.
   2. Remove the steering column cover UPR.
      Fig 1: Removing Screws Of Steering Column Cover LWR

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE SPIRAL CABLE SUB-ASSY
   1. Disconnect the airbag connector and connector from the spiral cable sub-assy.
   2. Remove the 4 screws and spiral cable sub-assy.

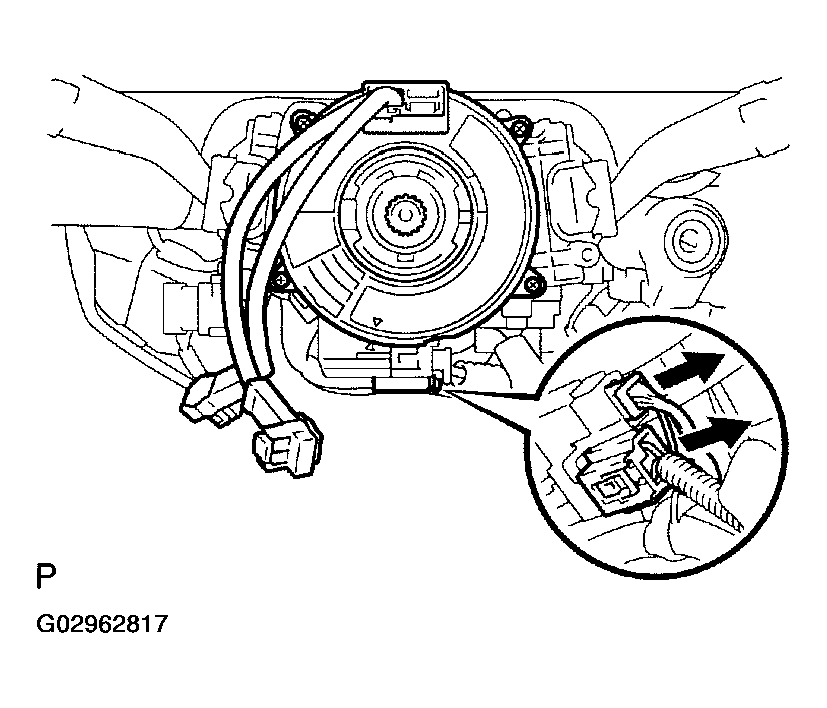

      Fig 2: Disconnecting Airbag Connector, Connector & Removing Spiral Cable Sub-Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSPECT SPIRAL CABLE SUB-ASSY
    1. If the following condition is identified, replace the spiral cable sub-assy with new one.

       Condition:

       Scratches or cracks on the connector

       Cracks, dents or chipping of the spiral cable sub-assy

11. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
    1. Check that the front wheels are facing straight ahead.
12. INSTALL SPIRAL CABLE SUB-ASSY
    1. Set the turn signal switch in neutral position.
       NOTE: Make sure of the neutral position since the pin of the turn signal switch may be snapped.
    2. Install the spiral cable sub-assy with the 4 screws.
       NOTE: When replacing the spiral cable sub-assy with new one, remove the lock pin before installing the handle.
    3. Connect the airbag connector and connector.
    4. Install the steering column cover with the 3 screws.
13. CENTER SPIRAL CABLE
    1. Check that the ignition switch is OFF.
    2. Check that the battery negative terminal is disconnected.
       NOTE: Do not start the operation for 90 seconds after removing the terminal.
    3. Turn the cable clockwise by hand until it becomes harder to turn.

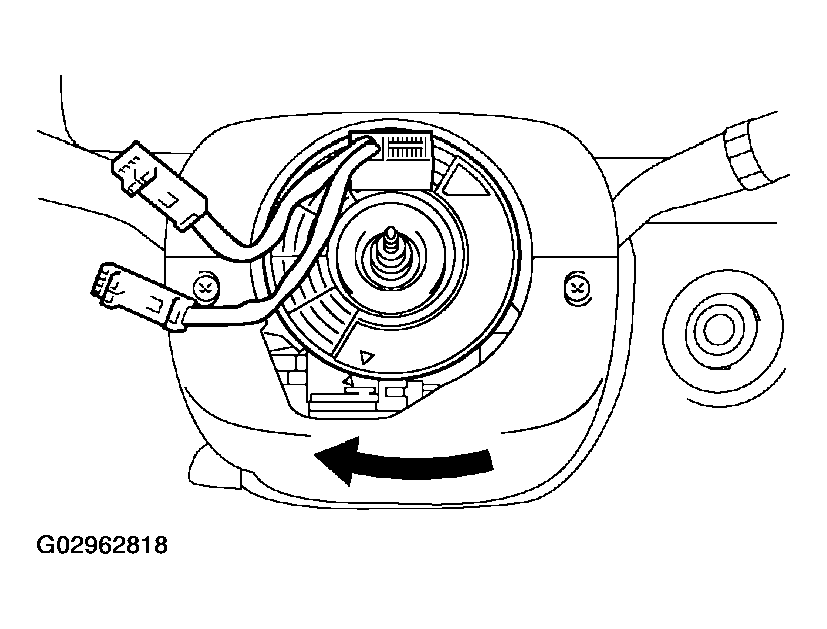

       Fig 3: Turning Cable Clockwise

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Then rotate the cable counterclockwise about 2.5 turns to align the marks.

       HINT:

       The cable will rotate about 2.5 turns to both left and right of the center.

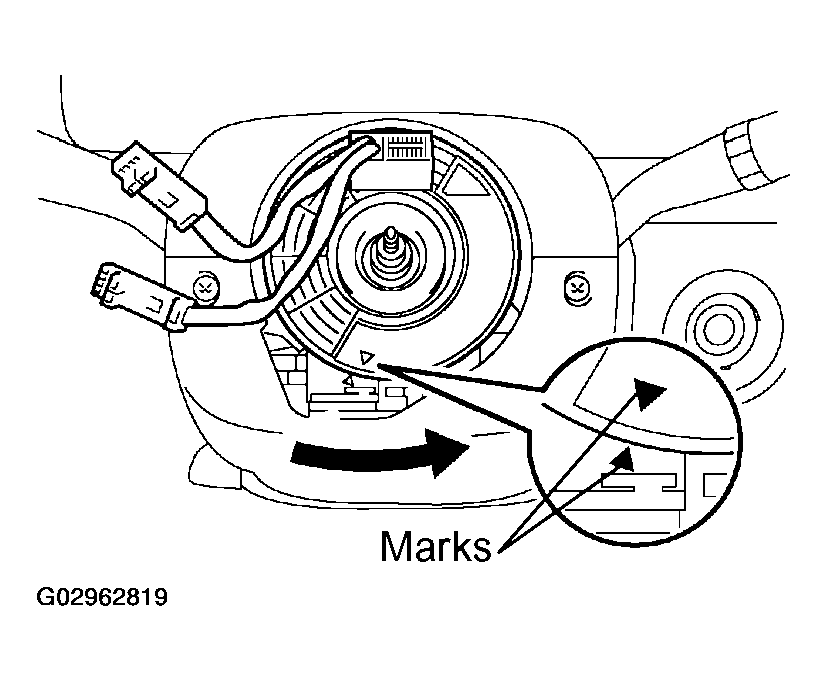

       Fig 4: Rotating Cable Counterclockwise

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
15. INSTALL HORN BUTTON ASSY (See  REPLACEMENT   )
16. INSPECT HORN BUTTON ASSY (See  REPLACEMENT   )
17. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
