Inspection Procedure

INSPECT DLC3 TERMINAL VOLTAGE (Ts TERMINAL)
1. Turn the ignition switch ON.
2. Measure the voltage.
Fig 1: Identifying DLC3 Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Voltage: 10 to 14 V

NG: Go to step 3

OK: GO TO NEXT STEP.
CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
1. Measure the resistance according to the value(s) in Fig 3 .
Fig 2: Identifying DLC3 Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

Fig 3: Resistance Standard Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP.

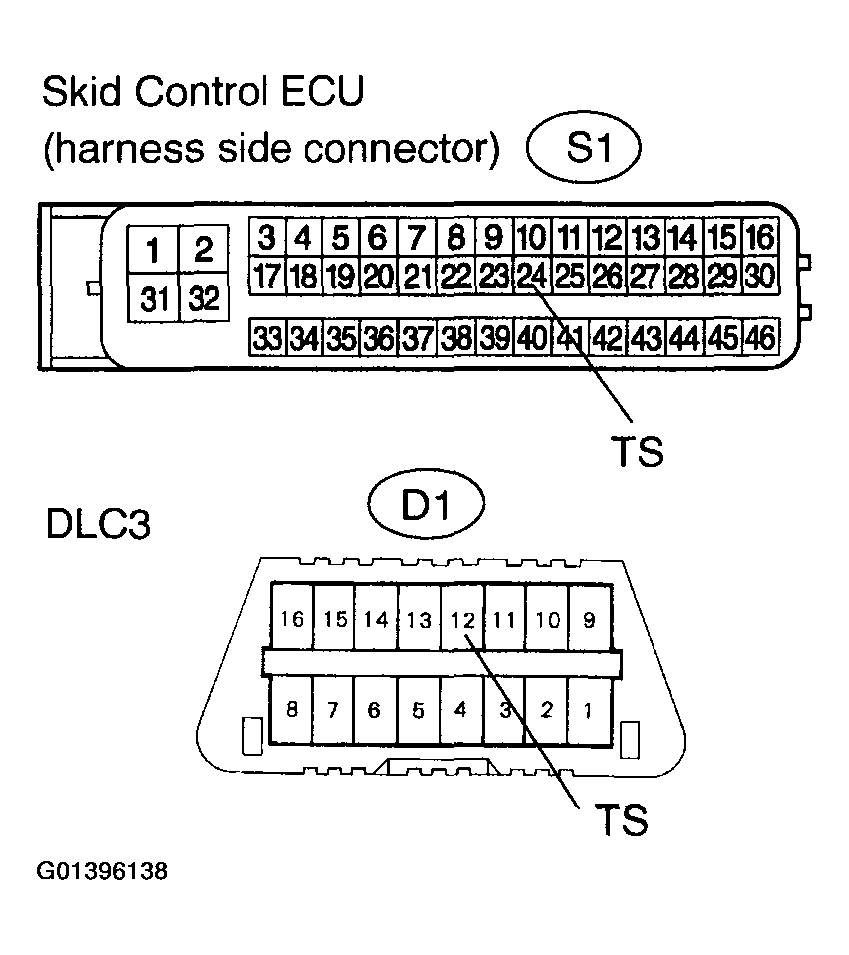

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
1. Disconnect the skid control ECU connector S1.
2. Measure the resistance according to the value(s) in Fig 5 .
  Standard:

  Fig 5: Resistance Standard Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ABS & TRACTION ACTUATOR ASSY (See REPLACEMENT )
