Abs & Traction Actuator ASSY: Replacement

1. Using SST(s), disconnect the 6 brake tubes from the actuator with bracket.

   SST 09023-00100

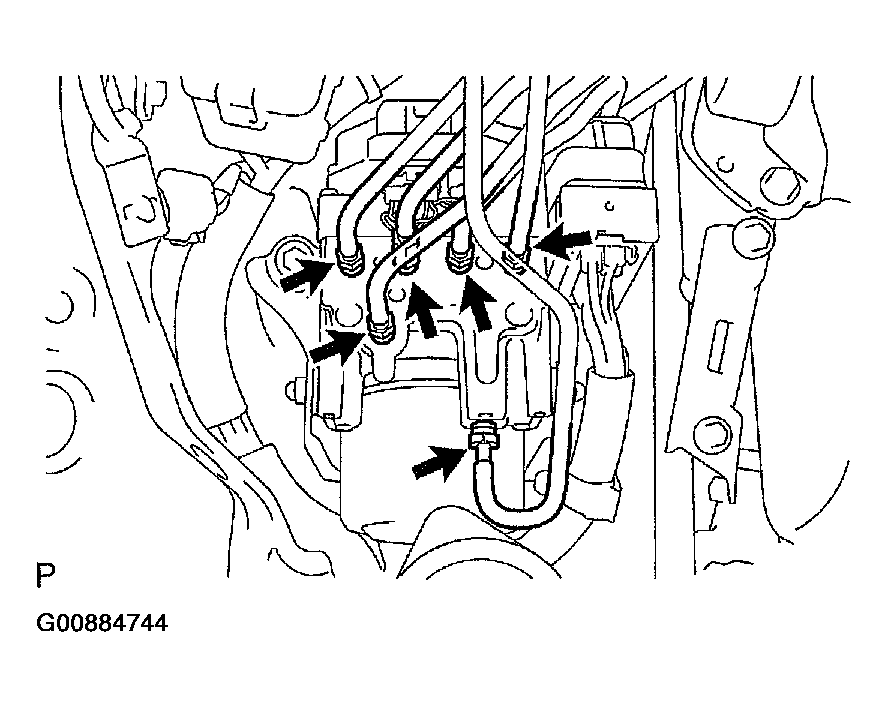

   Fig 1: Disconnecting 6 Brake Tubes From Actuator USING SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Use tags or make a memo to identify the places to reconnect.

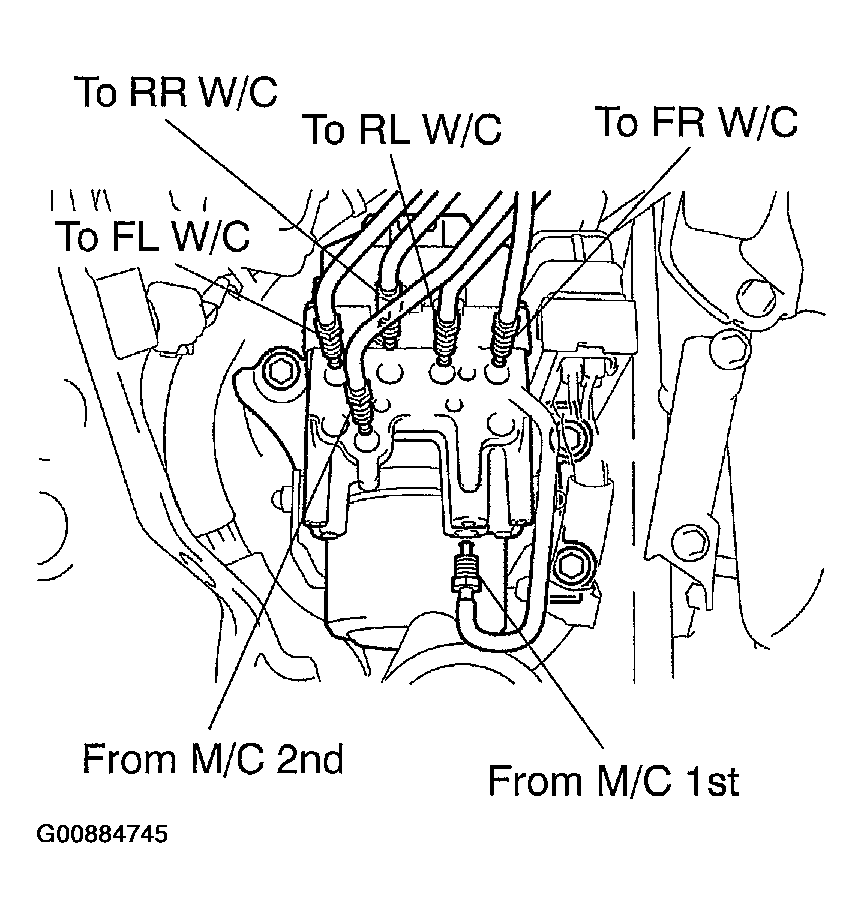

   Fig 2: Identifying Tags

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the lock lever upward.
4. Disconnect the actuator connector.

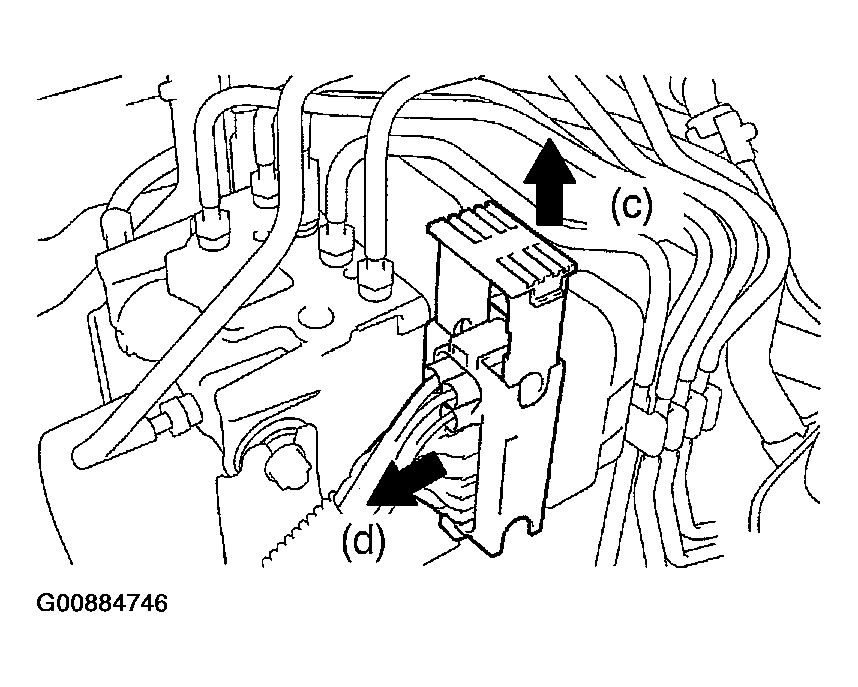

   Fig 3: Disconnecting Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts, the nut and the actuator with bracket.

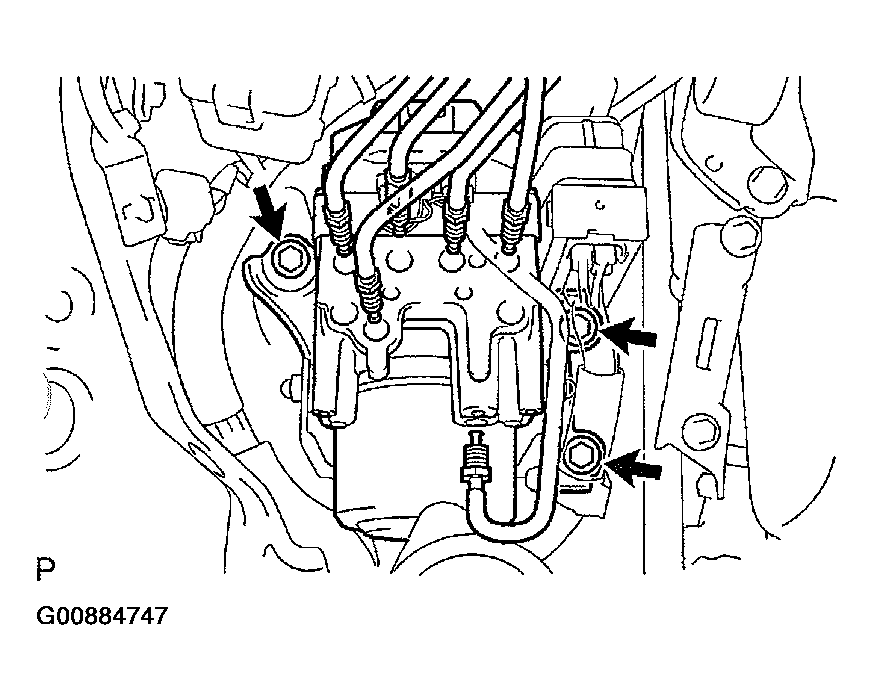

Fig 4: Removing The Actuator With Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 nuts and the ABS & TRACTION actuator assy from the brake actuator bracket.

1. Install the ABS & TRACTION actuator assy with the 2 nuts.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

2. INSTALL BRAKE ACTUATOR WITH BRACKET
   1. Install the actuator with bracket and the 2 bolts and the-nut.

      Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

   NOTE: Be careful not to damage the brake tubes.
3. Connect the actuator connector.
   Fig 5: Installing The Actuator With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST(s), connect each brake tube to correct positions of the actuator with bracket, as shown in the illustration.

   SST 09023-00100

   Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

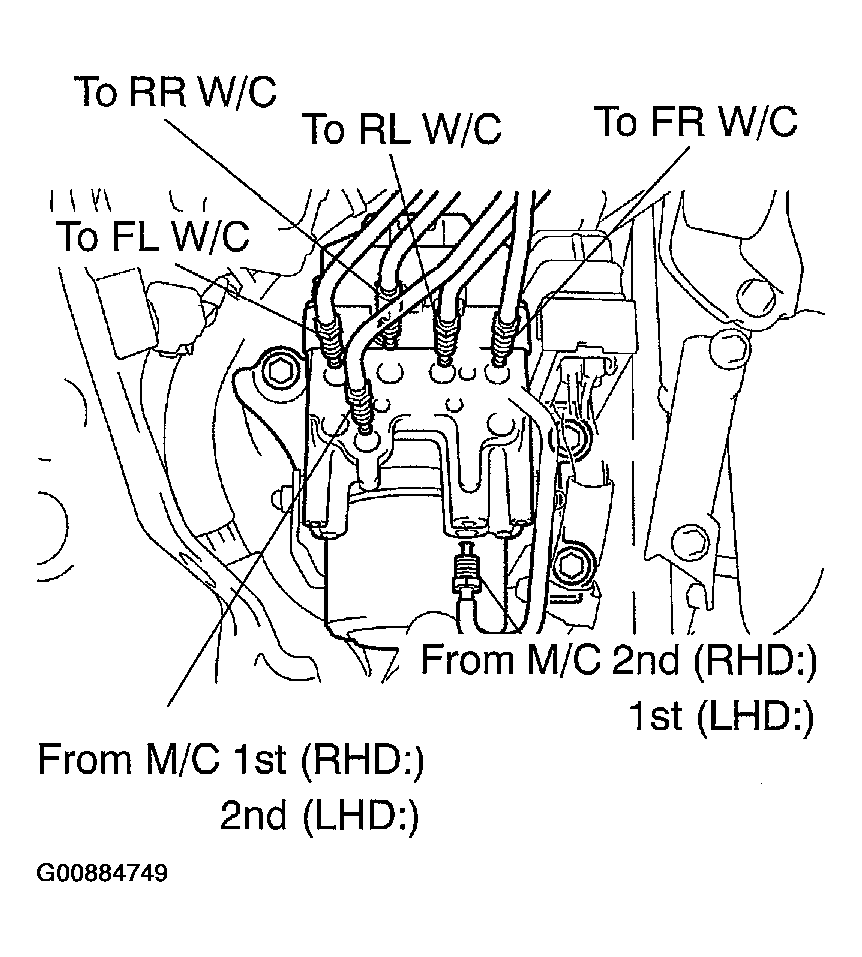

   Fig 6: Connecting Each Brake Tube To Correct Positions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09023-00100
