Inspection Procedure

1. INSPECT DLC3 TERMINAL VOLTAGE (Tc TERMINAL)
   1. Turn the ignition switch ON.
   2. Measure the voltage.
   Fig 1: Identifying DLC3 Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: 10 to 14 V

   NG: CHECK HARNESS AND CONNECTOR (DLC3 - ECM)

   OK: GO TO NEXT STEP.

2. CHECK HARNESS AND CONNECTOR (ECM - SKID CONTROL ECU)

1. Disconnect the skid control ECU connector S1 and ECM connector E5.

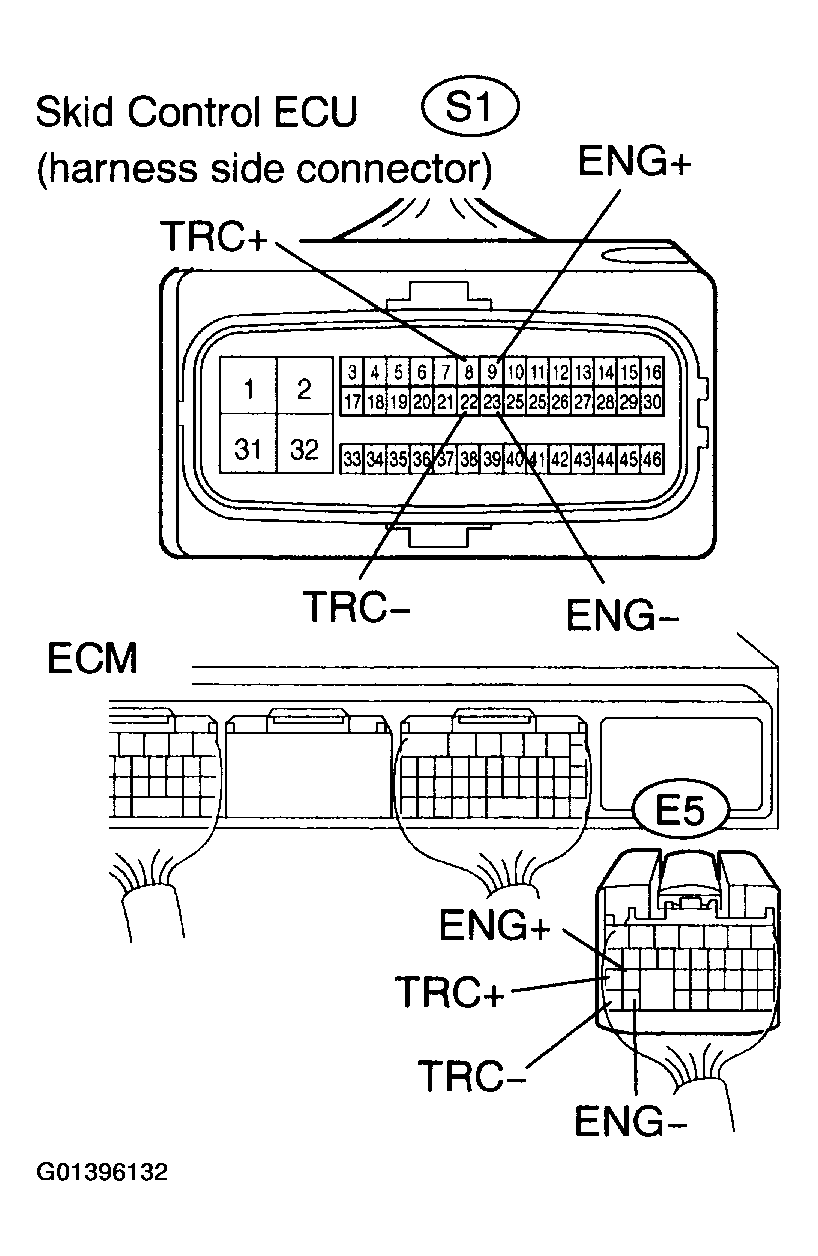

Fig 2: Disconnecting Skid Control ECU Connector S1 And ECM Connector E5
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in Fig 3 .

   Standard:

   Fig 3: Resistance Standard Table (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in Fig 4 .

Standard:

Fig 4: Resistance Standard Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ABS & TRACTION ACTUATOR ASSY (See  REPLACEMENT  )
