Inspection Procedure

1. Disconnect the skid control ECU connector S1.

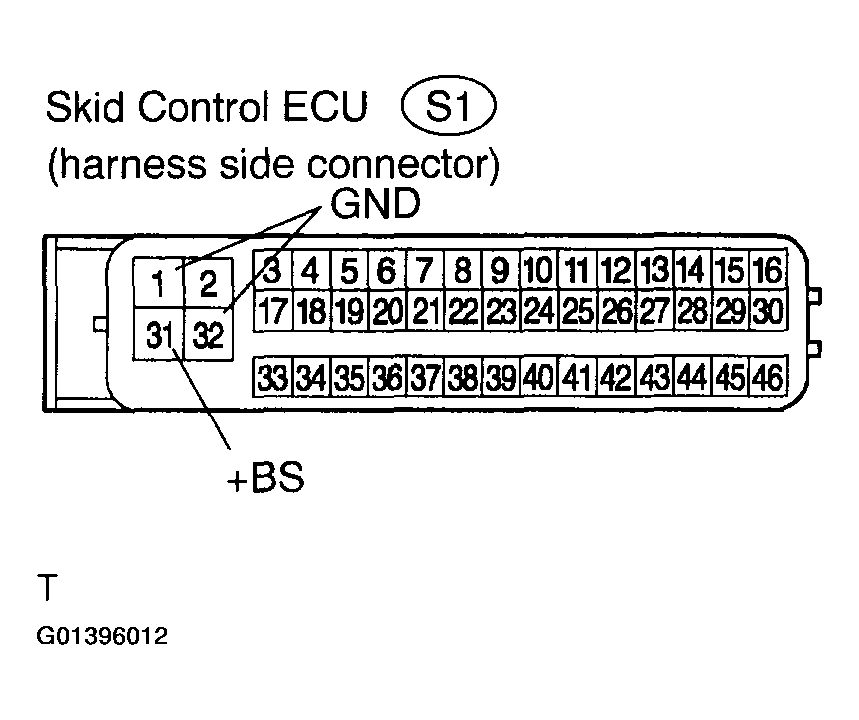

Fig 1: Disconnecting Skid Control ECU Connector S1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in Fig 2 .

Standard:

Fig 2: Voltage Standard Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 2

OK: IF THE SAME CODE IS STILL OUTPUT AFTER THE DTC IS DELETED, CHECK THE CONTACT CONDITION OF EACH CONNECTION

1. Remove the ABS No.1 fuse from the FL block.

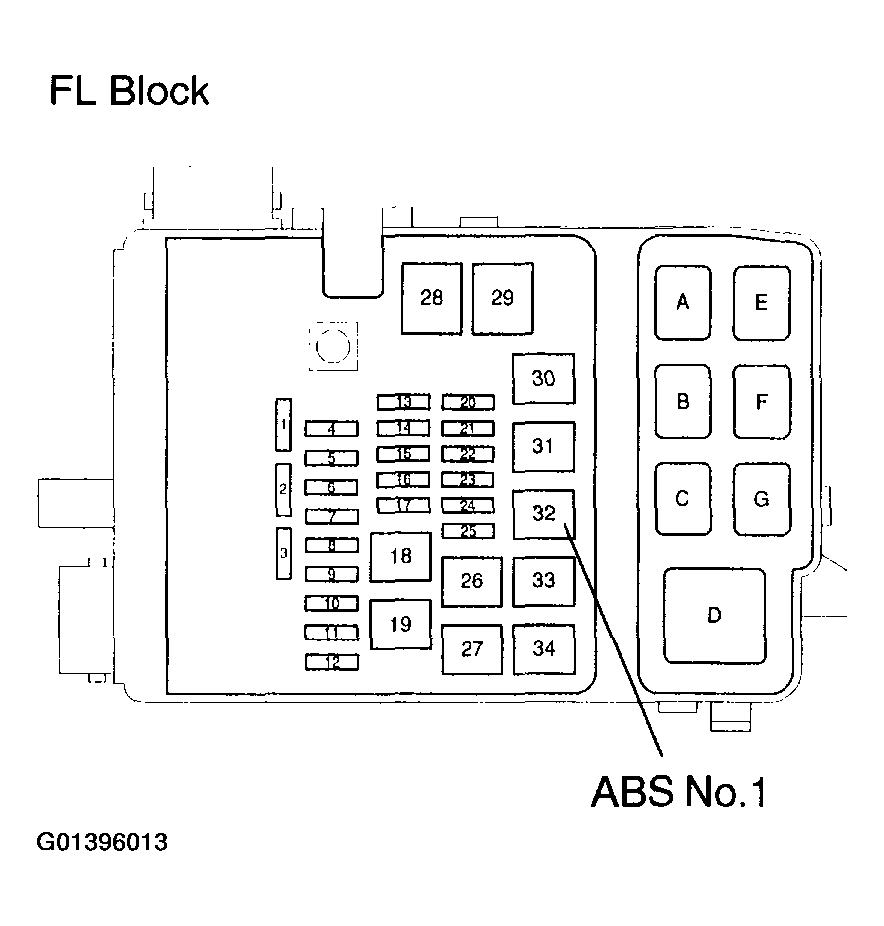

Fig 3: Removing ABS No.1 Fuse From The Fl Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check continuity of the ABS No.1 fuse.

Standard: Continuity

NG: CHECK FOR SHORT IN ALL HARNESS AND CONNECTOR CONNECTED FUSE AND REPLACE FUSE

OK: GO TO NEXT STEP.

1. Disconnect the skid control ECU connector S1.

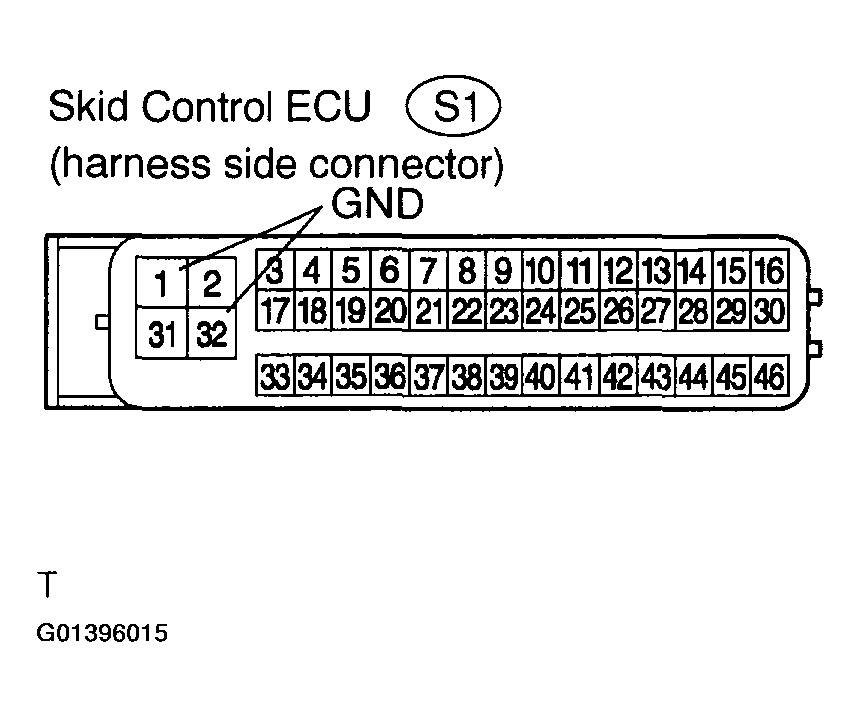

Fig 4: Disconnecting Skid Control ECU Connector S1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in Fig 5 .

Standard:

Fig 5: Resistance Standard Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP.

1. Clear the DTCs.
2. Turn the ignition switch to the ON position.
3. Check if the same DTCs are recorded. (See PRE-CHECK  )

NO: RECOVERY TO NORMAL

HINT:

It is suspect that the DTCs output was caused by the poor connection of the connector terminal.

YES: REPLACE ABS & TRACTION ACTUATOR ASSY (See  REPLACEMENT  )
