Brake Fluid: Bleeding

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When working on the brake system or when air in the brake lines is suspected, bleed the air from the system.

NOTE:

Bleed air in order of the chassis, 3rd chamber, and chassis.
When the air is bled from the 3rd chamber, be sure to run the engine.
If the brake fluid attaches to any painted surfaces, wash it off immediately.

REMOVE COWL TOP PANEL SUB-ASSY OUTER FRONT (See OVERHAUL )
FILL RESERVOIR WITH BRAKE FLUID
Fluid: SAE J1703 or FMVSS No. 116 DOT3

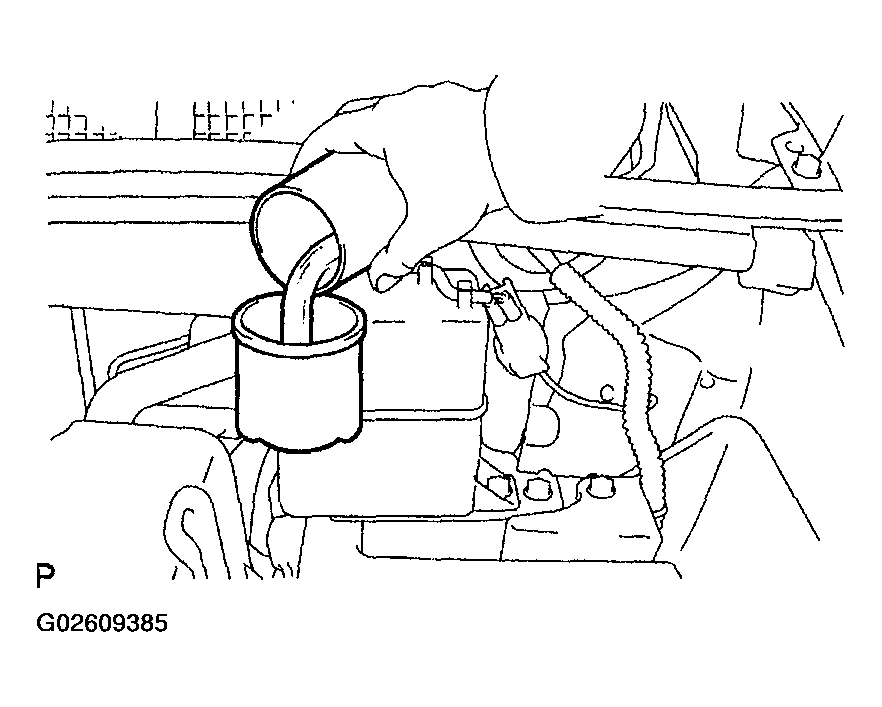

Fig 1: Filling Reservoir With Brake Fluid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED BRAKE LINE
1. Connect the vinyl tube to the brake caliper bleeder plug.
2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal held down.
3. At the point when the fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
4. Repeat ( b) and ( c) until all the air in the fluid has been bled out.
5. Repeat the above procedure to bleed the air out of the brake line for each wheel.
  Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

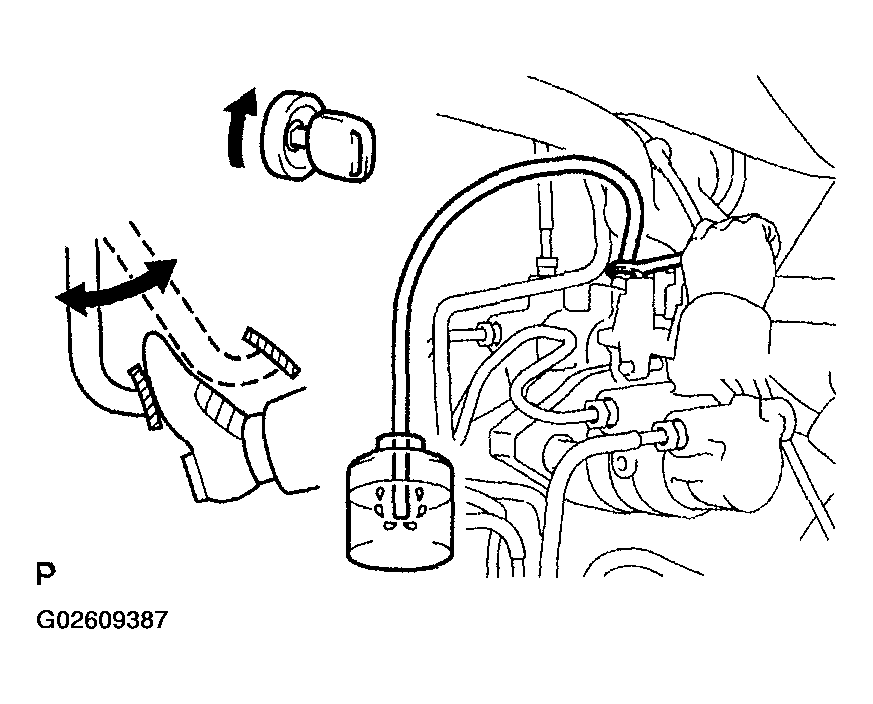

Fig 2: Connecting Vinyl Tube To Brake Caliper Bleeder Plug (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED MASTER CYLINDER
NOTE: When the air is bled from the master cylinder (3rd chamber), be sure to run the engine.

HINT:

After disassembling the master cylinder or when if the reservoir becomes empty, bleed the air from the master cylinder.
1. Run the engine at idle.
2. Connect the vinyl tube to the brake caliper bleeder plug.

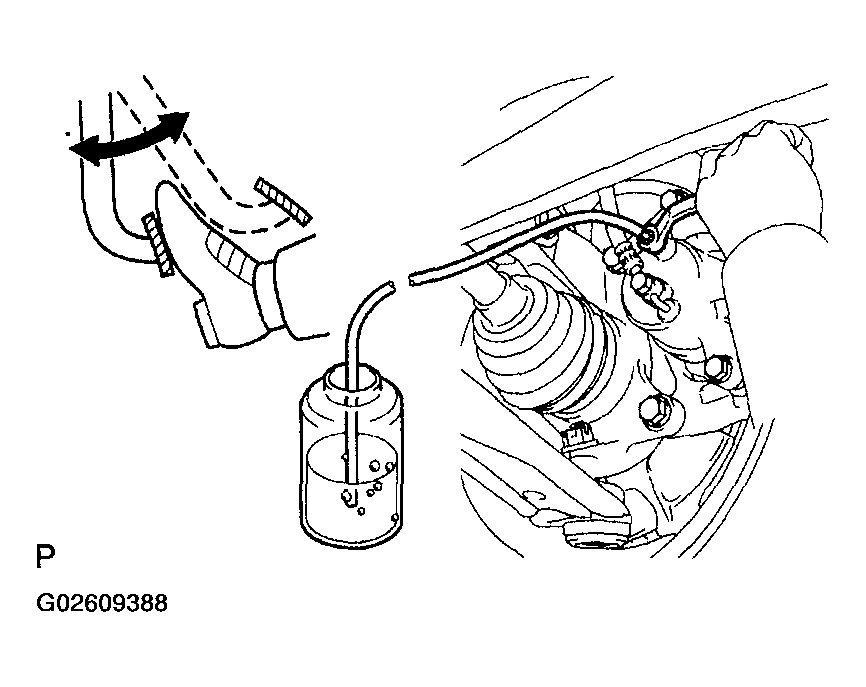

  Fig 3: Connecting Vinyl Tube To Brake Caliper Bleeder Plug (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Open the brake caliper bleeder plug or wheel cylinder bleeder plug.
4. Depress the brake pedal several times, then loosen the master cylinder (3rd chamber) bleeder plug with the pedal held down.
5. At the point when the fluid stops coming out, tighten the master cylinder (3rd chamber) bleeder plug, then release the brake pedal.
6. Repeat ( d) and ( e) until all the air in the fluid has been bled out.
7. Tighten the master cylinder (3rd chamber) bleeder plug.
  Torque: 11 N.m (112 kgf.cm, 8 ft.lbf)
8. Tighten the brake caliper bleeder plug or wheel cylinder bleeder plug.
  Torque:

  Disc: 8.3 N.m (85 kgf.cm, 73 in.lbf)

  Drum: 11 N.m (112 kgf.cm, 8 ft.lbf)
9. Stop the engine.
BLEED BRAKE LINE
1. Connect the vinyl tube to the brake caliper.
2. Depress the brake pedal several times, then loosen the bleeder plug with the pedal held down.
3. At the point when the fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
4. Repeat ( b) and ( c) until all the air in the fluid has been bled out.
5. Repeat the above procedure to bleed the air out of the brake line for each wheel.
  Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
Fig 4: Connecting Vinyl Tube To Brake Caliper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FLUID LEVEL IN RESERVOIR
1. Check the fluid level and add fluid if necessary.
  Fluid: SAE J1703 or FMVSS No. 116 DOTS

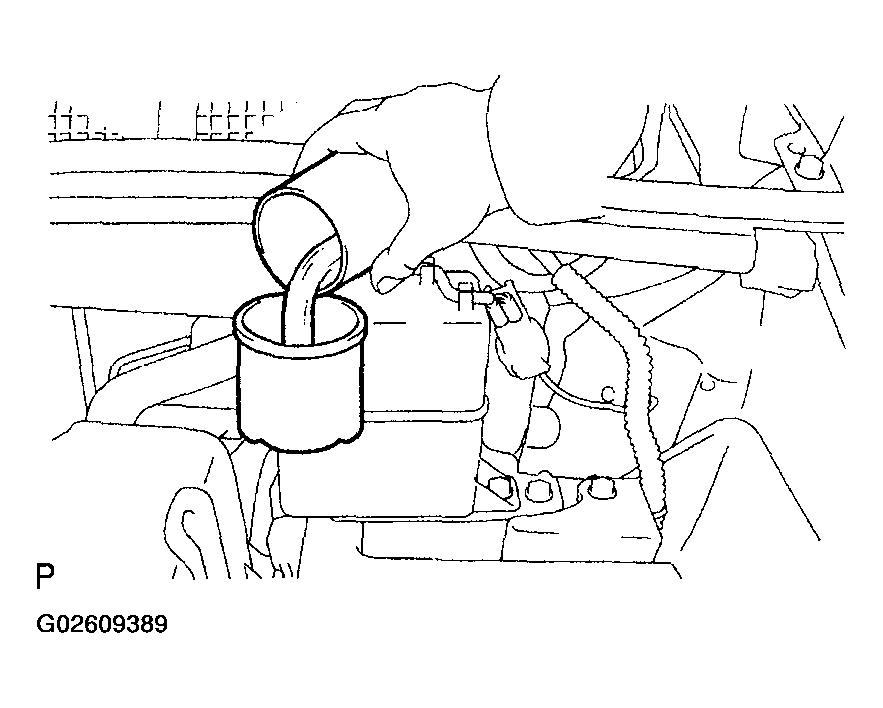

Fig 5: Checking Fluid Level In Reservoir
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL TOP PANEL SUB-ASSY OUTER FRONT (See OVERHAUL )
