Installation (LS 430)

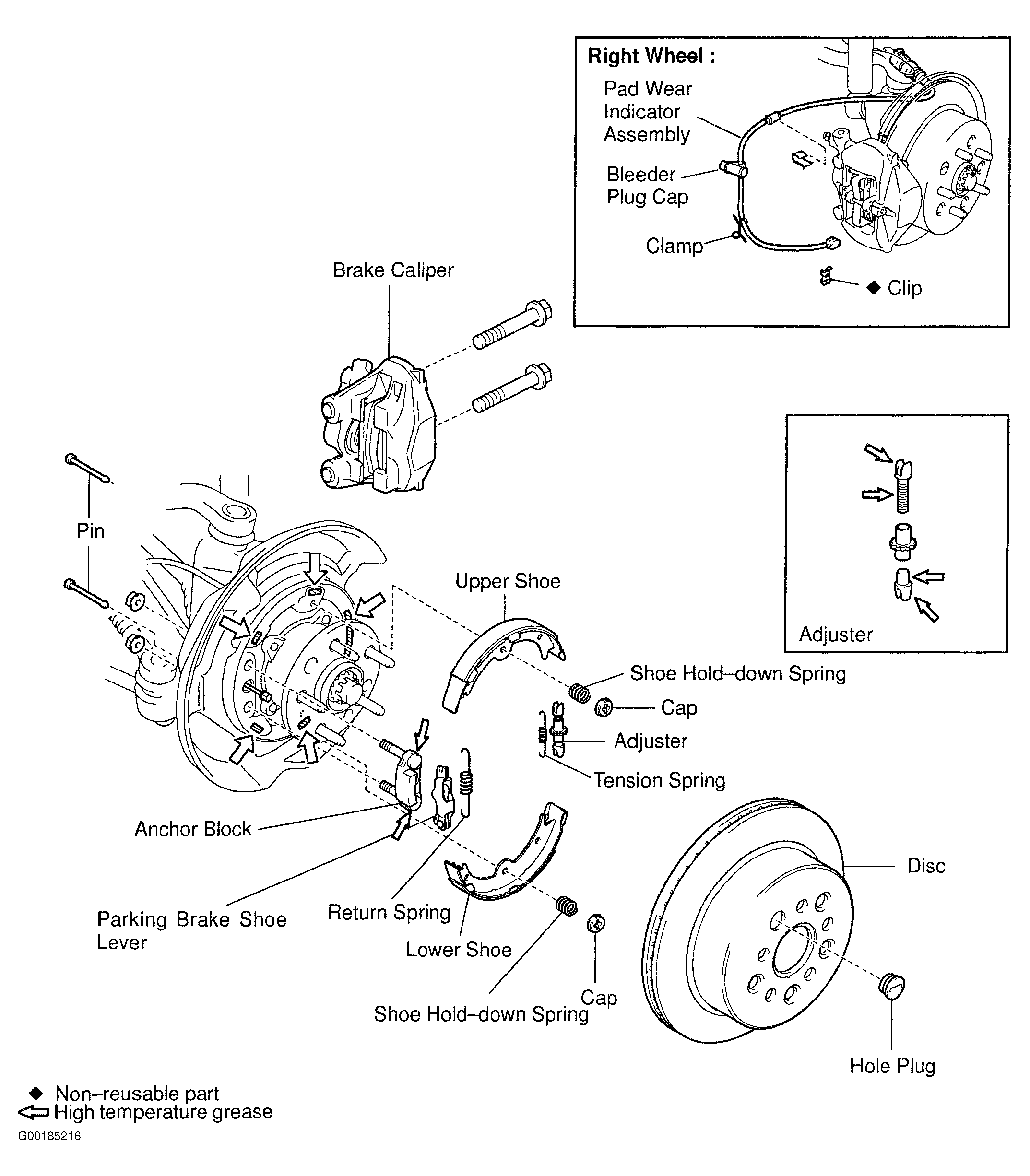

- To install, reverse removal procedure. Apply high temperature grease to anchor block, adjuster, and contact points of rear axle carrier. See Figure.
- Adjust parking brake shoe clearance. See PARKING BRAKE SHOE CLEARANCE under ADJUSTMENTS.
- Tighten anchor block nuts to specification. See TORQUE SPECIFICATIONS .
- When installing parking brake shoe lever, be careful to install correct lever for each side.
- Seat parking brake shoes and disc. See SEATING PARKING BRAKE SHOES AND DISC under ADJUSTMENTS.
- Adjust parking brake pedal. See PARKING BRAKE under ADJUSTMENTS.
PARKING BRAKE SPECIFICATIONS
| Application | In. (mm) | ||
|---|---|---|---|
| ES 300 & RX 300 | |||
| Brake Shoe Thickness | |||
| Standard | .079 (2.0) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 6.69 (170) | ||
| Maximum | 6.73 (171) | ||
| GS 300 & GS 430 | |||
| Brake Shoe Thickness | |||
| Standard | .098 (2.5) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 7.48 (190) | ||
| Maximum | 7.52 (191) | ||
| Parking Brake Shoe & Lever Clearance | |||
| Standard | .0138 (.35) | ||
| IS 300 | |||
| Brake Shoe Thickness | |||
| Standard | .098 (2.5) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 7.48 (190) | ||
| Minimum | 7.52 (191) | ||
| LS 430 | |||
| Brake Shoe Thickness | |||
| Standard | .138 (3.5) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 7.48 (190) | ||
| Maximum | 7.52 (191) | ||
| LX 470 | |||
| Brake Shoe Thickness | |||
| Standard | .157 (4.0) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 9.06 (230) | ||
| Maximum | 9.09 (231) | ||
| SC 430 | |||
| Brake Shoe Thickness | |||
| Standard | .098 (2.5) | ||
| Minimum | .039 (1.0) | ||
| Brake Drum Inside Diameter | |||
| Standard | 7.48 (190) | ||
| Maximum | 7.52 (191) | ||
